BC 1600 (UT-15198) - Homelite Brush Cutter Ignition - Rotor - Starter - Clutch Parts Diagram

Brush Cutter

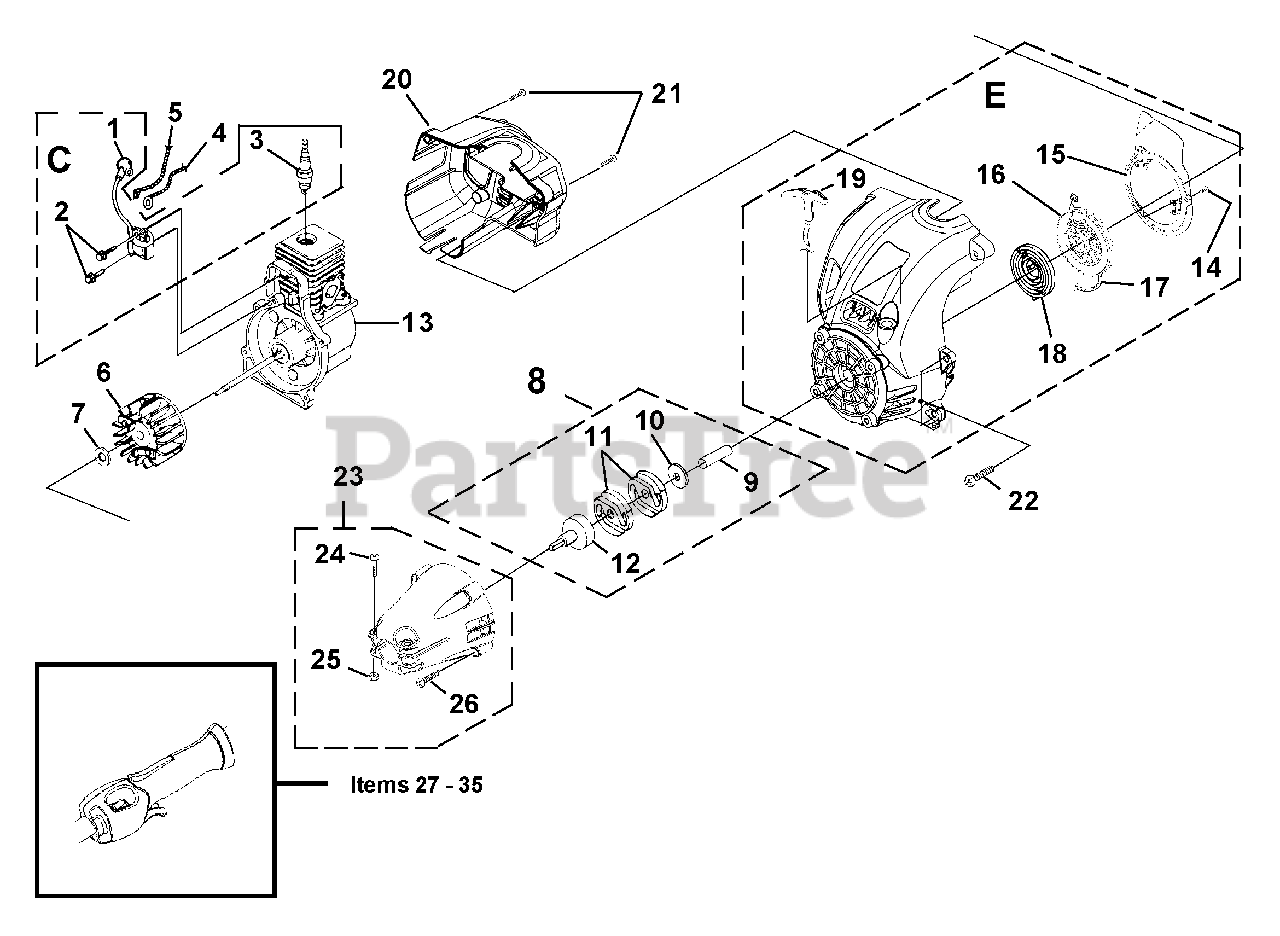

Ignition - Rotor - Starter - Clutch Parts Diagram

  • Title

C

Homelite 983929001

IGNITION KIT

Note: Includes Items 1-3

$

$

Not available

1

Homelite PS02762

IGNITION MODULE
(Superseded to 850080001)

$18.99

$

Usually ships in 3-7 days

0

2

Homelite 82540

SCREW-Taptite (8-32 X 1")

$1.49

$

Usually ships in 3-7 days

0

3

Homelite PS02227

SPARK PLUG
(Superseded to 870174001)

$4.99

$

In Stock, Qty 20+

0

4

Homelite A06964

LEAD-Electrical

$

$

Not available

5

Homelite A06963

LEAD-Electrical

$2.49

$

Usually ships in 3-7 days

0

6

Homelite 984521001

ROTOR KIT
(Superseded to 300952002)

$13.99

$

Usually ships in 3-7 days

0

7

Homelite PS84065

WASHER-Flat

$

$

Not available

8

Homelite UP00034A

CLUTCH AND DRUM KIT

Note: Includes Items 8-12

$

$

Not available

9

Homelite PS04300

SPACER
(Superseded to UP04118)

$

$

Not available

10

Homelite 98929A

WASHER-Flat
(Superseded to 638090001)

$1.49

$

Usually ships in 3-7 days

0

11

Homelite 00242

CLUTCH

$

$

Not available

12

Homelite PA01613

CONNECTOR AND DRUM
(Superseded to 308177001)

$

$

Not available

13

Homelite 984546001

SHORT BLOCK (See Engine Internal)

$

$

Not available

E

Homelite UP06739A

COMPLETE STARTER ASSEMBLY

Note: Includes Items E-19

$

$

Not available

14

Homelite 82543

SCREW-Thread Form (8-16 X 1/2")

$

$

Not available

15

Homelite PS01123

BAFFLE-Air

$

$

Not available

16

Homelite PS01122

PULLEY-Starter

$1.99

$

In Stock, only 3 left!

0

17

Homelite 9789902

ROPE-Starter (42")
(Superseded to 900849002)

$1.49

$

In Stock, Qty 6

0

18

Homelite A98773A

SPRING & CONTAINER
(Superseded to 638033001)

$3.49

$

In Stock, only 3 left!

0

19

Homelite PS03480

GRIP-Starter
(Superseded to PS06114)

$

$

Not available

20

Homelite UP06920A

HOUSING-Rear Kit

Note: Includes Items 20-22

$

$

Not available

21

Homelite 82537

SCREW-Plastite (10-14 X 7/8")

$1.99

$

Usually ships in 3-7 days

0

22

Homelite 82538

SCREW-Taptite (10-24 X 3/4")

$1.49

$

Usually ships in 3-7 days

0

23

Homelite UP06922A

ADAPTOR

Note: Includes Items 23-26

$

$

Not available

24

Homelite 82556

SCREW-Torx Hd. (10-24 x 1.25")

$1.49

$

Usually ships in 3-7 days

0

25

Homelite 07589

NUT-Flange

$1.49

$

In Stock, only 1 left!

0

26

Homelite 82563

SCREW-Torx Hd. (10-14 x 3/4")

$1.49

$

In Stock, Qty 6

0

27

Homelite UP06947A

CONTROL HANDLE ASSY.

Note: Includes Items 27-35

$

$

Not available

28

Homelite PS04077

TRIGGER-Throttle

$

$

Not available

29

Homelite PS04227

SPRING-Extension

$

$

Not available

30

Homelite 83024

WASHER-Lock (#6)

$

$

Not available

31

Homelite PS04075

THROTTLE LOCKOUT

$

$

Not available

32

Homelite PS04076

CABLE ARM

$

$

Not available

32

Homelite PS02764

SWITCH

$

$

Not available

33

Homelite 82536

SCREW-Thread Form (8-16 x 3/4")

$

$

Not available

34

Homelite PS04162

CABLE-Throttle

$

$

Not available

35

Homelite PA00387

LEAD-Electrical

$4.49

$

Usually ships in 3-7 days

0
