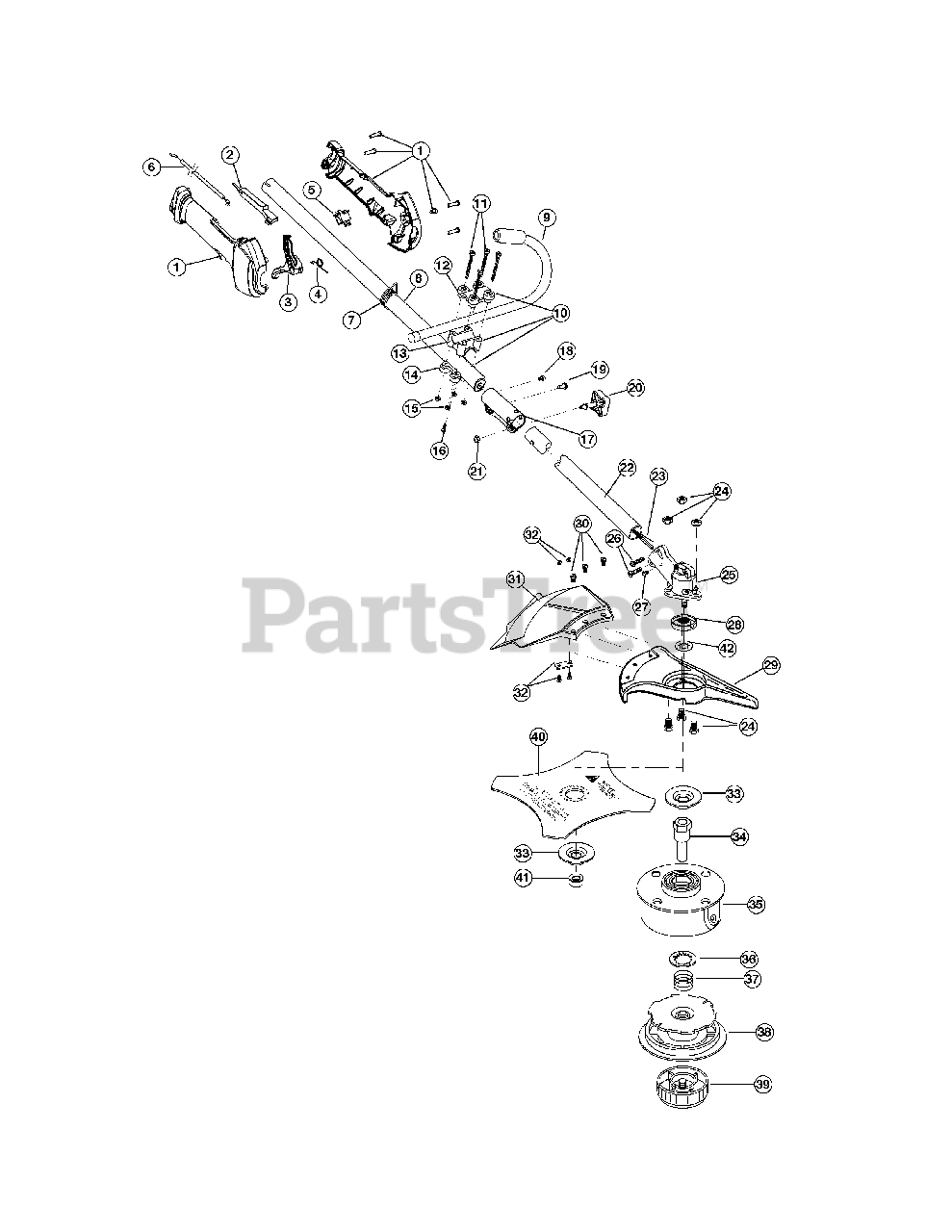

BC 2090 (41BDC90C912) - Cub Cadet Brush Cutter (2011) General Assembly Parts Diagram

Brush Cutter

General Assembly Parts Diagram

  • Title

1

Cub Cadet 753-05192

Throttle Housing Assembly

Note: (Incl Ref No. 2-4)

$36.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 731-04971C-10

Throttle Trigger Lock-Out
(Superseded to 731-04971B-10)

$5.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 731-04970A-2

Throttle Trigger
(Superseded to 731-04970B-10)

$9.49

$

In Stock, Qty 10

0

4

Cub Cadet 753-05007

Throttle Trigger Spring

$5.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 791-182405

Switch Assembly

$10.99

$

In Stock, Qty 20+

0

6

Cub Cadet 753-05172

Throttle Cable
(Superseded to 946-04262A)

$

$

Not available

7

Cub Cadet 791-610327

Harness Clip

$32.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 753-06558

Upper Drive Shaft Housing Assembly

$

$

Not available

9

Cub Cadet 791-181099

J-Handle Assembly

$

$

Not available

10

Cub Cadet 791-683295

Handle Bracket Assembly

Note: (Incl Ref No. 11-16)

$45.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 791-181811

Screw

$4.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 791-181812

Upper Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 791-181813

Middle Handle Clamp

$12.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 791-181814

Lower Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 791-181815

Nut

$4.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 753-06585

Split Boom Coupler

Note: (Incl Ref No. 18-21)

$9.49

$

In Stock, Qty 8

0

18

Cub Cadet 791-182057

Screw

$4.49

$

In Stock, Qty 14

0

19

Cub Cadet 791-181617

Bolt

$5.49

$

In Stock, Qty 13

0

20

Cub Cadet 791-181618B

Adjustment Knob
(Superseded to 791-181981)

$7.49

$

In Stock, only 1 left!

0

21

Cub Cadet 712-04018A

Knob Retaining Nut

$4.49

$

In Stock, Qty 6

0

22

Cub Cadet 753-06557

Lower Drive Shaft Housing Assembly

$22.99

$

In Stock, only 3 left!

0

23

Cub Cadet 791-613300

Lower Flexible Drive Shaft

$88.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 791-182200

Shield Mount Screw Assembly

$6.99

$

In Stock, only 2 left!

0

25

Cub Cadet 791-182193

2 piece Gearbox Assembly

Note: (Incl Ref No. 26-28)

$99.99

$

In Stock, only 2 left!

0

26

Cub Cadet 791-182195

Gearbox Mounting Hardware

$7.49

$

In Stock, Qty 13

0

27

Cub Cadet 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 791-182196

Blade Driver

$22.99

$

In Stock, only 3 left!

0

29

Cub Cadet 791-147492

Blade Shield/Shield Mount

$126.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 791-683304

Shield Mounting Screw

$11.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 753-1191

Shield and Blade Assembly

Note: (Incl Ref No. 32)

$64.99

$

In Stock, only 2 left!

0

32

Cub Cadet 791-682061

Blade Assembly

$14.99

$

In Stock, Qty 5

0

33

Cub Cadet 791-147490

Retaining Washer

$11.99

$

In Stock, Qty 7

0

34

Cub Cadet 791-612483

Spool Shaft

$55.99

$

In Stock, only 1 left!

0

35

Cub Cadet 791-683301

Outer Spool Assembly

Note: (Incl Ref No. 36)

$48.99

$

In Stock, Qty 9

0

36

Cub Cadet 791-612026

Retainer
(Superseded to 1772)

$6.99

$

In Stock, Qty 17

0

37

Cub Cadet 791-610636B

Spring

$10.99

$

In Stock, Qty 20+

0

38

Cub Cadet 791-147495

Inner Reel

$26.99

$

In Stock, Qty 14

0

39

Cub Cadet 791-180814B

Bump Head Knob Assembly

$21.99

$

In Stock, Qty 20+

0

40

Cub Cadet 791-145873B

4-Tooth Blade

$42.99

$

In Stock, Qty 9

0

41

Cub Cadet 712-04105

Nut

$10.99

$

In Stock, only 3 left!

0

42

Cub Cadet 753-04348

Palnut

$6.99

$

In Stock, only 1 left!

0

Cub Cadet 791-180014B

Blade Retaining Kit

Note: (Incl Ref No. 33 & 41) Not shown

$12.99

$

In Stock, only 1 left!

0

Cub Cadet 791-613226

Locking Rod Tool

Note: Not shown

$14.99

$

Usually ships in 3-6 days

0

Cub Cadet 791-682075B

Shoulder Harness

Note: Not shown

$38.99

$

Usually ships in 3-6 days

0

Cub Cadet 753-04216

Replacement Line, 0.105 Diameter

Note: Not shown

$

$

Not available

Cub Cadet 753-1161

Bump Head Assembly
(Superseded to 791-147498)

Note: Not shown

$117.99

$

In Stock, only 2 left!

0

Cub Cadet 753-1224

Reel and Line Assembly

Note: Not shown

$32.99

$

In Stock, only 2 left!

0
