BC 2126 - Jonsered Brushcutter (2009-09) ENGINE Parts Diagram

Brushcutter

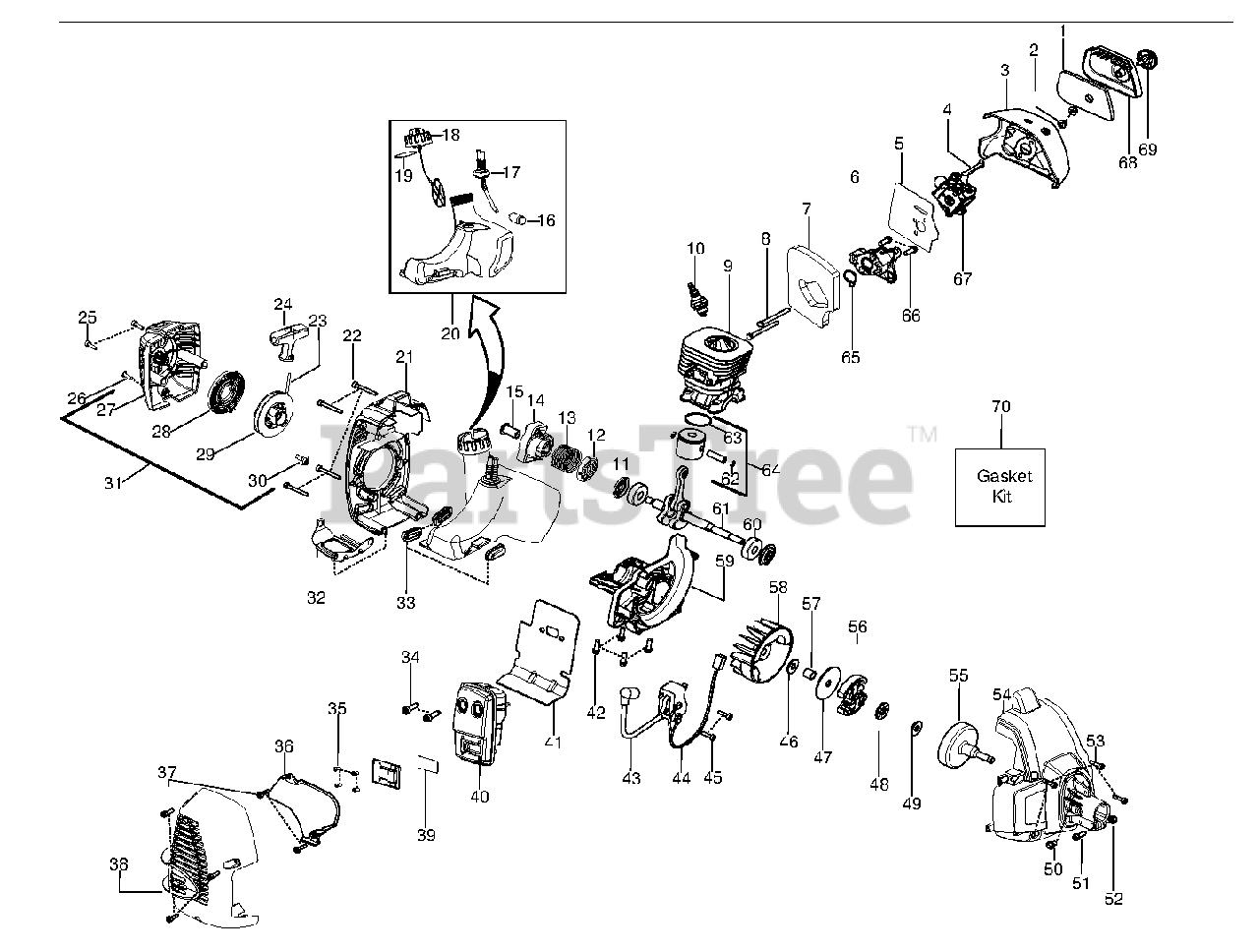

ENGINE Parts Diagram

  • Title

1

Jonsered 530150253

FILTER AIRBOX

$3.99

$

In Stock, Qty 20+

0

2

Jonsered 530016101

NUT

$6.49

$

In Stock, Qty 8

0

3

Jonsered 545071701

AIR BOX

$10.99

$

Usually ships in 3-10 days

0

4

Jonsered 530057844

CHOKE LEVER

$8.99

$

In Stock, only 2 left!

0

5

Jonsered 545050402

KIT GASKET CARB

Note: . 7 65

$18.99

$

In Stock, Qty 10

0

6

Jonsered 530035596

CARB ADAPTOR

$12.99

$

In Stock, only 2 left!

0

7

Jonsered 545008084

KIT GASKET 28CC

$26.99

$

In Stock, Qty 5

0

8

Jonsered 530016400

BOLT CARB ADAPTOR

$6.49

$

In Stock, only 4 left!

0

9

Jonsered 545001001

CYLINDER
(Superseded to 545003378)

$34.99

$

In Stock, Qty 10

0

10

Jonsered 952030201

No Description Available
(Superseded to 952030150)

Note: RCJ-8Y

$3.49

$

In Stock, Qty 20+

0

11

Jonsered 545050403

KIT SEAL CRANKSHAFT

$9.99

$

In Stock, Qty 5

0

12

Jonsered 530016475

WASHER STARTER

$7.49

$

In Stock, Qty 11

0

13

Jonsered 545160301

SPRING STARTER CUP

$5.99

$

In Stock, Qty 10

0

14

Jonsered 545102303

ASSY STARTER CUP

$17.99

$

In Stock, Qty 20+

0

15

Jonsered 530059800

COUPLING STARTER
(Superseded to 545180844)

$37.99

$

In Stock, Qty 5

0

16

Jonsered 530095646

FUEL PICK-UP ASSY

$4.99

$

In Stock, Qty 20+

0

17

Jonsered 545081897

KIT FUEL LINE

$18.99

$

In Stock, Qty 20+

0

18

Jonsered 545073101

ASSY - FUEL CAP W/RETAINER

Note: . 19

$18.99

$

Usually ships in 3-10 days

0

19

Jonsered 545008084

KIT GASKET 28CC

$26.99

$

In Stock, Qty 5

0

20

Jonsered 545105107

FUEL TANK ASSY

Note: . 16-19

$

$

Not available

21

Jonsered 545065201

SHROUD REAR

$14.99

$

Usually ships in 3-10 days

0

22

Jonsered 530016448

SCREW

$6.49

$

In Stock, Qty 20+

0

23

Jonsered 545029901

KIT ROPE

$14.99

$

In Stock, only 2 left!

0

24

Jonsered 545043201

No Description Available

$

$

Not available

25

Jonsered 530016426

SCREW M5-0.8X30MM

$6.49

$

In Stock, Qty 20+

0

26

Jonsered 530016449

SCREW M4 X 1.75 PT 16MM

$6.49

$

In Stock, Qty 20+

0

27

Jonsered 545104401

No Description Available

$

$

Not available

28

Jonsered 545029801

%KIT STARTER SPRING
(Superseded to 545008015)

$6.49

$

In Stock, Qty 17

0

29

Jonsered 545029701

KIT STARTER PULLEY

$18.99

$

In Stock, Qty 10

0

30

Jonsered 530016468

SCREW

$6.49

$

In Stock, Qty 7

0

31

Jonsered 545102701

No Description Available

Note: . 23 24 27-30

$

$

Not available

32

Jonsered 545071601

PLATE WEAR

$8.99

$

Usually ships in 3-10 days

0

33

Jonsered 530059780

ISOLATOR FUEL TANK

$6.49

$

Usually ships in 3-10 days

0

34

Jonsered 530058982

BOLT MUFFLER

$4.99

$

In Stock, Qty 12

0

35

Jonsered 530015496

SCREW-10-16 X 1/2 HI-LO

$3.99

$

Usually ships in 3-10 days

0

36

Jonsered 530150440

SHIELD HEAT

$8.99

$

In Stock, only 1 left!

0

37

Jonsered 530016449

SCREW M4 X 1.75 PT 16MM

$6.49

$

In Stock, Qty 20+

0

38

Jonsered 545065401

No Description Available
(Superseded to 576215101)

$8.99

$

Usually ships in 3-10 days

0

39

Jonsered 545030501

KIT SPARK ARRESTOR SCREEN

Note: . 35

$8.99

$

In Stock, only 3 left!

0

40

Jonsered 545057501

ASSY-MUFFLER
(Superseded to 574031502)

$40.99

$

In Stock, only 1 left!

0

41

Jonsered 545008084

KIT GASKET 28CC

$26.99

$

In Stock, Qty 5

0

42

Jonsered 530015897

B0LT, C/SHAFT 36/41

$6.49

$

In Stock, Qty 19

0

43

Jonsered 545046702

IGNITION MODULE

$53.99

$

Usually ships in 3-10 days

0

44

Jonsered 530039227

ASSY MODULE LEAD WIRE

$8.99

$

In Stock, Qty 8

0

45

Jonsered 530016456

SCREW M4 X .70 TT 16MM

$6.49

$

In Stock, only 2 left!

0

46

Jonsered 530016463

WASHER CLUTCH

$4.99

$

In Stock, only 4 left!

0

47

Jonsered 530094189

WASHER-CLUTCH

$6.49

$

In Stock, only 1 left!

0

48

Jonsered 545173401

BEARING THRUST

$9.49

$

In Stock, only 2 left!

0

49

Jonsered 530016420

WASHER THRUST

$6.49

$

In Stock, Qty 12

0

50

Jonsered 530016469

SCREW

$

$

Not available

51

Jonsered 530016470

SCREW

$

$

Not available

52

Jonsered 530403094

NUT HEX LOCK 10-24

$3.99

$

Usually ships in 3-10 days

0

53

Jonsered 530016456

SCREW M4 X .70 TT 16MM

$6.49

$

In Stock, only 2 left!

0

54

Jonsered 545072901

No Description Available

$18.99

$

Usually ships in 3-10 days

0

55

Jonsered 530150039

ASSY-CLUTCH DRUM
(Superseded to 587126401)

Note: 06273N AND LOWER SEE SERVICE REFERENCE

$9.99

$

In Stock, Qty 11

0

56

Jonsered 545050405

%KIT CLUTCH ASSY
(Superseded to 525472901)

$12.99

$

In Stock, only 1 left!

0

57

Jonsered 530057852

SPACER FLYWHEEL

$4.99

$

Usually ships in 3-10 days

0

58

Jonsered 530039242

FLYWHEEL

$44.99

$

In Stock, only 1 left!

0

59

Jonsered 545054601

CRANKCASE CASTING

$27.99

$

Usually ships in 3-10 days

0

60

Jonsered 545013401

BEARING RADIAL BALL (6201)

$10.99

$

In Stock, Qty 5

0

61

Jonsered 545030001

KIT CRANKSHAFT ASSY

$60.99

$

Usually ships in 3-10 days

0

62

Jonsered 530015162

WRIST PIN RET.

$6.49

$

Usually ships in 3-10 days

0

63

Jonsered 530019283

RING PISTON
(Superseded to 575227901)

$7.49

$

In Stock, Qty 17

0

64

Jonsered 545030301

KIT PISTON 28CC TRIMMER

Note: . 62 63

$60.99

$

Usually ships in 3-10 days

0

65

Jonsered 545008084

KIT GASKET 28CC

$26.99

$

In Stock, Qty 5

0

66

Jonsered 530015897

B0LT, C/SHAFT 36/41

$6.49

$

In Stock, Qty 19

0

67

Jonsered 545081848

KIT CARB

Note: 07333N AND LOWER SEE SERVICE REFERENCE. 4 5

$44.99

$

In Stock, Qty 20+

0

68

Jonsered 545071901

COVER AIR BOX

$9.99

$

Usually ships in 3-10 days

0

69

Jonsered 545072201

ASSY - AIR BOX KNOB

$6.49

$

In Stock, Qty 5

0

70

Jonsered 545008084

KIT GASKET 28CC

Note: . 5 7 11 19 41 65

$26.99

$

In Stock, Qty 5

0
