BC 2128 (952711959) - Jonsered Brushcutter, Canada (2010-08) SHAFT HANDLE Parts Diagram

Brushcutter, Canada

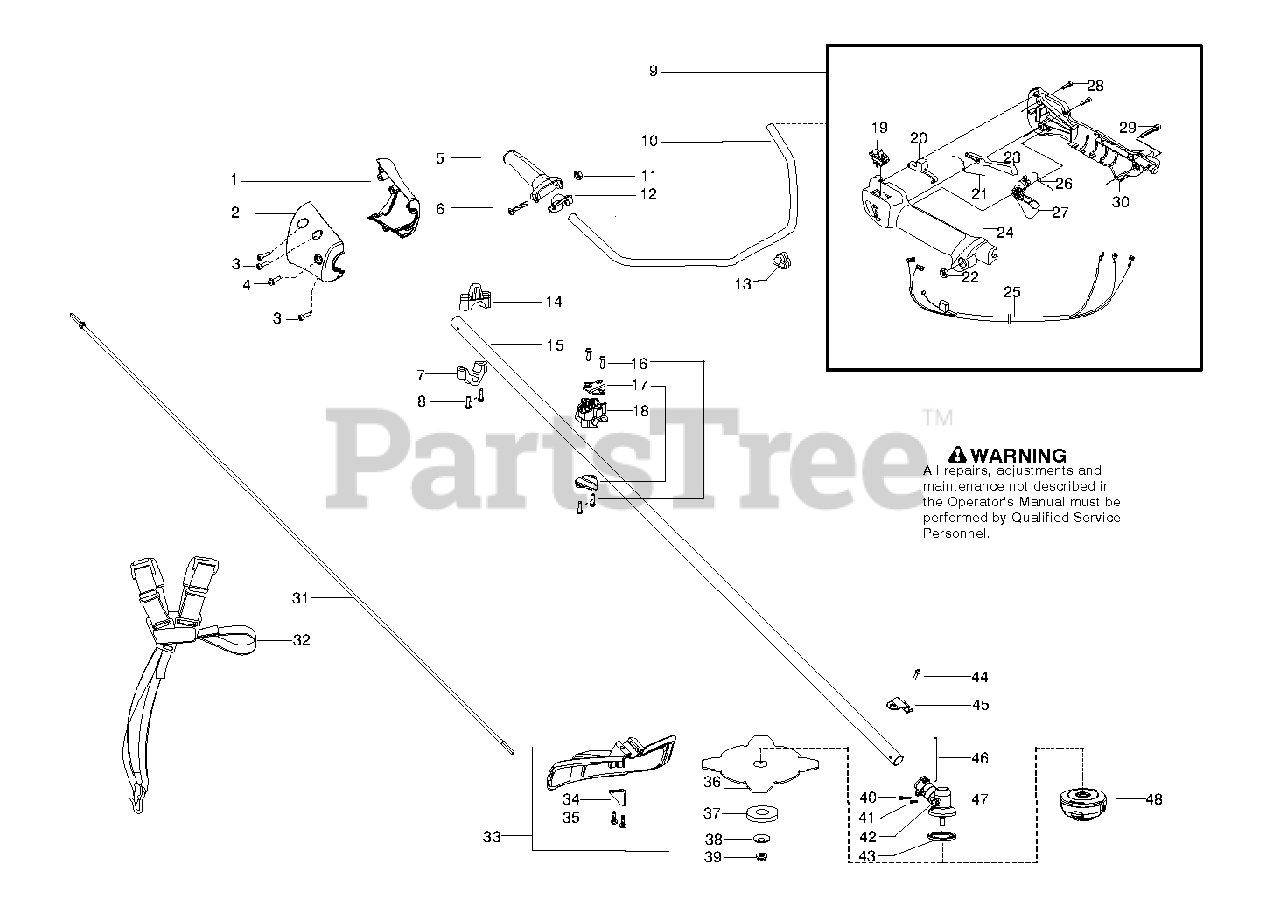

SHAFT HANDLE Parts Diagram

  • Title

1

Jonsered 574810702

No Description Available

Note: 2010-72N AND LOWER SEE SERVICE REFERENCE

$

$

Not available

2

Jonsered 574810302

No Description Available

Note: 2010-72N AND LOWER SEE SERVICE REFERENCE

$

$

Not available

3

Jonsered 530016449

SCREW M4 X 1.75 PT 16MM

Note: 2010-72N AND LOWER SEE SERVICE REFERENCE

$6.49

$

In Stock, Qty 20+

0

4

Jonsered 530015805

SCREW-10-16 X 1/2, TYPE 2
(Superseded to 530015886)

Note: 2010-72N AND LOWER SEE SERVICE REFERENCE

$6.49

$

In Stock, Qty 17

0

5

Jonsered 537172810

No Description Available

$8.99

$

Usually ships in 3-10 days

0

6

Jonsered 503200245

SCREW

$6.49

$

In Stock, only 2 left!

0

7

Jonsered 545056601

CLAMP HARNESS LOWER

Note: LOWER HARNESS CLAMP

$4.99

$

In Stock, only 4 left!

0

8

Jonsered 530015940

SCREW

$6.49

$

In Stock, Qty 9

0

9

Jonsered 545125502

No Description Available

Note: . 19-30

$48.99

$

Usually ships in 3-10 days

0

10

Jonsered 502199503

HANDLE

$48.99

$

In Stock, only 1 left!

0

11

Jonsered 731231401

NUT

$2.49

$

In Stock, Qty 20+

0

12

Jonsered 537172903

CLAMP

$3.99

$

Usually ships in 3-10 days

0

13

Jonsered 502211201

GROMMET

$7.49

$

In Stock, only 2 left!

0

14

Jonsered 545113301

CLAMP HARNESS UPPER

Note: UPPER HARNESS CLAMP

$6.49

$

In Stock, only 1 left!

0

15

Jonsered 575776301

No Description Available
(Superseded to 545081889)

Note: . 40 41 42 45 47

$84.99

$

Usually ships in 3-10 days

0

16

Jonsered 530015814

SCREW

$6.49

$

In Stock, Qty 20+

0

17

Jonsered 530058563

CLAMP BRACKET

$4.99

$

In Stock, only 1 left!

0

18

Jonsered 545058502

No Description Available

$7.49

$

Usually ships in 3-10 days

0

19

Jonsered 537419001

STOP BUTTON

$8.99

$

In Stock, Qty 20+

0

20

Jonsered 537160704

STARTER THROTTLE LOC

$

$

Not available

21

Jonsered 537174301

SPRING

$7.49

$

Usually ships in 3-10 days

0

22

Jonsered 503221013

NUT

$7.49

$

In Stock, only 1 left!

0

23

Jonsered 506495102

No Description Available

$4.99

$

Usually ships in 3-10 days

0

24

Jonsered 537160205

No Description Available

Note: LH

$15.99

$

Usually ships in 3-10 days

0

25

Jonsered 545125801

ASSY CABLE WIRE HARNESS

$26.99

$

In Stock, only 1 left!

0

26

Jonsered 537174201

SPRING

$6.49

$

In Stock, Qty 15

0

27

Jonsered 506495002

No Description Available

$4.99

$

In Stock, only 1 left!

0

28

Jonsered 503216618

SCREW

$7.49

$

In Stock, Qty 6

0

29

Jonsered 503200735

%SCREW
(Superseded to 503200782)

$6.99

$

In Stock, only 3 left!

0

30

Jonsered 537160304

No Description Available

Note: RH

$15.99

$

Usually ships in 3-10 days

0

31

Jonsered 545007507

FLEXSHAFT 57"

$34.99

$

Usually ships in 3-10 days

0

32

Jonsered 544845802

No Description Available

$

$

Not available

33

Jonsered 545081703

KIT SHIELD

Note: . 34 35 44

$24.99

$

Usually ships in 3-10 days

0

34

Jonsered 530052286

LINE CUTTER

$

$

Not available

35

Jonsered 530015814

SCREW

$6.49

$

In Stock, Qty 20+

0

36

Jonsered 504001303

BLADE GRASS
(Superseded to 596278001)

$36.99

$

Usually ships in 3-10 days

0

37

Jonsered 503890101

SUPPORTING CUP

$26.99

$

Usually ships in 3-10 days

0

38

Jonsered 537285601

SUPPORT FLANGE

$15.99

$

In Stock, Qty 5

0

39

Jonsered 503856301

GEARHEAD NUT - BRUSHCUTTER

$7.49

$

In Stock, Qty 11

0

40

Jonsered 530016014

SCREW - CARB. ADAPTOR

$6.49

$

In Stock, only 3 left!

0

41

Jonsered 545003902

SCREW

$4.99

$

In Stock, Qty 7

0

42

Jonsered 575724601

PLUG

$4.99

$

In Stock, only 2 left!

0

43

Jonsered 537234901

DRIVE DISC

$40.99

$

In Stock, Qty 5

0

44

Jonsered 530015771

SCREW 1/4-20 X 7/8 (TAP

$6.49

$

In Stock, Qty 6

0

45

Jonsered 530057554

BRACKET SHIELD STRAIGHT SHAFT

$6.49

$

In Stock, Qty 11

0

46

Jonsered 502285901

LOCKING PIN

Note: LOCKING PIN

$8.99

$

In Stock, only 2 left!

0

47

Jonsered 530096295

ASSY GEARBOX

$80.99

$

In Stock, Qty 10

0

48

Jonsered 537338306

T25 TRIM HEAD 10MM LH
(Superseded to 537338310)

Note: T25

$30.99

$

In Stock, Qty 20+

0
