BC 2200 LDC - RedMax Brushcutter (1996-06) 016 - TRIMMER UNIT Parts Diagram

Brushcutter

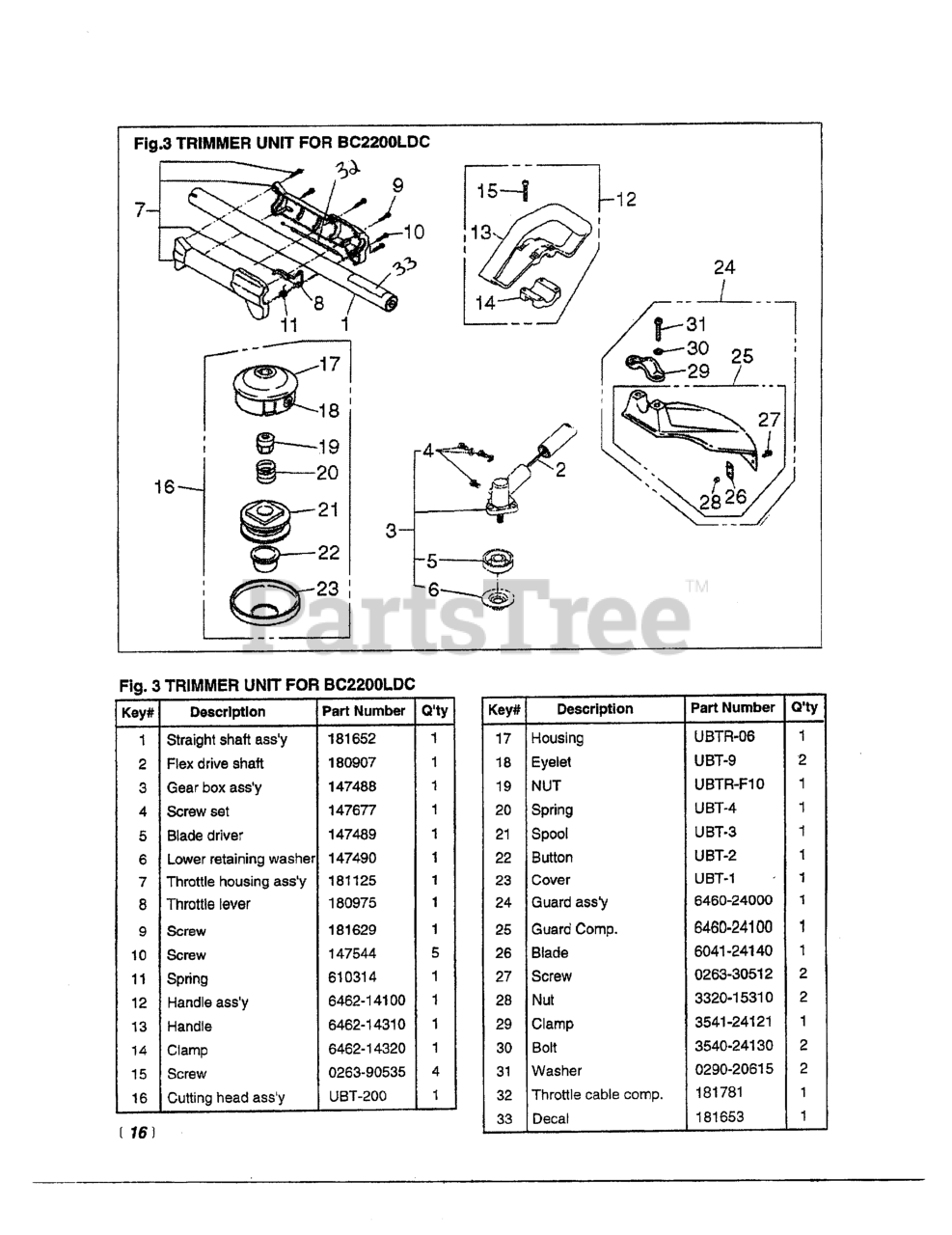

016 - TRIMMER UNIT Parts Diagram

  • Title

1

RedMax 181652

DRIVE SHAFT HSG ASSY (SS)

$42.81

$

Usually ships in 3-10 days

0

2

RedMax 180907

SHAFT, FLEX (RLPS. 181773)
(Superseded to 574048701)

$

$

Not available

3

RedMax 147488

GEARCASE ASSEMBLY
(Superseded to 574060101)

$

$

Not available

4

RedMax 147677

HARDWARE, MOUNTING

$7.99

$

Usually ships in 3-10 days

0

5

RedMax 147489

HOLDER (U), BLADE DRIVER
(Superseded to 574045601)

$

$

Not available

6

RedMax 147490

HOLDER (L) (RPLS 613222)

$5.00

$

Usually ships in 3-10 days

0

7

RedMax 181125

180277
(Superseded to 574047201)

$

$

Not available

8

RedMax 180975

LEVER, THROTTLE
(Superseded to 574049001)

$

$

Not available

9

RedMax 181629

SCREW, 8-32 X .437
(Superseded to 917181629)

$7.99

$

Usually ships in 3-10 days

0

10

RedMax 147544

181501

$

$

Not available

11

RedMax 610314

SPRING, THROTTLE TRIGGER
(Superseded to 574065001)

$

$

Not available

12

RedMax 646214100

HANDLE ASSEMBLY
(Superseded to 521473001)

$34.99

$

Usually ships in 3-10 days

0

13

RedMax 646214310

HANDLE
(Superseded to 515642801)

$24.99

$

Usually ships in 3-10 days

0

14

RedMax 646214320

CLAMP
(Superseded to 521473201)

$6.49

$

Usually ships in 3-10 days

0

15

RedMax 026390535

SCREW, M5 x 35
(Superseded to 516113601)

$

$

Not available

16

RedMax UBT200

CUTTING HEAD ASSY
(Superseded to 537338306)

$30.99

$

In Stock, Qty 20+

0

17

RedMax UBTR06

HOUSING (ROUND) (NLA)

Note: Context Note: @ÿ

$

$

Not available

18

RedMax UBT9

EYELET

$

$

Not available

19

RedMax UBTRF10

BOLT (10MM ROUND FEMALE)

$

$

Not available

20

RedMax UBT4

SPRING

$

$

Not available

21

RedMax UBT3

SPOOL

$

$

Not available

22

RedMax UBT2

BUTTON

$

$

Not available

23

RedMax UBT1

COVER

$

$

Not available

24

RedMax 646024000

GUARD ASSEMBLY

$

$

Not available

25

RedMax 646024100

6460-24000

$

$

Not available

26

RedMax 604124140

BLADE
(Superseded to 521404201)

$

$

Not available

27

RedMax 026330512

SCREW, M5 x 12
(Superseded to 510478301)

$3.99

$

Usually ships in 3-10 days

0

28

RedMax 332015310

NUT
(Superseded to 521000601)

$4.99

$

In Stock, Qty 7

0

29

RedMax 354124121

CLAMP
(Superseded to 514368601)

$6.49

$

Usually ships in 3-10 days

0

30

RedMax 354024130

BOLT, M6 x 1.30
(Superseded to 521176001)

$4.99

$

In Stock, only 2 left!

0

31

RedMax 029020615

WASHER, M6 X 15

$0.17

$

Usually ships in 3-10 days

0

32

RedMax 650282100

CABLE COMP (RPLS 6460- )
(Superseded to 574087701)

$

$

Not available

33

RedMax 181653

LABEL, BC2200LDC

$1.80

$

Usually ships in 3-10 days

0
