BC 2255 - Jonsered Brushcutter (2007-08) CLUTCH Parts Diagram

Brushcutter

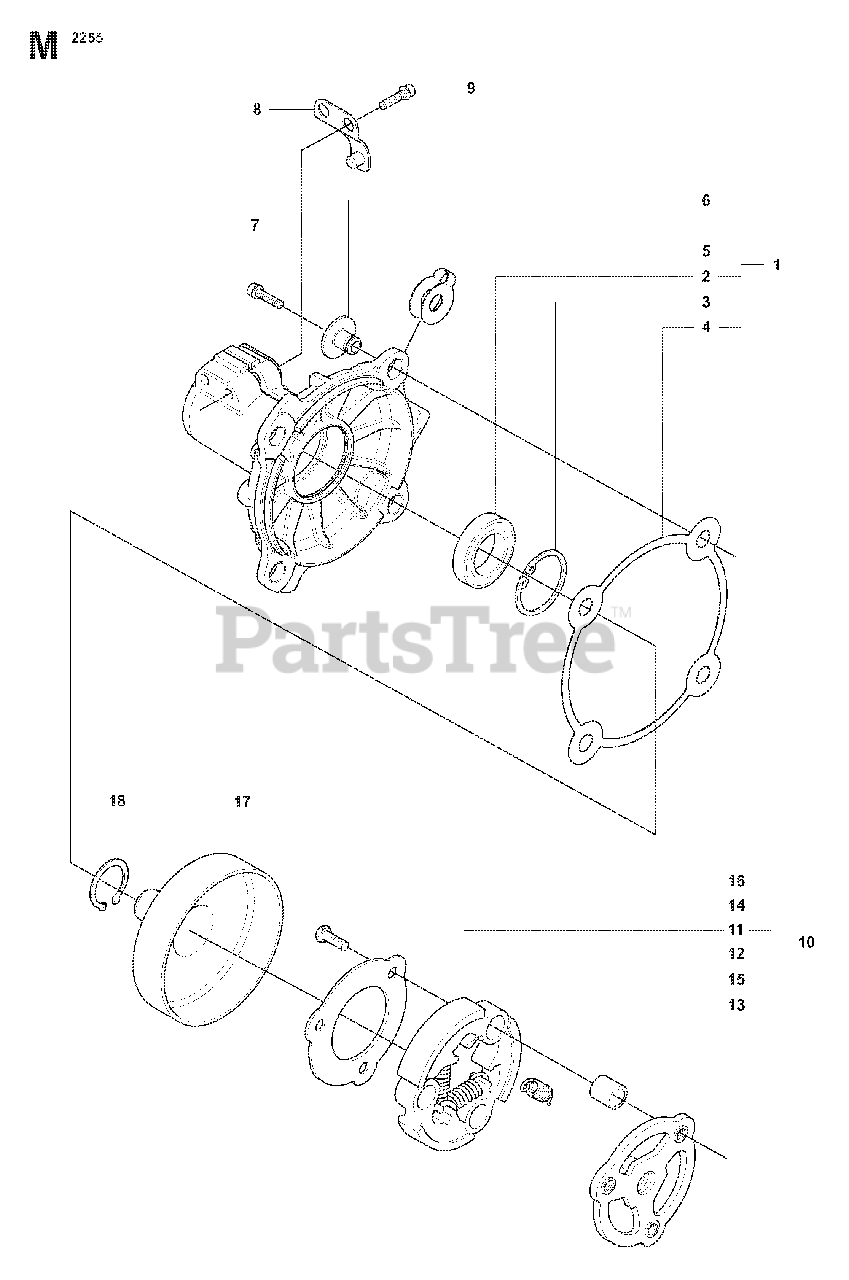

CLUTCH Parts Diagram

  • Title

2

Jonsered 738220219

BALL BEARING 6202-2RS1

$37.99

$

Usually ships in 3-10 days

0

3

Jonsered 735313310

RETAINING RING SGH 35

$5.99

$

Usually ships in 3-10 days

0

4

Jonsered 544908101

WASHER

$

$

Not available

5

Jonsered 544093601

SPRING PLATE

$

$

Not available

6

Jonsered 544093501

SPACING SLEEVE
(Superseded to 544093502)

$

$

Not available

7

Jonsered 503200778

SCREW

$5.99

$

In Stock, only 3 left!

0

8

Jonsered 544294801

LOCKING PLATE

$14.99

$

Usually ships in 3-10 days

0

9

Jonsered 725537265

SCREW

$4.99

$

Usually ships in 3-10 days

0

10

Jonsered 537404001

RP CLUTCH ASSY
(Superseded to 537404002)

$69.99

$

In Stock, only 2 left!

0

11

Jonsered 537403701

CLUTCH SHOE

$20.99

$

Usually ships in 3-10 days

0

12

Jonsered 503953801

%SPRING
(Superseded to 505435301)

$

$

Not available

13

Jonsered 537403601

CLUTCH HUB

$31.99

$

Usually ships in 3-10 days

0

14

Jonsered 544892801

WASHER

$

$

Not available

15

Jonsered 537135401

BUSHING

$10.99

$

Usually ships in 3-10 days

0

16

Jonsered 503201802

SCREW

$5.99

$

In Stock, only 1 left!

0

17

Jonsered 537321801

RP CLUTCH DRUM ASSY
(Superseded to 575861601)

$

$

Not available

18

Jonsered 735311700

RETAINING RING SGA 15

$5.99

$

In Stock, Qty 12

0
