BC 2255 - Jonsered Brushcutter (2011-01) SUSPENSION Parts Diagram

Brushcutter

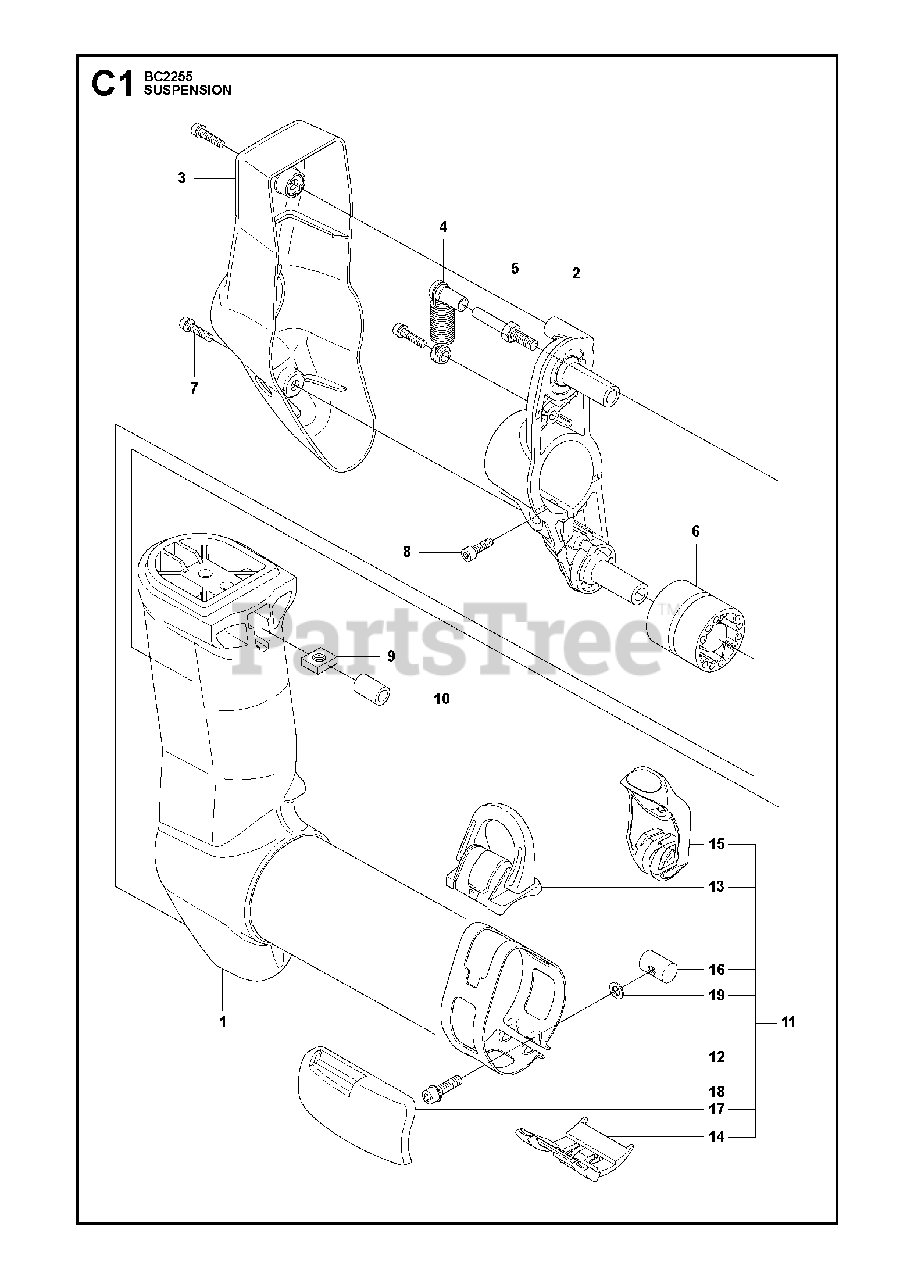

SUSPENSION Parts Diagram

  • Title

1

Jonsered 544401602

No Description Available

$

$

Not available

2

Jonsered 544378301

RETAINER

$21.99

$

Usually ships in 3-10 days

0

3

Jonsered 544378502

No Description Available

$16.14

$

Usually ships in 3-10 days

0

4

Jonsered 506068801

SPRING

$6.99

$

Usually ships in 3-10 days

0

5

Jonsered 544367701

PARALLEL PIN

$6.99

$

Usually ships in 3-10 days

0

6

Jonsered 544230901

ANTIVIBE ELEMENT

$13.99

$

Usually ships in 3-10 days

0

7

Jonsered 503200774

SCREW IHSCFM

$6.49

$

In Stock, only 2 left!

0

8

Jonsered 725537265

SCREW

$4.99

$

Usually ships in 3-10 days

0

9

Jonsered 502197101

NUT

$8.99

$

Usually ships in 3-10 days

0

10

Jonsered 503857302

PLUG

$7.99

$

Usually ships in 3-10 days

0

11

Jonsered 504023802

No Description Available

Note: Incl Pos 12-19

$37.99

$

Usually ships in 3-10 days

0

12

Jonsered 537395701

BAND

Note: . 11

$9.49

$

Usually ships in 3-10 days

0

13

Jonsered 537201803

LOOP

Note: . 11

$9.49

$

Usually ships in 3-10 days

0

14

Jonsered 537427402

No Description Available

Note: . 11

$

$

Not available

15

Jonsered 537427002

No Description Available

Note: . 11

$4.99

$

Usually ships in 3-10 days

0

16

Jonsered 537427301

NUT

Note: . 11

$

$

Not available

17

Jonsered 544250702

No Description Available

Note: . 11

$7.99

$

Usually ships in 3-10 days

0

18

Jonsered 503200725

SCREW

Note: . 11

$4.99

$

In Stock, Qty 11

0

19

Jonsered 503230011

WASHER 5.3X12

Note: . 11

$6.49

$

In Stock, only 3 left!

0
