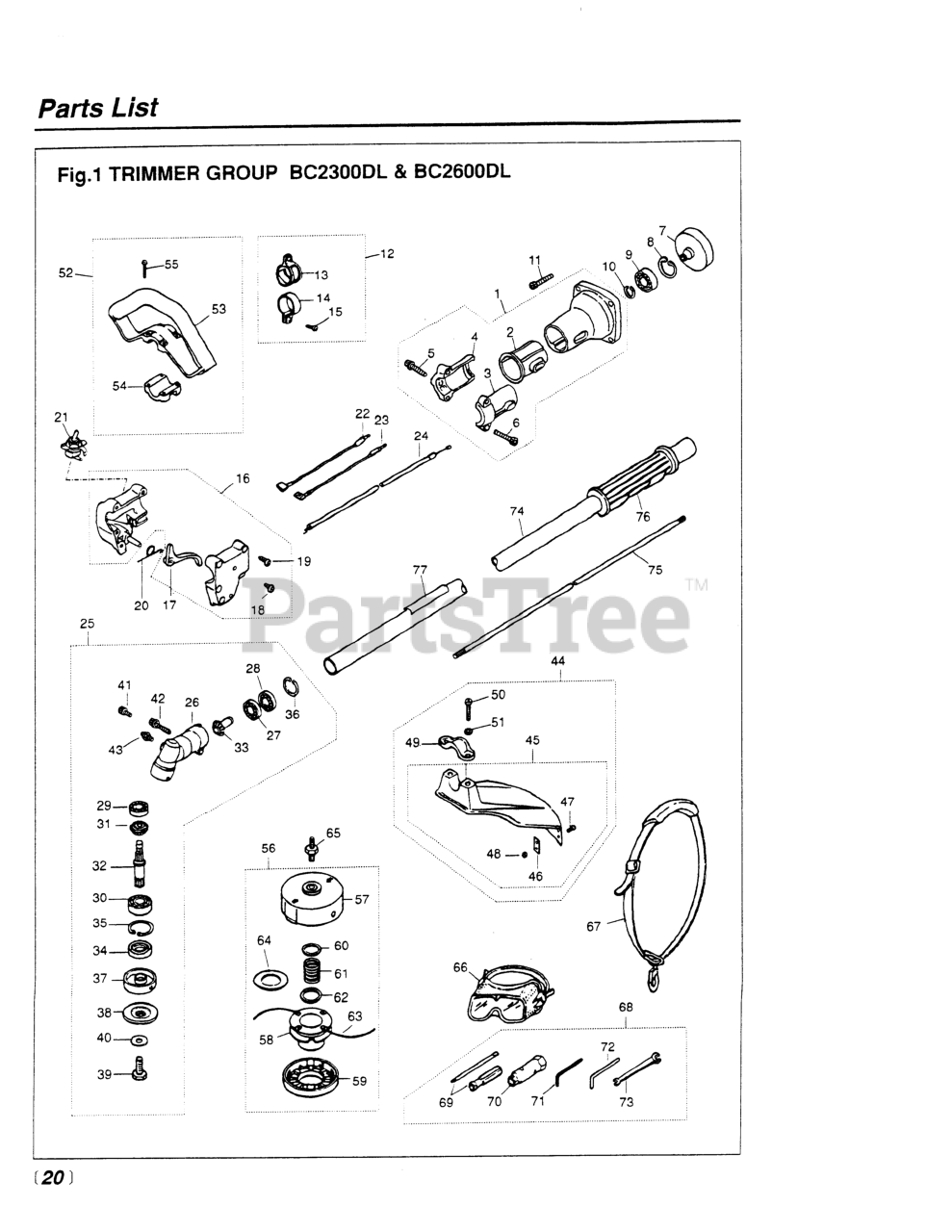

BC 2300 DL - RedMax Brushcutter (SN: 990639 & Above) (1999-11) > Parts Diagrams (2) > 020 - TRIMMER GROUP

  • Title
646011002

1

6460-11004

Part# 646011002

OEM Warranty Repair Part for RedMax

Not available

647031230

2

CUSHION

Part# 647031230

OEM Warranty Repair Part for RedMax

Not available

646031210

3

BRACKET (USE -31211)

Part# 646031210

OEM Warranty Repair Part for RedMax

Not available

646031220

4

BRACKET (USE -31221)

Part# 646031220

OEM Warranty Repair Part for RedMax

Not available

0125230514

5

BOLT (USE 3310-31720)

Part# 0125230514

OEM Warranty Repair Part for RedMax

Not available

0125230530

6

BOLT, M5 X 30

Part# 0125230530

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.47

646012111

7

6460-12112

Part# 646012111

OEM Warranty Repair Part for RedMax

Not available

0406502812

8

RING, SNAP, M28 x 1.2

Part# 0406502812

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.67

0600406001

9

BEARING

Part# 0600406001

OEM Warranty Repair Part for RedMax

Not available

0406401210

10

RING, SNAP (RPLS 3130-13270)

Part# 0406401210

OEM Warranty Repair Part for RedMax

Not available

646891150

11

BOLT, M6 x 20

Part# 646891150

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.39

646017100

12

HANGER COMPLETE

Part# 646017100

OEM Warranty Repair Part for RedMax

Not available

936617110

13

HANGER

Part# 936617110

OEM Warranty Repair Part for RedMax

Not available

646017120

14

CLAMP

Part# 646017120

OEM Warranty Repair Part for RedMax

Not available

026390525

15

SCREW, M5 x 25

Part# 026390525

OEM Warranty Repair Part for RedMax

Not available

181124

16

181689

Part# 181124

OEM Warranty Repair Part for RedMax

Not available

181689

17

THROTTLE HSG & TRIGGER

Part# 181689

OEM Warranty Repair Part for RedMax

Not available

145569

18

SET SCREW, ANTI-ROTATION

Part# 145569

OEM Warranty Repair Part for RedMax

Not available

180974

19

SCREW

Part# 180974

OEM Warranty Repair Part for RedMax

Not available

610314

20

SPRING, THROTTLE TRIGGER

Part# 610314

OEM Warranty Repair Part for RedMax

Not available

180252

21

SWITCH, STOP

Part# 180252

OEM Warranty Repair Part for RedMax

Not available

180768

22

CORD, RED (LEAD WIRE)

Part# 180768

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $33.90

180769

23

CORD, BLACK (LEAD WIRE)

Part# 180769

OEM Warranty Repair Part for RedMax

Not available

650282100

24

CABLE COMP (RPLS 6460- )

Part# 650282100

OEM Warranty Repair Part for RedMax

Not available

646013000

25

GEARCASE ASSEMBLY

Part# 646013000

OEM Warranty Repair Part for RedMax

Not available

646013110

26

GEARCASE

Part# 646013110

OEM Warranty Repair Part for RedMax

Not available

646013410

27

BEARING

Part# 646013410

OEM Warranty Repair Part for RedMax

Not available

646013420

28

BEARING

Part# 646013420

OEM Warranty Repair Part for RedMax

Not available

646013430

29

BEARING

Part# 646013430

OEM Warranty Repair Part for RedMax

Not available

0600106001

30

BEARING

Part# 0600106001

OEM Warranty Repair Part for RedMax

Not available

646013220

31

GEAR

Part# 646013220

OEM Warranty Repair Part for RedMax

Not available

646013210

32

SHAFT

Part# 646013210

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $20.67

646013310

33

PINION

Part# 646013310

OEM Warranty Repair Part for RedMax

Not available

646013140

34

SEAL, OIL

Part# 646013140

OEM Warranty Repair Part for RedMax

Not available

646013340

35

RING, SNAP

Part# 646013340

OEM Warranty Repair Part for RedMax

Not available

646013350

36

RING, SNAP

Part# 646013350

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.63

646013240

37

HOLDER (A)

Part# 646013240

OEM Warranty Repair Part for RedMax

Not available

646013250

38

HOLDER (B)

Part# 646013250

OEM Warranty Repair Part for RedMax

Not available

646013290

39

BOLT

Part# 646013290

OEM Warranty Repair Part for RedMax

Not available

646013370

40

WASHER

Part# 646013370

OEM Warranty Repair Part for RedMax

Not available

0125250512

41

BOLT, M5 x 12

Part# 0125250512

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.45

0125250525

42

BOLT, M5 X 25

Part# 0125250525

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.45

646013360

43

FITTING, GREASE

Part# 646013360

OEM Warranty Repair Part for RedMax

Not available

646024000

44

GUARD ASSEMBLY

Part# 646024000

OEM Warranty Repair Part for RedMax

Not available

646024100

45

6460-24000

Part# 646024100

OEM Warranty Repair Part for RedMax

Not available

604124140

46

BLADE

Part# 604124140

OEM Warranty Repair Part for RedMax

Not available

026330512

47

SCREW, M5 x 12

Part# 026330512

OEM Warranty Repair Part for RedMax

Not available

332015310

48

NUT

Part# 332015310 (Superseded to 521000601)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

354124121

49

CLAMP

Part# 354124121

OEM Warranty Repair Part for RedMax

Not available

354024130

50

BOLT, M6 x 1.30

Part# 354024130

OEM Warranty Repair Part for RedMax

Not available

029020615

51

WASHER, M6 X 15

Part# 029020615

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.17

646214100

52

HANDLE ASSEMBLY

Part# 646214100 (Superseded to 521473001)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $27.94

646214310

53

HANDLE

Part# 646214310

OEM Warranty Repair Part for RedMax

Not available

646214320

54

CLAMP

Part# 646214320

OEM Warranty Repair Part for RedMax

Not available

026390535

55

SCREW, M5 x 35

Part# 026390535

OEM Warranty Repair Part for RedMax

Not available

PT104

56

4

Part# PT104

OEM Warranty Repair Part for RedMax

Not available

646015112

57

6460-15113

Part# 646015112

OEM Warranty Repair Part for RedMax

Not available

646015141

58

6460-15142

Part# 646015141

OEM Warranty Repair Part for RedMax

Not available

646015131

59

COVER (RPLS -15130)

Part# 646015131

OEM Warranty Repair Part for RedMax

Not available

326815150

60

PLATE, LARGE

Part# 326815150

OEM Warranty Repair Part for RedMax

Not available

604199161

61

6041-99162

Part# 604199161

OEM Warranty Repair Part for RedMax

Not available

326815170

62

PLATE, SMALL

Part# 326815170

OEM Warranty Repair Part for RedMax

Not available

646015180

63

CORD

Part# 646015180

OEM Warranty Repair Part for RedMax

Not available

646015210

64

SPACER

Part# 646015210

OEM Warranty Repair Part for RedMax

Not available

PTA008

65

ARBOR, 8MM

Part# PTA008

OEM Warranty Repair Part for RedMax

Not available

180773

66

GOGGLE

Part# 180773

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $39.12

160197

67

SHOULDER STRAP ASSY

Part# 160197

OEM Warranty Repair Part for RedMax

Not available

355091000

68

TOOL SET

Part# 355091000

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $15.97

103091340

69

SCREWDRIVER

Part# 103091340 (Superseded to 516153801)

OEM Warranty Repair Part for RedMax

Not available

323991310

70

NO LONGER AVAILABLE

Part# 323991310

Note: Context Note: @ÿ

OEM Warranty Repair Part for RedMax

Not available

0900700425

71

WRENCH (TOOL)

Part# 0900700425

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.75

354091110

72

BAR

Part# 354091110

OEM Warranty Repair Part for RedMax

Not available

354091120

73

SPANNER, 8 X 10 (RPLS 2540- )

Part# 354091120 (Superseded to 521176201)

OEM Warranty Repair Part for RedMax

Not available

180771BC

74

180931

Part# 180771BC

OEM Warranty Repair Part for RedMax

Not available

352012212

75

3520-12213

Part# 352012212

OEM Warranty Repair Part for RedMax

Not available

180770

76

180866

Part# 180770

OEM Warranty Repair Part for RedMax

Not available

181127

77

LABEL, BC2300/2600DL

Part# 181127

OEM Warranty Repair Part for RedMax

Not available
