BC 2300 DL - RedMax Brushcutter (SN: 990639 & Above) (1999-11)

Brushcutter

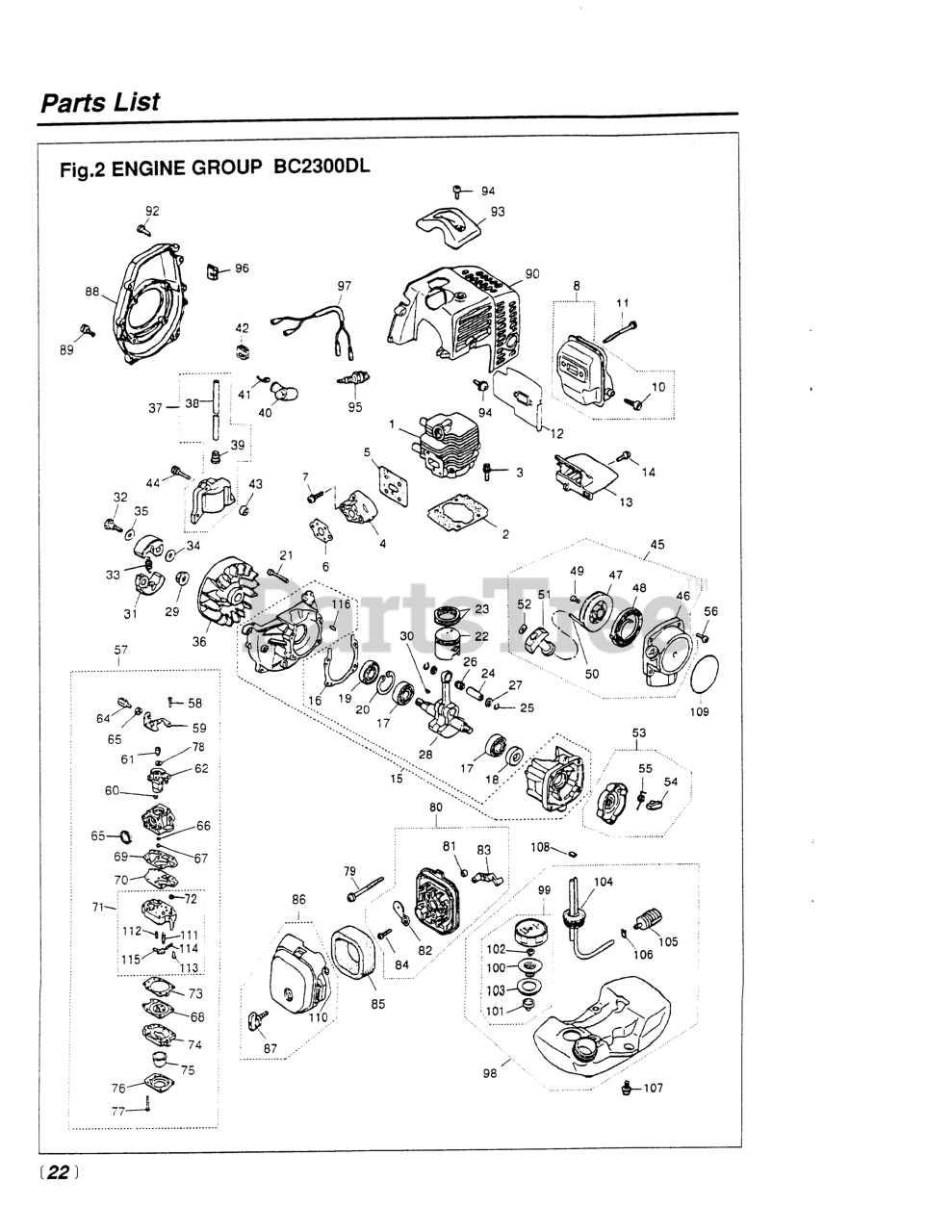

BC 2300 DL - RedMax Brushcutter (SN: 990639 & Above) (1999-11) > Parts Diagrams (2) > 022 - ENGINE GROUP

  • Title
558012110

1

CYLINDER

Part# 558012110

OEM Warranty Repair Part for RedMax

Not available

550012212

2

5500-12213

Part# 550012212

OEM Warranty Repair Part for RedMax

Not available

185012130

3

BOLT, M5 X 22

Part# 185012130

OEM Warranty Repair Part for RedMax

Not available

550013162

4

5500-13163

Part# 550013162

OEM Warranty Repair Part for RedMax

Not available

550013121

5

GASKET (RPLS -13120)

Part# 550013121

OEM Warranty Repair Part for RedMax

Not available

550013131

6

GASKET (REPLACES -13130)

Part# 550013131

OEM Warranty Repair Part for RedMax

Not available

026390520

7

SCREW, M5X20 (RPLS.1400-75510)

Part# 026390520

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.25

585015100

8

MUFFLER ASSY (RPLS 5501- )

Part# 585015100

OEM Warranty Repair Part for RedMax

Not available

160115120

10

ARRESTER (RPLS 5850-15140)

Part# 160115120

OEM Warranty Repair Part for RedMax

Not available

0125230550

11

BOLT, M5 x 50

Part# 0125230550

OEM Warranty Repair Part for RedMax

Not available

591015211

12

GASKET, MUFFLER (RPLS -15111)

Part# 591015211

OEM Warranty Repair Part for RedMax

Not available

550015220

13

5500-15221

Part# 550015220

OEM Warranty Repair Part for RedMax

Not available

026390416

14

SCREW, M4 X 16

Part# 026390416

OEM Warranty Repair Part for RedMax

Not available

550021100

15

CRANKCASE

Part# 550021100

OEM Warranty Repair Part for RedMax

Not available

550021141

16

GASKET (RPLS -21140)

Part# 550021141

OEM Warranty Repair Part for RedMax

Not available

0603006001

17

BEARING

Part# 0603006001

OEM Warranty Repair Part for RedMax

Not available

216921210

18

SEAL, OIL (RPLS 1100-21210)

Part# 216921210

OEM Warranty Repair Part for RedMax

Not available

185021220

19

SEAL, OIL (RPLS 1140-21220)

Part# 185021220

OEM Warranty Repair Part for RedMax

Not available

0406502812

20

RING, SNAP, M28 x 1.2

Part# 0406502812

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.67

0125230530

21

BOLT, M5 X 30

Part# 0125230530

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.47

560041111

22

PISTON (REPLACES 1140-41110)

Part# 560041111

OEM Warranty Repair Part for RedMax

Not available

110041210

23

RING, PISTON (RPLS 1850-41210)

Part# 110041210

OEM Warranty Repair Part for RedMax

Not available

110141310

24

PIN, PISTON 5x8x26

Part# 110141310

OEM Warranty Repair Part for RedMax

Not available

126041320

25

RING, SNAP (RPLS 1101-41320)

Part# 126041320

OEM Warranty Repair Part for RedMax

Not available

114041330

26

5500-41410

Part# 114041330

OEM Warranty Repair Part for RedMax

Not available

110141340

27

WASHER

Part# 110141340 (Superseded to 516181201)

OEM Warranty Repair Part for RedMax

Not available

550042001

28

CRANKSHAFT (RPLS 1850-42000)

Part# 550042001 (Superseded to 521358201)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $72.66

165043230

29

182301

Part# 165043230 (Superseded to 516437401)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

100043240

30

KEY

Part# 100043240 (Superseded to 516147801)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

114051111

31

SHOE (RPLS 1100-51114)

Part# 114051111

OEM Warranty Repair Part for RedMax

Not available

114051250

32

BOLT

Part# 114051250

OEM Warranty Repair Part for RedMax

Not available

197051221

33

SPRING, CLUTCH (RPLS-51220)

Part# 197051221

OEM Warranty Repair Part for RedMax

Not available

114051230

34

WASHER, FLAT (USE 182303)

Part# 114051230

OEM Warranty Repair Part for RedMax

Not available

197051241

35

182304

Part# 197051241 (Superseded to 516626501)

OEM Warranty Repair Part for RedMax

Not available

550171110

36

ROTOR

Part# 550171110

OEM Warranty Repair Part for RedMax

Not available

550171201

37

COIL ASSY (RPLS 5500-71200)

Part# 550171201

OEM Warranty Repair Part for RedMax

Not available

550071220

38

CORD

Part# 550071220

OEM Warranty Repair Part for RedMax

Not available

261671320

39

CAP

Part# 261671320 (Superseded to 516744001)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

190072111

40

1900-72112

Part# 190072111

OEM Warranty Repair Part for RedMax

Not available

190072120

41

SPRING

Part# 190072120

OEM Warranty Repair Part for RedMax

Not available

550072130

42

GROMMET

Part# 550072130

OEM Warranty Repair Part for RedMax

Not available

126071261

43

SPACER (RPLS -71260)

Part# 126071261 (Superseded to 516258101)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

331072150

44

BOLT

Part# 331072150

OEM Warranty Repair Part for RedMax

Not available

550075100

45

RECOIL ASSEMBLY

Part# 550075100

OEM Warranty Repair Part for RedMax

Not available

550075110

46

CASE

Part# 550075110

OEM Warranty Repair Part for RedMax

Not available

185075120

47

REEL

Part# 185075120

OEM Warranty Repair Part for RedMax

Not available

185075130

48

SPRING, SPIRAL

Part# 185075130

OEM Warranty Repair Part for RedMax

Not available

185075151

49

SCREW (RPLS -75150)

Part# 185075151

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

185075160

50

ROPE

Part# 185075160

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.38

114075320

51

KNOB

Part# 114075320

OEM Warranty Repair Part for RedMax

Not available

550075170

52

PLATE, STOPPER

Part# 550075170

OEM Warranty Repair Part for RedMax

Not available

185075201

53

PULLEY ASSY (RPLS -75210)

Part# 185075201

OEM Warranty Repair Part for RedMax

Not available

185075221

54

RATCHET (RPLS 1850-75220)

Part# 185075221

OEM Warranty Repair Part for RedMax

Not available

185075230

55

SPRING, RETURN

Part# 185075230

OEM Warranty Repair Part for RedMax

Not available

026390416

56

SCREW, M4 X 16

Part# 026390416

OEM Warranty Repair Part for RedMax

Not available

550181000

57

CARBURETOR

Part# 550181000

OEM Warranty Repair Part for RedMax

Not available

175281110

58

SCREW

Part# 175281110 (Superseded to 516528701)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

550081120

59

BRACKET

Part# 550081120

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $7.42

175181130

60

RING

Part# 175181130 (Superseded to 516523601)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

188181140

61

SWIVEL

Part# 188181140 (Superseded to 516597701)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $7.82

62

VALVE ASSY

Part#

Not available

191881170

63

SCREW, CABLE ADJUSTER

Part# 191881170

OEM Warranty Repair Part for RedMax

Not available

175181180

64

NUT, CABLE ADJUSTER

Part# 175181180

OEM Warranty Repair Part for RedMax

Not available

188181130

65

RING, PACKING

Part# 188181130

OEM Warranty Repair Part for RedMax

Not available

175181240

66

RING, O

Part# 175181240

OEM Warranty Repair Part for RedMax

Not available

550081251

67

JET

Part# 550081251

OEM Warranty Repair Part for RedMax

Not available

331081260

68

DIAPHRAGM (USE 4810-81260)

Part# 331081260

OEM Warranty Repair Part for RedMax

Not available

106581410

69

GASKET, PUMP

Part# 106581410

OEM Warranty Repair Part for RedMax

Not available

106581420

70

DIAPHRAGM

Part# 106581420

OEM Warranty Repair Part for RedMax

Not available

185081450

71

BODY, PUMP

Part# 185081450

OEM Warranty Repair Part for RedMax

Not available

330681380

72

SCREEN

Part# 330681380

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $1.22

185081470

73

GASKET, DIAPHRAGM

Part# 185081470

OEM Warranty Repair Part for RedMax

Not available

185081490

74

BODY, PURGE

Part# 185081490

OEM Warranty Repair Part for RedMax

Not available

175181510

75

PUMP, PRIMING

Part# 175181510

OEM Warranty Repair Part for RedMax

Not available

185081520

76

COVER, PUMP

Part# 185081520 (Superseded to 516543901)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $5.58

185081530

77

SCREW

Part# 185081530

OEM Warranty Repair Part for RedMax

Not available

550081160

78

WASHER

Part# 550081160

OEM Warranty Repair Part for RedMax

Not available

026390560

79

SCREW, M5 x 60

Part# 026390560

OEM Warranty Repair Part for RedMax

Not available

550082102

80

BODY-A (RPLS -82101)

Part# 550082102

OEM Warranty Repair Part for RedMax

Not available

197082190

81

SLEEVE

Part# 197082190

OEM Warranty Repair Part for RedMax

Not available

550082131

82

PLATE, CHOKE (RPLS-82130)

Part# 550082131

OEM Warranty Repair Part for RedMax

Not available

550082140

83

LEVER, CHOKE

Part# 550082140

OEM Warranty Repair Part for RedMax

Not available

263033610

84

SCREW (REPLACES 50030272)

Part# 263033610 (Superseded to 516771801)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

550082171

85

ELEMENT

Part# 550082171

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

560082202

86

5600-82203

Part# 560082202

OEM Warranty Repair Part for RedMax

Not available

550082221

87

KNOB (RPLS -82220)

Part# 550082221

OEM Warranty Repair Part for RedMax

Not available

550131111

88

COVER, FAN (RPLS-31110)

Part# 550131111

OEM Warranty Repair Part for RedMax

Not available

026390520

89

SCREW, M5X20 (RPLS.1400-75510)

Part# 026390520

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.25

558032112

90

COVER, ENGINE (RPLS -32111)

Part# 558032112

OEM Warranty Repair Part for RedMax

Not available

185032160

91

SCREW, M5 x 12

Part# 185032160

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.29

190031410

92

SCREW, HOUSING

Part# 190031410

OEM Warranty Repair Part for RedMax

Not available

550032210

93

GUARD, PLUG

Part# 550032210

OEM Warranty Repair Part for RedMax

Not available

026390514

94

SCREW,M5 X 14 (RPLS 1400-15510

Part# 026390514

OEM Warranty Repair Part for RedMax

Not available

560273110

95

3699-90419-10

Part# 560273110

OEM Warranty Repair Part for RedMax

Not available

185272121

96

182157

Part# 185272121

OEM Warranty Repair Part for RedMax

Not available

550173201

97

CORD COMP (RPLS -73200)

Part# 550173201

OEM Warranty Repair Part for RedMax

Not available

550085004

98

5504-85004

Part# 550085004

OEM Warranty Repair Part for RedMax

Not available

560185200

99

5601-85201

Part# 560185200

OEM Warranty Repair Part for RedMax

Not available

560185230

100

5601-85300

Part# 560185230

OEM Warranty Repair Part for RedMax

Not available

560085240

101

HOLDER, CAP

Part# 560085240

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $1.24

560085250

102

VALVE (NLA WHEN OUT)

Part# 560085250

Note: Context Note: @ÿ

OEM Warranty Repair Part for RedMax

Not available

550085220

103

PACKING

Part# 550085220

OEM Warranty Repair Part for RedMax

Not available

550085300

104

PIPE COMPLETE

Part# 550085300

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $22.35

550085400

105

FILTER (RPLS 1850-85300)

Part# 550085400

OEM Warranty Repair Part for RedMax

Not available

126085460

106

CLIP (REPLACES 2841-31280)

Part# 126085460

OEM Warranty Repair Part for RedMax

Not available

550085510

107

SCREW

Part# 550085510

OEM Warranty Repair Part for RedMax

Not available

195086120

108

CLIP

Part# 195086120

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

550191122

109

LABEL, RECOIL (RPLS -91121)

Part# 550191122

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $0.87

550082230

110

RING

Part# 550082230

OEM Warranty Repair Part for RedMax

Not available

335681310

111

VALVE, INLET

Part# 335681310

OEM Warranty Repair Part for RedMax

Not available

185081270

112

SPRING, METERING LEVER

Part# 185081270

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.54

185081220

113

SCREW, METERING LEVER PIN

Part# 185081220

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.54

331081250

114

PIN, METERING LEVER

Part# 331081250

OEM Warranty Repair Part for RedMax

Not available

331081230

115

LEVER

Part# 331081230

OEM Warranty Repair Part for RedMax

Not available

262921130

116

PIN

Part# 262921130 (Superseded to 516762801)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23
