BC 24 W - Weed Eater Brushcutter Handle, Driveshaft & Cutting Head Parts Diagram

Brushcutter

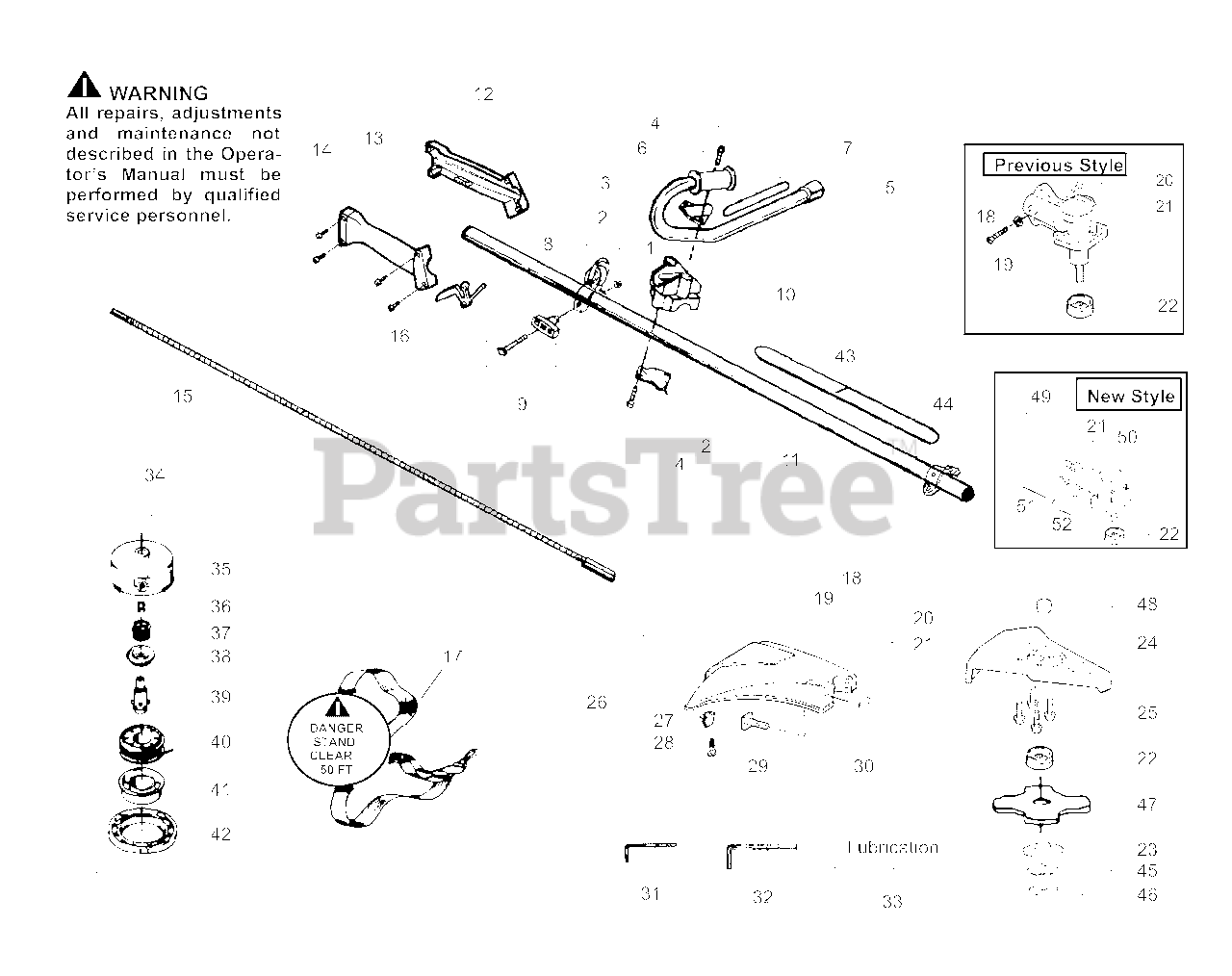

Handle, Driveshaft & Cutting Head Parts Diagram

  • Title

1

Poulan 530015768

Nut

$6.49

$

In Stock, only 2 left!

0

2

Poulan 530094572

Handlebar Bracket

$3.99

$

In Stock, only 1 left!

0

3

Poulan 530010723

Handlebar

$

$

Not available

4

Poulan 530015791

Screw

$3.99

$

Usually ships in 3-10 days

0

5

Poulan 530092192

Handlebar Cap

$0.99

$

Usually ships in 3-10 days

0

6

Poulan 530092086

Handlebar Grip

$

$

Not available

7

Poulan 530027884

Handlebar Warning Decal

$

$

Not available

8

Poulan 530094686

Harness Clamp Ass'y.

$7.49

$

Usually ships in 3-10 days

0

9

Poulan 530069252

"T" Handle Assy.
(Superseded to 530069347)

$5.99

$

In Stock, only 1 left!

0

10

Poulan 530012207

Handlebar Clamp

$8.99

$

Usually ships in 3-10 days

0

11

Drive Shaft Housing

Note: New part number for this IPL; Refer to the Service Reference indicated for more information. (Located at end of IPL)

$

$

Not available

12

Poulan 530036514

Throttle Hsg. Left

$3.99

$

Usually ships in 3-10 days

0

13

Poulan 530036515

Throttle Hsg. Right

$3.99

$

Usually ships in 3-10 days

0

14

Poulan 530015966

Screw

$2.49

$

Usually ships in 3-10 days

0

15

Flex Drive Shaft

Note: New part number for this IPL; Refer to the Service Reference indicated for more information. (Located at end of IPL)

$

$

Not available

16

Poulan 530036556

Throttle Lever

$3.99

$

In Stock, only 2 left!

0

17

Poulan 530094417

Shoulder Strap

$

$

Not available

18

Poulan 530015328

Lockwasher

$3.99

$

Usually ships in 3-10 days

0

19

Poulan 530016140

Screw

$2.49

$

Usually ships in 3-10 days

0

20

Poulan 530015650

Screw-Pinch Clamp

$

$

Not available

21

Gear Box Ass'y.

Note: New part number for this IPL; Refer to the Service Reference indicated for more information. (Located at end of IPL)

$

$

Not available

22

Dust Cup

Note: New part number for this IPL; Refer to the Service Reference indicated for more information. (Located at end of IPL)

$

$

Not available

23

Washer

Note: New part number for this IPL; Refer to the Service Reference indicated for more information. (Located at end of IPL)

$

$

Not available

24

Poulan 530069780

Metal Shield Kit

$

$

Not available

25

Poulan 530016141

Screw

$4.99

$

Usually ships in 3-10 days

0

26

Poulan 530069779

Shield Kit Ass'y.

Note: (Incl.27-30)

$

$

Not available

27

Poulan 530095387

Line Limiter

$1.99

$

Usually ships in 3-10 days

0

28

Poulan 530015805

Screw
(Superseded to 530015886)

$6.49

$

In Stock, Qty 17

0

29

Poulan 530015820

Bolt

$6.49

$

Usually ships in 3-10 days

0

30

Poulan 530016118

Wingnut
(Superseded to 530091373)

$4.99

$

In Stock, only 1 left!

0

31

Poulan 530031159

Hex Wrench (5/32)

$4.99

$

In Stock, only 1 left!

0

32

Poulan 530031098

Hex Wrench (3/16)

$2.49

$

Usually ships in 3-10 days

0

33

Poulan 952701570

Shaft Lubrication
(Superseded to 952030139)

$

$

Not available

34

Poulan 952701643

Cutting Head Ass'y.

Note: (Incl. 35-42)

$

$

Not available

35

Poulan 530071295

Hub

$21.99

$

In Stock, only 1 left!

0

36

Poulan 530093898

Line Saver

$4.99

$

Usually ships in 3-10 days

0

37

Poulan 530340007

Spring

$3.99

$

Usually ships in 3-10 days

0

38

Poulan 530328929

Spring Adaptor

$

$

Not available

39

Poulan 530095121

Drive Gear
(Superseded to 530071295)

$21.99

$

In Stock, only 1 left!

0

40

Poulan 952701589

Spool w/Line

$6.99

$

In Stock, Qty 6

0

41

Poulan 530401183

Release Button

$

$

Not available

42

Poulan 530092133

Cover

$

$

Not available

43

Poulan 530029162

Decal-Warn.-Upper

$

$

Not available

44

Poulan 530038906

Decal-Warn.-Lower

$

$

Not available

45

Poulan 530016240

Washer-Belleville

$6.49

$

In Stock, Qty 5

0

46

Poulan 530015793

Nut

$6.49

$

In Stock, Qty 10

0

47

Poulan 952701611

4 Point Blade
(Superseded to 952711585)

$

$

Not available

48

Poulan 530019235

Seal Sleeve

$

$

Not available

49

Poulan 530095812

Bracket-Shield

$3.99

$

Usually ships in 3-10 days

0

50

Poulan 530016312

Screw

$6.49

$

In Stock, Qty 6

0

51

Poulan 530016301

Screw

$6.49

$

In Stock, only 4 left!

0

52

Poulan 530016309

Screw

$4.99

$

Usually ships in 3-10 days

0

Poulan 530084421

Operator Manual

Note: Not Shown

$

$

Not available
