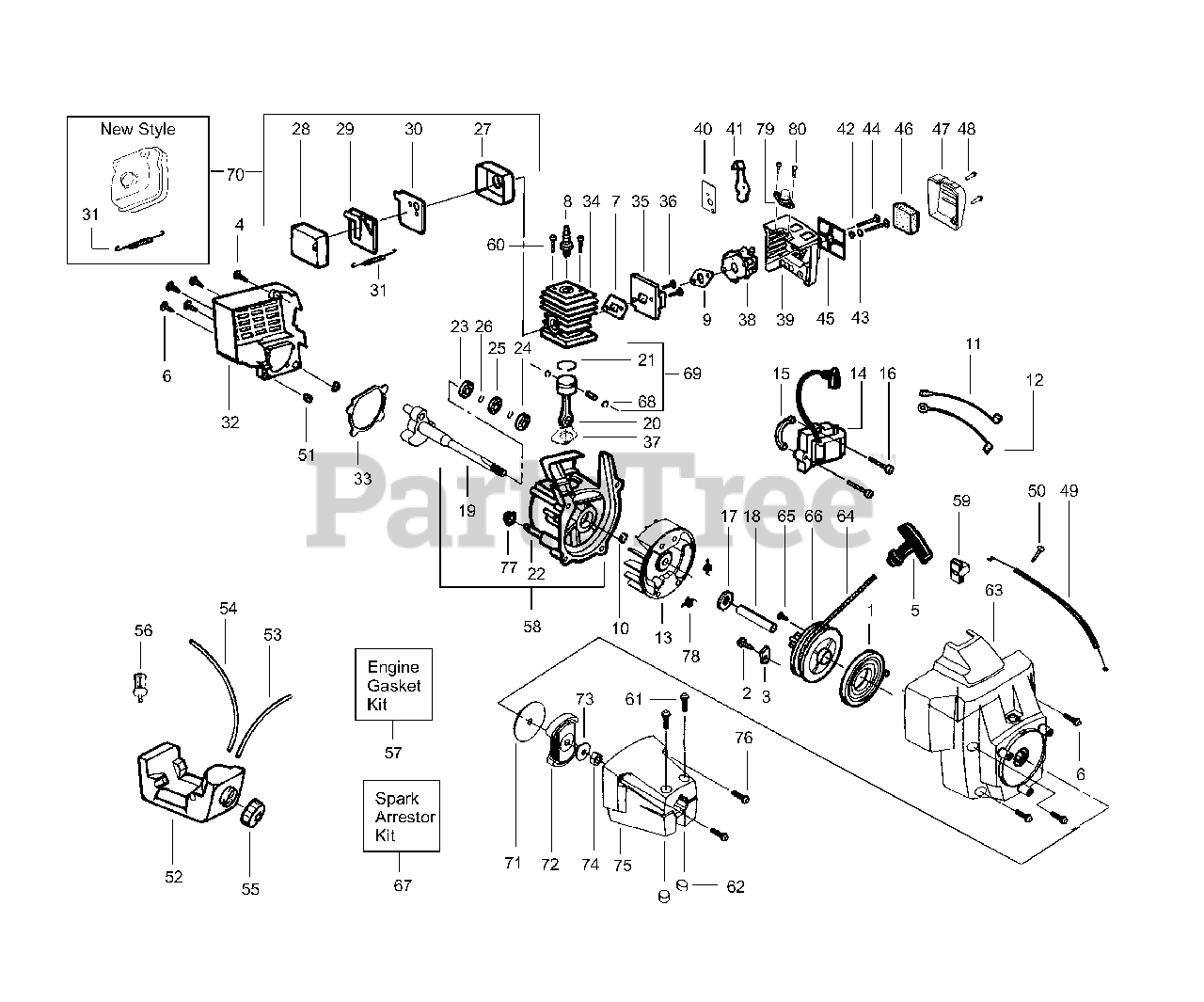

BC 24 W - Weed Eater Brushcutter Internal Assembly Parts Diagram

Brushcutter

Internal Assembly Parts Diagram

  • Title

1

Poulan 530042085

Starter Spring
(Superseded to 545008010)

$7.49

$

In Stock, Qty 20+

0

2

Poulan 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

3

Poulan 530027523

Retainer

$7.49

$

In Stock, only 2 left!

0

4

Poulan 530015934

Screw

$4.99

$

In Stock, only 1 left!

0

5

Poulan 530027569

Starter Handle

$6.49

$

In Stock, only 2 left!

0

6

Poulan 530015810

Screw
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

7

Poulan 530019233

Cylinder Gasket

$3.99

$

In Stock, only 2 left!

0

8

Poulan 952030201

Spark Plug
(Superseded to 952030150)

$3.49

$

In Stock, Qty 20+

0

9

Poulan 530035421

Gasket

$

$

Not available

10

Poulan 530015941

Retainer

$4.99

$

Usually ships in 3-10 days

0

11

Poulan 530014663

Lead Wire

$9.99

$

Usually ships in 3-10 days

0

12

Poulan 530014662

Ground Wire

$7.49

$

Usually ships in 3-10 days

0

13

Poulan 530069886

Flywheel Ass'y.
(Superseded to 545221701)

$13.99

$

In Stock, only 1 left!

0

14

Poulan 530039163

Ignition Module

$53.99

$

Usually ships in 3-10 days

0

15

Poulan 530036145

Spacer

$3.99

$

In Stock, only 3 left!

0

16

Poulan 530015954

Screw

$4.99

$

Usually ships in 3-10 days

0

17

Poulan 530015149

Washer

$4.99

$

In Stock, only 3 left!

0

18

Poulan 530037705

Spacer

$5.99

$

Usually ships in 3-10 days

0

19

Poulan 530014864

Crankshaft Ass'y.

$21.99

$

Usually ships in 3-10 days

0

20

Poulan 530069615

Connecting Rod Ass'y.

$24.99

$

Usually ships in 3-10 days

0

21

Poulan 530049903

Piston Ring
(Superseded to 545154001)

$4.99

$

In Stock, only 2 left!

0

22

Poulan 530014861

Crankcase Ass'y.

$

$

Not available

23

Poulan 530032125

Inner Bearing
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

24

Poulan 530032124

Outer Bearing

$7.49

$

Usually ships in 3-10 days

0

25

Poulan 530019179

C'case Seal

$7.49

$

Usually ships in 3-10 days

0

26

Poulan 530015945

Retaining Ring

$3.99

$

Usually ships in 3-10 days

0

27

Poulan 530036578

Muffler Body

$4.99

$

Usually ships in 3-10 days

0

28

Poulan 530036577

Muffler Cover

$2.99

$

Usually ships in 3-10 days

0

29

Poulan 530053500

Muffler Baffle-Exit

$0.99

$

Usually ships in 3-10 days

0

30

Poulan 530053499

Muffler Baffle-First

$1.99

$

Usually ships in 3-10 days

0

31

Poulan 530016197

Muffler Spring Old Style

$4.99

$

In Stock, Qty 6

0

31

Poulan 530042088

Muffler Spring New Style

$3.99

$

In Stock, only 1 left!

0

32

Poulan 530049233

Shroud

$

$

Not available

33

Poulan 530019181

Gasket

$6.49

$

In Stock, only 4 left!

0

34

Poulan 530069757

Cylinder Kit
(Superseded to 582144301)

$60.99

$

Usually ships in 3-10 days

0

35

Poulan 530071250

Carb. Adaptor Kit

$8.99

$

Usually ships in 3-10 days

0

36

Poulan 530015849

Screw

$6.49

$

In Stock, only 1 left!

0

37

Poulan 530019223

Gasket

$4.99

$

In Stock, Qty 6

0

38

Poulan 530069998

Carburetor Ass'y.
(Superseded to 530071639)

Note: (Incls. Limiter Caps)

$63.46

$

In Stock, only 1 left!

0

39

Poulan 530037969

Air Box

$

$

Not available

40

Poulan 530037326

Choke Plate

$

$

Not available

41

Poulan 530038102

Choke Shutter

$3.99

$

Usually ships in 3-10 days

0

42

Poulan 530015254

Wave Washer

$3.99

$

In Stock, only 2 left!

0

43

Poulan 530015852

Choke Spacer

$2.49

$

In Stock, only 1 left!

0

44

Poulan 530015849

Screw

$6.49

$

In Stock, only 1 left!

0

45

Poulan 530037413

Filter Plate

$

$

Not available

46

Poulan 530037331

Air Filter Foam

$

$

Not available

47

Poulan 530037292

Air Filter Cover

$4.99

$

Usually ships in 3-10 days

0

48

Poulan 530015957

Screw

$4.99

$

In Stock, Qty 7

0

49

Poulan 530037415

Throttle Cable Ass'y.

$7.49

$

Usually ships in 3-10 days

0

50

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

51

Poulan 530036793

Isolator-Shroud

$8.99

$

Usually ships in 3-10 days

0

52

Poulan 530049413

Fuel Tank Ass'y.

$

$

Not available

53

Poulan 530069216

Fuel Line-Primer/Tank

$6.49

$

In Stock, Qty 20+

0

54

Poulan 530069247

Fuel Line-Carb/Tank

$6.49

$

In Stock, Qty 20+

0

55

Poulan 530014347

Fuel Cap Ass'y.

$8.99

$

In Stock, Qty 5

0

56

Poulan 530095646

Fuel Pickup Ass'y.

$4.99

$

In Stock, Qty 20+

0

57

Poulan 530071253

Engine Gasket Kit

Note: (Incl. 7, 9, 33 & 37)

$

$

Not available

58

Poulan 530014906

C'case & C'shaft Assy.
(Superseded to 530071625)

Note: (Incl. 10,19,22-26)

$54.99

$

Usually ships in 3-10 days

0

59

Poulan 530069572

Switch Kit

$8.99

$

In Stock, only 3 left!

0

60

Poulan 530015953

Screw

$6.49

$

In Stock, Qty 8

0

61

Poulan 530015767

Screw

$3.99

$

In Stock, only 2 left!

0

62

Poulan 530015768

Locknut

$6.49

$

Usually ships in 3-10 days

0

63

Poulan 530049857

Fan Housing

$

$

Not available

64

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 20+

0

65

Poulan 530016080

Screw

$6.49

$

In Stock, Qty 11

0

66

Poulan 530069400

Starter Pulley
(Superseded to 530071786)

$7.49

$

In Stock, Qty 12

0

67

Poulan 530069380

Spark Arrestor Kit Old Style

$6.49

$

Usually ships in 3-10 days

0

67

Poulan 530071290

Spark Arrestor Kit New Style

$9.99

$

Usually ships in 3-10 days

0

68

Poulan 530015162

Piston Pin Retainer

$6.49

$

Usually ships in 3-10 days

0

69

Poulan 530069756

Piston Kit
(Superseded to 530071785)

Note: (Incl. 21,68 & Pin)

$47.99

$

In Stock, only 1 left!

0

70

Poulan 530069989

Muffler Kit Old Style

Note: (Incls. 27-31)

$6.49

$

Usually ships in 3-10 days

0

70

Poulan 530071309

Muffler Kit New Style
(Superseded to 530071390)

Note: (Incls. 27-31)

$18.99

$

Usually ships in 3-10 days

0

71

Poulan 530015611

Washer

$6.49

$

In Stock, Qty 20+

0

72

Poulan 530069491

Clutch Ass'y.

$

$

Not available

73

Poulan 530015828

Washer

$4.99

$

In Stock, only 1 left!

0

74

Poulan 530626605

Nut

$3.99

$

Usually ships in 3-10 days

0

75

Poulan 530014923

Clutch Hsg.

$

$

Not available

76

Poulan 530015886

Screw

$6.49

$

In Stock, Qty 17

0

77

Poulan 530053725

Isolator-Crankcase
(Superseded to 545132401)

$3.99

$

Usually ships in 3-10 days

0

78

Poulan 530023817

Starter Spring

$6.49

$

In Stock, Qty 5

0

79

Poulan 530038874

Bulb Ass'y.

$

$

Not available

80

Poulan 530015780

Screw

$6.49

$

In Stock, only 3 left!

0
