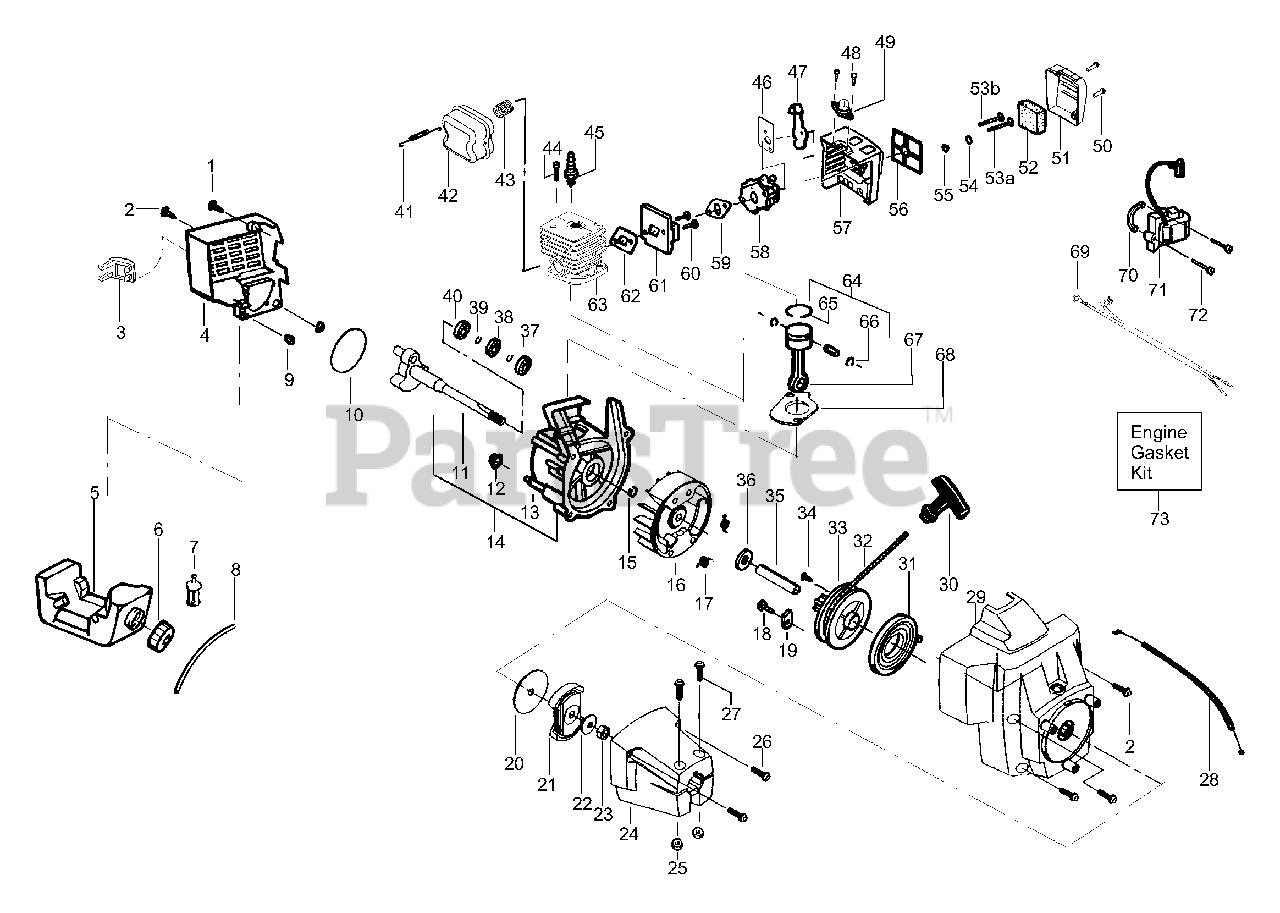

BC 2400 P - Poulan String Trimmer Internal Power Parts Diagram

String Trimmer

Internal Power Parts Diagram

  • Title

1

Poulan 530015934

Screw

$4.99

$

In Stock, only 1 left!

0

2

Poulan 530015810

Screw
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

3

Poulan 530054536

Guard-Muffler

$

$

Not available

4

Poulan 530053320

Shroud

$8.99

$

Usually ships in 3-10 days

0

5

Poulan 530049413

Fuel Tank Ass'y.

$

$

Not available

6

Poulan 530014347

Fuel Cap Ass'y.

$8.99

$

In Stock, Qty 5

0

7

Poulan 530095646

Fuel Pickup Ass'y.

$4.99

$

In Stock, Qty 20+

0

8

Poulan 530069599

Kit - Fuel Line

$7.49

$

In Stock, Qty 20+

0

9

Poulan 530036793

Isolator-Shroud

$8.99

$

Usually ships in 3-10 days

0

10

Poulan 530071253

O-Ring-C'case/Shroud

$

$

Not available

11

Poulan 530052344

Crankshaft Ass'y.
(Superseded to 530071625)

$54.99

$

Usually ships in 3-10 days

0

12

Poulan 530036792

Support-Carb. adapter

$7.49

$

Usually ships in 3-10 days

0

13

Poulan 530012414

Crankcase Ass'y.
(Superseded to 530071627)

$26.99

$

Usually ships in 3-10 days

0

14

Poulan 530014906

C'case & C'shaft Assy.
(Superseded to 530071625)

Note: (Incl. 11,13,15)

$54.99

$

Usually ships in 3-10 days

0

15

Poulan 530015941

Retainer (C'shaft)

$4.99

$

Usually ships in 3-10 days

0

16

Poulan 530069886

Flywheel Ass'y
(Superseded to 545221701)

Note: (Incl 17)

$13.99

$

In Stock, only 1 left!

0

17

Poulan 530023817

Spring - Starter Dog

$6.49

$

In Stock, Qty 5

0

18

Poulan 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

19

Poulan 530027523

Retainer

$7.49

$

In Stock, only 2 left!

0

20

Poulan 530015611

Washer-Clutch

$6.49

$

In Stock, Qty 20+

0

21

Poulan 530069491

Clutch Ass'y.

$

$

Not available

22

Poulan 530015828

Washer-Flat

$4.99

$

In Stock, only 1 left!

0

23

Poulan 530626605

Nut

$3.99

$

Usually ships in 3-10 days

0

24

Poulan 530069997

Clutch Hsg. Ass'y.

$14.99

$

Usually ships in 3-10 days

0

25

Poulan 530015768

Locknut

$6.49

$

Usually ships in 3-10 days

0

26

Poulan 530015886

Screw

$6.49

$

In Stock, Qty 17

0

27

Poulan 530015767

Screw

$3.99

$

In Stock, only 2 left!

0

28

Poulan 530037415

Throttle Cable Ass'y.

$7.49

$

Usually ships in 3-10 days

0

29

Poulan 530071393

Fan Housing

$

$

Not available

30

Poulan 530027569

Starter Handle

$6.49

$

In Stock, only 2 left!

0

31

Poulan 530042085

Starter Spring
(Superseded to 545008010)

$7.49

$

In Stock, Qty 20+

0

32

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 20+

0

33

Poulan 530069400

Kit-Starter Pulley
(Superseded to 530071786)

$7.49

$

In Stock, Qty 12

0

34

Poulan 530016080

Screw

$6.49

$

In Stock, Qty 12

0

35

Poulan 530037705

Spacer-Flywheel

$5.99

$

Usually ships in 3-10 days

0

36

Poulan 530015149

Washer

$4.99

$

In Stock, only 3 left!

0

37

Poulan 530032124

Outer Bearing

$7.49

$

Usually ships in 3-10 days

0

38

Poulan 530019179

C'case Seal

$7.49

$

Usually ships in 3-10 days

0

39

Poulan 530015945

Retaining Ring-C'case

$3.99

$

Usually ships in 3-10 days

0

40

Poulan 530032125

Inner Bearing
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

41

Poulan 530042088

Muffler Spring

$3.99

$

In Stock, only 1 left!

0

42

Poulan 530071390

Muffler Kit

Note: (Incl. 41)

$18.99

$

Usually ships in 3-10 days

0

43

Poulan 530071391

Screen-Spark Arrestor

$

$

Not available

44

Poulan 530015953

Screw

$6.49

$

In Stock, Qty 8

0

45

Poulan 952030201

Spark Plug (RCJ-8Y)
(Superseded to 952030150)

$3.49

$

In Stock, Qty 20+

0

46

Poulan 530037326

Choke Plate

$

$

Not available

47

Poulan 530038102

Choke Shutter

$3.99

$

Usually ships in 3-10 days

0

48

Poulan 530015780

Screw

$6.49

$

In Stock, only 3 left!

0

49

Poulan 530038874

Bulb Ass'y.

$

$

Not available

50

Poulan 530015957

Screw

$4.99

$

In Stock, Qty 7

0

51

Poulan 530037292

Air Filter Cover

$4.99

$

Usually ships in 3-10 days

0

52

Poulan 530037331

Air Filter Foam

$

$

Not available

53A

Poulan 530015887

Carb Screw

$4.99

$

In Stock, only 2 left!

0

53B

Poulan 530015849

Carb Screw

$6.49

$

In Stock, only 1 left!

0

54

Poulan 530015852

Choke Spacer

$2.49

$

In Stock, only 1 left!

0

55

Poulan 530015254

Washer

$3.99

$

In Stock, only 2 left!

0

56

Poulan 530037413

Plate-Filter Support

$

$

Not available

57

Poulan 530053323

Air Box

$2.49

$

Usually ships in 3-10 days

0

58

Poulan 530069902

Carburetor Ass'y.
(Superseded to 530071639)

Note: (Incls. Limiter Caps)

$63.46

$

In Stock, only 1 left!

0

59

Poulan 530071253

Gasket-Carburetor

$

$

Not available

60

Poulan 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

61

Poulan 530071250

Carb. Adaptor Kit

$8.99

$

Usually ships in 3-10 days

0

62

Poulan 530071253

Gasket-Cyl/Carb Adpt

$

$

Not available

63

Poulan 530069909

Cylinder Kit
(Superseded to 582144301)

$60.99

$

Usually ships in 3-10 days

0

64

Poulan 530069987

Piston Kit

Note: (Incl. 65,66 & Pin)

$27.99

$

Usually ships in 3-10 days

0

65

Poulan 530053565

Piston Ring
(Superseded to 545154009)

$3.99

$

In Stock, Qty 14

0

66

Poulan 530015162

Piston Pin Retainer

$6.49

$

Usually ships in 3-10 days

0

67

Poulan 530069615

Connecting Rod Ass'y.

$24.99

$

Usually ships in 3-10 days

0

68

Poulan 530071253

Gasket-Cylinder

$

$

Not available

69

Poulan 530047278

Ass'y.-Switch Wire

$7.49

$

Usually ships in 3-10 days

0

70

Poulan 530036145

Spacer-Ign. Module

$3.99

$

In Stock, only 3 left!

0

71

Poulan 530039163

Ignition Module

$53.99

$

Usually ships in 3-10 days

0

72

Poulan 530015954

Screw

$4.99

$

Usually ships in 3-10 days

0

73

Poulan 530071253

Engine Gasket Kit

Note: (Incl. 10,59,62, & 68)

$

$

Not available
