BC 2400 - Weed Eater Brushcutter, Type 1 Engine Assembly Type 1 & 2 Parts Diagram

Brushcutter, Type 1

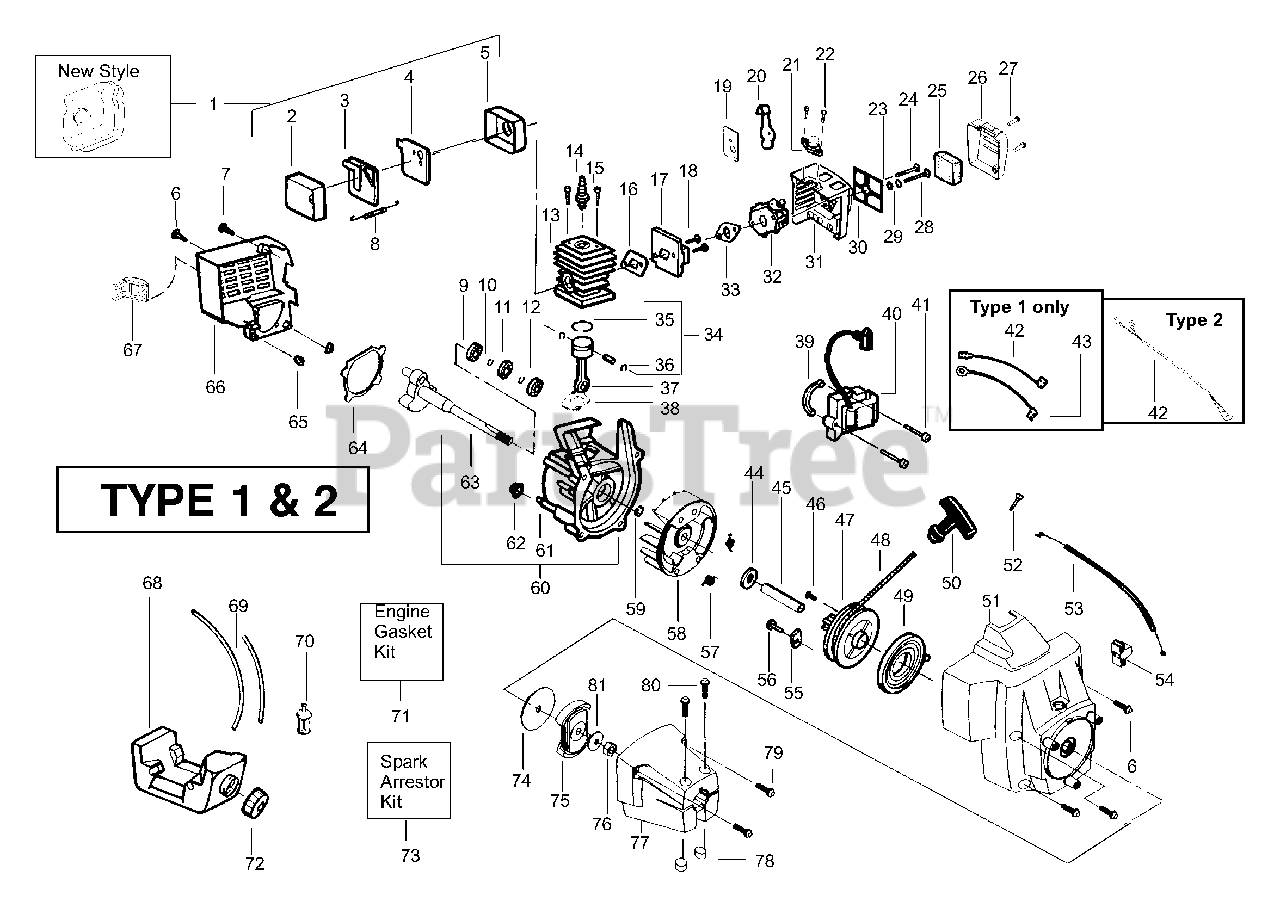

Engine Assembly Type 1 & 2 Parts Diagram

  • Title

1

Poulan 530069989

Kit-Muffler Old Style

Note: (Incls. 2-5,8)

$6.49

$

Usually ships in 3-10 days

0

1

Poulan 530071390

Kit-Muffler New Style

Note: (Incl. 8)

$18.99

$

Usually ships in 3-10 days

0

2

Poulan 530036577

Muffler Cover

$2.99

$

Usually ships in 3-10 days

0

3

Poulan 530053500

Muffler Baffle-Exit

$0.99

$

Usually ships in 3-10 days

0

4

Poulan 530053499

Muffler Baffle-First

$1.99

$

Usually ships in 3-10 days

0

5

Poulan 530036578

Muffler Body

$4.99

$

Usually ships in 3-10 days

0

6

Poulan 530015810

Screw
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

7

Poulan 530015934

Screw

$4.99

$

In Stock, only 1 left!

0

8

Poulan 530016197

Muffler Spring Old Style

$4.99

$

In Stock, Qty 6

0

8

Poulan 530042088

Muffler Spring New Style

$3.99

$

In Stock, only 1 left!

0

9

Poulan 530032125

Inner Bearing
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

10

Poulan 530015945

Retaining Ring-C'case

$3.99

$

Usually ships in 3-10 days

0

11

Poulan 530019179

C'case Seal

$7.49

$

Usually ships in 3-10 days

0

12

Poulan 530032124

Outer Bearing

$7.49

$

Usually ships in 3-10 days

0

13

Poulan 530069757

Cylinder Kit
(Superseded to 582144301)

$60.99

$

Usually ships in 3-10 days

0

14

Poulan 952030201

Spark Plug (RCJ-8Y)
(Superseded to 952030150)

$3.49

$

In Stock, Qty 20+

0

15

Poulan 530015953

Screw

$6.49

$

In Stock, Qty 8

0

16

Poulan 530019243

Gasket-Cyl/Carb Adpt

$6.49

$

In Stock, Qty 6

0

17

Poulan 530071250

Kit-Carb. Adaptor

$8.99

$

Usually ships in 3-10 days

0

18

Poulan 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

19

Poulan 530037326

Choke Plate

$

$

Not available

20

Poulan 530038102

Choke Shutter

$3.99

$

Usually ships in 3-10 days

0

21

Poulan 530038874

Assy-Purge Bulb

$

$

Not available

22

Poulan 530015780

Screw

$6.49

$

In Stock, only 3 left!

0

23

Poulan 530015254

Washer

$3.99

$

In Stock, only 2 left!

0

24

Poulan 530015849

Screw

$6.49

$

In Stock, only 1 left!

0

25

Poulan 530037331

Air Filter Foam

$

$

Not available

26

Poulan 530037292

Air Filter Cover

$4.99

$

Usually ships in 3-10 days

0

27

Poulan 530015957

Screw

$4.99

$

In Stock, Qty 7

0

28

Poulan 530015887

Screw

$4.99

$

In Stock, only 2 left!

0

29

Poulan 530015852

Choke Spacer

$2.49

$

In Stock, only 1 left!

0

30

Poulan 53007413

Filter Plate

$

$

Not available

31

Poulan 530037969

Air Box

$

$

Not available

32

Poulan 530069998

Assy-Carburetor
(Superseded to 530071639)

Note: (Incls. Limiter Caps)

$63.46

$

In Stock, only 1 left!

0

33

Poulan 530035421

Gasket-Carburetor

$

$

Not available

34

Poulan 530069987

Kit-Piston

Note: (Incl. 35,36 & Pin)

$27.99

$

Usually ships in 3-10 days

0

35

Poulan 530012472

Ring-Piston
(Superseded to 545154009)

$3.99

$

In Stock, Qty 12

0

36

Poulan 530015162

Piston Pin Retainer

$6.49

$

Usually ships in 3-10 days

0

37

Poulan 530069615

assy-Connecting Rod

$24.99

$

Usually ships in 3-10 days

0

38

Poulan 530019223

Gasket-Cylinder

$4.99

$

In Stock, Qty 6

0

39

Poulan 530036145

Spacer-Ign. Module

$3.99

$

In Stock, only 3 left!

0

40

Poulan 530039163

Ignition Module

$53.99

$

Usually ships in 3-10 days

0

41

Poulan 530015954

Screw

$4.99

$

Usually ships in 3-10 days

0

42

Poulan 530014663

Assy-Lead Wire Old Style (type 1)

$9.99

$

Usually ships in 3-10 days

0

42

Poulan 530047278

Assy-Lead Wire New Style (type 2)

$7.49

$

Usually ships in 3-10 days

0

43

Poulan 530014662

Assy-Ground Wire Old Style (type 1 only)

$7.49

$

Usually ships in 3-10 days

0

44

Poulan 530015149

Washer

$4.99

$

In Stock, only 3 left!

0

45

Poulan 530037705

Spacer-Flywheel

$5.99

$

Usually ships in 3-10 days

0

46

Poulan 530016080

Screw

$6.49

$

In Stock, Qty 11

0

47

Poulan 530069400

Starter Pulley
(Superseded to 530071786)

$7.49

$

In Stock, Qty 12

0

48

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 20+

0

49

Poulan 530042085

Spring-Starter
(Superseded to 545008010)

$7.49

$

In Stock, Qty 20+

0

50

Poulan 530027569

Handle-Starter

$6.49

$

In Stock, only 2 left!

0

51

Poulan 530049857

Fan Housing Old Style (type 1)

$

$

Not available

51

Poulan 530071392

Fan Housing New Style (type 2)

$21.99

$

Usually ships in 3-10 days

0

52

Poulan 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

53

Poulan 530037415

Assy-Throttle Cable

$7.49

$

Usually ships in 3-10 days

0

54

Poulan 530069572

Kit-Switch

$8.99

$

In Stock, only 3 left!

0

55

Poulan 530027523

Retainer

$7.49

$

In Stock, only 2 left!

0

56

Poulan 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

57

Poulan 530023817

Starter Spring

$6.49

$

In Stock, Qty 5

0

58

Poulan 530069886

Assy-Flywheel
(Superseded to 545221701)

$13.99

$

In Stock, only 1 left!

0

59

Poulan 530015941

Retainer (C'shaft)

$4.99

$

Usually ships in 3-10 days

0

60

Poulan 530014906

Assy-C'case & C'shaft
(Superseded to 530071625)

Note: (Incl. 59, 61, 63)

$54.99

$

Usually ships in 3-10 days

0

61

Poulan 530014861

Assy-Crankcase Old Style

$

$

Not available

61

Poulan 530012414

Assy-Crankcase New Style
(Superseded to 530071627)

$26.99

$

Usually ships in 3-10 days

0

62

Poulan 530036792

Isolator-Crankcase

$7.49

$

Usually ships in 3-10 days

0

63

Poulan 530014864

Assy-Crankshaft

$21.99

$

Usually ships in 3-10 days

0

64

Poulan 530019181

Gasket-C'case/Shroud Old Style

$6.49

$

In Stock, only 4 left!

0

64

Poulan 530054624

Gasket-C'case/Shroud New Style

$3.99

$

Usually ships in 3-10 days

0

65

Poulan 530036793

Isolator-Shroud

$8.99

$

Usually ships in 3-10 days

0

66

Poulan 530049233

Shroud

$

$

Not available

67

Poulan 530054536

Guard-Muffler

$

$

Not available

68

Poulan 530049413

Assy-Fuel Tank

$

$

Not available

69

Poulan 530069599

Kit-Fuel Line

$7.49

$

In Stock, Qty 20+

0

70

Poulan 530095646

Assy-Fuel Pickup

$4.99

$

In Stock, Qty 20+

0

71

Poulan 530071253

Kit-Engine Gasket

Note: (Incl. 16, 33, 38 & 64)

$

$

Not available

72

Poulan 530014347

Assy-Fuel Cap

$8.99

$

In Stock, Qty 5

0

73

Poulan 530069380

Kit-Spark Arrestor Old Style

$6.49

$

Usually ships in 3-10 days

0

73

Poulan 530071391

Kit-Spark Arrestor New Style

$

$

Not available

74

Poulan 530015611

Washer-Clutch

$6.49

$

In Stock, Qty 20+

0

75

Poulan 530069491

Assy-Clutch

$

$

Not available

76

Poulan 530626605

Nut

$3.99

$

Usually ships in 3-10 days

0

77

Poulan 530014923

Assy-Clutch Hsg.

$

$

Not available

78

Poulan 530015768

Locknut

$6.49

$

In Stock, only 2 left!

0

79

Poulan 530015886

Screw

$6.49

$

In Stock, Qty 17

0

80

Poulan 530015767

Screw

$3.99

$

In Stock, only 2 left!

0

81

Poulan 530015828

Washer-Flat

$4.99

$

In Stock, only 1 left!

0
