BC 2400 - Weed Eater Brushcutter, Type 4 Engine Assembly Type 4 Parts Diagram

Brushcutter, Type 4

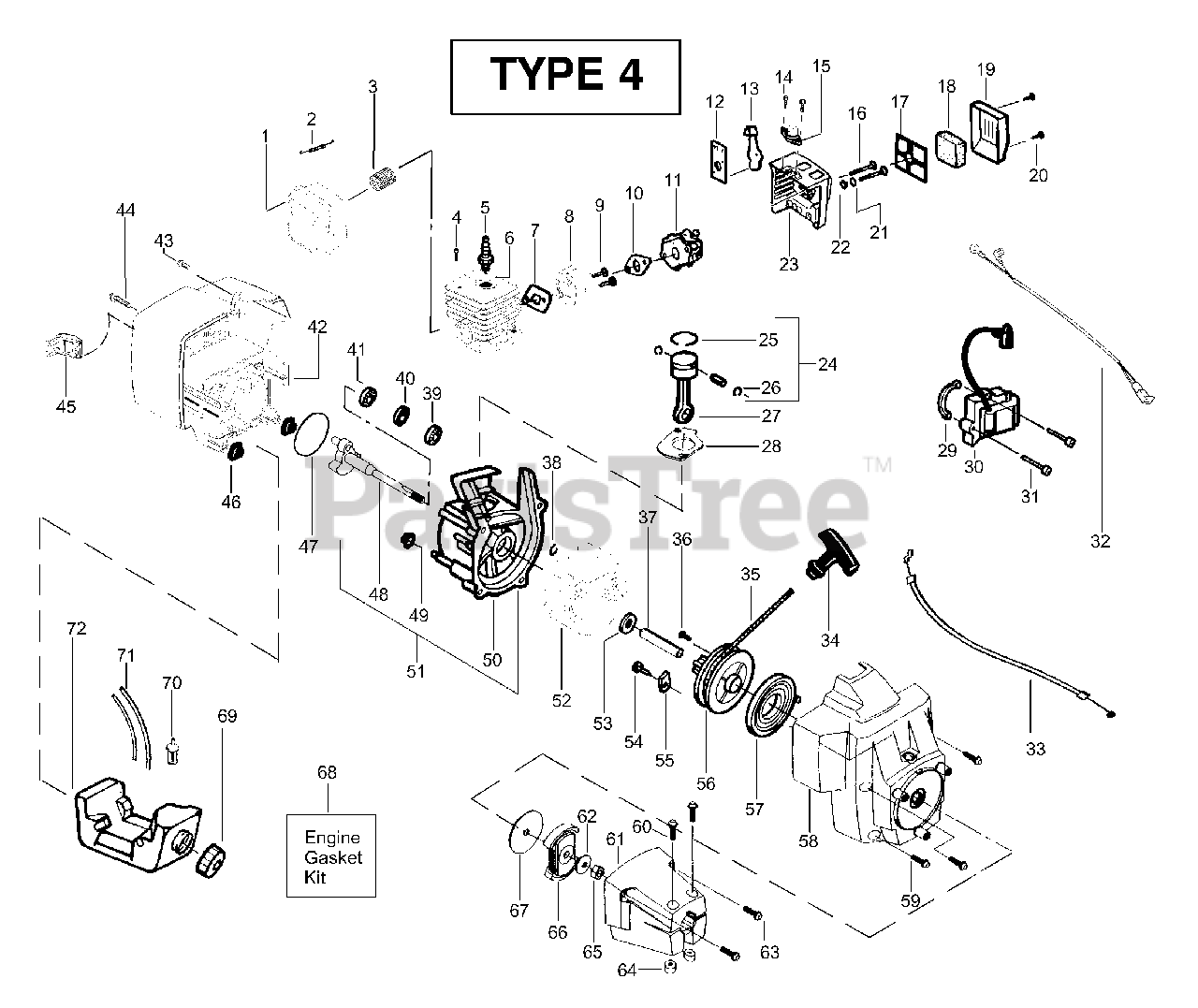

Engine Assembly Type 4 Parts Diagram

  • Title

1

Poulan 530071396

Kit - Muffler

Note: (Incl. 2,3)

$

$

Not available

2

Poulan 530042088

Spring-Muffler

$3.99

$

In Stock, only 1 left!

0

3

Poulan 530071391

Kit-Spark Arrestor

$

$

Not available

4

Poulan 530015953

Screw-Cylinder

$6.49

$

In Stock, Qty 8

0

5

Poulan 952030249

Spark Plug (RCJ-6Y)

$4.99

$

In Stock, Qty 20+

0

6

Poulan 530071359

Kit - Cylinder
(Superseded to 582144301)

$60.99

$

Usually ships in 3-10 days

0

7

Poulan 530071363

Gasket-Cyl./Carb. (kit)

$9.99

$

Usually ships in 3-10 days

0

8

Poulan 530056404

Adapter-Carb.
(Superseded to 545030403)

$

$

Not available

9

Poulan 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

10

Poulan 530071363

Gasket-Carb. (kit)

$9.99

$

Usually ships in 3-10 days

0

11

Poulan 530069998

Kit - Carb. WT-380
(Superseded to 530071639)

Note: (Incl. Limiter Cap)

$63.46

$

In Stock, only 1 left!

0

12

Poulan 530037326

Choke Plate Mounting

$

$

Not available

13

Poulan 530038102

Shutter-Choke

$3.99

$

Usually ships in 3-10 days

0

14

Poulan 530015780

Screw-Air Purge

$6.49

$

In Stock, only 3 left!

0

15

Poulan 530038874

Assy-Air Purge

$

$

Not available

16

Poulan 530016353

Screw

$4.99

$

Usually ships in 3-10 days

0

17

Poulan 530037413

Plate - Filter Support

$

$

Not available

18

Poulan 530037331

Foam-Air Filter

$

$

Not available

19

Poulan 530037292

Cover-Air Box

$4.99

$

Usually ships in 3-10 days

0

20

Poulan 530016349

Screw

$6.49

$

In Stock, Qty 5

0

21

Poulan 530015852

Spacer-Choke

$2.49

$

In Stock, only 1 left!

0

22

Poulan 530015254

Washer

$3.99

$

In Stock, only 2 left!

0

23

Poulan 530037969

Box-Air Filter

$

$

Not available

24

Poulan 530071357

Kit - Piston
(Superseded to 530071833)

Note: (Incl. 25, 26 & Pin)

$37.99

$

In Stock, only 1 left!

0

25

Poulan 530055120

Piston Ring
(Superseded to 545154001)

$4.99

$

In Stock, only 2 left!

0

26

Poulan 530015162

Retainer-Piston Pin

$6.49

$

Usually ships in 3-10 days

0

27

Poulan 530069945

Kit-Connecting Rod Assy
(Superseded to 530049817)

$9.99

$

Usually ships in 3-10 days

0

28

Poulan 530071363

Gasket-Cylinder (kit)

$9.99

$

Usually ships in 3-10 days

0

29

Poulan 530036145

Spacer-Module

$3.99

$

In Stock, only 3 left!

0

30

Poulan 530039163

Ignition Module

$53.99

$

Usually ships in 3-10 days

0

31

Poulan 530015954

Screw

$4.99

$

Usually ships in 3-10 days

0

32

Poulan 530047278

Assy-Switch Wire

$7.49

$

Usually ships in 3-10 days

0

33

Poulan 530056241

Assy-Throttle Cable

$10.99

$

Usually ships in 3-10 days

0

34

Poulan 530027569

Handle-Starter

$6.49

$

In Stock, only 2 left!

0

35

Poulan 530069232

Kit - Rope

$7.49

$

In Stock, Qty 20+

0

36

Poulan 530016080

Screw

$6.49

$

In Stock, Qty 11

0

37

Poulan 530037705

Spacer-Flywheel

$5.99

$

Usually ships in 3-10 days

0

38

Poulan 530015941

Retain. Ring-C'shaft

$4.99

$

Usually ships in 3-10 days

0

39

Poulan 530055728

Outer Bearing

$9.99

$

Usually ships in 3-10 days

0

40

Poulan 530071615

Kit-C'case Seal

$7.49

$

Usually ships in 3-10 days

0

41

Poulan 530032125

Inner Bearing
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

42

Poulan 530056943

Shroud-Rear

$

$

Not available

43

Poulan 530015934

Screw

$4.99

$

In Stock, only 1 left!

0

44

Poulan 530015810

Screw
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

45

Poulan 530054536

Guard-Muffler

$

$

Not available

46

Poulan 530036793

Isolator-Shroud

$8.99

$

Usually ships in 3-10 days

0

47

Poulan 530071363

O-Ring-C'case/Shrd (kit)

$9.99

$

Usually ships in 3-10 days

0

48

Poulan 530052344

Assy-Crankshaft
(Superseded to 530071625)

$54.99

$

Usually ships in 3-10 days

0

49

Poulan 530036792

Isolator-Crankcase

$7.49

$

Usually ships in 3-10 days

0

50

Poulan 530012491

Assy-Crankcase
(Superseded to 530071627)

Note: (Incl. 39-41)

$26.99

$

Usually ships in 3-10 days

0

51

Poulan 530014906

Assy-C'case & C'shaft
(Superseded to 530071625)

Note: (Incl. 38,48,50)

$54.99

$

Usually ships in 3-10 days

0

52

Poulan 530069886

Assy-Flywheel
(Superseded to 545221701)

$13.99

$

In Stock, only 1 left!

0

53

Poulan 530015149

Washer

$4.99

$

In Stock, only 3 left!

0

54

Poulan 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

55

Poulan 530027523

Retainer

$7.49

$

In Stock, only 2 left!

0

56

Poulan 530069400

Kit-Starter Pull
(Superseded to 530071786)

Note: (Incl 36)

$7.49

$

In Stock, Qty 12

0

57

Poulan 530042085

Spring-Starter
(Superseded to 545008010)

$7.49

$

In Stock, Qty 20+

0

58

Poulan 530071392

Assy.-Fan Hsg

$21.99

$

Usually ships in 3-10 days

0

59

Poulan 530015810

Screw
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

60

Poulan 530015767

Screw

$3.99

$

In Stock, only 2 left!

0

61

Poulan 530014923

Assy-Clutch Hsg.

$

$

Not available

62

Poulan 530015828

Washer-Flat

$4.99

$

In Stock, only 1 left!

0

63

Poulan 530015886

Screw

$6.49

$

In Stock, Qty 17

0

64

Poulan 530015768

Nut

$6.49

$

In Stock, only 2 left!

0

65

Poulan 530626605

Nut-Clutch

$3.99

$

Usually ships in 3-10 days

0

66

Poulan 530069491

Assy-Clutch

$

$

Not available

67

Poulan 530015611

Washer-Clutch

$6.49

$

In Stock, Qty 20+

0

68

Poulan 530071363

Kit-Engine Gasket

Note: (Incl. 7,10,28,47)

$9.99

$

Usually ships in 3-10 days

0

69

Poulan 530014347

Assy-Fuel Cap

$8.99

$

In Stock, Qty 5

0

70

Poulan 530095646

Assy-Fuel Pickup

$4.99

$

In Stock, Qty 20+

0

71

Poulan 530069599

Kit-Fuel Line

$7.49

$

In Stock, Qty 20+

0

72

Poulan 530049413

Assy-Fuel Tank

$

$

Not available
