BC 2500 LE - Weed Eater Brushcutter, Type 1 Engine Assembly Type 1 Parts Diagram

Brushcutter, Type 1

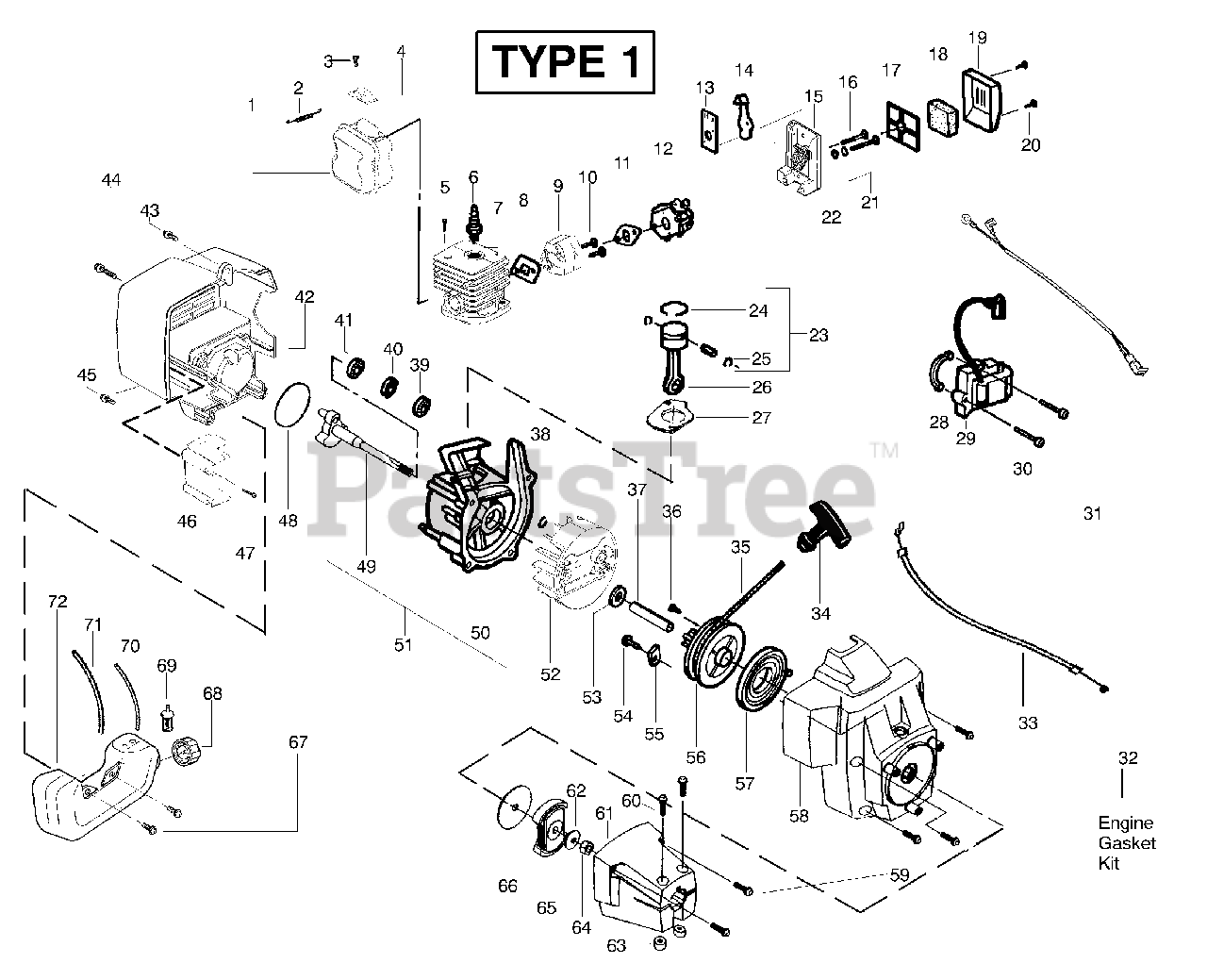

Engine Assembly Type 1 Parts Diagram

  • Title

1

Poulan 530071547

Kit -- Muffler

Note: (incl. 2,3,4)

$30.99

$

Usually ships in 3-10 days

0

2

Poulan 530042088

Spring--Muffler

$3.99

$

In Stock, only 1 left!

0

3

Poulan 530015241

Screw--Screen

$3.99

$

Usually ships in 3-10 days

0

4

Poulan 530071544

Kit--Spark Arrestor

$

$

Not available

5

Poulan 530015953

Screw--Cylinder

$6.49

$

In Stock, Qty 8

0

6

Poulan 952030249

Spark Plug (RCJ 6Y)

$4.99

$

In Stock, Qty 20+

0

7

Poulan 530071545

Kit -- Cylinder

$

$

Not available

8

Poulan 530071363

Gasket--Cylind./Carb.

$9.99

$

Usually ships in 3-10 days

0

9

Poulan 530056404

Adapter--Carb.
(Superseded to 545030403)

$

$

Not available

10

Poulan 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

11

Poulan 530071363

Gasket--Carb.

$9.99

$

Usually ships in 3-10 days

0

12

Poulan 530071546

Kit--Carburetor (C1U--X785)

$

$

Not available

12

Poulan 530071631

Kit--Carburetor (C1U--W16)

$

$

Not available

13

Poulan 530038747

Choke Plate Mounting

$3.99

$

In Stock, only 3 left!

0

14

Poulan 530035499

Shutter--Choke

$

$

Not available

15

Poulan 530052431

Air Box

$

$

Not available

16

Poulan 530016353

Screw

$4.99

$

Usually ships in 3-10 days

0

17

Poulan 530036569

Plate -- Filter Support

$

$

Not available

18

Poulan 530036575

Foam--Air Filter

$4.99

$

In Stock, Qty 14

0

19

Poulan 530054414

Cover--Air Filter

$6.49

$

In Stock, only 1 left!

0

20

Poulan 530015892

Screw

$6.49

$

In Stock, Qty 20+

0

21

Poulan 530015852

Spacer--Choke

$2.49

$

In Stock, only 1 left!

0

22

Poulan 530015254

Washer

$3.99

$

In Stock, only 2 left!

0

23

Poulan 530071357

Kit -- Piston
(Superseded to 530071833)

Note: (Incl. 24, 25 & Pin)

$37.99

$

In Stock, only 1 left!

0

24

Poulan 530055120

Piston Ring
(Superseded to 545154001)

$4.99

$

In Stock, only 2 left!

0

25

Poulan 530015162

Retainer - Piston Rod

$6.49

$

Usually ships in 3-10 days

0

26

Poulan 530069945

Assy - Connecting Rod
(Superseded to 530049817)

$9.99

$

Usually ships in 3-10 days

0

27

Poulan 530071363

Gasket--Cylinder

$9.99

$

Usually ships in 3-10 days

0

28

Poulan 530036145

Spacer--Module

$3.99

$

In Stock, only 3 left!

0

29

Poulan 530039211

Ignition Module
(Superseded to 501092801)

$24.99

$

Usually ships in 3-10 days

0

30

Poulan 530015954

Screw

$4.99

$

Usually ships in 3-10 days

0

31

Poulan 530047278

Assy--Switch Wire

$7.49

$

Usually ships in 3-10 days

0

32

Poulan 530071363

Kit--Engine Gasket

Note: (Incl. 8,11,27,48)

$9.99

$

Usually ships in 3-10 days

0

33

Poulan 530056241

Assy--Throttle Cable

$10.99

$

Usually ships in 3-10 days

0

34

Poulan 530027569

Handle--Starter

$6.49

$

In Stock, only 2 left!

0

35

Poulan 530071325

Kit -- Rope

$6.49

$

Usually ships in 3-10 days

0

36

Poulan 530016326

Screw

$

$

Not available

37

Poulan 530016376

Spacer--Flywheel

$6.49

$

Usually ships in 3-10 days

0

38

Poulan 530015941

Retain. Ring--C'shaft

$4.99

$

Usually ships in 3-10 days

0

39

Poulan 530055728

Outer Bearing

$9.99

$

Usually ships in 3-10 days

0

40

Poulan 530071615

Kit--C'case Seal

$7.49

$

Usually ships in 3-10 days

0

41

Poulan 530032125

Inner Bearing
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

42

Poulan 530057242

Shroud--Rear

$17.99

$

Usually ships in 3-10 days

0

43

Poulan 530015934

Screw

$4.99

$

In Stock, only 1 left!

0

44

Poulan 530015810

Screw
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

45

Poulan 530015880

Screw

$4.99

$

In Stock, Qty 8

0

46

Poulan 530055351

Shield--Heat

$3.99

$

Usually ships in 3-10 days

0

47

Poulan 530015805

Screw
(Superseded to 530015886)

$6.49

$

In Stock, Qty 17

0

48

Poulan 530071363

O--Ring--C'case/Shrd

$9.99

$

Usually ships in 3-10 days

0

49

Poulan 530028803

Assy--Crankshaft

$18.99

$

Usually ships in 3-10 days

0

50

Poulan 530012491

Assy--Crankcase
(Superseded to 530071627)

Note: (Incl. 39--41)

$26.99

$

Usually ships in 3-10 days

0

51

Poulan 530056298

Assy--C'case & C'shaft

Note: (Incl. 38,49,50)

$

$

Not available

52

Poulan 530069886

Assy--Flywheel
(Superseded to 545221701)

$13.99

$

In Stock, only 1 left!

0

53

Poulan 530015149

Washer

$4.99

$

In Stock, only 3 left!

0

54

Poulan 530016224

Screw

$4.99

$

In Stock, Qty 5

0

55

Poulan 530053985

Retainer

$1.49

$

In Stock, only 1 left!

0

56

Poulan 530071324

Kit--Starter Pull

Note: (incl 36)

$9.99

$

Usually ships in 3-10 days

0

57

Poulan 530042086

Spring--Starter
(Superseded to 545008011)

$9.99

$

In Stock, Qty 11

0

58

Poulan 530057317

Assy.--Fan Hsg

$21.99

$

In Stock, only 1 left!

0

59

Poulan 530015810

Screw
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

60

Poulan 530015767

Screw

$3.99

$

In Stock, only 2 left!

0

61

Poulan 530014923

Assy--Clutch Hsg.

$

$

Not available

62

Poulan 530015828

Washer--Flat

$4.99

$

In Stock, only 1 left!

0

63

Poulan 530015768

Nut

$6.49

$

In Stock, only 2 left!

0

64

Poulan 530626605

Nut--Clutch

$3.99

$

Usually ships in 3-10 days

0

65

Poulan 530069491

Assy--Clutch

$

$

Not available

66

Poulan 530015611

Washer--Clutch

$6.49

$

In Stock, Qty 20+

0

67

Poulan 530016379

Retainer

$4.99

$

Usually ships in 3-10 days

0

68

Poulan 530014347

Assy--Fuel Cap

$8.99

$

In Stock, Qty 5

0

69

Poulan 530095646

Assy--Fuel Pickup

$4.99

$

In Stock, Qty 20+

0

70

Poulan 530069247

Kit--Fuel Line (Small)

$6.49

$

In Stock, Qty 20+

0

71

Poulan 530069216

Kit--Fuel Line (Large)

$6.49

$

In Stock, Qty 20+

0

72

Poulan 530049379

Assy--Fuel Tank
(Superseded to 545103802)

$

$

Not available
