BC 2500 LE - Weed Eater Brushcutter, Type 2 Engine Assembly Engine Assembly Type 2 Parts Diagram

Brushcutter, Type 2

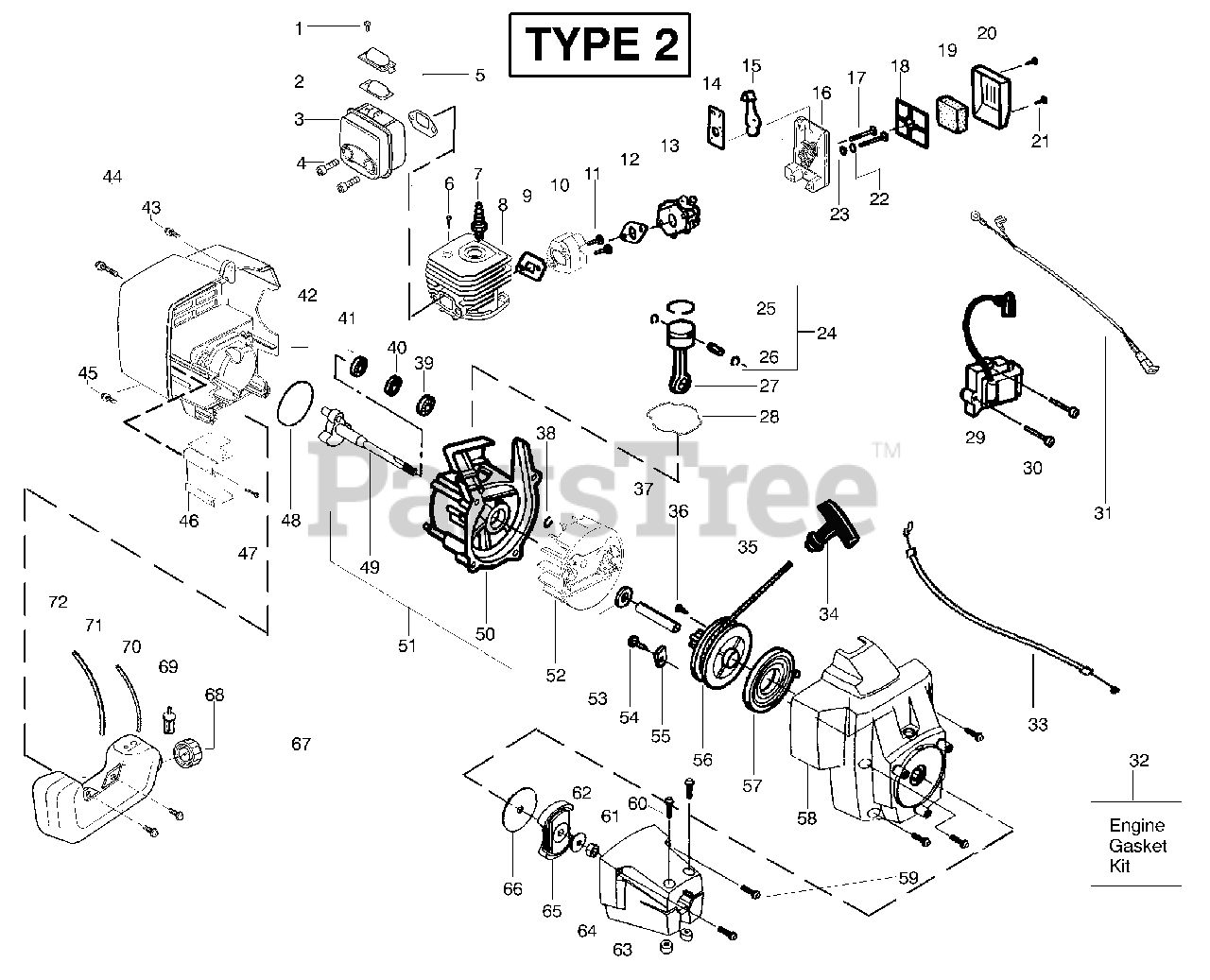

Engine Assembly Engine Assembly Type 2 Parts Diagram

  • Title

1

Poulan 530015241

Screw--Screen
(Superseded to 545227101)

$3.49

$

In Stock, Qty 20+

0

2

Poulan 530071544

Kit--Spark Arrestor

$

$

Not available

3

Poulan 530071672

Kit -- Muffler

Note: (incl. 1,2,4,5)

$

$

Not available

4

Poulan 530016338

Bolt--Muffler

$3.49

$

In Stock, Qty 8

0

5

Poulan 530071363

Gasket--Muffler(kit)

$

$

Not available

6

Poulan 530015953

Screw--Cylinder

$3.49

$

In Stock, Qty 7

0

7

Poulan 952030249

Spark Plug (RCJ 6Y)

$4.49

$

In Stock, Qty 20+

0

8

Poulan 530071678

Kit -- Cylinder

$

$

Not available

9

Poulan 530071363

Gasket--Cyl/Carb(kit)

$

$

Not available

10

Poulan 530056404

Adapter--Carb.
(Superseded to 545030403)

$

$

Not available

11

Poulan 530016309

Screw

$6.99

$

Usually ships in 3-10 days

0

12

Poulan 530071363

Gasket--Carb.(kit)

$

$

Not available

13

Poulan 530071631

Kit--Carburetor (C1U--W16)

$

$

Not available

14

Poulan 530038747

Choke Plate Mounting

$3.49

$

In Stock, only 2 left!

0

15

Poulan 530035499

Shutter--Choke

$

$

Not available

16

Poulan 530052431

Air Box

$

$

Not available

17

Poulan 530016353

Screw

$4.99

$

Usually ships in 3-10 days

0

18

Poulan 530036569

Plate -- Filter Support

$

$

Not available

19

Poulan 530036575

Foam--Air Filter

$5.99

$

In Stock, Qty 5

0

20

Poulan 530054414

Cover--Air Filter

$5.99

$

In Stock, only 1 left!

0

21

Poulan 530015892

Screw

$3.49

$

In Stock, Qty 20+

0

22

Poulan 530015852

Spacer--Choke

$

$

Not available

23

Poulan 530015254

Washer

$

$

Not available

24

Poulan 530071357

Kit -- Piston
(Superseded to 530071833)

Note: (Incl. 25, 26 & Pin)

$34.99

$

In Stock, only 2 left!

0

25

Poulan 530055120

Piston Ring
(Superseded to 545154001)

$4.99

$

In Stock, only 2 left!

0

26

Poulan 530015162

Retainer - Piston Pin

$3.49

$

In Stock, only 2 left!

0

27

Poulan 530069945

Assy--Connecting Rod
(Superseded to 530049817)

$13.99

$

In Stock, only 2 left!

0

28

Poulan 530071363

Seal--Cylinder (kit)

$

$

Not available

29

Poulan 530039211

Ignition Module
(Superseded to 501092801)

$31.99

$

In Stock, only 2 left!

0

30

Poulan 530016357

Screw

$3.49

$

In Stock, only 2 left!

0

31

Poulan 530047278

Assy--Switch Wire

$11.99

$

Usually ships in 3-10 days

0

32

Poulan 530071363

Kit--Engine Gasket

Note: (Incl. 5,9,12,28,48)

$

$

Not available

33

Poulan 530056241

Assy--Throttle Cable

$

$

Not available

34

Poulan 530027569

Handle--Starter

$4.99

$

Usually ships in 3-10 days

0

35

Poulan 530071325

Kit -- Rope

$

$

Not available

36

Poulan 530016326

Screw

$

$

Not available

37

Poulan 530016376

Spacer--Flywheel

$

$

Not available

38

Poulan 530015941

Retain. Ring--C'shaft

$3.49

$

Usually ships in 3-10 days

0

39

Poulan 530055728

Outer Bearing

$6.99

$

Usually ships in 3-10 days

0

40

Poulan 530071615

Kit--C'case Seal

$

$

Not available

41

Poulan 530032125

Inner Bearing
(Superseded to 738210101)

$11.99

$

Usually ships in 3-10 days

0

42

Poulan 530056710

Shroud--Rear

$

$

Not available

43

Poulan 530015934

Screw

$3.49

$

In Stock, only 1 left!

0

44

Poulan 530015810

Screw
(Superseded to 530016386)

$4.99

$

In Stock, only 1 left!

0

45

Poulan 530015880

Screw

$3.49

$

In Stock, Qty 8

0

46

Poulan 530055351

Shield--Heat

$

$

Not available

47

Poulan 530015805

Screw
(Superseded to 530015886)

$3.49

$

In Stock, Qty 17

0

48

Poulan 530071363

O--Ring--C'case(kit)

$

$

Not available

49

Poulan 530028803

Assy--Crankshaft

$

$

Not available

50

Poulan 530012510

Assy--Crankcase

Note: (Incl. 39--41)

$

$

Not available

51

Poulan 530071696

Assy--C'case & C'shaft

Note: (Incl. 38,49,50)

$

$

Not available

52

Poulan 530069886

Assy--Flywheel
(Superseded to 545221701)

$31.99

$

In Stock, Qty 6

0

53

Poulan 530015149

Washer

$3.49

$

In Stock, only 3 left!

0

54

Poulan 530016224

Screw

$3.49

$

In Stock, only 4 left!

0

55

Poulan 530053985

Retainer

$0.99

$

In Stock, only 1 left!

0

56

Poulan 530071324

Kit--Starter Pull

Note: (incl 36)

$

$

Not available

57

Poulan 530042086

Spring--Starter
(Superseded to 545008011)

$11.99

$

In Stock, only 3 left!

0

58

Poulan 530057317

Assy.--Fan Hsg

$20.99

$

In Stock, only 1 left!

0

59

Poulan 530015810

Screw
(Superseded to 530016386)

$4.99

$

In Stock, only 1 left!

0

60

Poulan 530015767

Screw

$3.49

$

In Stock, only 2 left!

0

61

Poulan 530014923

Assy--Clutch Hsg.

$

$

Not available

62

Poulan 530015828

Washer--Flat

$3.49

$

In Stock, only 1 left!

0

63

Poulan 530015768

Nut

$3.49

$

In Stock, Qty 12

0

64

Poulan 530626605

Nut--Clutch

$6.99

$

In Stock, only 1 left!

0

65

Poulan 530069491

Assy--Clutch

$

$

Not available

66

Poulan 530015611

Washer--Clutch

$5.99

$

In Stock, Qty 20+

0

67

Poulan 530016379

Retainer

$

$

Not available

68

Poulan 530014347

Assy--Fuel Cap

$9.49

$

In Stock, Qty 7

0

69

Poulan 530095646

Assy--Fuel Pickup

$6.99

$

In Stock, Qty 20+

0

70

Poulan 530069247

Kit--Fuel Line (Small)

$2.49

$

In Stock, Qty 20+

0

71

Poulan 530069216

Kit--Fuel Line (Large)

$13.99

$

In Stock, Qty 20+

0

72

Poulan 530049296

Assy--Fuel Tank
(Superseded to 545103802)

Note: (incl. 68,69 & fuel lines)

$

$

Not available
