BC 25BE (5901092) - Ferris Walk-Behind Brush Mower, 13hp Electrical & Misc. Group (986132) Parts Diagram

Walk-Behind Brush Mower, 13hp

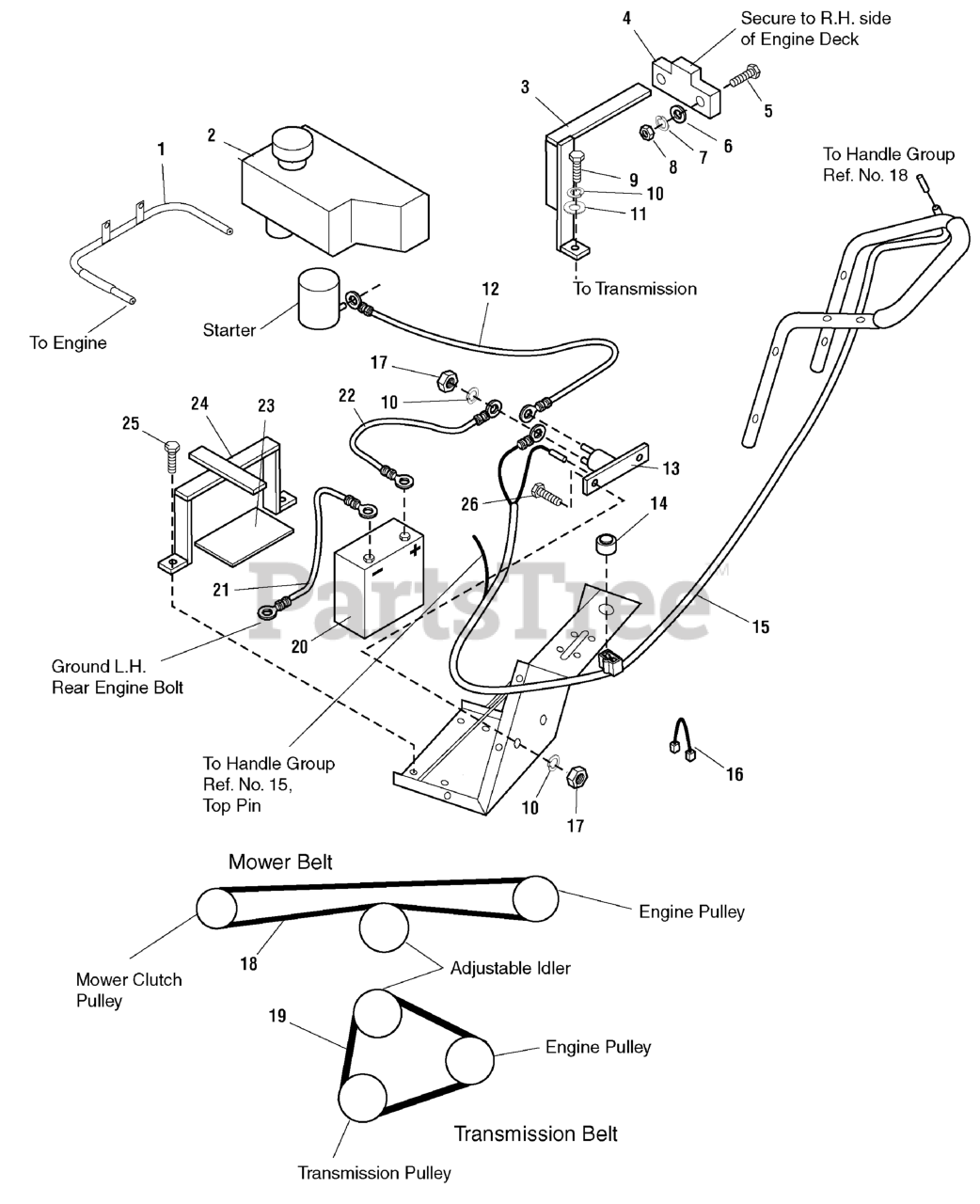

Electrical & Misc. Group (986132) Parts Diagram

  • Title

1

Ferris 1723685

Auxiliary Fuel Line w/Clamps - 9"
(Superseded to 1723685SM)

Note: (13 HP Honda)

$5.99

$

Usually ships in 2-12 days

0

1

Ferris 1723619

Auxiliary Fuel Line w/Clamps - 18"
(Superseded to 7072545YP)

Note: (15 HP Kawasaki & 13.5 Briggs & Stratton)

$10.99

$

In Stock, Qty 6

0

2

Ferris 695164

TANK-FUEL

Note: (was 1723618)

$104.99

$

Usually ships in 2-12 days

0

3

Ferris 1723621

Bracket
(Superseded to 1723621SM)

$

$

Not available

4

Ferris 1723622

Plate, Lock Engage / Disengage
(Superseded to 1723622SM)

$13.99

$

Usually ships in 2-12 days

0

5

Ferris 1921332

BOLT, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

6

Ferris 1918265

Flatwasher, 5/16
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

7

Ferris 1917356

Lockwasher, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

8

Ferris 1917372

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

9

Ferris 1935105

BOLT, 1/4-28 x 5/8
(Superseded to 1935105SM)

$6.99

$

Usually ships in 2-12 days

0

10

Ferris 1916964

Lockwasher, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

11

Ferris 1921319

Flatwasher, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 11

0

12

Ferris 1723639

Cable - Solenoid to Starter Coil
(Superseded to 1723639SM)

$

$

Not available

13

Ferris 1723641

Solenoid

$

$

Currently unavailable

14

Ferris 1723631

Keyed start switch
(Superseded to 1723631SM)

$

$

Not available

14

Ferris 1723627

Keyed off switch
(Superseded to 1723627SM)

Note: (manual start units only)

$51.99

$

Usually ships in 2-12 days

0

14

Keyed off switch, Honda Models

Note: (Not a serviceable part)

$

$

Not available

15

Ferris 1723632

Wire Harness, Honda

$

$

Not available

15

Ferris 1724057

Wire Harness, Briggs & Stratton

$

$

Currently unavailable

15

Ferris 1724058

Wire Harness, Kawasaki
(Superseded to 7044926SM)

$62.99

$

Usually ships in 2-12 days

0

16

Wire, Jumper, Honda Models

Note: (Not a serviceable part)

$

$

Not available

17

Ferris 1916622

NUT, Hex, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 3 left!

0

18

Ferris 1723629

Belt, Blade Clutch Drive
(Superseded to 1723629SM)

$74.99

$

In Stock, only 4 left!

0

19

Ferris 1723630

Belt, Transmission Drive
(Superseded to 1723630SM)

$24.99

$

In Stock, only 2 left!

0

20

Ferris 1723633

Battery
(Superseded to 1686695SM)

$

$

Not available

21

Ferris 1725226

Cable, Battery Negative to Ground
(Superseded to 1725226SM)

$

$

Not available

22

Ferris 1723637

Cable, Battery Positive to Solenoid

$

$

Not available

23

Ferris 1723634

Battery Rubber
(Superseded to 1723634SM)

$

$

Not available

24

Ferris 1723635

Battery Hold-Down
(Superseded to 1723635SM)

$

$

Not available

25

Ferris 1723636

CAPSCREW, TEK, #12 x 3/4
(Superseded to 1723636SM)

$2.99

$

In Stock, only 2 left!

0

26

Ferris 1923341

BOLT, 1/4-20 x 3/4
(Superseded to 1923341SM)

$4.49

$

In Stock, Qty 8

0
