BC 260 DL - RedMax Brushcutter (1990-04) 025 - DRIVESHAFT/ACCESSORIES/TOOLS Parts Diagram

Brushcutter

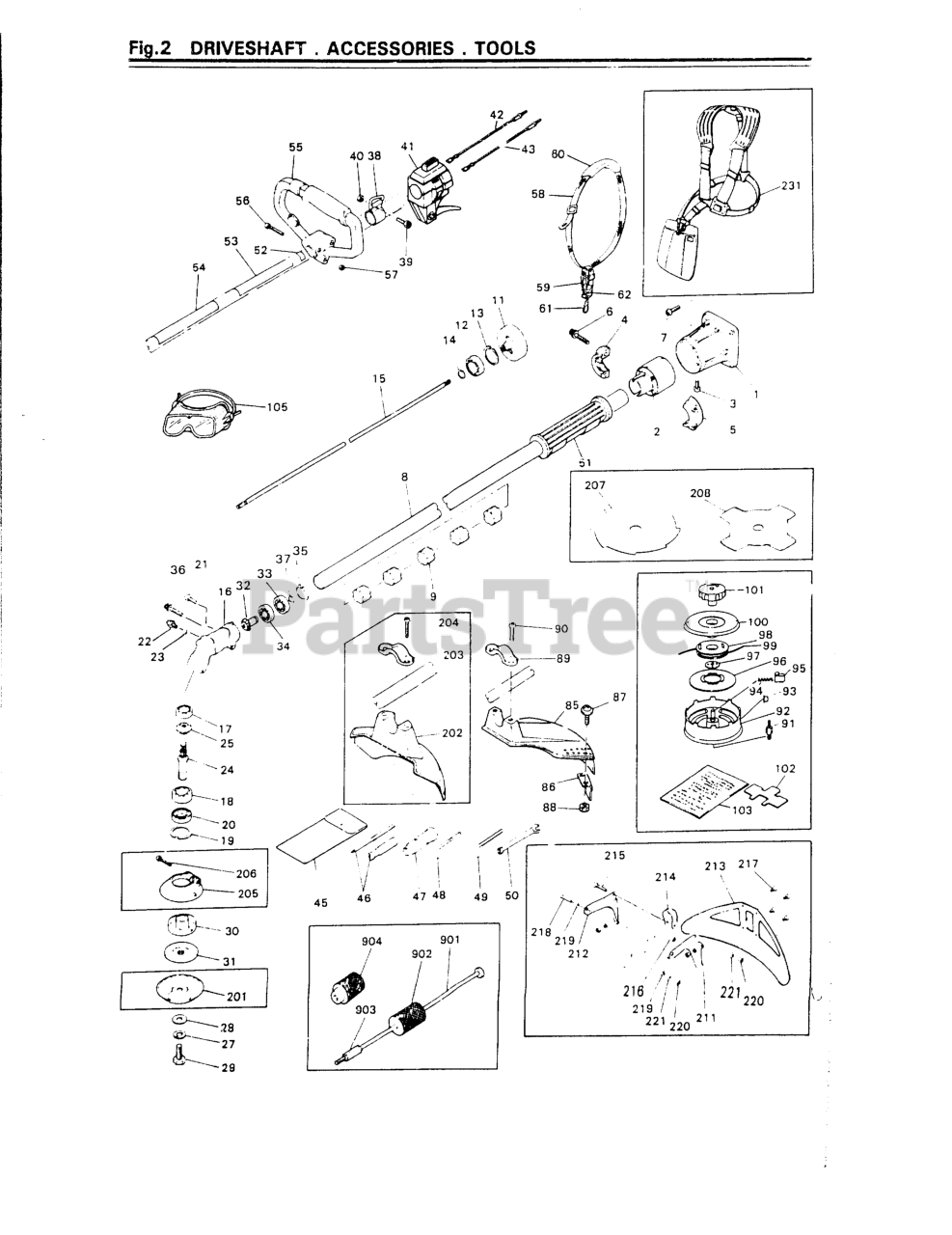

025 - DRIVESHAFT/ACCESSORIES/TOOLS Parts Diagram

  • Title

1

RedMax 352011101

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

2

RedMax 352011101

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

3

RedMax 026000610

SCREW, M6 x 10

$0.07

$

Usually ships in 3-10 days

0

4

RedMax 352011161

CLAMP

$

$

Not available

5

RedMax 352011180

CLAMP (L)

$

$

Not available

6

RedMax 335021320

BOLT
(Superseded to 521049801)

$3.99

$

Usually ships in 3-10 days

0

7

RedMax 022550620

BOLT, M6 X 20

$0.39

$

Usually ships in 3-10 days

0

8

RedMax 603811300

6038-11301

$

$

Not available

9

RedMax 325011321

BUSHING

$6.47

$

Usually ships in 3-10 days

0

11

RedMax 352012111

DRUM CLUTCH (USE 6460-12112)
(Superseded to 515636801)

$66.99

$

Usually ships in 3-10 days

0

12

RedMax 0600406001

BEARING
(Superseded to 506610101)

$24.99

$

Usually ships in 3-10 days

0

13

RedMax 0406502812

RING, SNAP, M28 x 1.2
(Superseded to 506609901)

$4.99

$

In Stock, only 2 left!

0

14

RedMax 313013270

04064-01210
(Superseded to 516124101)

$4.99

$

In Stock, only 1 left!

0

15

RedMax 352012212

3520-12213

$

$

Not available

RedMax 352413004

3524-13006

$

$

Not available

16

RedMax 352013112

3520-13113

$

$

Not available

17

RedMax 0600000608

BEARING

$

$

Not available

18

RedMax 0600006001

BEARING
(Superseded to 516127901)

$10.99

$

Usually ships in 3-10 days

0

19

RedMax 0406502812

RING, SNAP, M28 x 1.2
(Superseded to 506609901)

$4.99

$

In Stock, only 2 left!

0

20

RedMax 352013140

SEAL, OIL

$

$

Not available

21

RedMax 0125230510

BOLT, M5 X 10
(Superseded to 505169901)

$4.99

$

In Stock, only 3 left!

0

22

RedMax 319913350

FITTING, GREASE
(Superseded to 505171501)

$6.49

$

Usually ships in 3-10 days

0

23

RedMax 0164120608

WASHER, M6 X .8
(Superseded to 505171601)

$3.99

$

Usually ships in 3-10 days

0

24

RedMax 352013211

3520-13212

$

$

Not available

25

RedMax 352013220

GEAR, BEVEL (NLA)

Note: Context Note: @ÿ

$

$

Not available

27

RedMax 331043210

WASHER (RPLS 3180-13270)
(Superseded to 505169701)

$4.99

$

In Stock, only 3 left!

0

28

RedMax 0164330823

WASHER, M8 x 2.3 (RPLS -20823)
(Superseded to 505169801)

$4.99

$

In Stock, only 3 left!

0

29

RedMax 357933260

BOLT, LH
(Superseded to 505169601)

$7.49

$

In Stock, Qty 20+

0

30

RedMax 352013240

HOLDER (NLA)

Note: Context Note: @ÿ

$

$

Not available

31

RedMax 354113251

HOLDER (B)
(Superseded to 505171401)

$12.99

$

In Stock, Qty 6

0

32

RedMax 352013311

PINION (NLA)

Note: Context Note: @ÿ

$

$

Not available

33

RedMax 0600100609

BEARING (RPLS T3300-13531)
(Superseded to 516129701)

$8.99

$

In Stock, only 3 left!

0

34

RedMax 0600000609

BEARING (RPLS T3403-13530)
(Superseded to 505169201)

$10.99

$

In Stock, only 3 left!

0

35

RedMax 0406502412

RING, SNAP, M24 x 1.2
(Superseded to 505169401)

$3.99

$

Usually ships in 3-10 days

0

36

RedMax 335021320

BOLT
(Superseded to 521049801)

$3.99

$

Usually ships in 3-10 days

0

37

RedMax 321013330

RING, SNAP (RPLS T3300-13330)
(Superseded to 520910501)

$3.49

$

Usually ships in 3-10 days

0

38

RedMax 352017110

HANGER COMP
(Superseded to 514345501)

$

$

Not available

39

RedMax 0125230510

BOLT, M5 X 10
(Superseded to 505169901)

$4.99

$

In Stock, only 3 left!

0

40

RedMax 028010504

NUT, M5 X 4
(Superseded to 505172301)

$4.99

$

In Stock, only 2 left!

0

RedMax 604112300

LEVER ASSEMBLY
(Superseded to 521529101)

$

$

Not available

41

RedMax 604112400

T3065-12200
(Superseded to 521529901)

$

$

Not available

42

RedMax 611614420

CORD-A, BLACK
(Superseded to 521423101)

$

$

Not available

43

RedMax 611614430

CORD-B, RED
(Superseded to 521423201)

$

$

Not available

RedMax 352091000

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

45

RedMax 103091112

BAG

$3.44

$

Usually ships in 3-10 days

0

46

RedMax 103091340

SCREWDRIVER
(Superseded to 516153801)

$

$

Not available

47

RedMax 323991310

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

48

RedMax 0900700425

WRENCH (TOOL)

$0.75

$

Usually ships in 3-10 days

0

49

RedMax 354091110

BAR
(Superseded to 521176101)

$4.99

$

Usually ships in 3-10 days

0

50

RedMax 354091120

SPANNER, 8 X 10 (RPLS 2540- )
(Superseded to 506615001)

$7.49

$

In Stock, Qty 10

0

51

RedMax 357732140

3577-32141

$

$

Not available

52

RedMax 355311550

LABEL, POSITIONING

$

$

Not available

53

RedMax 604111512

PLATE, NAME

$

$

Not available

54

RedMax 355411520

PLATE

$1.34

$

Usually ships in 3-10 days

0

55

RedMax 351614300

HANDLE ASSEMBLY (NLA)

Note: Context Note: @ÿ

$

$

Not available

56

RedMax 026000530

SCREW, M5 x 30(RPLS 0263-00530

$0.25

$

Usually ships in 3-10 days

0

57

RedMax 028010504

NUT, M5 X 4
(Superseded to 505172301)

$4.99

$

In Stock, only 2 left!

0

RedMax 604117202

6112-17202
(Superseded to 611217204)

$34.99

$

Usually ships in 3-10 days

0

58

RedMax 604117200

6041-17202
(Superseded to 611217204)

$34.99

$

Usually ships in 3-10 days

0

59

RedMax 604117200

6041-17202
(Superseded to 611217204)

$34.99

$

Usually ships in 3-10 days

0

60

RedMax 604117200

6041-17202
(Superseded to 611217204)

$34.99

$

Usually ships in 3-10 days

0

61

RedMax 604117200

6041-17202
(Superseded to 611217204)

$34.99

$

Usually ships in 3-10 days

0

62

RedMax 314617251

CUSHION

$2.87

$

Usually ships in 3-10 days

0

RedMax 604124000

6357-24001
(Superseded to 574016001)

$

$

Not available

85

RedMax 604124110

6357-24001
(Superseded to 574016001)

$

$

Not available

86

RedMax 604124140

BLADE
(Superseded to 521404201)

$

$

Not available

87

RedMax 026330512

SCREW, M5 x 12
(Superseded to 510478301)

$3.99

$

Usually ships in 3-10 days

0

88

RedMax 332015610

NUT

$

$

Not available

89

RedMax 352024120

CLAMP (REPLACES 5807-24120)
(Superseded to 521160201)

$

$

Not available

90

RedMax 354024130

BOLT, M6 x 1.30
(Superseded to 521176001)

$4.99

$

In Stock, only 2 left!

0

RedMax 623215003

FULL-AUTO HEAD KIT

$

$

Not available

RedMax 623299002

HEAD ASSY

$

$

Not available

91

RedMax 623215110

ADAPTER-MALE
(Superseded to 574085501)

$

$

Not available

92

RedMax 623215210

HOUSING, SPOOL
(Superseded to 574085701)

$

$

Not available

93

RedMax 623215221

EYELET (RPLS -15220)

$

$

Not available

94

RedMax 623215320

SPRING, RED
(Superseded to 574085801)

$3.99

$

Usually ships in 3-10 days

0

94

RedMax 623215310

SPRING, WHITE

$2.94

$

Usually ships in 3-10 days

0

94

RedMax 623215330

SPRING, SILVER

$2.94

$

Usually ships in 3-10 days

0

94

RedMax 623215340

SPRING, CAM

$

$

Not available

95

RedMax 623215350

SLIDE CAM (1 PC)

$

$

Not available

96

RedMax 623215360

CAM DISK

$

$

Not available

97

RedMax 623215120

NUT, FLAT

$

$

Not available

98

RedMax 623215410

SPOOL

$

$

Not available

99

RedMax 623215420

CORD

$

$

Not available

100

RedMax 623215231

COVER

$

$

Not available

101

RedMax 623215240

KNOB

$

$

Not available

102

RedMax 623215510

FASTENING TOOL

$2.12

$

Usually ships in 3-10 days

0

103

RedMax 623215521

MANUAL

$

$

Not available

105

RedMax 624292110

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$6.72

$

Usually ships in 3-10 days

0

201

RedMax 625115910

COVER (REPLACES D0041) ACC.

$9.86

$

Usually ships in 3-10 days

0

RedMax 352024000

GUARD ASSY (USE -24001)

$

$

Not available

202

RedMax 352024111

GUARD (USE 3520-24112)

$

$

Not available

203

RedMax 352024120

CLAMP (REPLACES 5807-24120)
(Superseded to 521160201)

$

$

Not available

204

RedMax 354024130

BOLT, M6 x 1.30
(Superseded to 521176001)

$4.99

$

In Stock, only 2 left!

0

RedMax 354113400

COVER

$11.35

$

Usually ships in 3-10 days

0

205

RedMax 354113410

3541-13400
(Superseded to 354113400)

$11.35

$

Usually ships in 3-10 days

0

206

RedMax 026330530

SCREW, M5 X 30
(Superseded to 516113501)

$

$

Not available

207

RedMax 629915260

6299-3

$

$

Not available

208

RedMax 629914260

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

RedMax 355424000

3554-1

$

$

Not available

211

RedMax 353524110

BRACKET (A)

$8.32

$

Usually ships in 3-10 days

0

212

RedMax 353524120

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

213

RedMax 318024130

GUARD (NLA)

Note: Context Note: @ÿ

$18.30

$

Usually ships in 3-10 days

0

214

RedMax 321025120

CLAMP (NO LONGER AVAILABLE)

Note: Context Note: @ÿ

$

$

Not available

215

RedMax 0125230530

BOLT, M5 X 30
(Superseded to 506609401)

$3.99

$

Usually ships in 3-10 days

0

216

RedMax 314424150

SPACER

$6.72

$

Usually ships in 3-10 days

0

217

RedMax 026000510

0260-20510

$

$

Not available

218

RedMax 355424190

BOLT

$0.65

$

Usually ships in 3-10 days

0

219

RedMax 0164220508

WASHER, M5x.8(RPLS 01624-20508
(Superseded to 544276501)

$

$

Not available

220

RedMax 028010504

NUT, M5 X 4
(Superseded to 505172301)

$4.99

$

In Stock, only 2 left!

0

221

RedMax 0160120513

WASHER, SPRING M4 x 1.3
(Superseded to 516076301)

$3.99

$

Usually ships in 3-10 days

0

231

RedMax 622017201

HARNESS ASSEMBLY
(Superseded to 521433701)

$

$

Not available

RedMax 352096100

PULLER COMP.(TOOL) (NLA)

Note: Context Note: @ÿ

$

$

Not available

901

RedMax 323899110

SHAFT (TOOL)

$45.78

$

Usually ships in 3-10 days

0

902

RedMax 323899120

WEIGHT

$44.55

$

Usually ships in 3-10 days

0

903

RedMax 352099130

ADAPTER (B) (TOOL)

$

$

Not available

904

RedMax 352096150

BLOCK (TOOL)

$25.40

$

Usually ships in 3-10 days

0
