BC 2600 LE - RedMax Brushcutter (1997-09) 002 - ENGINE GROUP Parts Diagram

Brushcutter

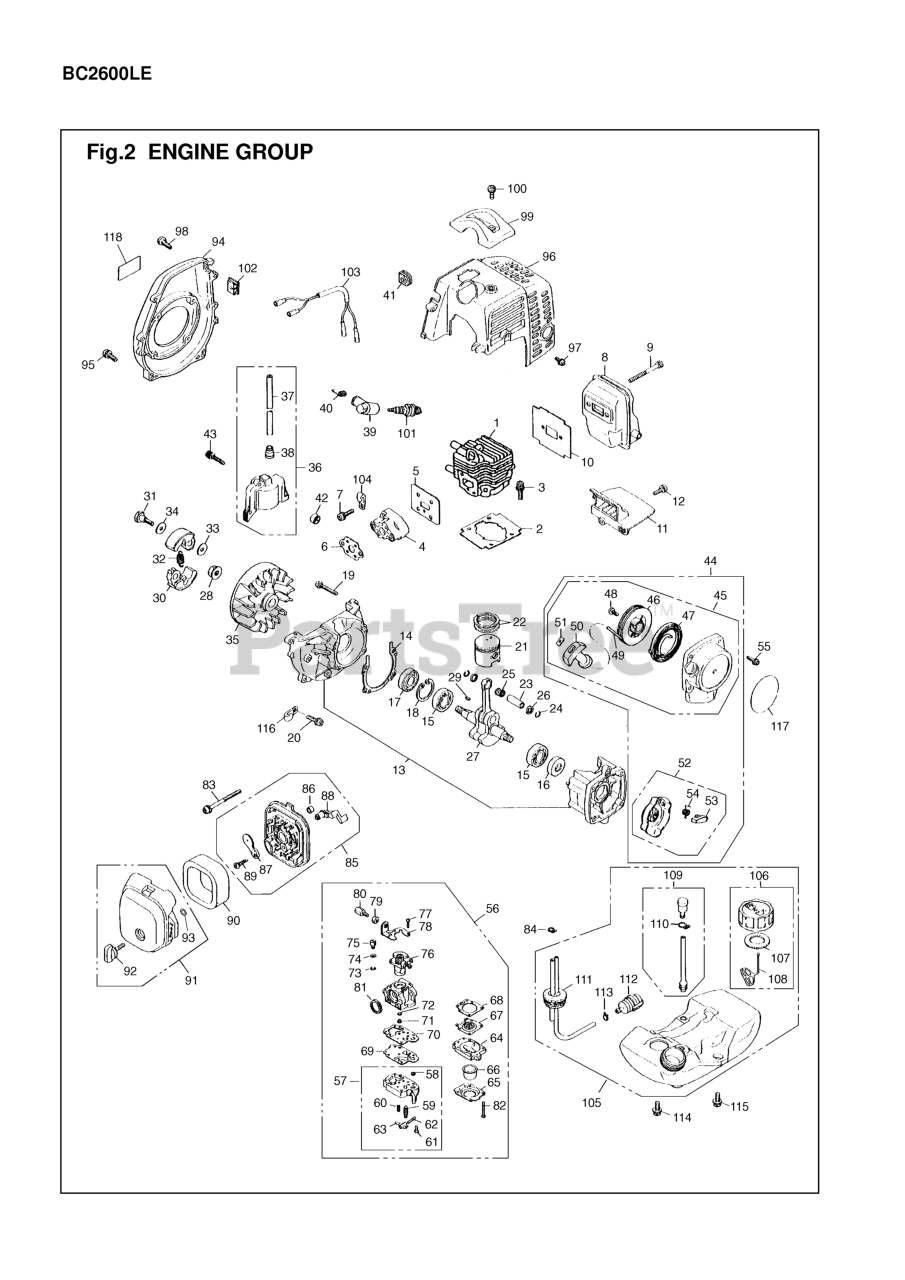

002 - ENGINE GROUP Parts Diagram

  • Title
1

RedMax 591012110

USE 5911-12110

$

$

Not available

2

RedMax 550012211

5500-12212
(Superseded to 515408801)

$3.99

$

Usually ships in 3-10 days

0

3

RedMax 185012130

BOLT, M5 X 22
(Superseded to 516537401)

$3.99

$

Usually ships in 3-10 days

0

4

RedMax 550013162

5500-13163
(Superseded to 515410201)

$

$

Not available

5

RedMax 550013120

5500-13121
(Superseded to 515409001)

$7.49

$

In Stock, only 2 left!

0

6

RedMax 550013130

5500-13131
(Superseded to 515409901)

$3.49

$

In Stock, only 2 left!

0

7

RedMax 026390520

SCREW, M5X20 (RPLS.1400-75510)

$0.25

$

Usually ships in 3-10 days

0

8

$

$

Not available

9

RedMax 0125230550

BOLT, M5 x 50
(Superseded to 516071401)

$3.99

$

Usually ships in 3-10 days

0

10

RedMax 550015210

GASKET, MUFFLER
(Superseded to 515411401)

$

$

Not available

11

RedMax 550015220

5500-15221
(Superseded to 515412101)

$

$

Not available

$

$

Not available

13

RedMax 550021100

CRANKCASE
(Superseded to 521357201)

$78.99

$

Usually ships in 3-10 days

0

14

RedMax 550021140

5500-21141
(Superseded to 515412401)

$3.99

$

Usually ships in 3-10 days

0

15

RedMax 0603006001

BEARING
(Superseded to 523071701)

$12.99

$

In Stock, only 3 left!

0

16

RedMax 216921210

SEAL, OIL (RPLS 1100-21210)
(Superseded to 513488701)

$4.99

$

Usually ships in 3-10 days

0

17

RedMax 185021220

SEAL
(Superseded to 506612901)

$6.49

$

In Stock, only 2 left!

0

18

RedMax 0406502812

RING
(Superseded to 506609901)

$4.99

$

In Stock, only 3 left!

0

19

RedMax 0125230530

BOLT, M5 X 30
(Superseded to 506609401)

$3.49

$

In Stock, only 4 left!

0

$

$

Not available

21

RedMax 591041110

PISTON
(Superseded to 515491801)

$39.99

$

Usually ships in 3-10 days

0

22

RedMax 591041210

RING, PISTON
(Superseded to 529251001)

$7.49

$

In Stock, only 4 left!

0

23

RedMax 160041310

PIN
(Superseded to 516385601)

$10.99

$

In Stock, only 1 left!

0

24

RedMax 126041320

RING
(Superseded to 505045201)

$4.99

$

In Stock, Qty 11

0

25

RedMax 114041330

5500-41410
(Superseded to 505040901)

$9.99

$

In Stock, only 1 left!

0

26

RedMax 110141340

WASHER
(Superseded to 516181201)

$

$

Not available

27

RedMax 550042001

CRANKSHAFT (RPLS 1850-42000)
(Superseded to 521358201)

$

$

Not available

28

RedMax 165043230

NUT
(Superseded to 516437401)

$3.99

$

Usually ships in 3-10 days

0

29

RedMax 100043240

KEY
(Superseded to 506689401)

$4.99

$

Usually ships in 3-10 days

0

30

RedMax 140051111

SHOE, CLUTCH (RPLS -51110)
(Superseded to 513242301)

$17.99

$

In Stock, only 2 left!

0

31

RedMax 114051250

BOLT
(Superseded to 513189601)

$4.99

$

In Stock, only 4 left!

0

32

RedMax 197051221

SPRING, CLUTCH (RPLS-51220)
(Superseded to 513452601)

$3.99

$

Usually ships in 3-10 days

0

33

RedMax 114051230

WASHER
(Superseded to 516207701)

$4.99

$

Usually ships in 3-10 days

0

34

RedMax 197051241

WASHER
(Superseded to 574061801)

$

$

Not available

35

RedMax 550171110

ROTOR
(Superseded to 515420601)

$

$

Not available

36

RedMax 550171201

COIL ASSY (RPLS 5500-71200)
(Superseded to 521364501)

$

$

Not available

37

RedMax 550071220

CORD
(Superseded to 521358501)

$

$

Not available

38

RedMax 261671320

CAP
(Superseded to 516744001)

$4.99

$

Usually ships in 3-10 days

0

39

RedMax 190072111

1900-72112
(Superseded to 513443401)

$6.49

$

Usually ships in 3-10 days

0

40

RedMax 190072120

SPRING
(Superseded to 505298901)

$4.99

$

In Stock, only 1 left!

0

41

RedMax 550072130

GROMMET
(Superseded to 544260601)

$3.49

$

Usually ships in 3-10 days

0

42

RedMax 126071261

SPACER
(Superseded to 516258101)

$4.99

$

Usually ships in 3-10 days

0

43

RedMax 331072150

BOLT
(Superseded to 514186801)

$3.99

$

Usually ships in 3-10 days

0

44

RedMax 550075000

NOT AVAILABLE

$

$

Not available

45

RedMax 550075100

RECOIL ASSEMBLY
(Superseded to 515415801)

$34.99

$

Usually ships in 3-10 days

0

46

RedMax 185075120

REEL
(Superseded to 513416801)

$

$

Not available

47

RedMax 185075130

SPRING
(Superseded to 504115001)

$18.99

$

In Stock, Qty 20+

0

48

RedMax 185075151

SCREW (RPLS -75150)
(Superseded to 516541801)

$3.99

$

Usually ships in 3-10 days

0

$

$

Not available

50

RedMax 114075320

KNOB
(Superseded to 504114001)

$

$

Not available

51

RedMax 550075170

PLATE, STOPPER
(Superseded to 521359601)

$2.49

$

Usually ships in 3-10 days

0

52

RedMax 185075201

PULLEY ASSY (RPLS -75210)
(Superseded to 513417301)

$27.99

$

Usually ships in 3-10 days

0

53

RedMax 185075221

RATCHET (RPLS 1850-75220)
(Superseded to 513417701)

$

$

Not available

54

RedMax 185075230

SPRING, RETURN
(Superseded to 513417801)

$3.99

$

Usually ships in 3-10 days

0

$

$

Not available

56

RedMax 591281000

CARBURETOR ASSYxxx

$114.76

$

Usually ships in 3-10 days

0

57

RedMax 185081450

BODY ASSY
(Superseded to 502238401)

$53.99

$

In Stock, Qty 5

0

58

$1.22

$

Usually ships in 3-10 days

0

59

RedMax 335681310

VALVE
(Superseded to 574024901)

$

$

Not available

60

RedMax 185081270

SPRING, METERING LEVER

$2.54

$

Usually ships in 3-10 days

0

61

RedMax 185081220

SCREW, METERING LEVER PIN

$2.54

$

Usually ships in 3-10 days

0

62

RedMax 331081250

PIN
(Superseded to 520977401)

$6.49

$

Usually ships in 3-10 days

0

63

RedMax 331081230

LEVER
(Superseded to 574024401)

$7.49

$

Usually ships in 3-10 days

0

64

RedMax 185081490

BODY
(Superseded to 516543801)

$7.99

$

In Stock, only 1 left!

0

65

RedMax 185081520

COVER
(Superseded to 516543901)

$6.49

$

In Stock, Qty 7

0

66

RedMax 175181510

PUMP
(Superseded to 505306701)

$9.49

$

In Stock, only 3 left!

0

67

RedMax 331081260

DIAPHRAGM (USE 4810-81260)
(Superseded to 505056401)

$17.99

$

In Stock, only 1 left!

0

68

RedMax 185081470

GASKET, DIAPHRAGM
(Superseded to 506740801)

$10.99

$

In Stock, only 3 left!

0

69

RedMax 106581420

DIAPHRAGM
(Superseded to 506689801)

$6.49

$

In Stock, Qty 5

0

70

RedMax 106581410

GASKET, PUMP
(Superseded to 516160601)

$

$

Not available

71

RedMax 550081251

JET
(Superseded to 515416701)

$

$

Not available

72

RedMax 175181240

O-RING
(Superseded to 505307501)

$6.49

$

In Stock, only 1 left!

0

73

RedMax 175181130

RING
(Superseded to 516523601)

$3.99

$

Usually ships in 3-10 days

0

74

RedMax 550081160

WASHER
(Superseded to 544364001)

$0.99

$

Usually ships in 3-10 days

0

75

RedMax 188181140

SWIVEL
(Superseded to 516597701)

$9.99

$

Usually ships in 3-10 days

0

76

RedMax 550081152

5500-81153
(Superseded to 521360301)

$

$

Not available

77

RedMax 175281110

SCREW
(Superseded to 516528701)

$3.99

$

Usually ships in 3-10 days

0

78

$7.42

$

Usually ships in 3-10 days

0

79

RedMax 175181180

NUT
(Superseded to 510487401)

$4.99

$

Usually ships in 3-10 days

0

80

RedMax 191881170

SCREW
(Superseded to 521756001)

$7.49

$

In Stock, only 1 left!

0

81

RedMax 188181130

RING, PACKING
(Superseded to 505308401)

$4.99

$

Usually ships in 3-10 days

0

82

RedMax 185081530

SCREW
(Superseded to 506741101)

$4.99

$

In Stock, only 1 left!

0

$

$

Not available

84

RedMax 195086120

CLIP
(Superseded to 506741501)

$4.99

$

In Stock, Qty 12

0

85

RedMax 550082102

BODY-A (RPLS -82101)
(Superseded to 515416901)

$13.99

$

Usually ships in 3-10 days

0

86

RedMax 197082190

SLEEVE
(Superseded to 516626801)

$4.99

$

Usually ships in 3-10 days

0

87

RedMax 550082131

PLATE, CHOKE (RPLS-82130)
(Superseded to 521361101)

$

$

Not available

88

RedMax 550082140

LEVER
(Superseded to 515417201)

$

$

Not available

89

RedMax 263033610

SCREW
(Superseded to 516771801)

$3.49

$

In Stock, only 4 left!

0

90

RedMax 550082171

ELEMENT
(Superseded to 515417301)

$5.99

$

In Stock, Qty 14

0

91

RedMax 560082201

5600-82203
(Superseded to 515446301)

$6.99

$

In Stock, only 1 left!

0

92

RedMax 550082221

KNOB
(Superseded to 504115101)

$4.99

$

Usually ships in 3-10 days

0

93

RedMax 550082230

RING
(Superseded to 515417701)

$

$

Not available

94

RedMax 550131111

COVER, FAN (RPLS-31110)
(Superseded to 521364201)

$

$

Not available

95

RedMax 0026390520

0263-90520

$

$

Not available

96

RedMax 558032111

5580-32112
(Superseded to 515440001)

$18.99

$

Usually ships in 3-10 days

0

97

RedMax 185032160

SCREW, M5 x 12

$0.29

$

Usually ships in 3-10 days

0

98

RedMax 190031410

SCREW, HOUSING
(Superseded to 513442301)

$1.11

$

Usually ships in 3-10 days

0

99

RedMax 550032210

GUARD, PLUG
(Superseded to 515413201)

$

$

Not available

100

$

$

Not available

101

RedMax 560273110

3699-90419-10
(Superseded to 514441301)

$18.99

$

Usually ships in 3-10 days

0

102

RedMax 185272120

1852-72121

$

$

Not available

103

RedMax 550073201

CORD COMPLETE
(Superseded to 515415601)

$

$

Not available

104

RedMax 114072231

CLAMP
(Superseded to 544264901)

$3.99

$

Usually ships in 3-10 days

0

105

RedMax 591285001

TANK ASSY

$

$

Not available

106

RedMax 550485201

CAP ASSY

$

$

Not available

107

RedMax 550085220

PACKING
(Superseded to 515418301)

$3.49

$

Usually ships in 3-10 days

0

108

RedMax 331757242

STOPPER (RPLS 3317-57240)
(Superseded to 506745801)

$4.99

$

In Stock, only 3 left!

0

109

RedMax 550085602

BREATHER ASSY (RPLS -85601)
(Superseded to 515418801)

$

$

Not available

110

RedMax 195086120

CLIP
(Superseded to 506741501)

$4.99

$

In Stock, Qty 12

0

111

RedMax 591185300

PIPE COMPLETE
(Superseded to 515493101)

$7.99

$

Usually ships in 3-10 days

0

112

RedMax 550085400

FILTER (RPLS 1850-85300)
(Superseded to 515418501)

$6.99

$

In Stock, only 1 left!

0

113

RedMax 126085460

CLIP
(Superseded to 506707001)

$4.99

$

In Stock, Qty 5

0

114

RedMax 550085510

SCREW
(Superseded to 515418701)

$3.49

$

In Stock, only 3 left!

0

115

RedMax 591085510

SCREW W/ WASHER
(Superseded to 521395801)

$6.49

$

Usually ships in 3-10 days

0

116

RedMax 114072231

CLAMP
(Superseded to 544264901)

$3.99

$

Usually ships in 3-10 days

0

117

RedMax 591291120

LABEL, RECOIL

$

$

Not available

118

RedMax 550091130

LABEL, COVER

$

$

Not available
