BC 261 DL - RedMax Brushcutter (1992-09) 010 - TRIMMER UNIT Parts Diagram

Brushcutter

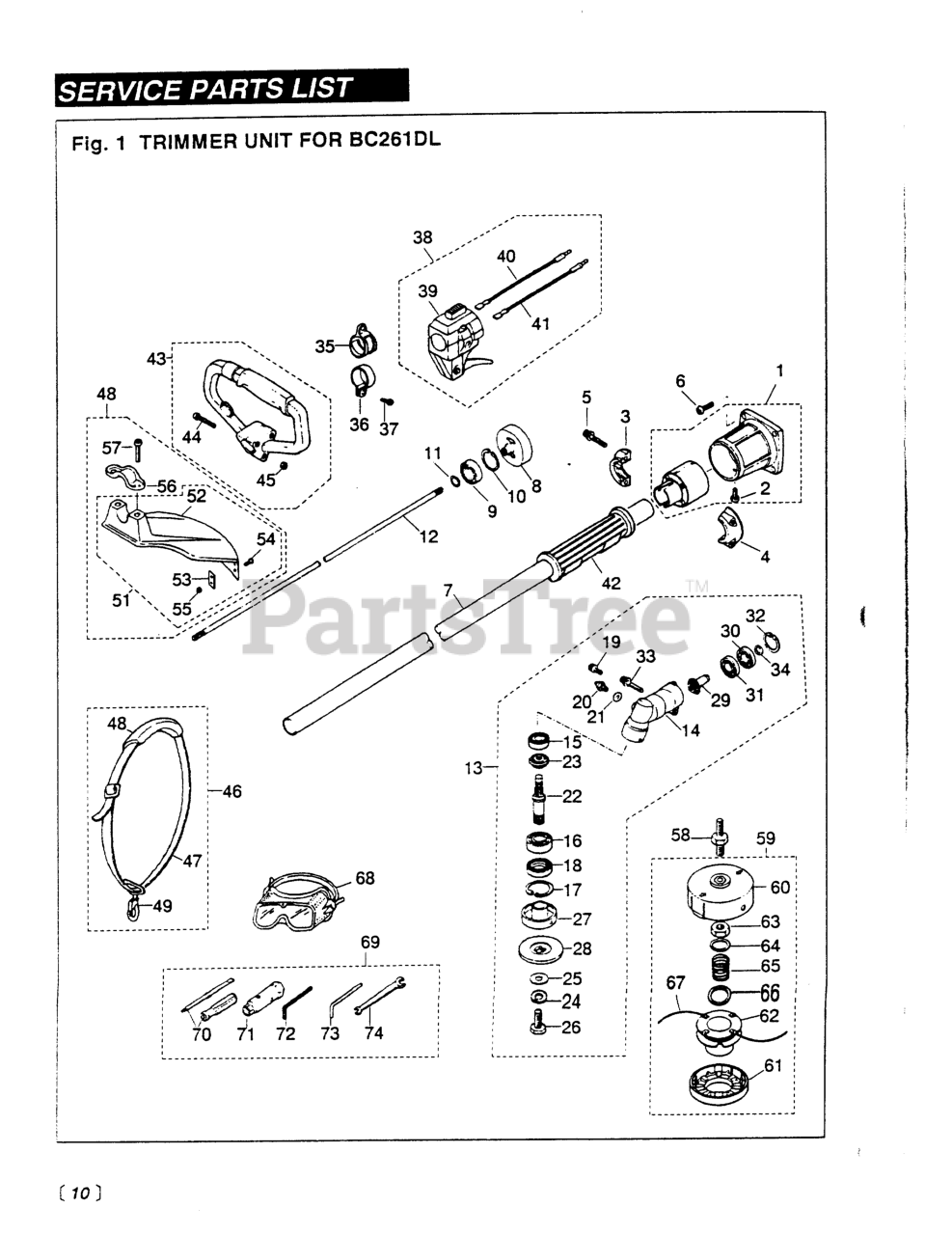

010 - TRIMMER UNIT Parts Diagram

  • Title

1

RedMax 352011101

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

2

RedMax 026000610

SCREW, M6 x 10

$0.07

$

Usually ships in 3-10 days

0

3

RedMax 352011161

CLAMP

$

$

Not available

4

RedMax 352011180

CLAMP (L)

$

$

Not available

5

RedMax 335021320

BOLT
(Superseded to 521049801)

$3.49

$

Usually ships in 3-10 days

0

6

RedMax 022550620

BOLT, M6 X 20

$0.39

$

Usually ships in 3-10 days

0

7

RedMax 352411300

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

8

RedMax 352012111

DRUM CLUTCH (USE 6460-12112)
(Superseded to 515636801)

$43.99

$

Usually ships in 3-10 days

0

9

RedMax 0600406001

BEARING
(Superseded to 506610101)

$13.99

$

In Stock, only 2 left!

0

10

RedMax 0406502812

RING, SNAP, M28 x 1.2
(Superseded to 506609901)

$3.49

$

In Stock, only 2 left!

0

11

RedMax 313013270

04064-01210
(Superseded to 516124101)

$3.49

$

In Stock, Qty 13

0

12

RedMax 936612210

3520-12212
(Superseded to 514344201)

$43.99

$

In Stock, Qty 7

0

13

RedMax 352413005

3524-13006

$

$

Not available

14

RedMax 352013113

3520-13114

$

$

Not available

15

RedMax 0600000608

BEARING

$

$

Not available

16

RedMax 0600006001

BEARING
(Superseded to 516127901)

$7.99

$

In Stock, only 1 left!

0

17

RedMax 0406502812

RING, SNAP, M28 x 1.2
(Superseded to 506609901)

$3.49

$

In Stock, only 2 left!

0

18

RedMax 352013140

SEAL, OIL

$

$

Not available

19

RedMax 0125230510

BOLT, M5 X 10
(Superseded to 505169901)

$3.49

$

In Stock, only 3 left!

0

20

RedMax 319913350

FITTING, GREASE
(Superseded to 505171501)

$5.99

$

In Stock, only 2 left!

0

21

RedMax 0164120608

WASHER, M6 X .8
(Superseded to 505171601)

$3.49

$

In Stock, only 1 left!

0

22

RedMax 352013212

SHAFT, GEAR (NLA)

Note: Context Note: @ÿ

$24.98

$

Usually ships in 3-10 days

0

23

RedMax 352013220

GEAR, BEVEL (NLA)

Note: Context Note: @ÿ

$

$

Not available

24

RedMax 331043210

WASHER (RPLS 3180-13270)
(Superseded to 505169701)

$3.49

$

In Stock, Qty 5

0

25

RedMax 0164330823

WASHER, M8 x 2.3 (RPLS -20823)
(Superseded to 505169801)

$3.49

$

In Stock, Qty 7

0

26

RedMax 357933260

BOLT, LH
(Superseded to 505169601)

$5.99

$

In Stock, Qty 7

0

27

RedMax 352013240

HOLDER (NLA)

Note: Context Note: @ÿ

$

$

Not available

28

RedMax 354113251

HOLDER (B)
(Superseded to 505171401)

$14.99

$

Usually ships in 3-10 days

0

29

RedMax 352013311

PINION (NLA)

Note: Context Note: @ÿ

$

$

Not available

30

RedMax 0600100609

BEARING (RPLS T3300-13531)
(Superseded to 516129701)

$6.99

$

In Stock, only 2 left!

0

31

RedMax 0600000609

BEARING (RPLS T3403-13530)
(Superseded to 505169201)

$6.99

$

In Stock, only 4 left!

0

32

RedMax 0406502412

RING, SNAP, M24 x 1.2
(Superseded to 505169401)

$3.49

$

Usually ships in 3-10 days

0

33

RedMax 335021320

BOLT
(Superseded to 521049801)

$3.49

$

Usually ships in 3-10 days

0

34

RedMax 321013330

RING, SNAP (RPLS T3300-13330)
(Superseded to 520910501)

$7.99

$

Usually ships in 3-10 days

0

35

RedMax 613018100

HANGER (USE -18101)

$

$

Not available

36

RedMax 613018200

CLAMP

$4.35

$

Usually ships in 3-10 days

0

37

RedMax 026390520

SCREW, M5X20 (RPLS.1400-75510)

$0.25

$

Usually ships in 3-10 days

0

38

RedMax 604112300

LEVER ASSEMBLY
(Superseded to 521529101)

$

$

Not available

39

RedMax 604112400

T3065-12200
(Superseded to 521529901)

$62.99

$

In Stock, only 1 left!

0

40

RedMax 611614420

CORD-A, BLACK
(Superseded to 521423101)

$

$

Not available

41

RedMax 611614430

CORD-B, RED
(Superseded to 521423201)

$

$

Not available

42

RedMax 357732140

3577-32141

$

$

Not available

43

RedMax 351614300

HANDLE ASSEMBLY (NLA)

Note: Context Note: @ÿ

$

$

Not available

44

RedMax 026000530

SCREW, M5 x 30(RPLS 0263-00530

$0.25

$

Usually ships in 3-10 days

0

45

RedMax 028010504

NUT, M5 X 4
(Superseded to 505172301)

$3.49

$

In Stock, only 2 left!

0

46

RedMax 611217201

6112-17202

$

$

Not available

47

RedMax 61121720101

BAND

$

$

Not available

48

RedMax 35201720004

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

49

RedMax 356517241

HOOK

$

$

Not available

50

RedMax 604124001

6357-24001
(Superseded to 574016001)

$

$

Not available

51

RedMax 635724100

6357-24001
(Superseded to 574016001)

$

$

Not available

52

RedMax 604124112

GUARD

$

$

Not available

53

RedMax 635724150

BLADE
(Superseded to 574016101)

$

$

Not available

54

RedMax 026330512

SCREW, M5 x 12
(Superseded to 510478301)

$

$

Not available

55

RedMax 332015310

NUT
(Superseded to 521000601)

$3.49

$

In Stock, only 4 left!

0

56

RedMax 352024120

CLAMP (REPLACES 5807-24120)
(Superseded to 521160201)

$

$

Not available

57

RedMax 354024130

BOLT, M6 x 1.30
(Superseded to 521176001)

$4.99

$

In Stock, only 2 left!

0

58

RedMax PTA008

ARBOR, 8MM
(Superseded to 515517601)

$

$

Not available

59

RedMax PT100

6
(Superseded to 515516101)

$

$

Not available

60

RedMax 604199110

6041-99111
(Superseded to 521404702)

$85.99

$

Usually ships in 3-10 days

0

61

RedMax 604199130

COVER
(Superseded to 521404801)

$26.99

$

Usually ships in 3-10 days

0

62

RedMax 604199140

6041-99141
(Superseded to 515516901)

$13.99

$

Usually ships in 3-10 days

0

63

RedMax 355099120

NUT (NO LONGER AVAILABLE)

Note: Context Note: @ÿ

$

$

Not available

64

RedMax 326815150

PLATE, LARGE
(Superseded to 520939401)

$

$

Not available

65

RedMax 604199160

6041-99162
(Superseded to 515517001)

$4.99

$

In Stock, Qty 9

0

66

RedMax 326815170

PLATE, SMALL
(Superseded to 520939801)

$3.49

$

In Stock, Qty 7

0

67

RedMax 604199180

CORD

$

$

Not available

68

RedMax 624292110

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$6.72

$

Usually ships in 3-10 days

0

69

RedMax 355091000

TOOL SET

$

$

Not available

70

RedMax 103091340

SCREWDRIVER
(Superseded to 516153801)

$

$

Not available

71

RedMax 323991310

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

72

RedMax 0900700425

WRENCH (TOOL)

$0.75

$

Usually ships in 3-10 days

0

73

RedMax 354091110

BAR
(Superseded to 521176101)

$3.49

$

Usually ships in 3-10 days

0

74

RedMax 354091120

SPANNER, 8 X 10 (RPLS 2540- )
(Superseded to 506615001)

$5.99

$

In Stock, Qty 10

0
