BC 280 - RedMax Brushcutter (2010-02) 002 - CRANKCASE/FUEL TANK/STARTER Parts Diagram

Brushcutter

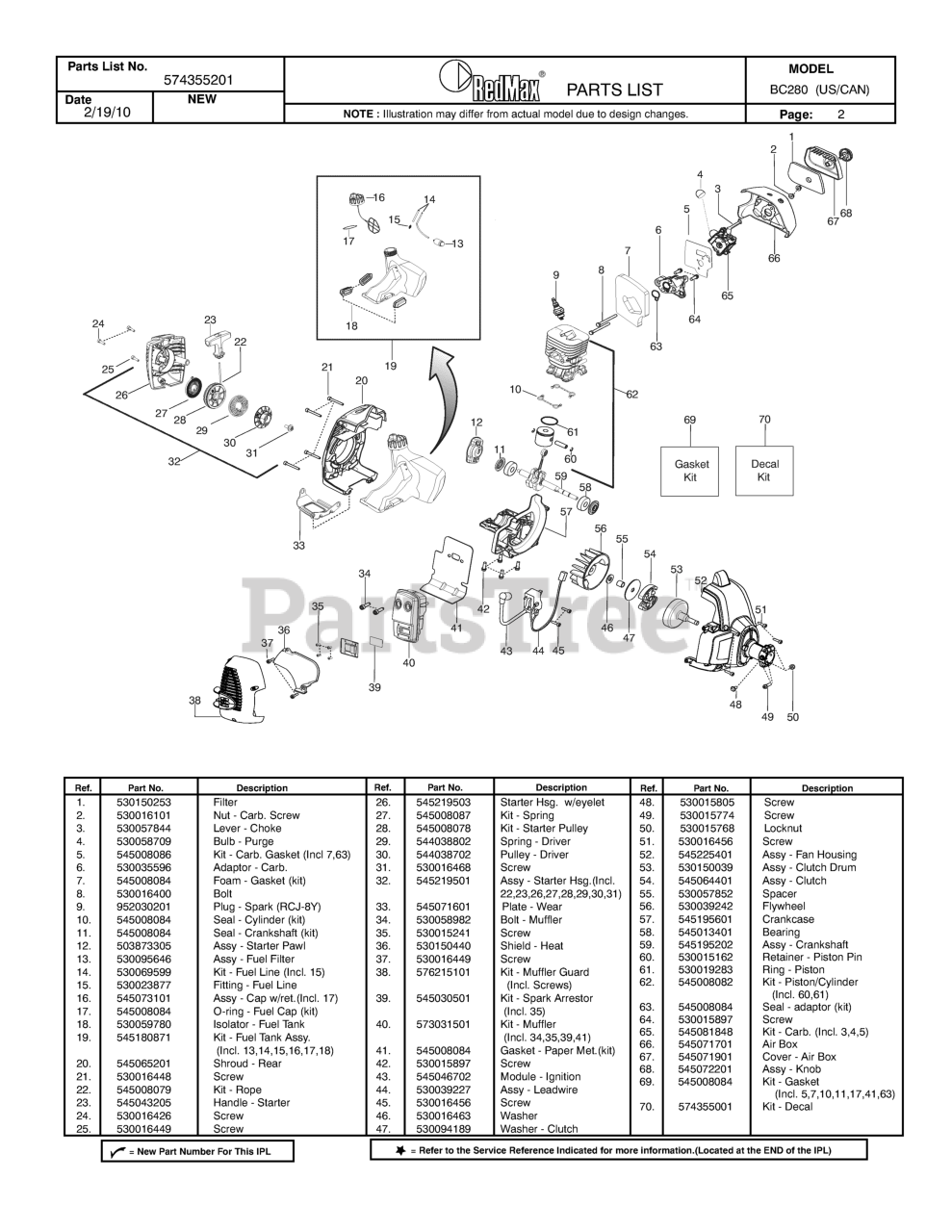

002 - CRANKCASE/FUEL TANK/STARTER Parts Diagram

  • Title

1

RedMax 530150253

FILTER

$3.99

$

In Stock, Qty 20+

0

2

RedMax 530016101

NUT - CARB SCREW

$6.49

$

In Stock, Qty 8

0

3

RedMax 530057844

LEVER CHOKE

$8.99

$

In Stock, only 2 left!

0

4

RedMax 530058709

BULB PURGE

$7.49

$

In Stock, Qty 20+

0

5

RedMax 545008086

KIT CARB GASKET

$18.99

$

In Stock, only 3 left!

0

6

RedMax 530035596

ADAPTER CARB

$12.99

$

In Stock, only 2 left!

0

7

RedMax 545008084

FOAM GASKET

$26.99

$

In Stock, Qty 5

0

8

RedMax 530016400

BOLT

$6.49

$

In Stock, only 4 left!

0

9

RedMax 952030201

SPARK PLUG
(Superseded to 952030150)

$3.49

$

In Stock, Qty 20+

0

10

RedMax 545008084

FOAM GASKET

$26.99

$

In Stock, Qty 5

0

11

RedMax 545008084

FOAM GASKET

$26.99

$

In Stock, Qty 5

0

12

RedMax 503873305

STARTER PAWL BRI

$26.99

$

In Stock, Qty 20+

0

13

RedMax 530095646

ASSY - FUEL PICKUP

$4.99

$

In Stock, Qty 20+

0

14

RedMax 530069599

KIT FUEL LINE

$7.49

$

In Stock, Qty 20+

0

15

RedMax 530023877

NIPPLE

$4.99

$

In Stock, Qty 20+

0

16

RedMax 545073101

ASSY - FUEL CAP W/RETAINER

$18.99

$

Usually ships in 3-10 days

0

17

RedMax 545008084

FOAM GASKET

$26.99

$

In Stock, Qty 5

0

18

RedMax 530059780

ISOLATOR FUEL TANK

$6.49

$

Usually ships in 3-10 days

0

19

RedMax 545180871

KIT FUEL TANK ASSY

$30.99

$

Usually ships in 3-10 days

0

20

RedMax 545065201

SHROUD REAR

$14.99

$

Usually ships in 3-10 days

0

21

RedMax 530016448

SCREW

$6.49

$

In Stock, Qty 20+

0

22

RedMax 545008079

KIT ROPE

$10.99

$

In Stock, only 1 left!

0

23

RedMax 545043205

HANDLE - STARTER

$9.99

$

Usually ships in 3-10 days

0

24

RedMax 530016426

SCREW

$6.49

$

In Stock, Qty 20+

0

25

RedMax 530016449

SCREW

$6.49

$

In Stock, Qty 20+

0

26

RedMax 545219503

STARTER HOUSING W/EYELET

$24.99

$

Usually ships in 3-10 days

0

27

RedMax 545008087

KIT SPRING

$8.99

$

Usually ships in 3-10 days

0

28

RedMax 545008078

KIT STARTER PULLEY
(Superseded to 585530301)

$9.99

$

In Stock, Qty 14

0

29

RedMax 544038802

SPRING DRIVER

$7.49

$

In Stock, Qty 10

0

30

RedMax 544038702

PULLEY DRIVER
(Superseded to 579366201)

$4.99

$

In Stock, only 4 left!

0

31

RedMax 530016468

SCREW

$6.49

$

In Stock, Qty 7

0

32

RedMax 545219501

ASSY STARTER HSG
(Superseded to 579066301)

$44.99

$

Usually ships in 3-10 days

0

33

RedMax 545071601

PLATE WEAR

$8.99

$

Usually ships in 3-10 days

0

34

RedMax 530058982

BOLT - MUFFLER

$4.99

$

In Stock, Qty 12

0

35

RedMax 530015241

SCREW

$3.99

$

Usually ships in 3-10 days

0

36

RedMax 530150440

HEAT SHIELD

$8.99

$

In Stock, only 1 left!

0

37

RedMax 530016449

SCREW

$6.49

$

In Stock, Qty 20+

0

38

RedMax 576215101

KIT MUFFLER GUARD

$8.99

$

Usually ships in 3-10 days

0

39

RedMax 545030501

KIT SPARK ARRESTOR

$8.99

$

In Stock, only 3 left!

0

40

RedMax 573031501

KIT MUFFLER
(Superseded to 574031502)

$40.99

$

In Stock, only 1 left!

0

41

RedMax 545008084

FOAM GASKET

$26.99

$

In Stock, Qty 5

0

42

RedMax 530015897

SCREW

$6.49

$

In Stock, Qty 19

0

43

RedMax 545046702

IGNITION MODULE

$53.99

$

Usually ships in 3-10 days

0

44

RedMax 530039227

LEADWIRE ASSY

$8.99

$

In Stock, Qty 8

0

45

RedMax 530016456

SCREW

$6.49

$

In Stock, only 2 left!

0

46

RedMax 530016463

WASHER

$4.99

$

In Stock, only 4 left!

0

47

RedMax 530094189

WASHER CLUTCH

$6.49

$

In Stock, only 1 left!

0

48

RedMax 530015805

SCREW
(Superseded to 530015886)

$6.49

$

In Stock, Qty 17

0

49

RedMax 530015774

SCREW

$6.49

$

In Stock, only 3 left!

0

50

RedMax 530015768

LOCKNUT

$6.49

$

In Stock, only 2 left!

0

51

RedMax 530016456

SCREW

$6.49

$

In Stock, only 2 left!

0

52

RedMax 545225401

FAN HOUSING ASSY

$27.99

$

In Stock, only 1 left!

0

53

RedMax 530150039

CLUTCH DRUM ASSY
(Superseded to 587126401)

$9.99

$

In Stock, Qty 11

0

54

RedMax 545064401

CLUTCH ASSY

$14.99

$

Usually ships in 3-10 days

0

55

RedMax 530057852

SPACER

$4.99

$

Usually ships in 3-10 days

0

56

RedMax 530039242

FLYWHEEL

$44.99

$

In Stock, only 1 left!

0

57

RedMax 545195601

CRANKCASE
(Superseded to 545195602)

$34.99

$

Usually ships in 3-10 days

0

58

RedMax 545013401

BEARING

$10.99

$

In Stock, Qty 5

0

59

RedMax 545195202

CRANKSHAFT ASSY
(Superseded to 585415401)

$47.99

$

Usually ships in 3-10 days

0

60

RedMax 530015162

RETAINER - PISTON PIN

$6.49

$

Usually ships in 3-10 days

0

61

RedMax 530019283

RING - PISTON
(Superseded to 575227901)

$7.49

$

In Stock, Qty 17

0

62

RedMax 545008082

KIT PISTON/CYLINDER

$44.99

$

In Stock, Qty 8

0

63

RedMax 545008084

FOAM GASKET

$26.99

$

In Stock, Qty 5

0

64

RedMax 530015897

SCREW

$6.49

$

In Stock, Qty 19

0

65

RedMax 545081848

KIT CARB

$44.99

$

In Stock, Qty 20+

0

66

RedMax 545071701

AIR BOX

$10.99

$

Usually ships in 3-10 days

0

67

RedMax 545071901

COVER AIR BOX

$9.99

$

Usually ships in 3-10 days

0

68

RedMax 545072201

ASSY - AIR BOX KNOB

$6.49

$

In Stock, Qty 5

0

69

RedMax 545008084

FOAM GASKET

$26.99

$

In Stock, Qty 5

0

70

RedMax 574355001

KIT-DECAL

$18.45

$

Usually ships in 3-10 days

0
