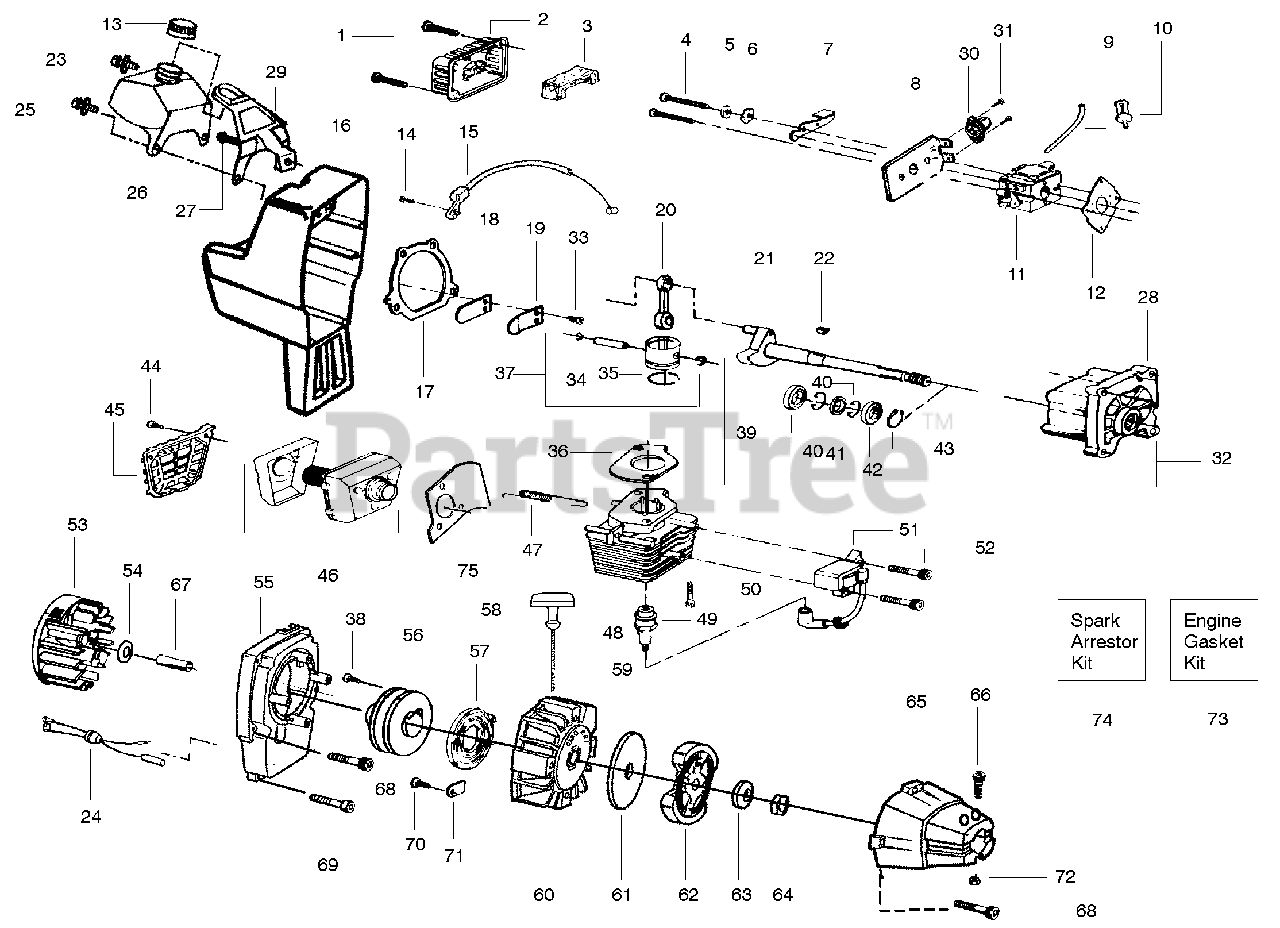

BC 30 B - Poulan String Trimmer (2006-05) Engine Parts Diagram

String Trimmer

Engine Parts Diagram

  • Title

1

Electrolux/AYP 530015773

Screw

$3.99

$

In Stock, Qty 6

0

2

Electrolux/AYP 530027529

Air Filter Cover

$

$

Not available

3

Electrolux/AYP 530027530

Air Filter

$6.49

$

In Stock, Qty 15

0

4

Electrolux/AYP 530015849

Screw

$6.49

$

In Stock, only 1 left!

0

5

Electrolux/AYP 530015852

Choke Spacer

$2.49

$

In Stock, only 1 left!

0

6

Electrolux/AYP 530015254

Washer

$3.99

$

In Stock, only 2 left!

0

7

Electrolux/AYP 530038103

Choke Shutter

$

$

Not available

8

Electrolux/AYP 530037930

Air Filter Plate

$

$

Not available

9

Electrolux/AYP 530069247

Fuel Line Kit

$6.49

$

In Stock, Qty 20+

0

10

Electrolux/AYP 530014362

Fuel Pick-up Ass'y.
(Superseded to 530095646)

$4.99

$

In Stock, Qty 20+

0

11

Electrolux/AYP 530069651

Carburetor Ass'y. Kit

Note: (Incls. Limiter Caps)

$

$

Not available

12

Electrolux/AYP 530019156

Gasket-Carburetor

$8.99

$

In Stock, only 3 left!

0

13

Electrolux/AYP 530014347

Fuel Cap Ass'y.

$8.99

$

In Stock, Qty 5

0

14

Electrolux/AYP 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

15

Electrolux/AYP 530047040

Throttle Cable Ass'y.

$12.99

$

In Stock, only 1 left!

0

16

Electrolux/AYP 530027923

Shroud

$

$

Not available

17

Electrolux/AYP 530019154

Gasket-C'case/Shroud

$3.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 530027593

Reed Valve

$6.49

$

In Stock, only 4 left!

0

19

Electrolux/AYP 530027594

Reed Stop

$4.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 530010960

Connecting Rod Ass'y.

$18.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 530010934

Crankshaft Ass'y.

$34.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 530015126

Flywheel Key

$3.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 530015843

Screw

$6.49

$

In Stock, only 2 left!

0

24

Electrolux/AYP 530047145

Leadwire/Grommet Ass'y.

$3.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 530015771

Screw

$6.49

$

In Stock, Qty 6

0

26

Electrolux/AYP 530038166

Assy-Fuel Tank

$

$

Not available

27

Electrolux/AYP 530015810

Screw
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

28

Electrolux/AYP 530014016

Crankcase Ass'y.

Note: (Incls. 39-42)

$

$

Not available

29

Electrolux/AYP 530029370

Bracket-Fuel tank

$9.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 530038874

Bulb Ass'y.

$8.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 530016091

Screw

$4.99

$

In Stock, only 1 left!

0

32

Electrolux/AYP 530014015

Crankcase/Crankshaft Ass'y.
(Superseded to 530071705)

Note: (Incls.21, 28 & 39-43)

$

$

Not available

33

Electrolux/AYP 530016064

Screw

$4.99

$

In Stock, Qty 7

0

34

Electrolux/AYP 530015162

Piston Pin Retainer

$6.49

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 530025875

Piston Ring

$

$

Not available

36

Electrolux/AYP 530019178

Gasket-Cylinder
(Superseded to 530019267)

$4.99

$

In Stock, Qty 6

0

37

Electrolux/AYP 530069899

Piston Kit

Note: (Incls. 34, 35 & Pin)

$

$

Not available

38

Electrolux/AYP 530016080

Screw

$6.49

$

In Stock, Qty 11

0

39

Electrolux/AYP 530032103

Inner Bearing
(Superseded to 545081601)

$10.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 530015787

Retaining Ring

$3.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 530019158

Crankshaft Seal

$6.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 530032102

Outer Bearing

$

$

Not available

43

Electrolux/AYP 530015789

Retaining Ring-C'shaft

$4.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 530015717

Screw

$3.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 530027781

Muffler Guard

$3.99

$

Usually ships in 3-10 days

0

46

Electrolux/AYP 530069310

Muffler Kit

$

$

Not available

47

Electrolux/AYP 530036409

Muffler Spring

$

$

Not available

48

Electrolux/AYP 530069626

Cylinder Kit
(Superseded to 530071582)

$

$

Not available

49

Electrolux/AYP 952030201

Spark Plug (RCJ-8Y)
(Superseded to 952030150)

$3.49

$

In Stock, Qty 20+

0

50

Electrolux/AYP 530001624

Screw

$3.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 530039134

Ignition Module

$

$

Not available

52

Electrolux/AYP 530015816

Screw

$3.99

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 530039189

Flywheel Ass'y.

$

$

Not available

54

Electrolux/AYP 530016030

Washer

$3.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 530027947

Fan Housing

$14.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 530069291

Starter Pulley Kit
(Superseded to 530071387)

Note: (Incls. 38)

$

$

Not available

57

Electrolux/AYP 530027531

Starter Spring
(Superseded to 545008015)

$6.49

$

In Stock, Qty 17

0

58

Electrolux/AYP 530027569

Starter Handle

$6.49

$

In Stock, only 2 left!

0

59

Electrolux/AYP 530069232

Rope Kit

$7.49

$

In Stock, Qty 20+

0

60

Electrolux/AYP 530014009

Pulley Housing Ass'y.

$

$

Not available

61

Electrolux/AYP 530094189

Washer-Clutch

$6.49

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 530069254

Clutch Ass'y. Kit

$

$

Not available

63

Electrolux/AYP 530015796

Washer-Bevel

$3.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 530001733

Nut

$

$

Not available

65

Electrolux/AYP 530014017

Clutch Housing

$36.99

$

In Stock, only 1 left!

0

66

Electrolux/AYP 530015767

Screw

$3.99

$

In Stock, only 2 left!

0

67

Electrolux/AYP 530027511

Spacer-Clutch

$8.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 530015770

Screw
(Superseded to 530016406)

$6.49

$

In Stock, only 1 left!

0

69

Electrolux/AYP 530015769

Screw

$3.99

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 530015496

Screw

$3.99

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 530027523

Retainer

$7.49

$

In Stock, only 2 left!

0

72

Electrolux/AYP 530015768

Locknut

$6.49

$

In Stock, only 2 left!

0

73

Electrolux/AYP 530069276

Engine Gasket Kit

Note: (Incls. 12, 17 & 36)

$

$

Not available

74

Electrolux/AYP 952701612

Spark Arrestor Kit

$6.49

$

Usually ships in 3-10 days

0

75

Electrolux/AYP 530053346

Heat Shield/Air Dam
(Superseded to 530058957)

$6.49

$

In Stock, only 2 left!
