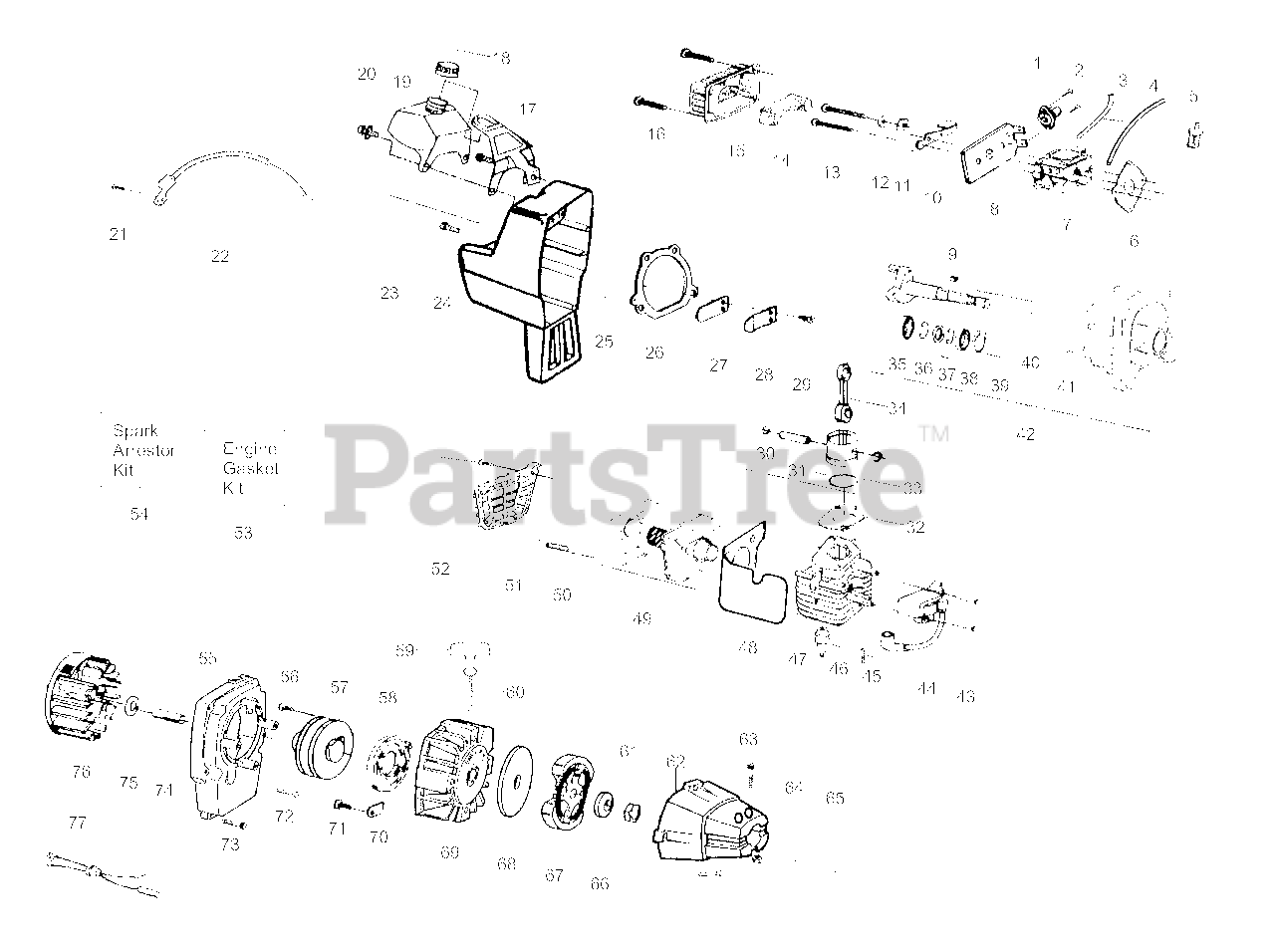

BC 3100 - Weed Eater Brushcutter Engine Assembly Parts Diagram

Brushcutter

Engine Assembly Parts Diagram

  • Title

1

Poulan 530038874

Assy-Bulb

$

$

Not available

2

Poulan 530016091

Screw

$4.99

$

In Stock, only 1 left!

0

3

Poulan 530069247

Kit-Fuel Line (small)

$6.49

$

In Stock, Qty 20+

0

4

Poulan 530069216

Kit-Fuel line (large)

$6.49

$

In Stock, Qty 20+

0

5

Poulan 530095646

Assy-Fuel Pick-up

$4.99

$

In Stock, Qty 20+

0

6

Poulan 530019156

Gasket-Carburetor

$8.99

$

In Stock, only 3 left!

0

7

Poulan 530069651

Kit-Carburetor Ass'y.

Note: (Incls. Limiter Caps)

$

$

Not available

8

Poulan 530037930

Plate-Air Filter

$

$

Not available

9

Poulan 530015126

Key-Flywheel

$3.99

$

Usually ships in 3-10 days

0

10

Poulan 530038103

Shutter-Choke

$

$

Not available

11

Poulan 530015254

Washer

$3.99

$

In Stock, only 2 left!

0

12

Poulan 530015852

Spacer-Choke

$2.49

$

In Stock, only 1 left!

0

13

Poulan 530015849

Screw

$6.49

$

In Stock, only 1 left!

0

14

Poulan 530027530

Filter-Air

$6.49

$

In Stock, Qty 15

0

15

Poulan 530027529

Cover-Air Filter

$

$

Not available

16

Poulan 530015650

Screw

$

$

Not available

17

Poulan 530029370

Bracket-Fuel Tank

$9.99

$

Usually ships in 3-10 days

0

18

Poulan 530014347

Assy-Fuel Cap

$8.99

$

In Stock, Qty 5

0

19

Poulan 530038166

Assy-Fuel Tank

$

$

Not available

20

Poulan 530015843

Screw

$6.49

$

In Stock, only 2 left!

0

21

Poulan 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

22

Poulan 530047040

Throttle Cable

$12.99

$

In Stock, only 1 left!

0

23

Poulan 530015772

Screw

$3.99

$

In Stock, only 2 left!

0

24

Poulan 530015771

Screw

$6.49

$

In Stock, Qty 6

0

25

Poulan 530027923

Shroud

$

$

Not available

26

Poulan 530019154

Gasket-C'case/Shroud

$3.99

$

In Stock, only 1 left!

0

27

Poulan 530027593

Reed Valve

$6.49

$

In Stock, only 4 left!

0

28

Poulan 530027594

Stop-Reed

$4.99

$

Usually ships in 3-10 days

0

29

Poulan 530016064

Screw

$4.99

$

In Stock, Qty 8

0

30

Poulan 530015162

Retainer-Piston Pin

$6.49

$

Usually ships in 3-10 days

0

31

Poulan 530025875

Ring-Piston

$

$

Not available

32

Poulan 530019178

Gasket-Cylinder
(Superseded to 530019267)

$4.99

$

In Stock, Qty 6

0

33

Poulan 530069899

Kit-Piston

Note: (Incls. 30, 31 & Pin)

$

$

Not available

34

Poulan 530010960

Assy-Connecting Rod

$18.99

$

Usually ships in 3-10 days

0

35

Poulan 530032103

Bearing-Inner

$

$

Not available

36

Poulan 530015787

Ring-Retaining

$3.99

$

Usually ships in 3-10 days

0

37

Poulan 530019158

Seal-Crankshaft

$6.49

$

Usually ships in 3-10 days

0

38

Poulan 530032102

Bearing-Outer

$

$

Not available

39

Poulan 530015789

Retaining Ring-C'shaft

$4.99

$

Usually ships in 3-10 days

0

40

Poulan 530010934

Assy-Crankshaft

$34.99

$

Usually ships in 3-10 days

0

41

Poulan 530014016

Assy-Crankcase

Note: (Incls. 35-38)

$

$

Not available

42

Poulan 530014015

Crankcase/Crankshaft Ass'y.
(Superseded to 530071705)

Note: (Incls.35-41)

$

$

Not available

43

Poulan 530016357

Screw

$6.49

$

In Stock, Qty 5

0

44

Poulan 530039134

Ignition Module

$

$

Not available

45

Poulan 530001624

Screw

$3.99

$

Usually ships in 3-10 days

0

46

Poulan 952030249

Spark Plug (RCJ-6Y)

$4.99

$

In Stock, Qty 20+

0

47

Poulan 530071582

Kit-Cylinder

$

$

Not available

48

Poulan 530053346

Heat Shield/Air Dam
(Superseded to 530058957)

$6.49

$

In Stock, only 2 left!

0

49

Poulan 530069310

Kit-Muffler

$

$

Not available

50

Poulan 530036409

Spring-Muffler

$

$

Not available

51

Poulan 530027781

Guard-Muffler

$3.99

$

Usually ships in 3-10 days

0

52

Poulan 530015717

Screw

$3.99

$

Usually ships in 3-10 days

0

53

Poulan 530069276

Kit-Engine Gasket

Note: (Incls. 6, 26 & 32)

$

$

Not available

54

Poulan 952701612

Kit-Spark Arrestor

$6.49

$

Usually ships in 3-10 days

0

55

Poulan 530027947

Fan Housing

$14.99

$

Usually ships in 3-10 days

0

56

Poulan 530016080

Screw

$6.49

$

In Stock, Qty 11

0

57

Poulan 530071387

Kit-Starter Pulley

Note: (Incls. 56)

$

$

Not available

58

Poulan 530027531

Spring-Starter
(Superseded to 545008015)

$6.49

$

In Stock, Qty 17

0

59

Poulan 530027569

Handle-Starter

$6.49

$

In Stock, only 2 left!

0

60

Poulan 530069232

Kit-Rope

$7.49

$

In Stock, Qty 20+

0

61

Poulan 530016320

Nut

$

$

Not available

62

Poulan 530014017

Clutch Housing

$36.99

$

In Stock, only 1 left!

0

63

Poulan 530015767

Screw

$3.99

$

In Stock, only 2 left!

0

64

Poulan 530015768

Locknut

$6.49

$

In Stock, only 2 left!

0

65

Poulan 530015770

Screw

$

$

Not available

66

Poulan 530015796

Washer-Bevel

$3.99

$

Usually ships in 3-10 days

0

67

Poulan 530069254

Kit-Clutch Ass'y

$

$

Not available

68

Poulan 530094189

Washer-Clutch

$6.49

$

In Stock, only 1 left!

0

69

Poulan 530014009

Assy-Pulley Housing

$

$

Not available

70

Poulan 530027523

Retainer

$7.49

$

In Stock, only 2 left!

0

71

Poulan 530015496

Screw

$3.99

$

Usually ships in 3-10 days

0

72

Poulan 530015770

Screw

$

$

Not available

73

Poulan 530015769

Screw

$3.99

$

Usually ships in 3-10 days

0

74

Poulan 530027511

Spacer-Clutch

$8.99

$

Usually ships in 3-10 days

0

75

Poulan 530016030

Washer

$3.99

$

Usually ships in 3-10 days

0

76

Poulan 530039189

Assy-Flywheel

$

$

Not available

77

Poulan 530047145

Leadwire/Grommet Ass'y.

$3.99

$

Usually ships in 3-10 days

0
