BC 340 DL - RedMax Brushcutter (1990-07) 024 - ENGINE SECTION Parts Diagram

Brushcutter

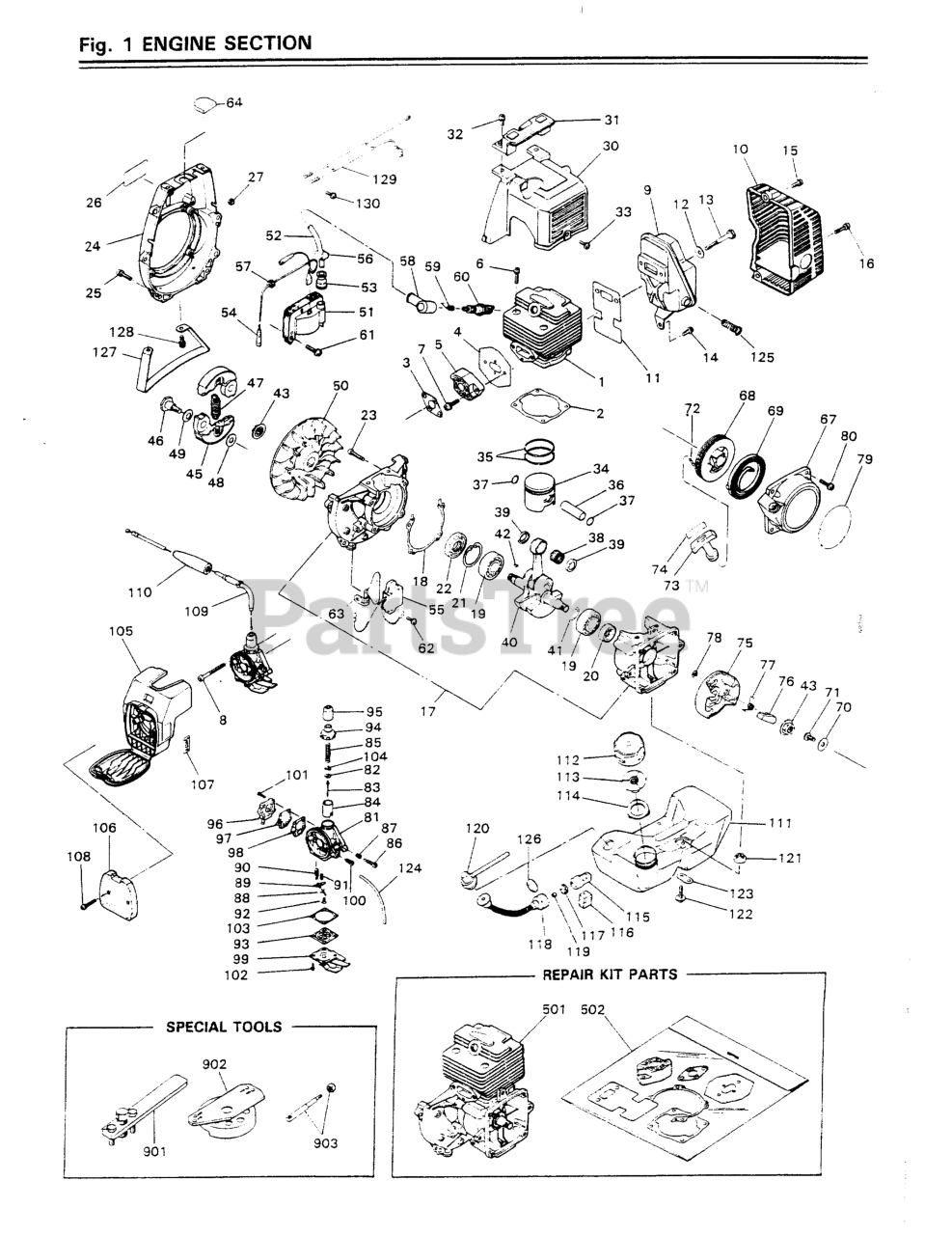

024 - ENGINE SECTION Parts Diagram

  • Title

1

RedMax 165012110

1650-12112
(Superseded to 516431301)

$

$

Not available

2

RedMax 165013120

GASKET
(Superseded to 516432201)

$

$

Not available

3

RedMax 160013130

1600-13131
(Superseded to 516382801)

$

$

Not available

4

RedMax 160013150

1600-13151

$

$

Not available

5

RedMax 160013160

INSULATOR
(Superseded to 516383301)

$

$

Not available

6

RedMax 331012280

3310-12281

$

$

Not available

7

RedMax 140075510

SCREW (USE 0263-90520 )
(Superseded to 026390520)

$0.25

$

Usually ships in 3-10 days

0

8

RedMax 026000545

SCREW, M5 x 45

$0.25

$

Usually ships in 3-10 days

0

RedMax 167615100

MUFFLER ASSEMBLY

$

$

Not available

9

RedMax 167615110

MUFFLER

$

$

Not available

10

RedMax 167015210

COVER, MUFFLER
(Superseded to 516499001)

$

$

Not available

11

RedMax 167013140

1670-13141
(Superseded to 516498801)

$

$

Not available

12

RedMax 114051230

WASHER, FLAT (USE 182303)
(Superseded to 516207701)

$3.49

$

Usually ships in 3-10 days

0

13

RedMax 021250655

BOLT, M6 X 55

$

$

Not available

14

RedMax 140015510

0263-90514
(Superseded to 516113101)

$

$

Not available

15

RedMax 140075510

SCREW (USE 0263-90520 )
(Superseded to 026390520)

$0.25

$

Usually ships in 3-10 days

0

16

RedMax 026030530

SCREW, M5 X 30

$0.31

$

Usually ships in 3-10 days

0

17

RedMax 165021101

1650-21102
(Superseded to 165021102)

$96.95

$

Usually ships in 3-10 days

0

18

RedMax 165021140

1650-21141
(Superseded to 516435401)

$

$

Not available

19

RedMax 0603006201

BEARING

$

$

Not available

20

RedMax 110021210

2169-21210
(Superseded to 513488701)

$4.99

$

In Stock, only 2 left!

0

21

RedMax 0406503212

RING, SNAP, M32 x 1.2
(Superseded to 504121001)

$2.49

$

In Stock, only 2 left!

0

22

RedMax 165021220

SEAL, OIL (RPLS 1200-21220)
(Superseded to 505296701)

$7.99

$

In Stock, only 4 left!

0

23

RedMax 026000530

SCREW, M5 x 30(RPLS 0263-00530

$0.25

$

Usually ships in 3-10 days

0

24

RedMax 165031111

1650-31112
(Superseded to 516436401)

$

$

Not available

25

RedMax 026360520

SCREW, M5 X 20

$

$

Not available

26

RedMax 163331120

LABEL

$0.76

$

Usually ships in 3-10 days

0

27

RedMax 110072120

GROMMET

$0.83

$

Usually ships in 3-10 days

0

30

RedMax 167032110

1670-32113
(Superseded to 516504201)

$

$

Not available

31

RedMax 167033110

HEAD GUARD
(Superseded to 516504301)

$

$

Not available

32

RedMax 140075510

SCREW (USE 0263-90520 )
(Superseded to 026390520)

$0.25

$

Usually ships in 3-10 days

0

33

RedMax 140015510

0263-90514
(Superseded to 516113101)

$

$

Not available

34

RedMax 165041111

2115-41110
(Superseded to 211541110)

$

$

Not available

35

RedMax 165041210

RING, PISTON
(Superseded to 510917701)

$7.99

$

Usually ships in 3-10 days

0

36

RedMax 165041310

PIN
(Superseded to 516437101)

$

$

Not available

37

RedMax 331041320

RING, SNAP
(Superseded to 504120901)

$3.49

$

In Stock, only 1 left!

0

38

RedMax 331041410

BEARING
(Superseded to 504120101)

$13.99

$

In Stock, only 3 left!

0

39

RedMax 165041510

WASHER (RPLS 3310-41341)
(Superseded to 516437201)

$3.49

$

Usually ships in 3-10 days

0

40

RedMax 165042000

CRANKSHAFT CO

$119.39

$

Usually ships in 3-10 days

0

41

RedMax 114043250

SHIM

$0.32

$

Usually ships in 3-10 days

0

41

RedMax 113043260

SHIM (NO LONGER AVAILABLE)

Note: Context Note: @ÿ

$

$

Not available

42

RedMax 100043240

KEY
(Superseded to 506689401)

$3.49

$

In Stock, only 1 left!

0

43

RedMax 165043230

182301
(Superseded to 516437401)

$3.49

$

Usually ships in 3-10 days

0

45

RedMax 140051110

1400-51111
(Superseded to 513242301)

$20.99

$

In Stock, only 2 left!

0

46

RedMax 120051211

SCREW
(Superseded to 516243901)

$5.99

$

In Stock, only 2 left!

0

47

RedMax 140051220

SPRING, CLUTCH
(Superseded to 513242401)

$

$

Not available

48

RedMax 120051230

WASHER
(Superseded to 516244001)

$3.49

$

In Stock, Qty 8

0

49

RedMax 120051240

WASHER (USE -51241)

$

$

Not available

50

RedMax 165071111

ROTOR

$64.36

$

Usually ships in 3-10 days

0

RedMax 167071201

COIL ASSEMBLY

$

$

Not available

51

RedMax 167071201

COIL ASSEMBLY

$

$

Not available

52

RedMax 167071220

CORD
(Superseded to 516504701)

$

$

Not available

53

RedMax 140071230

CAP
(Superseded to 513243001)

$

$

Not available

54

RedMax 166071241

CORD

$4.83

$

Usually ships in 3-10 days

0

55

RedMax 140071311

UNIT (RPLS -71310)
(Superseded to 516315501)

$

$

Not available

56

RedMax 332072211

GROMMET

$0.57

$

Usually ships in 3-10 days

0

57

RedMax 110072120

GROMMET

$0.83

$

Usually ships in 3-10 days

0

58

RedMax 140072111

CAP, PLUG
(Superseded to 516315601)

$

$

Not available

59

RedMax 140072121

SPRING PLUG (RPLS 3310-71320)
(Superseded to 544260401)

$3.49

$

Usually ships in 3-10 days

0

60

RedMax 121673110

3699-90030-10

$

$

Not available

61

RedMax 140075510

SCREW (USE 0263-90520 )
(Superseded to 026390520)

$0.25

$

Usually ships in 3-10 days

0

62

RedMax 026030514

SCREW, M5 X 14

$0.31

$

Usually ships in 3-10 days

0

63

RedMax 140072310

CLAMP

$1.57

$

Usually ships in 3-10 days

0

64

RedMax 160072130

GROMMET

$0.89

$

Usually ships in 3-10 days

0

RedMax 160075101

RECOIL ASSEMBLY
(Superseded to 513344901)

$

$

Not available

67

RedMax 160075111

CASE (RPLS -75110)

$21.32

$

Usually ships in 3-10 days

0

68

RedMax 160075120

REEL
(Superseded to 516388601)

$

$

Not available

69

RedMax 160075130

SPRING, SPIRAL
(Superseded to 513345301)

$9.49

$

Usually ships in 3-10 days

0

70

RedMax 160075140

WASHER

$0.41

$

Usually ships in 3-10 days

0

71

RedMax 160075150

1600-75151
(Superseded to 160075151)

$0.32

$

Usually ships in 3-10 days

0

72

RedMax 160075160

ROPE

$4.56

$

Usually ships in 3-10 days

0

73

RedMax 114075320

KNOB
(Superseded to 504114001)

$5.99

$

Usually ships in 3-10 days

0

74

RedMax 160075180

TAPE

$0.76

$

Usually ships in 3-10 days

0

RedMax 160075201

PULLEY ASSEMBLY
(Superseded to 513346001)

$

$

Not available

75

RedMax 160075211

PULLEY

$8.91

$

Usually ships in 3-10 days

0

76

RedMax 160075220

RATCHET
(Superseded to 516389801)

$

$

Not available

77

RedMax 160075230

SPRING, RETURN

$

$

Not available

78

RedMax 103472180

E-RING
(Superseded to 544263001)

$

$

Not available

79

RedMax 167775411

LABEL (USE -75412)
(Superseded to 167775412)

$1.40

$

Usually ships in 3-10 days

0

80

RedMax 140075510

SCREW (USE 0263-90520 )
(Superseded to 026390520)

$0.25

$

Usually ships in 3-10 days

0

RedMax 167081001

1670-81002
(Superseded to 516505701)

$

$

Not available

81

RedMax 167081001

1670-81002
(Superseded to 516505701)

$

$

Not available

82

RedMax 160081120

RETAINER SPRING

$0.76

$

Usually ships in 3-10 days

0

83

RedMax 167081130

NEEDLE

$9.24

$

Usually ships in 3-10 days

0

84

RedMax 167081140

VALVE

$15.62

$

Usually ships in 3-10 days

0

85

RedMax 160081150

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

86

RedMax 118881162

SCREW (RPLS -81161)

$7.02

$

Usually ships in 3-10 days

0

87

RedMax 118881170

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

88

RedMax 118881180

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

89

RedMax 118881190

ARM, FLOAT

$4.49

$

Usually ships in 3-10 days

0

90

RedMax 118881210

VALVE (USE -81211)
(Superseded to 516240501)

$

$

Not available

91

RedMax 118881220

SPRING, INLET

$2.45

$

Usually ships in 3-10 days

0

92

RedMax 118881230

SCREW, FLOAT

$0.26

$

Usually ships in 3-10 days

0

93

RedMax 160081240

DIAPHRAGM
(Superseded to 516391301)

$

$

Not available

RedMax 118881300

CAP

$

$

Not available

94

RedMax 118881250

CAP, MIXING

$

$

Not available

95

RedMax 118881330

SEAL, AIR

$

$

Not available

96

RedMax 160081260

COVER ASSY PU

$33.15

$

Usually ships in 3-10 days

0

97

RedMax 167081270

DIAPHRAGM
(Superseded to 516506201)

$

$

Not available

98

RedMax 118881280

GASKET, PUMP
(Superseded to 516241001)

$

$

Not available

99

RedMax 160081290

COVER ASSEMBLY

$21.80

$

Usually ships in 3-10 days

0

100

RedMax 160081310

NEEDLE

$12.60

$

Usually ships in 3-10 days

0

101

RedMax 026010312

SCREW, M3 x 12

$0.39

$

Usually ships in 3-10 days

0

102

RedMax 026010308

SCREW, M3 X 8

$0.31

$

Usually ships in 3-10 days

0

103

RedMax 160081320

GASKET (NLA)

Note: Context Note: @ÿ

$

$

Not available

104

RedMax 160081410

1600-81411

$

$

Not available

RedMax 167182000

1671-82001
(Superseded to 516508001)

$

$

Not available

105

RedMax 160082112

1600-82113
(Superseded to 516392701)

$

$

Not available

106

RedMax 160082120

ELEMENT
(Superseded to 513347901)

$

$

Not available

107

RedMax 113382060

LABEL
(Superseded to 516199901)

$3.49

$

Usually ships in 3-10 days

0

108

RedMax 026030422

SCREW, M4 X 22
(Superseded to 516102501)

$

$

Not available

RedMax 167783000

CABLE ASSEMBLY (NLA)
(Superseded to 516512001)

Note: Context Note: @ÿ

$

$

Not available

109

RedMax 167783100

CABLE COMPLETE (NLA)

Note: Context Note: @ÿ

$

$

Not available

110

RedMax 160083210

PROTECTOR

$2.06

$

Usually ships in 3-10 days

0

RedMax 167185003

1671-85004
(Superseded to 167185005)

$

$

Not available

111

RedMax 167185003

1671-85004
(Superseded to 167185005)

$

$

Not available

RedMax 160185200

1601-85201

$

$

Not available

112

RedMax 160185200

1601-85201

$

$

Not available

RedMax 160085302

VALVE COMPLETE
(Superseded to 515369401)

$6.99

$

In Stock, only 2 left!

0

113

RedMax 160085311

VALVE, VENT

$

$

Not available

114

RedMax 160085321

1600-85322
(Superseded to 516396801)

$

$

Not available

RedMax 160085402

1600-85403
(Superseded to 516397301)

$

$

Not available

RedMax 110085300

FILTER ASSEMBLY (NLA)

Note: Context Note: @ÿ

$

$

Not available

115

RedMax 110085310

WEIGHT

$14.86

$

Usually ships in 3-10 days

0

116

RedMax 110085320

FILTER-A

$

$

Not available

117

RedMax 110085331

FILTER-B

$0.57

$

Usually ships in 3-10 days

0

118

RedMax 114085411

PIPE (NO LONGER AVAILABLE)

Note: Context Note: @ÿ

$

$

Not available

119

RedMax 113985510

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$6.47

$

Usually ships in 3-10 days

0

120

RedMax 160085611

1600-85612
(Superseded to 513349401)

$

$

Not available

121

RedMax 160086110

WASHER
(Superseded to 516398801)

$

$

Not available

122

RedMax 160086120

SCREW, M5 X 22
(Superseded to 516398901)

$

$

Not available

123

RedMax 160086130

CLAMP

$1.31

$

Usually ships in 3-10 days

0

124

RedMax 110186180

PIPE (USE 1620-81710)

$

$

Not available

125

RedMax 142115120

ARRESTER
(Superseded to 513262801)

$

$

Not available

126

RedMax 331085370

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

127

RedMax 354093110

STAND

$9.96

$

Usually ships in 3-10 days

0

128

RedMax 140015510

0263-90514
(Superseded to 516113101)

$

$

Not available

129

RedMax 167772910

CORD

$11.54

$

Usually ships in 3-10 days

0

130

RedMax 140015510

0263-90514
(Superseded to 516113101)

$

$

Not available

501

RedMax 166005010

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

502

RedMax 167006010

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

901

RedMax 107596100

2890-96100

$

$

Not available

902

RedMax 140096210

SET BLOCK (TOOL)

$78.41

$

Usually ships in 3-10 days

0

903

RedMax 165096300

ROD ASSY (TOOL)

$22.57

$

Usually ships in 3-10 days

0
