BC 3401 DL - RedMax Brushcutter (SN: 200101 & Above) (1991-12) 026 - DRIVE UNIT Parts Diagram

Brushcutter

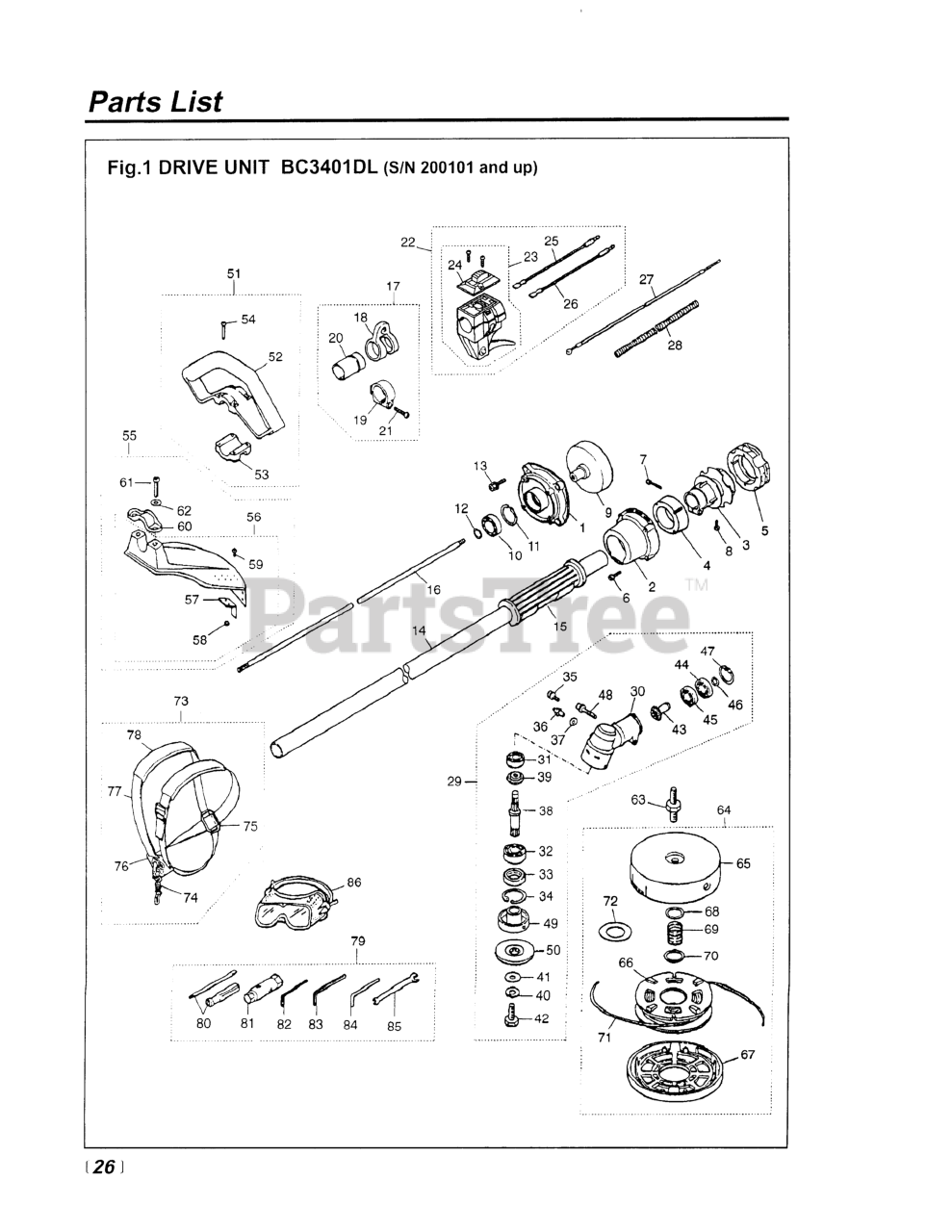

026 - DRIVE UNIT Parts Diagram

  • Title

1

RedMax 405011110

HOUSING
(Superseded to 515358701)

$

$

Not available

2

RedMax 405011150

CAP
(Superseded to 515358801)

$

$

Not available

3

RedMax 405011210

JOINT
(Superseded to 521320501)

$

$

Not available

4

RedMax 405011250

ABSORBER-F
(Superseded to 521320601)

$8.49

$

Usually ships in 3-10 days

0

5

RedMax 405011260

ABSORBER-R

$6.82

$

Usually ships in 3-10 days

0

6

RedMax 0125230530

BOLT, M5 X 30
(Superseded to 506609401)

$2.49

$

In Stock, only 4 left!

0

7

RedMax 0125230630

BOLT, M6 x 30
(Superseded to 522655401)

$3.49

$

Usually ships in 3-10 days

0

8

RedMax 0125230510

BOLT, M5 X 10
(Superseded to 505169901)

$3.49

$

In Stock, only 3 left!

0

9

RedMax 405011311

848-B81-51A1
(Superseded to 521538801)

$

$

Not available

10

RedMax 0600406202

BEARING
(Superseded to 516131701)

$3.99

$

Usually ships in 3-10 days

0

11

RedMax 0406503515

RING, SNAP, M35 X 1.5
(Superseded to 516126001)

$

$

Not available

12

RedMax 0406401510

RING, SNAP, M15 X 1.0

$0.43

$

Usually ships in 3-10 days

0

13

RedMax 646891150

BOLT, M6 x 20

$0.39

$

Usually ships in 3-10 days

0

14

RedMax 400112100

PIPE COMP.
(Superseded to 521320201)

$

$

Not available

15

RedMax 357732141

GRIP (RPLS 3577-32140 & 3220-
(Superseded to 521651001)

$

$

Not available

16

RedMax 405012211

SHAFT, DRIVE (REPLACES -12210)
(Superseded to 515359601)

$

$

Not available

17

RedMax 652017100

HANGER ASSEMBLY
(Superseded to 521480201)

$

$

Not available

18

RedMax 652017110

HANGER
(Superseded to 521480301)

$

$

Not available

19

RedMax 652017120

CLAMP
(Superseded to 521480401)

$

$

Not available

20

RedMax 652017130

SPACER

$1.44

$

Usually ships in 3-10 days

0

21

RedMax 026390525

SCREW, M5 x 25
(Superseded to 516113401)

$

$

Not available

22

RedMax T300312300

LEVER COMP. (USE 848-8R2-0351)
(Superseded to 510948101)

$

$

Not available

23

RedMax 623212400

848-8R2-0331
(Superseded to 510947701)

$

$

Not available

24

RedMax 62261441002

COVER

$5.15

$

Usually ships in 3-10 days

0

25

RedMax T300314420

CORD (A), BLACK
(Superseded to 521805301)

$

$

Not available

26

RedMax T300314430

CORD (B), RED
(Superseded to 521805401)

$

$

Not available

27

RedMax 185582100

CABLE COMP (RPLS 1633-83100)
(Superseded to 513422001)

$

$

Not available

28

RedMax T300314510

TUBE
(Superseded to 521805501)

$3.99

$

Usually ships in 3-10 days

0

29

RedMax T300313001

GEAR CASE ASSY.
(Superseded to 570910401)

$

$

Not available

30

RedMax 354113194

GEARCASE
(Superseded to 521178701)

$

$

Not available

31

RedMax 0600006000

BEARING (RPLS T3403-13510)
(Superseded to 505170201)

$9.49

$

In Stock, Qty 15

0

32

RedMax 0600006201

BEARING

$

$

Not available

33

RedMax 318013141

SEAL, OIL
(Superseded to 520889801)

$5.99

$

In Stock, only 3 left!

0

34

RedMax 0406503212

RING, SNAP, M32 x 1.2
(Superseded to 504121001)

$2.49

$

In Stock, Qty 12

0

35

RedMax 0125230510

BOLT, M5 X 10
(Superseded to 505169901)

$3.49

$

In Stock, only 3 left!

0

36

RedMax 319913350

FITTING, GREASE
(Superseded to 505171501)

$5.99

$

In Stock, only 1 left!

0

37

RedMax 0164120608

WASHER, M6 X .8
(Superseded to 505171601)

$3.99

$

Usually ships in 3-10 days

0

38

RedMax 405013210

SHAFT
(Superseded to 521321301)

$

$

Not available

39

RedMax 318013220

GEAR, BEVEL
(Superseded to 578122701)

$102.99

$

Usually ships in 3-10 days

0

40

RedMax 331043210

WASHER (RPLS 3180-13270)
(Superseded to 505169701)

$3.99

$

In Stock, Qty 6

0

41

RedMax 0164330823

WASHER, M8 x 2.3 (RPLS -20823)
(Superseded to 505169801)

$3.99

$

In Stock, only 1 left!

0

42

RedMax 357933260

BOLT, LH
(Superseded to 505169601)

$5.99

$

In Stock, Qty 20+

0

43

RedMax 354113311

PINION
(Superseded to 521179201)

$102.99

$

Usually ships in 3-10 days

0

44

RedMax 0600106000

BEARING

$

$

Not available

45

RedMax 0600006000

BEARING (RPLS T3403-13510)
(Superseded to 505170201)

$9.49

$

In Stock, Qty 15

0

46

RedMax 318013330

RING, SNAP
(Superseded to 514128201)

$4.99

$

In Stock, only 2 left!

0

47

RedMax 0406502612

RING, SNAP, M26 X 1.2
(Superseded to 516125501)

$

$

Not available

48

RedMax 354013260

BOLT, M6 x 1.35
(Superseded to 521171901)

$3.99

$

Usually ships in 3-10 days

0

49

RedMax 354113241

HOLDER (A)
(Superseded to 514366601)

$14.99

$

Usually ships in 3-10 days

0

50

RedMax 354113251

HOLDER (B)
(Superseded to 505171401)

$4.99

$

In Stock, only 1 left!

0

51

RedMax 646214100

HANDLE ASSEMBLY
(Superseded to 521473001)

$

$

Not available

52

RedMax 646214310

HANDLE
(Superseded to 515642801)

$

$

Not available

53

RedMax 646214320

CLAMP
(Superseded to 521473201)

$

$

Not available

54

RedMax 026390535

SCREW, M5 x 35
(Superseded to 516113601)

$

$

Not available

55

RedMax 635824002

GUARD ASSY (RPLS -24001)
(Superseded to 574016201)

$41.99

$

Usually ships in 3-10 days

0

56

RedMax 635824102

GUARD COMP.
(Superseded to 515586501)

$

$

Not available

57

RedMax 604124140

BLADE
(Superseded to 521404201)

$

$

Not available

58

RedMax 332015310

NUT
(Superseded to 521000601)

$3.99

$

In Stock, Qty 14

0

59

RedMax 026330512

SCREW, M5 x 12
(Superseded to 510478301)

$

$

Not available

60

RedMax 354124121

CLAMP
(Superseded to 514368601)

$

$

Not available

61

RedMax 354024130

BOLT, M6 x 1.30
(Superseded to 521176001)

$4.99

$

Usually ships in 3-10 days

0

62

RedMax 029020615

WASHER, M6 X 15

$0.17

$

Usually ships in 3-10 days

0

63

RedMax 604199220

SHAFT (RPLS 3274-99120)
(Superseded to 515517601)

$

$

Not available

64

RedMax PT100

6
(Superseded to 515516101)

$

$

Not available

65

RedMax 604199112

CASE (RPLS. -99111)
(Superseded to 521404702)

$89.99

$

Usually ships in 3-10 days

0

66

RedMax 604199141

CORD HOLDER (RPLS. -99140)
(Superseded to 515516901)

$14.99

$

Usually ships in 3-10 days

0

67

RedMax 604199130

COVER
(Superseded to 521404801)

$27.99

$

Usually ships in 3-10 days

0

68

RedMax 326815150

PLATE, LARGE
(Superseded to 520939401)

$

$

Not available

69

RedMax 604199162

SPRING (RPLS -99161)
(Superseded to 515517001)

$4.99

$

In Stock, Qty 7

0

70

RedMax 326815170

PLATE, SMALL
(Superseded to 520939801)

$3.99

$

In Stock, Qty 6

0

71

RedMax 604199181

CORD
(Superseded to 521405301)

$

$

Not available

72

RedMax 646015210

SPACER
(Superseded to 521472701)

$

$

Not available

73

RedMax 656595201

HARNESS ASSY (RPLS -95200)
(Superseded to 511003401)

$

$

Not available

74

RedMax 656517211

HOOK, HARNESS (RPLS -17210)

$7.45

$

Usually ships in 3-10 days

0

75

RedMax 656517220

PLATE

$1.14

$

Usually ships in 3-10 days

0

76

RedMax 656595230

HANGER COMP.
(Superseded to 574019001)

$

$

Not available

77

RedMax 65651720001

BAND (NOT SOLD SEPARATELY)

$

$

Not available

78

RedMax 65651720002

PROTECTOR

$17.28

$

Usually ships in 3-10 days

0

79

RedMax 353291000

TOOL SET
(Superseded to 514248101)

$

$

Not available

80

RedMax 103091340

SCREWDRIVER
(Superseded to 516153801)

$

$

Not available

81

RedMax 323991310

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

82

RedMax 0900700425

WRENCH (TOOL)

$0.75

$

Usually ships in 3-10 days

0

83

RedMax 0900700528

WRENCH (TOOL)
(Superseded to 516144701)

$

$

Not available

84

RedMax 354091110

BAR
(Superseded to 521176101)

$3.49

$

Usually ships in 3-10 days

0

85

RedMax 354091120

SPANNER, 8 X 10 (RPLS 2540- )
(Superseded to 506615001)

$5.99

$

Usually ships in 3-10 days

0

86

RedMax 624292110

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$6.72

$

Usually ships in 3-10 days

0
