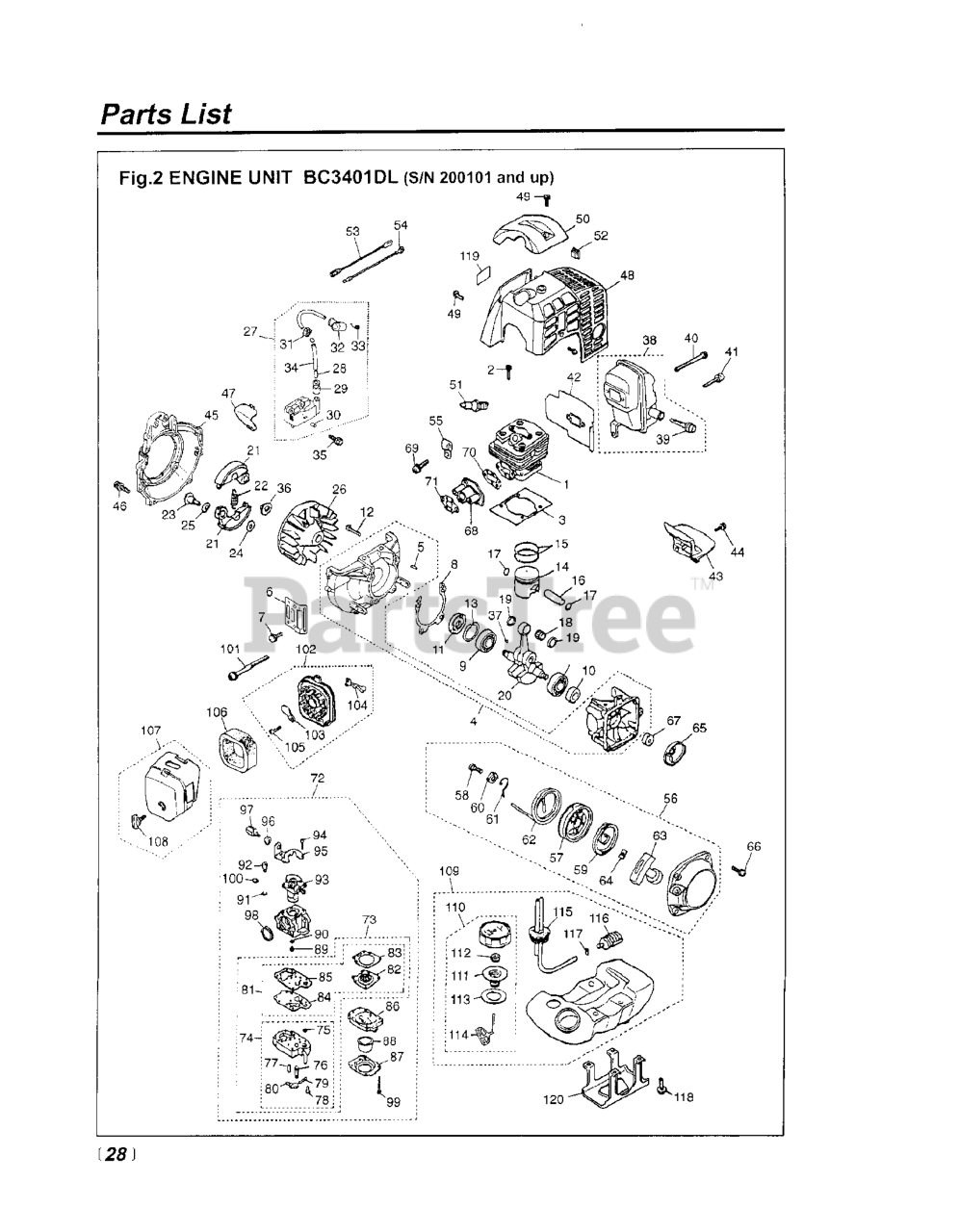

BC 3401 DL - RedMax Brushcutter (SN: 200101 & Above) > Parts Diagrams (2) > ENGINE

  • Title
512272201

1

CYLINDER

Part# 512272201

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $27.94

513412501

2

BOLT

Part# 513412501

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

510064301

3

GASKET

Part# 510064301

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

505296001

4

CRANKCASE

Part# 505296001

Note: . 5

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 8 business days

Your price: $58.11

505296101

5

OBSOLETE - PIN

Part# 505296101 (Superseded to 516762801)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

505296201

6

GUARD

Part# 505296201

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

505299801

7

SCREW

Part# 505299801

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

505296401

8

GASKET

Part# 505296401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

505296501

9

Part# 505296501

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $10.05

504121501

10

SEAL

Part# 504121501

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $8.93

505296701

11

SEAL

Part# 505296701

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $5.58

506609401

12

BOLT

Part# 506609401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 8 business days

Your price: $3.34

504121001

13

RP_RING

Part# 504121001

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

515375101

14

PISTON

Part# 515375101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $36.88

513367401

15

RING.PISTON

Part# 513367401 (Superseded to 510917701)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $6.70

513164701

16

PIN

Part# 513164701

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

516283001

17

RING

Part# 516283001

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 8 business days

Your price: $3.34

505297301

18

OBSOLETE - ROLLER BEARING

Part# 505297301

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $8.93

513752401

19

OBSOLETE - WASHER

Part# 513752401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 8 business days

Your price: $4.46

521325201

20

CRANKSHAFT COMPL

Part# 521325201

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $127.44

513242301

21

SHOE

Part# 513242301

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $13.41

513371601

22

SPRING

Part# 513371601

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.46

505297801

23

OBSOLETE - SCREW

Part# 505297801

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $5.58

505298001

24

OBSOLETE - WASHER

Part# 505298001

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $2.23

505298101

25

WASHER

Part# 505298101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

521743401

26

ROTOR

Part# 521743401

Note: T115371110

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $50.30

512274001

27

COIL-A

Part# 512274001

Note: . 28 29 30-34

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $95.02

505298401

28

CORD.HIGH

Part# 505298401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

TBD

29

Part# TBD

Note: 261671230

OEM Warranty Repair Part for RedMax

Not available

521743701

30

PIN

Part# 521743701

Note: T115371250

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

515415301

31

OBSOLETE - GROMMET

Part# 515415301 (Superseded to 521358801)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 8 business days

Your price: $2.23

505298801

32

CAP

Part# 505298801

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $5.58

515415201

33

SPRING

Part# 515415201

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

521749501

34

TUBE (RPLS 263072210)

Part# 521749501

Note: T151271320

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

514233801

35

Part# 514233801

OEM Warranty Repair Part for RedMax

Not available

504118001

36

OBSOLETE - NUT

Part# 504118001 (Superseded to 516437401)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

506689401

37

OBSOLETE - KEY

Part# 506689401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

570733701

38

MUFFLER ASSEMBLY

Part# 570733701

Note: T100615100. 39

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $55.89

513351501

39

OBSOLETE - ARRESTER

Part# 513351501

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $10.05

516071501

40

BOLT, M5 x 60

Part# 516071501

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

505299501

41

Bolt

Part# 505299501

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 8 business days

Your price: $2.23

505299601

42

Part# 505299601

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $5.58

505299701

43

PLATE.MUFFLER

Part# 505299701

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 8 business days

Your price: $5.58

505299801

44

SCREW

Part# 505299801

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

512261901

45

COVER

Part# 512261901

Note: T111731111

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $27.94

505300201

46

Part# 505300201

OEM Warranty Repair Part for RedMax

Not available

505300401

47

PLATE

Part# 505300401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $16.76

515363601

48

COVER.ENGINE

Part# 515363601

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $25.70

505300601

49

SCREW

Part# 505300601

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

515363801

50

GUARD

Part# 515363801

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $6.70

521231501

51

Part# 521231501

OEM Warranty Repair Part for RedMax

Not available

505301301

52

GROMMET

Part# 505301301

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 8 business days

Your price: $3.34

521743601

53

CORD

Part# 521743601

Note: T115371240

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $5.58

512224501

54

CORD

Part# 512224501

Note: T100673230

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.46

513190301

55

Part# 513190301

OEM Warranty Repair Part for RedMax

Not available

515366901

56

RECOIL ASSY

Part# 515366901

Note: . 57 58 59-64

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $50.30

504114701

57

OBSOLETE - SPRING SPIRAL

Part# 504114701

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $14.52

515367101

58

SCREW

Part# 515367101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

504115001

59

OBSOLETE - SPRING, SPIRAL

Part# 504115001

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $8.93

504114601

60

OBSOLETE - ARM

Part# 504114601

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

504114801

61

RP_ROPE

Part# 504114801

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $5.58

505302801

62

Part# 505302801

OEM Warranty Repair Part for RedMax

Not available

505303401

63

OBSOLETE - KNOB

Part# 505303401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 8 business days

Your price: $6.70

504114001

64

KNOB

Part# 504114001

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 8 business days

Your price: $6.70

504114401

65

PULLEY

Part# 504114401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $7.82

505304401

66

Screw

Part# 505304401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

505304601

67

COLLAR

Part# 505304601

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

505304701

68

INSULATOR

Part# 505304701

OEM Warranty Repair Part for RedMax

Not available

505304801

69

SCREW

Part# 505304801

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

515361801

70

Part# 515361801

OEM Warranty Repair Part for RedMax

Not available

505305001

71

Gasket

Part# 505305001

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

512288401

72

Part# 512288401

Note: . 73 74 75-100

OEM Warranty Repair Part for RedMax

Not available

570773701

73

Part# 570773701

Note: T119606030. 74 75 76-85

OEM Warranty Repair Part for RedMax

Not available

502238401

74

CARBURETOR BODY

Part# 502238401

Note: . 75 76 77-80

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $42.47

TBD

75

Part# TBD

OEM Warranty Repair Part for RedMax

Not available

TBD

76

Part# TBD

OEM Warranty Repair Part for RedMax

Not available

TBD

78

Part# TBD

OEM Warranty Repair Part for RedMax

Not available

TBD

79

Part# TBD

OEM Warranty Repair Part for RedMax

Not available

TBD

80

Part# TBD

OEM Warranty Repair Part for RedMax

Not available

570773601

81

Part# 570773601

Note: T119606020. 82 83 84 85

OEM Warranty Repair Part for RedMax

Not available

TBD

82

Part# TBD

OEM Warranty Repair Part for RedMax

Not available

TBD

83

Part# TBD

OEM Warranty Repair Part for RedMax

Not available

TBD

84

Part# TBD

OEM Warranty Repair Part for RedMax

Not available

TBD

85

Part# TBD

OEM Warranty Repair Part for RedMax

Not available

506740901

86

BODY

Part# 506740901

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $25.70

506741001

87

OBSOLETE - COVER

Part# 506741001

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $5.58

505306701

88

PUMP

Part# 505306701

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $6.70

521740001

89

OBSOLETE - JET #43.5

Part# 521740001

Note: T110881910

OEM Warranty Repair Part for RedMax

Not available

505307501

90

OBSOLETE - O-RING

Part# 505307501

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $5.58

506738601

91

OBSOLETE - RING

Part# 506738601 (Superseded to 516523601)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

506741201

92

OBSOLETE - SWIVEL

Part# 506741201

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $7.82

TBD

93

Part# TBD

OEM Warranty Repair Part for RedMax

Not available

505307901

94

OBSOLETE - SCREW

Part# 505307901

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

506746001

95

Part# 506746001

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $10.05

506612601

96

OBSOLETE - NUT

Part# 506612601 (Superseded to 516524101)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

515466101

97

SCREW

Part# 515466101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $10.05

505308401

98

RING PACKING

Part# 505308401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $4.46

506741101

99

SCREW

Part# 506741101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

506746101

100

Washer

Part# 506746101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

505308701

101

SCREW

Part# 505308701

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

505308801

102

BODY ASSY.

Part# 505308801

Note: T118482101. 103 104 105

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $14.52

505308901

103

PLATE CHOKE

Part# 505308901

Note: T118482130

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.35

505309001

104

LEVER.CHOKE

Part# 505309001

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $3.34

506614001

105

Part# 506614001

OEM Warranty Repair Part for RedMax

Not available

505309201

106

Air Filter Element

Part# 505309201

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $4.46

515368901

107

COVER-A

Part# 515368901

Note: . 108

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $8.93

504115101

108

Knob

Part# 504115101

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

512229401

109

TANK-A

Part# 512229401

Note: T101385002. 110 111 112-117

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $95.02

505309601

110

CAP A

Part# 505309601

Note: T101585202. 111 112 113 114

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $8.93

515369401

111

OBSOLETE - HOLDER-A

Part# 515369401

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $10.05

506746801

112

FILTER

Part# 506746801

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $4.46

506744301

113

PACKING

Part# 506744301

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

506745801

114

STOPPER

Part# 506745801

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

515418401

115

OBSOLETE - PIPE COMPLETE

Part# 515418401 (Superseded to 579138309)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $22.35

506742601

116

FILTER ASSY

Part# 506742601

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $6.70

506707001

117

OBSOLETE - CLIP

Part# 506707001

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $3.34

505311001

118

SCREW

Part# 505311001

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 8 business days

Your price: $3.34

521771601

119

LABEL

Part# 521771601

Note: T171631120

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

505310901

120

TANK GUARD

Part# 505310901

Note: T118431911

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $25.70
