BC 342 DL - RedMax Brushcutter (SN: 502444 - 660000) (1995-09) 018 - TRIMMER GROUP Parts Diagram

Brushcutter

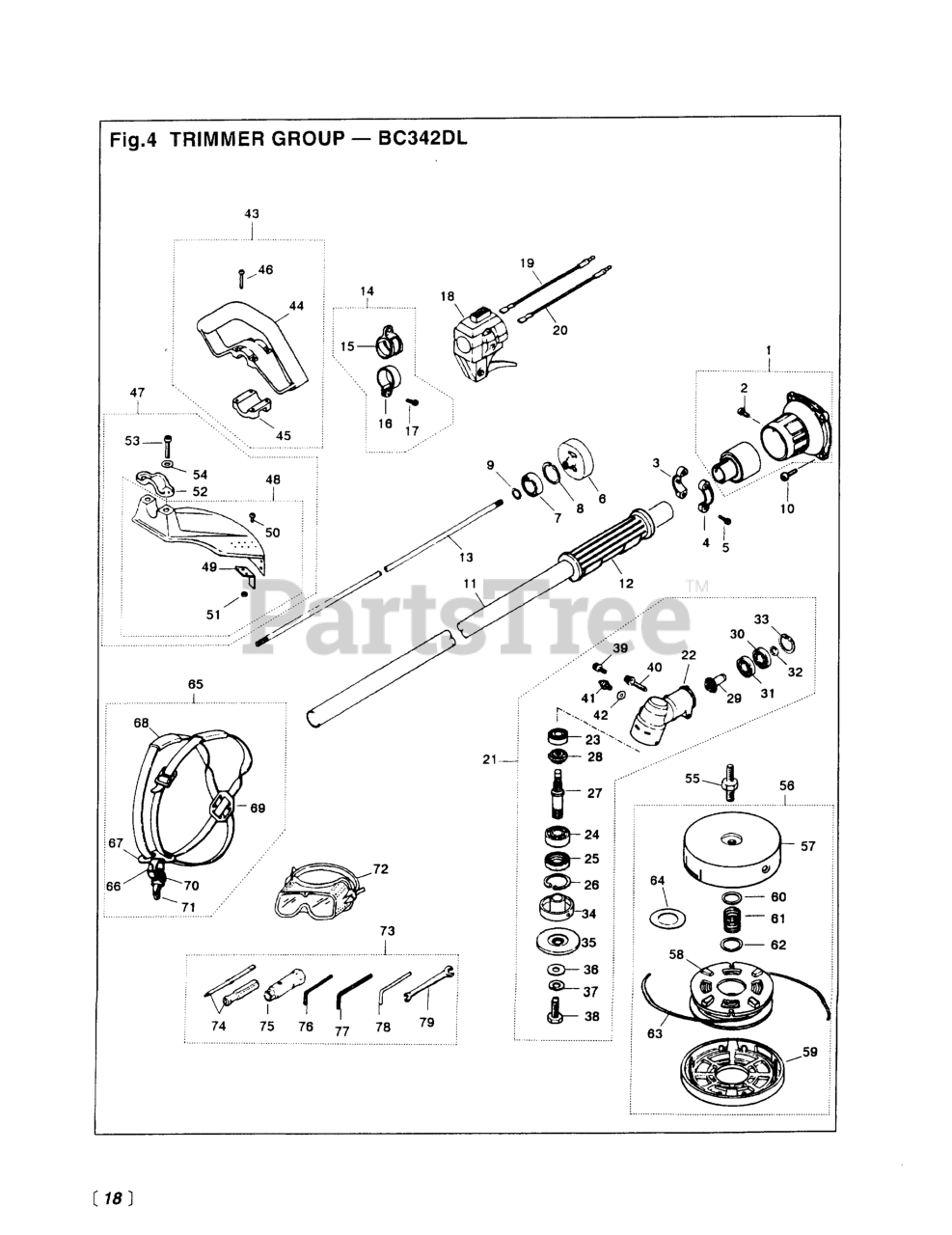

018 - TRIMMER GROUP Parts Diagram

  • Title

1

RedMax 353111101

HOUSING ASSY (RPLS-11100)
(Superseded to 521165901)

$

$

Not available

2

RedMax 026300610

SCREW, M6 x 10

$

$

Not available

3

RedMax 353111131

CLAMP, RIGHT (RPLS -11130)
(Superseded to 521166301)

$

$

Not available

4

RedMax 353111141

CLAMP, LEFT (RPLS-11140)
(Superseded to 521166501)

$

$

Not available

5

RedMax 335021320

BOLT
(Superseded to 521049801)

$3.49

$

Usually ships in 3-10 days

0

6

RedMax 353011310

DRUM, CLUTCH
(Superseded to 521162501)

$

$

Not available

7

RedMax 0600406202

BEARING
(Superseded to 516131701)

$3.99

$

Usually ships in 3-10 days

0

8

RedMax 0406503515

RING, SNAP, M35 X 1.5
(Superseded to 516126001)

$

$

Not available

9

RedMax 0406401510

RING, SNAP, M15 X 1.0

$0.43

$

Usually ships in 3-10 days

0

10

RedMax 646891150

BOLT, M6 x 20

$0.39

$

Usually ships in 3-10 days

0

11

RedMax 353112102

3531-12103

$

$

Not available

12

RedMax 357732140

3577-32141

$

$

Not available

13

RedMax 353012211

SHAFT, SPLINE
(Superseded to 521162701)

$

$

Not available

14

RedMax 936617100

HANGER ASSY. (NLA)

Note: Context Note: @ÿ

$

$

Not available

15

RedMax 936617110

HANGER
(Superseded to 515903601)

$

$

Not available

16

RedMax 936617120

CLAMP
(Superseded to 515903701)

$

$

Not available

17

RedMax 026390525

SCREW, M5 x 25
(Superseded to 516113401)

$

$

Not available

18

RedMax 623212300

6232-12400
(Superseded to 510947701)

$

$

Not available

19

RedMax 611614420

CORD-A, BLACK
(Superseded to 521423101)

$

$

Not available

20

RedMax 611614430

CORD-B, RED
(Superseded to 521423201)

$

$

Not available

21

RedMax 353513006

GEARCASE (RPLS-13005)

$

$

Not available

22

RedMax 354113114

GEARCASE (RPLS -13113)
(Superseded to 521178501)

$

$

Not available

23

RedMax 0600006000

BEARING (RPLS T3403-13510)
(Superseded to 505170201)

$9.49

$

In Stock, Qty 15

0

24

RedMax 0600006201

BEARING

$

$

Not available

25

RedMax 318013141

SEAL, OIL
(Superseded to 520889801)

$5.99

$

In Stock, only 3 left!

0

26

RedMax 0406503212

RING, SNAP, M32 x 1.2
(Superseded to 504121001)

$2.49

$

In Stock, Qty 12

0

27

RedMax 354113212

SHAFT, GEAR
(Superseded to 514366401)

$45.99

$

Usually ships in 3-10 days

0

28

RedMax 318013220

GEAR, BEVEL
(Superseded to 578122701)

$102.99

$

Usually ships in 3-10 days

0

29

RedMax 353013311

PINION

$30.54

$

Usually ships in 3-10 days

0

30

RedMax 0600106000

BEARING

$

$

Not available

31

RedMax 0600006000

BEARING (RPLS T3403-13510)
(Superseded to 505170201)

$9.49

$

In Stock, Qty 15

0

32

RedMax 318013330

RING, SNAP
(Superseded to 514128201)

$4.99

$

In Stock, only 2 left!

0

33

RedMax 0406502612

RING, SNAP, M26 X 1.2
(Superseded to 516125501)

$

$

Not available

34

RedMax 354113241

HOLDER (A)
(Superseded to 514366601)

$14.99

$

Usually ships in 3-10 days

0

35

RedMax 354113251

HOLDER (B)
(Superseded to 505171401)

$4.99

$

In Stock, only 2 left!

0

36

RedMax 0164330823

WASHER, M8 x 2.3 (RPLS -20823)
(Superseded to 505169801)

$3.99

$

In Stock, only 1 left!

0

37

RedMax 331043210

WASHER (RPLS 3180-13270)
(Superseded to 505169701)

$3.99

$

In Stock, Qty 5

0

38

RedMax 357933260

BOLT, LH
(Superseded to 505169601)

$5.99

$

In Stock, Qty 20+

0

39

RedMax 0125230510

BOLT, M5 X 10
(Superseded to 505169901)

$3.49

$

In Stock, only 3 left!

0

40

RedMax 354013260

BOLT, M6 x 1.35
(Superseded to 521171901)

$3.99

$

Usually ships in 3-10 days

0

41

RedMax 319913350

FITTING, GREASE
(Superseded to 505171501)

$5.99

$

Usually ships in 3-10 days

0

42

RedMax 0164120608

WASHER, M6 X .8
(Superseded to 505171601)

$3.99

$

Usually ships in 3-10 days

0

43

RedMax 646214100

HANDLE ASSEMBLY
(Superseded to 521473001)

$

$

Not available

44

RedMax 646214310

HANDLE
(Superseded to 515642801)

$

$

Not available

45

RedMax 646214320

CLAMP
(Superseded to 521473201)

$

$

Not available

46

RedMax 026390535

SCREW, M5 x 35
(Superseded to 516113601)

$

$

Not available

47

RedMax 635824002

GUARD ASSY (RPLS -24001)
(Superseded to 574016201)

$41.99

$

Usually ships in 3-10 days

0

48

RedMax 635824102

GUARD COMP.
(Superseded to 515586501)

$

$

Not available

49

RedMax 604124140

BLADE
(Superseded to 521404201)

$

$

Not available

50

RedMax 026330512

SCREW, M5 x 12
(Superseded to 510478301)

$

$

Not available

51

RedMax 332015310

NUT
(Superseded to 521000601)

$3.99

$

In Stock, Qty 14

0

52

RedMax 354124121

CLAMP
(Superseded to 514368601)

$

$

Not available

53

RedMax 354024130

BOLT, M6 x 1.30
(Superseded to 521176001)

$4.99

$

Usually ships in 3-10 days

0

54

RedMax 029020615

WASHER, M6 X 15

$0.17

$

Usually ships in 3-10 days

0

55

RedMax PTA008

ARBOR, 8MM
(Superseded to 515517601)

$

$

Not available

56

RedMax PT100

6
(Superseded to 515516101)

$

$

Not available

57

RedMax 604199110

6041-99111
(Superseded to 521404702)

$89.99

$

Usually ships in 3-10 days

0

58

RedMax 604199140

6041-99141
(Superseded to 515516901)

$14.99

$

Usually ships in 3-10 days

0

59

RedMax 604199130

COVER
(Superseded to 521404801)

$27.99

$

Usually ships in 3-10 days

0

60

RedMax 326815150

PLATE, LARGE
(Superseded to 520939401)

$

$

Not available

61

RedMax 604199161

6041-99162
(Superseded to 515517001)

$4.99

$

In Stock, Qty 7

0

62

RedMax 326815170

PLATE, SMALL
(Superseded to 520939801)

$3.99

$

In Stock, Qty 6

0

63

RedMax 604199181

CORD
(Superseded to 521405301)

$

$

Not available

64

RedMax 646015210

SPACER
(Superseded to 521472701)

$

$

Not available

65

RedMax 354017204

HARNESS ASSY (USE 6565-17200)
(Superseded to 656517201)

$61.99

$

Usually ships in 3-10 days

0

66

RedMax 35401720303

BAND

$2.35

$

Usually ships in 3-10 days

0

67

RedMax 354017220

PLATE

$5.70

$

Usually ships in 3-10 days

0

68

RedMax 32601720003

PROTECTOR

$3.85

$

Usually ships in 3-10 days

0

69

RedMax 35411720005

RING

$4.42

$

Usually ships in 3-10 days

0

70

RedMax 314617251

CUSHION

$2.87

$

Usually ships in 3-10 days

0

71

RedMax 352096415

HOOK COMP (RPLS -96414)

$7.35

$

Usually ships in 3-10 days

0

72

RedMax 624292110

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$6.72

$

Usually ships in 3-10 days

0

73

RedMax 353291000

TOOL SET
(Superseded to 514248101)

$

$

Not available

74

RedMax 103091340

SCREWDRIVER
(Superseded to 516153801)

$

$

Not available

75

RedMax 323991310

NO LONGER AVAILABLE

Note: Context Note: @ÿ

$

$

Not available

76

RedMax 0900700425

WRENCH (TOOL)

$0.75

$

Usually ships in 3-10 days

0

77

RedMax 0900700528

WRENCH (TOOL)
(Superseded to 516144701)

$

$

Not available

78

RedMax 354091110

BAR
(Superseded to 521176101)

$3.49

$

Usually ships in 3-10 days

0

79

RedMax 354091120

SPANNER, 8 X 10 (RPLS 2540- )
(Superseded to 506615001)

$5.99

$

Usually ships in 3-10 days

0
