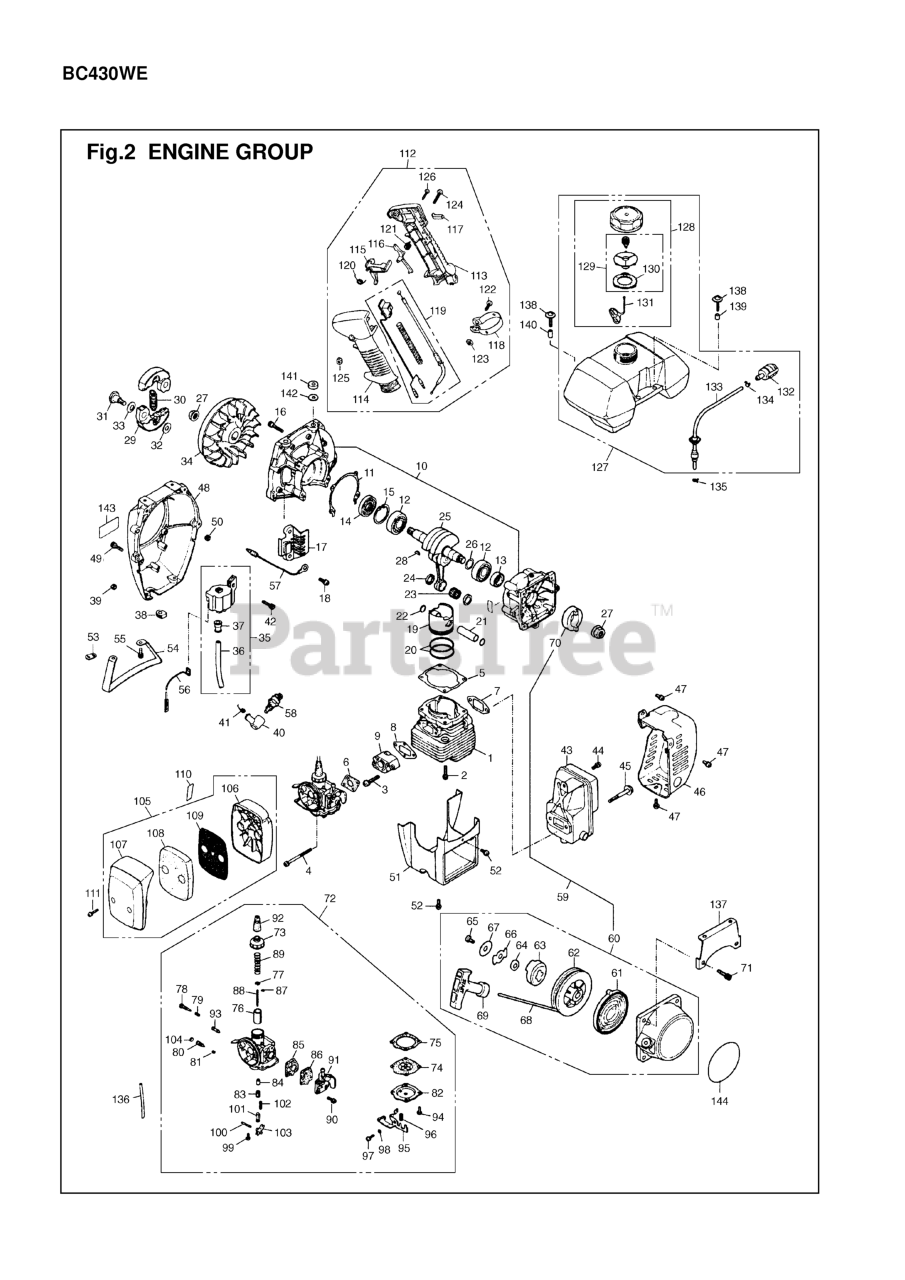

BC 430 WE - RedMax Brushcutter (1997-09) > Parts Diagrams (2) > 002 - ENGINE GROUP

  • Title
140012113

1

CYLINDER (RPLS -12112)

Part# 140012113

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $125.53

331012281

2

BOLT

Part# 331012281

OEM Warranty Repair Part for RedMax

Not available

0026030525

3

SCREW

Part# 0026030525

OEM Warranty Repair Part for RedMax

Not available

0026030540

4

SCREW

Part# 0026030540

OEM Warranty Repair Part for RedMax

Not available

140013121

5

1400-13122

Part# 140013121

OEM Warranty Repair Part for RedMax

Not available

142013130

6

NO LONGER AVAILABLE

Part# 142013130

Note: Context Note: @ÿ

OEM Warranty Repair Part for RedMax

Not available

140013142

7

1400-13143

Part# 140013142

OEM Warranty Repair Part for RedMax

Not available

140013150

8

1400-13151

Part# 140013150

OEM Warranty Repair Part for RedMax

Not available

142013160

9

INSULATOR

Part# 142013160

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $6.19

140021100

10

CRANKCASE COMPLETE

Part# 140021100

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $104.05

140021140

11

1400-21141

Part# 140021140

OEM Warranty Repair Part for RedMax

Not available

0603006202

12

T4012-21240

Part# 0603006202

OEM Warranty Repair Part for RedMax

Not available

152021220

13

SEAL, OIL - STARTER SIDE

Part# 152021220

OEM Warranty Repair Part for RedMax

Not available

140021220

14

T1108-21220

Part# 140021220

OEM Warranty Repair Part for RedMax

Not available

0406503515

15

RING, SNAP, M35 X 1.5

Part# 0406503515

OEM Warranty Repair Part for RedMax

Not available

0125230530

16

BOLT, M5 X 30

Part# 0125230530

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $0.47

215521311

17

GUARD (RPLS-21310)

Part# 215521311

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.25

0026390514

18

SCREW

Part# 0026390514

OEM Warranty Repair Part for RedMax

Not available

140041111

19

PISTON (NLA)

Part# 140041111

Note: Context Note: @ÿ

OEM Warranty Repair Part for RedMax

Not available

140041220

20

RING, PISTON (RPLS -41210)

Part# 140041220

OEM Warranty Repair Part for RedMax

Not available

140041310

21

PIN, PISTON

Part# 140041310

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $4.42

335041320

22

RING

Part# 335041320

OEM Warranty Repair Part for RedMax

Not available

140041410

23

BEARING

Part# 140041410 (Superseded to 502849901)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $8.93

261641510

24

WASHER

Part# 261641510

OEM Warranty Repair Part for RedMax

Not available

140042002

25

SHAFT (RPLS -42001)

Part# 140042002

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $133.43

130042410

26

SHIM

Part# 130042410

OEM Warranty Repair Part for RedMax

Not available

140043230

27

NUT

Part# 140043230

OEM Warranty Repair Part for RedMax

Not available

100043240

28

KEY

Part# 100043240 (Superseded to 516147801)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $2.23

107551113

29

SHOE (RPLS -51112)

Part# 107551113

OEM Warranty Repair Part for RedMax

Not available

107551220

30

SPRING

Part# 107551220

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $1.88

120051211

31

SCREW

Part# 120051211

OEM Warranty Repair Part for RedMax

Not available

120051230

32

WASHER

Part# 120051230

OEM Warranty Repair Part for RedMax

Not available

120051240

33

WASHER (USE -51241)

Part# 120051240

OEM Warranty Repair Part for RedMax

Not available

207371110

34

ROTOR

Part# 207371110

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $44.61

215571200

35

NO LONGER AVAILABLE

Part# 215571200

Note: Context Note: @ÿ

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $67.16

215571220

36

CORD, HIGH TENSION

Part# 215571220

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $0.72

261671320

37

CAP

Part# 261671320 (Superseded to 516744001)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.34

550072130

38

GROMMET

Part# 550072130

OEM Warranty Repair Part for RedMax

Not available

110072120

39

GROMMET

Part# 110072120

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $0.83

190072111

40

1900-72112

Part# 190072111

OEM Warranty Repair Part for RedMax

Not available

190072120

41

SPRING

Part# 190072120

OEM Warranty Repair Part for RedMax

Not available

0026390520

42

0263-90520

Part# 0026390520

OEM Warranty Repair Part for RedMax

Not available

140015111

43

MUFFLER

Part# 140015111

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $48.29

0026390512

44

SCREW

Part# 0026390512

OEM Warranty Repair Part for RedMax

Not available

140015150

45

BOLT

Part# 140015150

OEM Warranty Repair Part for RedMax

Not available

140015410

46

COVER

Part# 140015410

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $17.31

0026390512

47

SCREW

Part# 0026390512

OEM Warranty Repair Part for RedMax

Not available

140031113

48

COVER, FAN (REPLACES -31111)

Part# 140031113

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $33.63

331012281

49

BOLT

Part# 331012281

OEM Warranty Repair Part for RedMax

Not available

110072120

50

GROMMET

Part# 110072120

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $0.83

146232111

51

CYLINDER COVER

Part# 146232111

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $18.15

0026390512

52

SCREW

Part# 0026390512

OEM Warranty Repair Part for RedMax

Not available

160086130

53

CLAMP

Part# 160086130

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $1.31

354093110

54

STAND

Part# 354093110

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $9.96

331031720

55

BOLT

Part# 331031720

OEM Warranty Repair Part for RedMax

Not available

221571240

56

CORD

Part# 221571240

OEM Warranty Repair Part for RedMax

Not available

211671250

57

EARTH CORD

Part# 211671250

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $1.82

121673110

58

3699-90030-10

Part# 121673110

OEM Warranty Repair Part for RedMax

Not available

148775000

59

1487-75001

Part# 148775000

OEM Warranty Repair Part for RedMax

Not available

148775100

60

1487-75101

Part# 148775100

OEM Warranty Repair Part for RedMax

Not available

118075221

61

SPRING

Part# 118075221

OEM Warranty Repair Part for RedMax

Not available

148775120

62

REEL

Part# 148775120

OEM Warranty Repair Part for RedMax

Not available

148775140

63

DOG

Part# 148775140

OEM Warranty Repair Part for RedMax

Not available

186175150

64

WASHER

Part# 186175150

OEM Warranty Repair Part for RedMax

Not available

148375270

65

SCREW

Part# 148375270

OEM Warranty Repair Part for RedMax

Not available

148775160

66

RETAINER

Part# 148775160

OEM Warranty Repair Part for RedMax

Not available

148775170

67

WASHER

Part# 148775170

OEM Warranty Repair Part for RedMax

Not available

140075160

68

ROPE

Part# 140075160

OEM Warranty Repair Part for RedMax

Not available

140075170

69

KNOB

Part# 140075170

OEM Warranty Repair Part for RedMax

Not available

148775211

70

PULLEY

Part# 148775211

OEM Warranty Repair Part for RedMax

Not available

0026390520

71

0263-90520

Part# 0026390520

OEM Warranty Repair Part for RedMax

Not available

143681000

72

CARBURETOR ASSY

Part# 143681000

OEM Warranty Repair Part for RedMax

Not available

165081122

73

CAP (RPLS -81121)

Part# 165081122

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $8.73

142081480

74

DIAPHRAGM ASSEMBLY (NLA)

Part# 142081480

Note: Context Note: @ÿ

OEM Warranty Repair Part for RedMax

Not available

110181950

75

PACKING

Part# 110181950

OEM Warranty Repair Part for RedMax

Not available

142081150

76

VALVE, THROTTLE

Part# 142081150

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $16.97

133581070

77

RECEIVER

Part# 133581070

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $0.57

10388100129

78

SCREW

Part# 10388100129

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.90

165081260

79

SPRING, ADJUST

Part# 165081260

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $0.76

142081271

80

SCREW (REPLACES 1420-81270)

Part# 142081271

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $7.35

142081370

81

SPRING, MJ,ADJ

Part# 142081370

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $1.08

142081490

82

COVER, DIAPHRAM

Part# 142081490

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $4.07

142081420

83

HOLDER, NEEDLE

Part# 142081420

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $8.42

142081410

84

JET, NEEDLE

Part# 142081410

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $11.43

142081730

85

PACKING, PUMP

Part# 142081730

OEM Warranty Repair Part for RedMax

Not available

142081720

86

DIAPHRAGM

Part# 142081720

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $13.24

110181190

87

CLIP (USE 1030-81000-16)

Part# 110181190

OEM Warranty Repair Part for RedMax

Not available

158081180

88

NEEDLE

Part# 158081180

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $5.58

133581060

89

SPRING

Part# 133581060

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $1.31

0026010310

90

SCREW

Part# 0026010310

OEM Warranty Repair Part for RedMax

Not available

142281800

91

COVER ASS

Part# 142281800

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $18.91

114181120

92

CAP

Part# 114181120

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.59

113081170

93

VALVE-A

Part# 113081170

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $4.07

0026010308

94

SCREW

Part# 0026010308

OEM Warranty Repair Part for RedMax

Not available

142081510

95

LEVER, TICKLER

Part# 142081510

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $9.64

142081520

96

SPRING, TACKLE

Part# 142081520

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $0.76

0026000408

97

SCREW

Part# 0026000408

OEM Warranty Repair Part for RedMax

Not available

142081530

98

COLLAR

Part# 142081530

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $1.57

0026000306

99

SCREW

Part# 0026000306

OEM Warranty Repair Part for RedMax

Not available

110081461

100

PIN

Part# 110081461

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $1.08

110081440

101

VALVE NEEDLE

Part# 110081440

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $6.37

142081430

102

SPRING, HINGE

Part# 142081430

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.37

142081450

103

HINGE, VALVE

Part# 142081450

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.44

142081620

104

NO LONGER AVAILABLE

Part# 142081620

Note: Context Note: @ÿ

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.06

140082001

105

1400-82002

Part# 140082001

OEM Warranty Repair Part for RedMax

Not available

140082112

106

BODY (RPLS -82111)

Part# 140082112

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.59

140082120

107

1400-82121

Part# 140082120

OEM Warranty Repair Part for RedMax

Not available

141882130

108

ELEMENT (REPLACES 1400-82130)

Part# 141882130

OEM Warranty Repair Part for RedMax

Not available

140082140

109

SCREEN

Part# 140082140

OEM Warranty Repair Part for RedMax

Not available

113382060

110

LABEL

Part# 113382060

OEM Warranty Repair Part for RedMax

Not available

0026030422

111

SCREW

Part# 0026030422

OEM Warranty Repair Part for RedMax

Not available

217584000

112

USE 217584001

Part# 217584000

OEM Warranty Repair Part for RedMax

Not available

163884110

113

GRIP

Part# 163884110

OEM Warranty Repair Part for RedMax

Not available

163884120

114

GRIP

Part# 163884120

OEM Warranty Repair Part for RedMax

Not available

163884130

115

LEVER

Part# 163884130 (Superseded to 516427401)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 1 business day

Your price: $7.82

163884140

116

LEVER

Part# 163884140 (Superseded to 516427601)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $5.58

163884150

117

STOPPER

Part# 163884150

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.42

163884160

118

BAND

Part# 163884160 (Superseded to 516427901)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $4.46

217584300

119

CABLE COMP

Part# 217584300

OEM Warranty Repair Part for RedMax

Not available

163884170

120

SPRING

Part# 163884170 (Superseded to 516428201)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 4 to 6 business days

Your price: $2.23

163884180

121

SPRING

Part# 163884180 (Superseded to 516428401)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $3.34

0026360620

122

SCREW

Part# 0026360620

OEM Warranty Repair Part for RedMax

Not available

163884190

123

NUT

Part# 163884190 (Superseded to 516428501)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.23

0026060535

124

SCREW

Part# 0026060535

OEM Warranty Repair Part for RedMax

Not available

163884210

125

NUT

Part# 163884210

OEM Warranty Repair Part for RedMax

Not available

163884220

126

SCREW

Part# 163884220 (Superseded to 516428801)

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $2.23

143985000

127

TANK ASSY

Part# 143985000

OEM Warranty Repair Part for RedMax

Not available

211685201

128

CAP ASSY

Part# 211685201

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $5.45

211685300

129

VALVE COMP

Part# 211685300

OEM Warranty Repair Part for RedMax

Not available

160085322

130

PACKING (RPLS -85321)

Part# 160085322

OEM Warranty Repair Part for RedMax

Not available

331757242

131

STOPPER (RPLS 3317-57240)

Part# 331757242

OEM Warranty Repair Part for RedMax

Not available

143585401

132

FILTER ASSY (W/CHECK VALVE)

Part# 143585401

OEM Warranty Repair Part for RedMax

Not available

142185400

133

PIPE, FUEL (W/ PRIMARY PUMP)

Part# 142185400

OEM Warranty Repair Part for RedMax

Not available

126085460

134

CLIP

Part# 126085460

OEM Warranty Repair Part for RedMax

Not available

106386130

135

NO LONGER AVAILABLE

Part# 106386130

Note: Context Note: @ÿ

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $1.23

142086180

136

PIPE

Part# 142086180

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $0.83

140086214

137

SUPPORT (RPLS -86213)

Part# 140086214

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $4.42

160086120

138

SCREW, M5 X 22

Part# 160086120

OEM Warranty Repair Part for RedMax

Not available

140086250

139

COLLAR

Part# 140086250

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $0.57

140086260

140

COLLAR

Part# 140086260

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $0.76

140086271

141

CUSHION

Part# 140086271

OEM Warranty Repair Part for RedMax

Usually leaves our warehouse in 3 to 5 business days

Your price: $0.41

140086280

142

WASHER (USE 181741)

Part# 140086280

OEM Warranty Repair Part for RedMax

Not available

197031150

143

LABEL

Part# 197031150

OEM Warranty Repair Part for RedMax

Not available

140075412

144

LABEL

Part# 140075412

OEM Warranty Repair Part for RedMax

Not available
