BC 435 (866009) - Briggs & Stratton Brush Cutter (2010) Engine Group - BC435 (866009e) Parts Diagram

Brush Cutter

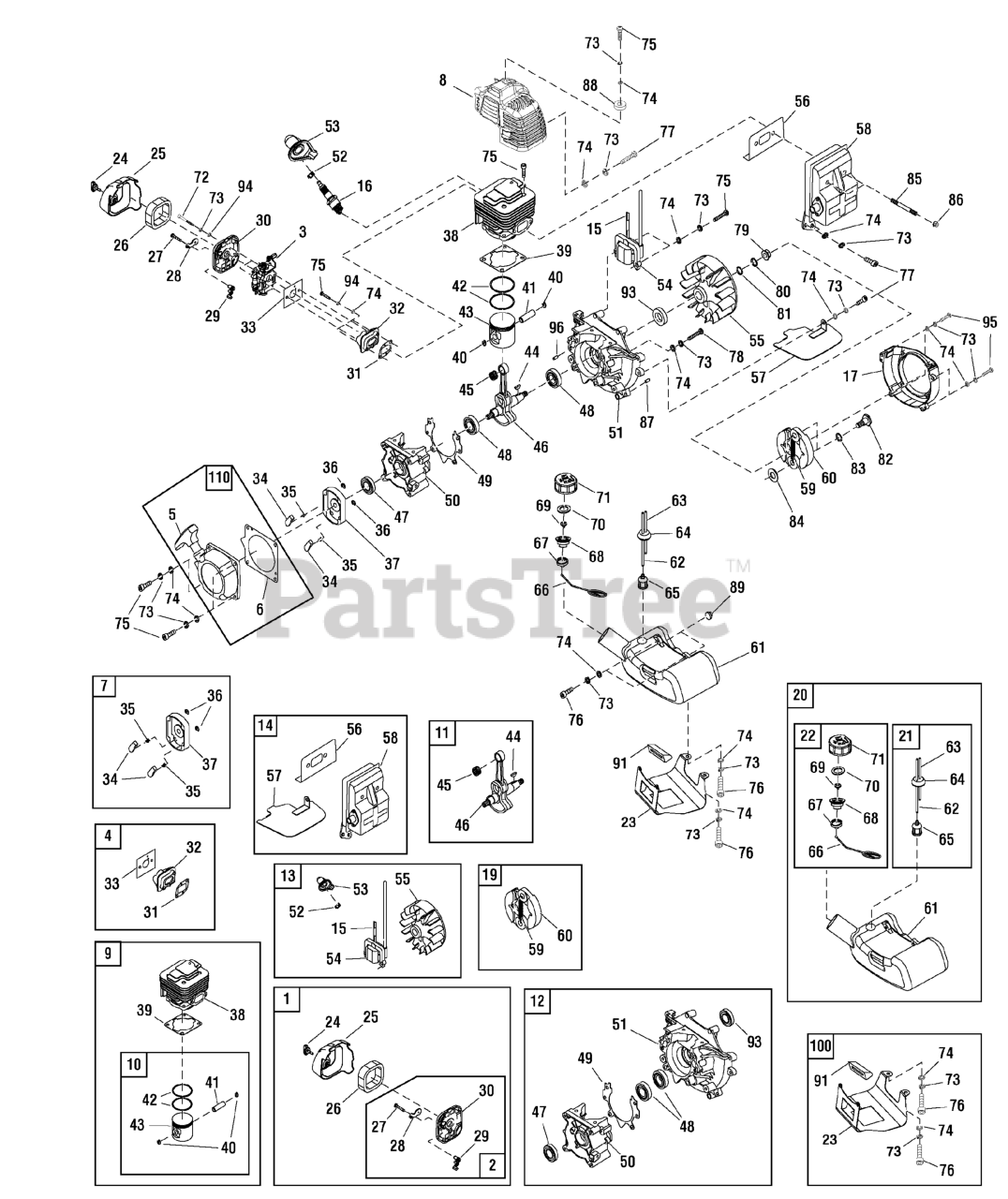

Engine Group - BC435 (866009e) Parts Diagram

  • Title

1

Murray 700843

KIT, Air Cleaner Assembly, Complete

Note: (Includes Ref. Nos. 2, 24, 25 & 26)

$

$

Currently unavailable

2

Murray 700318

KIT, Air Cleaner Assembly, Inner

Note: (Includes Ref. Nos. 27, 28, 29 & 30)

$

$

Currently unavailable

3

Murray 700845

CARBURETOR

$

$

Not available

4

Murray 700846

KIT, Admitting Pipe Assembly

Note: (Includes Ref. Nos. 31, 32 & 33)

$5.49

$

Usually ships in 2-12 days

0

5

Murray 700328

STARTER, Rewind

$

$

Currently unavailable

6

Murray 700329

PAD, Starter

$4.99

$

Usually ships in 2-12 days

0

7

Murray 700330

KIT, Start Reel Assembly

Note: (Includes Ref. Nos. 34, 35, 36 & 37)

$6.49

$

Usually ships in 2-12 days

0

8

Murray 700850

SHROUD

$

$

Currently unavailable

9

Murray 700851

KIT, Cylinder Assembly

Note: (Includes Ref. Nos. 10, 38 & 39)

$

$

Currently unavailable

10

Murray 700854

KIT, Piston Assembly

Note: (Includes Ref. Nos. 40, 41, 42 & 43)

$

$

Currently unavailable

11

Murray 700859

KIT, Crank Shaft Assembly

Note: (Includes Ref. Nos. 44, 45 & 46)

$35.99

$

Usually ships in 2-12 days

0

12

Murray 700862

KIT, Cylinder Case Assembly

Note: (Includes Ref. Nos. 47, 48, 49, 50, 51 & 93)

$

$

Currently unavailable

13

Murray 700869

KIT, Magneto Assembly

Note: (Includes Ref. Nos. 15, 52, 53, 54 & 55)

$

$

Currently unavailable

14

Murray 700873

KIT, Muffler Assembly

Note: (Includes Ref. Nos. 56, 57 & 58)

$

$

Currently unavailable

15

Murray 700870

CORD

$

$

Currently unavailable

16

Murray 700360

SPARK PLUG

$34.99

$

Usually ships in 2-12 days

0

17

Murray 700877

COVER, Fan

$

$

Currently unavailable

19

Murray 700363

KIT, Expander Assembly

Note: (Includes Ref. Nos. 59 & 60)

$

$

Currently unavailable

20

Murray 700878

KIT, Fuel Tank Assembly

Note: (Includes Ref. Nos. 21, 22 & 61)

$

$

Not available

21

Murray 700368

KIT, Fuel Line Assembly

Note: (Includes Ref. Nos. 62, 63, 64 & 65)

$

$

Currently unavailable

22

Murray 700369

KIT, Fuel Cap Assembly

Note: (Includes Ref. Nos. 66, 67, 68, 69, 70 & 71)

$

$

Currently unavailable

23

Murray 700880

BRACKET, Tank

$21.99

$

Usually ships in 2-12 days

0

24

Murray 700315

SCREW

$

$

Currently unavailable

25

Murray 700844

COVER, Cleaner, Outer

$

$

Currently unavailable

26

Murray 700317

FILTER

$2.49

$

Usually ships in 2-12 days

0

27

Murray 700319

SCREW, Self Tapping, ST4.2 x 12

$2.49

$

Usually ships in 2-12 days

0

28

Murray 700320

CHOKE VALVE

$2.49

$

Usually ships in 2-12 days

0

29

Murray 700321

HANDLE, Choke Valve

$

$

Currently unavailable

30

Murray 700322

COVER, Cleaner, Inner

$4.49

$

Usually ships in 2-12 days

0

31

Murray 700847

GASKET, Admitting Pipe

$3.49

$

Usually ships in 2-12 days

0

32

Murray 700848

ADMITTING PIPE

$7.49

$

Usually ships in 2-12 days

0

33

Murray 700849

GASKET, Carbuetor

$3.99

$

Usually ships in 2-12 days

0

34

STARTER CINCH

Note: (Not a serviceable part. Order Kit Ref. No 7)

$

$

Not available

35

SPRING, Starter

Note: (Not a serviceable part. Order Kit Ref. No 7)

$

$

Not available

36

RING, Retainer

Note: (Not a serviceable part. Order Kit Ref. No 7)

$

$

Not available

37

STARTER BOX

Note: (Not a serviceable part. Order Kit Ref. No 7)

$

$

Not available

38

Murray 700852

CYLINDER

$

$

Currently unavailable

39

Murray 700853

GASKET, Cylinder

$4.49

$

Usually ships in 2-12 days

0

40

Murray 700855

RING, Pin Retain

$

$

Currently unavailable

41

Murray 700856

PIN, Piston

$4.99

$

Usually ships in 2-12 days

0

42

Murray 700857

RING, Piston

$5.49

$

Usually ships in 2-12 days

0

43

Murray 700858

PISTON

$12.99

$

Usually ships in 2-12 days

0

44

Murray 700341

KEY, 3 x 5 x 13

$3.49

$

Usually ships in 2-12 days

0

45

Murray 700860

BEARING, Needle

$7.99

$

Usually ships in 2-12 days

0

46

Murray 700861

CRANKSHAFT

$76.99

$

Usually ships in 2-12 days

0

47

Murray 700345

SEAL, Oil, 11.7 x 22 x 7

$4.49

$

Usually ships in 2-12 days

0

48

Murray 700865

BEARING, 6201/P6

$5.99

$

Usually ships in 2-12 days

0

49

Murray 700866

GASKET, Crank Case

$5.99

$

Usually ships in 2-12 days

0

50

Murray 700867

CRANK CASE, Rear

$

$

Currently unavailable

51

Murray 700868

CRANK CASE, Front

$

$

Currently unavailable

52

Murray 700351

CLIP, Spark Plug

$3.99

$

Usually ships in 2-12 days

0

53

Murray 700352

BOOT, Spark Plug

$6.99

$

Usually ships in 2-12 days

0

54

Murray 700871

MAGNETO COIL

$38.99

$

Usually ships in 2-12 days

0

55

Murray 700872

FLY WHEEL

$17.99

$

Usually ships in 2-12 days

0

56

Murray 700874

GASKET, Muffler

$10.99

$

Usually ships in 2-12 days

0

57

Murray 700875

CLAPBOARD

$

$

Not available

58

Murray 700876

MUFFLER

$

$

Currently unavailable

59

Murray 700364

SPRING, Extension

$4.49

$

Usually ships in 2-12 days

0

60

Murray 700365

EXPANDER, Complete

$7.99

$

Usually ships in 2-12 days

0

61

Murray 700879

TANK, Fuel

$

$

Currently unavailable

62

PIPE, Fuel

Note: (Not a serviceable part. Order Kit Ref. No 21)

$

$

Not available

63

PIPE, Soft PVC

Note: (Not a serviceable part. Order Kit Ref. No 21)

$

$

Not available

64

PLUG, Fuel Line

Note: (Not a serviceable part. Order Kit Ref. No 21)

$

$

Not available

65

Murray 701807

FILTER, Fuel

$

$

Not available

66

CHAIN

Note: (Not a serviceable part. Order Kit Ref. No 22)

$

$

Not available

67

COVER, End

Note: (Not a serviceable part. Order Kit Ref. No 22)

$

$

Not available

68

LID, Fuel Tank, Inner

Note: (Not a serviceable part. Order Kit Ref. No 22)

$

$

Not available

69

INLET

Note: (Not a serviceable part. Order Kit Ref. No 22)

$

$

Not available

70

GASKET

Note: (Not a serviceable part. Order Kit Ref. No 22)

$

$

Not available

71

LID, Fuel Tank

Note: (Not a serviceable part. Order Kit Ref. No 22)

$

$

Not available

72

Murray 700371

BOLT, M5 x 50

$2.49

$

Usually ships in 2-12 days

0

73

Murray 700372

WASHER, Spring, 5

$2.49

$

Usually ships in 2-12 days

0

74

Murray 700373

WASHER, Flat, 5

$2.49

$

Usually ships in 2-12 days

0

75

Murray 700374

BOLT, M5 x 20

$3.49

$

Usually ships in 2-12 days

0

76

Murray 700375

BOLT, M5 x 16

$2.49

$

Usually ships in 2-12 days

0

77

Murray 700376

BOLT, M5 x 12

$2.49

$

Usually ships in 2-12 days

0

78

Murray 700377

BOLT, M5 x 30

$2.49

$

Usually ships in 2-12 days

0

79

Murray 700378

NUT, M8

$2.99

$

Usually ships in 2-12 days

0

80

Murray 700379

WASHER, Spring, 8

$2.99

$

Usually ships in 2-12 days

0

81

Murray 700380

WASHER, Flat, 8

$2.99

$

Usually ships in 2-12 days

0

82

Murray 700886

SCREW, Shaft

$

$

Currently unavailable

83

Murray 700382

WASHER, Wave

$3.49

$

Usually ships in 2-12 days

0

84

Murray 700383

WASHER, B

$3.49

$

Usually ships in 2-12 days

0

85

Murray 700883

BOLT, Muffler

$2.99

$

Usually ships in 3-10 days

0

86

Murray 700884

NUT, M6

$

$

Currently unavailable

87

Murray 700386

PIN, Cylindrical, B4 x 10

$2.99

$

Usually ships in 2-12 days

0

88

Murray 700387

GASKET

$

$

Not available

89

Murray 700388

PLUG, Rubber

$3.49

$

Usually ships in 2-12 days

0

91

Murray 700390

COVER, Rubber

$3.49

$

Usually ships in 2-12 days

0

93

Murray 700864

SEAL, Oil, 30 x 14.7 x 7

$4.49

$

Usually ships in 2-12 days

0

94

Murray 700882

WASHER, Spring, 5

$

$

Currently unavailable

95

Murray 700881

BOLT, M5 x 25

$

$

Currently unavailable

96

Murray 700885

PIN, Cylindrical, B5 x 12

$3.49

$

Usually ships in 2-12 days

0

100

Murray 701809

KIT, Tank Bracket Assembly

Note: (Includes Ref No. 23, 73, 74, 76 & 91)

$

$

Currently unavailable

110

Murray 701808

KIT, Starter Assembly

Note: (Includes Ref. Nos. 5 & 6)

$

$

Not available
