BC 4401 DW - RedMax Brushcutter (SN: 200101 & Above) DRIVE Parts Diagram

Brushcutter

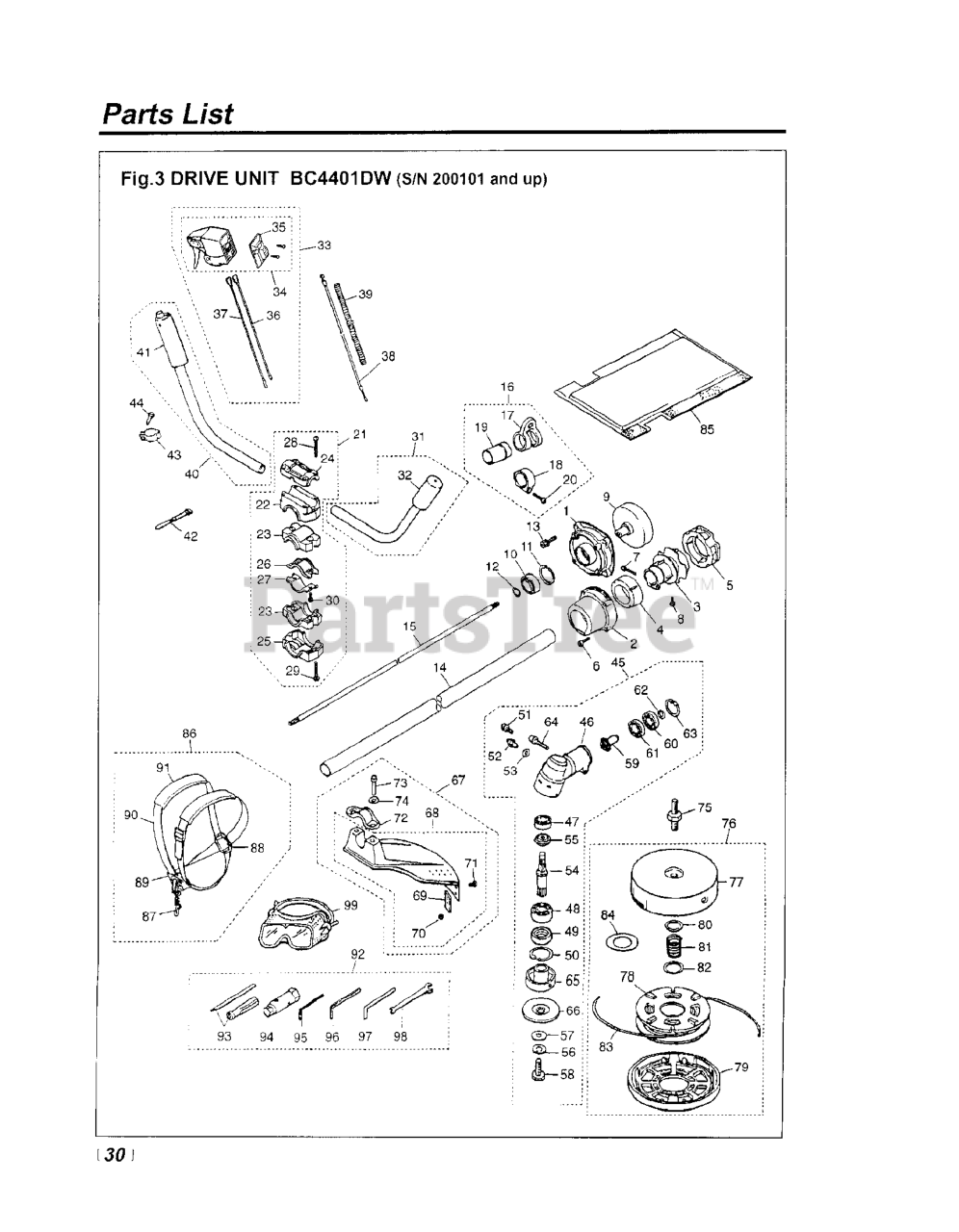

DRIVE Parts Diagram

  • Title

1

RedMax 515358701

HOUSING

$

$

Not available

2

RedMax 515358801

CAP

$14.99

$

Usually ships in 3-10 days

0

3

RedMax 515358901

JOINT

$15.99

$

Usually ships in 3-10 days

0

4

RedMax 505293301

ABSORBER

$9.99

$

Usually ships in 3-10 days

0

5

RedMax 505293401

ABSORBER

$10.99

$

Usually ships in 3-10 days

0

6

RedMax 506609401

BOLT

$3.99

$

Usually ships in 3-10 days

0

7

RedMax 522655401

BOLT, M6 x 30

$3.99

$

Usually ships in 3-10 days

0

8

RedMax 505169901

BOLT M5 X L10 ALLEN BOLT
(Superseded to 516070301)

$4.99

$

In Stock, only 3 left!

0

9

RedMax 515359201

DRUM
(Superseded to 505293801)

$40.99

$

Usually ships in 3-10 days

0

10

RedMax 516131701

BEARING 0600406202

$18.99

$

Usually ships in 3-10 days

0

11

RedMax 502849301

SNAP RING

$3.99

$

In Stock, only 3 left!

0

12

RedMax 516124201

RING, SNAP, M15 x 1.0

$3.99

$

Usually ships in 3-10 days

0

13

RedMax 505312401

BOLT

$3.99

$

Usually ships in 3-10 days

0

14

RedMax 521321001

PIPE COMPLETE

$40.99

$

Usually ships in 3-10 days

0

15

RedMax 514357001

SHAFT

$46.99

$

Usually ships in 3-10 days

0

16

RedMax 521480201

HANGER ASSEMBLY

Note: . 17 18 19 20

$

$

Not available

17

RedMax 515658801

HANGER

$9.22

$

Usually ships in 3-10 days

0

18

RedMax 515658901

CLAMP

$8.99

$

Usually ships in 3-10 days

0

19

RedMax 515659001

SPACER

$4.99

$

Usually ships in 3-10 days

0

20

RedMax 505311001

SCREW

$3.99

$

Usually ships in 3-10 days

0

21

RedMax 515360201

BRACKET-ASSY

Note: . 22 23 24-30

$

$

Not available

22

RedMax 515360301

BRACKET

$

$

Not available

23

RedMax 515360501

ABSORBER

$16.14

$

Usually ships in 3-10 days

0

24

RedMax 505294901

CAP-U

$7.49

$

Usually ships in 3-10 days

0

25

RedMax 515360401

CAP-L

$14.99

$

In Stock, only 1 left!

0

26

RedMax 515360601

CLAMP(A)

$9.22

$

Usually ships in 3-10 days

0

27

RedMax 515360701

CLAMP(B)

$5.76

$

Usually ships in 3-10 days

0

28

RedMax 516071001

BOLT, M5 x 25

$

$

Not available

29

RedMax 516071201

BOLT, M5 x 35

$

$

Not available

30

RedMax 516070501

$

$

Not available

31

RedMax 514359601

Note: . 32

$

$

Not available

32

RedMax 514359801

GRIP

$

$

Not available

33

RedMax 512500901

LEVER COMP.

Note: . 34 35 36 37

$

$

Not available

34

RedMax 515555201

LEVER ASSY

Note: . 35

$

$

Not available

35

RedMax 521436301

COVER

$6.49

$

Usually ships in 3-10 days

0

36

RedMax 521805601

CORD (A), BLACK

$5.99

$

Usually ships in 3-10 days

0

37

RedMax 521805701

CORD (B), RED

$6.49

$

Usually ships in 3-10 days

0

38

RedMax 515494601

$

$

Not available

39

RedMax 521805801

TUBE

$8.99

$

Usually ships in 3-10 days

0

40

RedMax 521437001

HANDLE COMPL, RIGHT

Note: . 41

$

$

Not available

41

RedMax 514360201

GRIP

$

$

Not available

42

RedMax 514364001

BAND(KZC)

$6.49

$

Usually ships in 3-10 days

0

43

RedMax 514161001

CLAMP

$3.99

$

Usually ships in 3-10 days

0

44

RedMax 510461801

SCREW

$1.49

$

Usually ships in 3-10 days

0

45

RedMax 521805201

GEAR CASE ASSY(RPLS T300313000
(Superseded to 570910401)

Note: . 46 47 48-66

$267.99

$

Usually ships in 3-10 days

0

46

RedMax 514366301

GEARCASE

$

$

Not available

47

RedMax 505170201

BEARING

$9.99

$

In Stock, only 4 left!

0

48

RedMax 505168601

BEARING

$

$

Not available

49

RedMax 505168701

OIL SEAL

$6.49

$

In Stock, only 2 left!

0

50

RedMax 504121001

RING

$3.99

$

Usually ships in 3-10 days

0

51

RedMax 505169901

BOLT M5 X L10 ALLEN BOLT
(Superseded to 516070301)

$4.99

$

In Stock, only 3 left!

0

52

RedMax 505171501

FITTING

$6.49

$

Usually ships in 3-10 days

0

53

RedMax 505171601

WASHER

$3.99

$

Usually ships in 3-10 days

0

54

RedMax 515359901

SHAFT

$

$

Not available

55

RedMax 514127301

GEAR
(Superseded to 578122701)

$60.99

$

Usually ships in 3-10 days

0

56

RedMax 505169701

WASHER

$4.99

$

In Stock, only 3 left!

0

57

RedMax 505169801

WASHER

$4.99

$

In Stock, only 3 left!

0

58

RedMax 505169601

BOLT M8 X L25 L/H

$7.49

$

In Stock, Qty 20+

0

59

RedMax 514366801

PINION
(Superseded to 578122701)

$60.99

$

Usually ships in 3-10 days

0

60

RedMax 516129901

BEARING,10MM ID,26MM OD,8MM W

$15.99

$

In Stock, only 1 left!

0

61

RedMax 505170201

BEARING

$9.99

$

In Stock, only 4 left!

0

62

RedMax 514128201

RING

$4.99

$

In Stock, Qty 6

0

63

RedMax 516125501

RING,SNAP M26x1.2 RP-318013340

$4.99

$

In Stock, only 4 left!

0

64

RedMax 506614901

BOLT

$3.99

$

In Stock, only 1 left!

0

65

RedMax 514366601

HOLDER(A)

$26.99

$

In Stock, only 2 left!

0

66

RedMax 505171401

HOLDER (B)

$12.99

$

In Stock, Qty 6

0

67

RedMax 574016401

GUARD ASSEMBLY

Note: . 68 69 70-74

$

$

Not available

68

RedMax 515586901

GUARD COMP

Note: . 69 70 71

$15.99

$

Usually ships in 3-10 days

0

69

RedMax 574016101

BLADE

$

$

Not available

70

RedMax 970413901

NUT

$4.99

$

In Stock, Qty 7

0

71

RedMax 510478301

SCREW

$3.99

$

Usually ships in 3-10 days

0

72

RedMax 514368601

CLAMP

$6.49

$

Usually ships in 3-10 days

0

73

RedMax 514363501

BOLT

$4.99

$

In Stock, only 2 left!

0

74

RedMax 510488001

WASHER

$4.99

$

In Stock, only 1 left!

0

75

RedMax 515517601

SHAFT.M8

$6.49

$

In Stock, only 1 left!

0

76

RedMax 515516101

6" TAP HEAD PT100

Note: PT100. 77 78 79-84

$51.99

$

Usually ships in 3-10 days

0

77

RedMax 515516501

OBSOLETE - CASE

$

$

Not available

78

RedMax 515516901

CORD HOLDER

$74.99

$

Usually ships in 3-10 days

0

79

RedMax 515516701

COVER

$60.99

$

Usually ships in 3-10 days

0

80

RedMax 514163201

PLATE

$

$

Not available

81

RedMax 515517001

SPRING

$9.99

$

Usually ships in 3-10 days

0

82

RedMax 514163501

PLATE

$6.49

$

In Stock, only 1 left!

0

83

RedMax 515517101

$

$

Not available

84

RedMax 515639701

SPACER

$

$

Not available

85

RedMax 521538701

PROTECTOR (RPLS 405017110)

$10.99

$

Usually ships in 3-10 days

0

86

RedMax 515666701

Note: . 87 88 89-91

$

$

Not available

87

RedMax 515666401

$

$

Not available

88

RedMax 515666501

$

$

Not available

89

RedMax 515666801

HANGER COMP

$8.99

$

Usually ships in 3-10 days

0

90

RedMax 515665901

$

$

Not available

91

RedMax 574020101

$

$

Not available

92

RedMax 514354801

TOOL SET

Note: . 93 94 95-98

$27.99

$

Usually ships in 3-10 days

0

93

RedMax 506689501

DRIVER

$7.99

$

Usually ships in 3-10 days

0

94

RedMax 514156701

SOCKET

$4.99

$

Usually ships in 3-10 days

0

95

RedMax 505311901

WRENCH

$

$

Not available

96

RedMax 516144701

Wrench Tool

$4.99

$

Usually ships in 3-10 days

0

97

RedMax 505312001

BAR

$4.99

$

Usually ships in 3-10 days

0

98

RedMax 506615001

SPANNER

$7.49

$

In Stock, Qty 10

0

99

RedMax 515557401

OBSOLETE - GOGGLE

$

$

Not available
