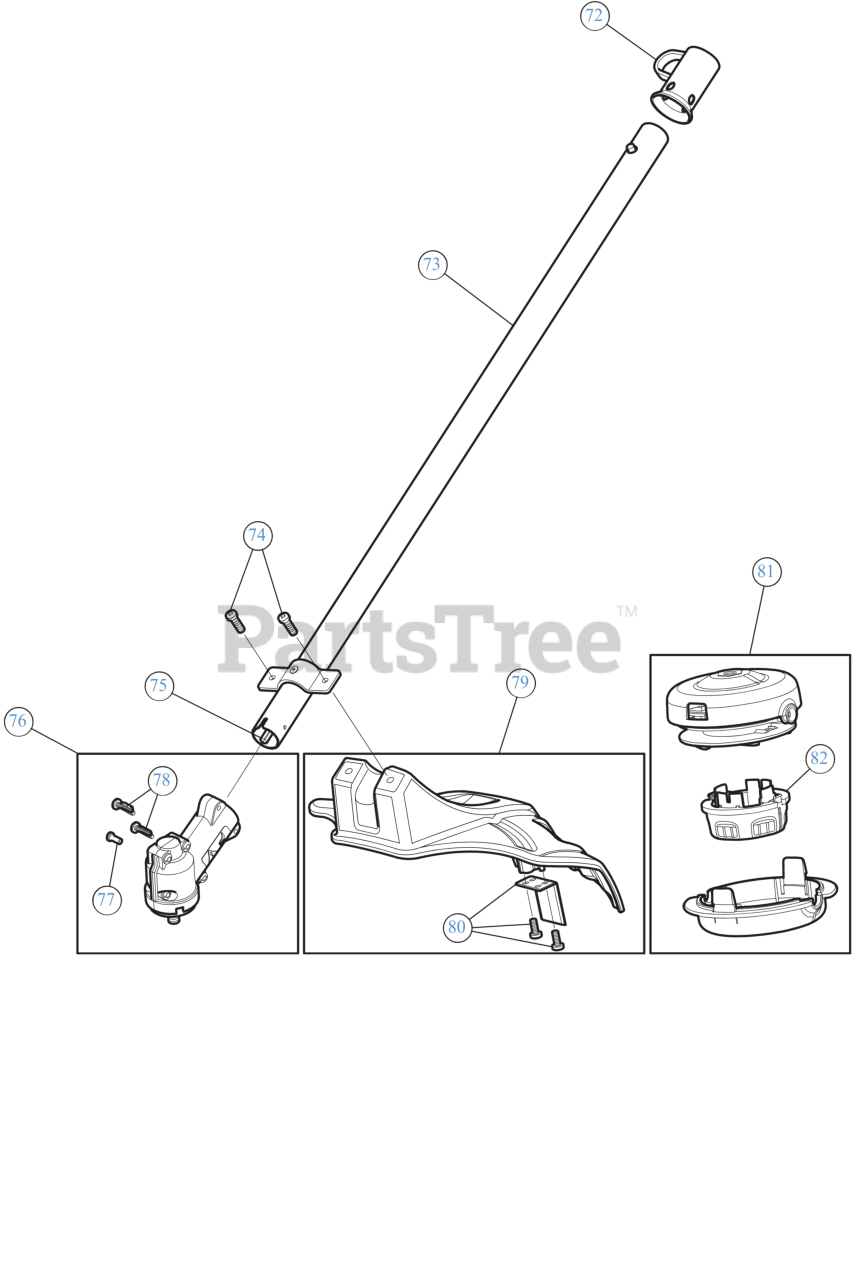

BC 490 (41BD490C912) - Cub Cadet Brush Cutter Trimmer Parts Diagram

Brush Cutter

Trimmer Parts Diagram

  • Title

72

Cub Cadet 731-08926

HANGER

$2.99

$

In Stock, Qty 20+

0

73

Cub Cadet 753-06789

BOOM ASSEMBLY LOWER

$24.99

$

In Stock, Qty 6

0

74

Cub Cadet 753-06125

SCREW & NUTS 10X32

$7.49

$

In Stock, only 2 left!

0

75

Cub Cadet 753-05267

LOWERIBLE DRIVE SHAFT

$45.99

$

In Stock, Qty 20+

0

76

Cub Cadet 753-08180

GEARBOX LCBC

Note: (Incl. 77 and 78)

$48.99

$

In Stock, Qty 20+

0

77

Cub Cadet 791-182519

SCREW, 8-32 x .312 P

$5.49

$

In Stock, Qty 20+

0

78

Cub Cadet 791-182195

SCREW #

$7.49

$

In Stock, Qty 20+

0

79

Cub Cadet 753-08177

GUARD/BLADE ASSEMBLY

Note: (Incl. 80)

$12.99

$

In Stock, only 4 left!

0

80

Cub Cadet 753-08178

BLADE CUT OFF (LH)

$2.99

$

In Stock, only 4 left!

0

81

Cub Cadet 753-08179

CUTTING HEAD ASSEMBLY

Note: (Incl. 82)

$19.99

$

In Stock, Qty 8

0

82

Cub Cadet 753-08152

BUMP KNOB CNT YELLOW
(Superseded to 753-08157)

$5.49

$

In Stock, Qty 9

0
