BC 509 (41AD591C912) - Cub Cadet Brush Cutter (2012) Engine Assembly Parts Diagram

Brush Cutter

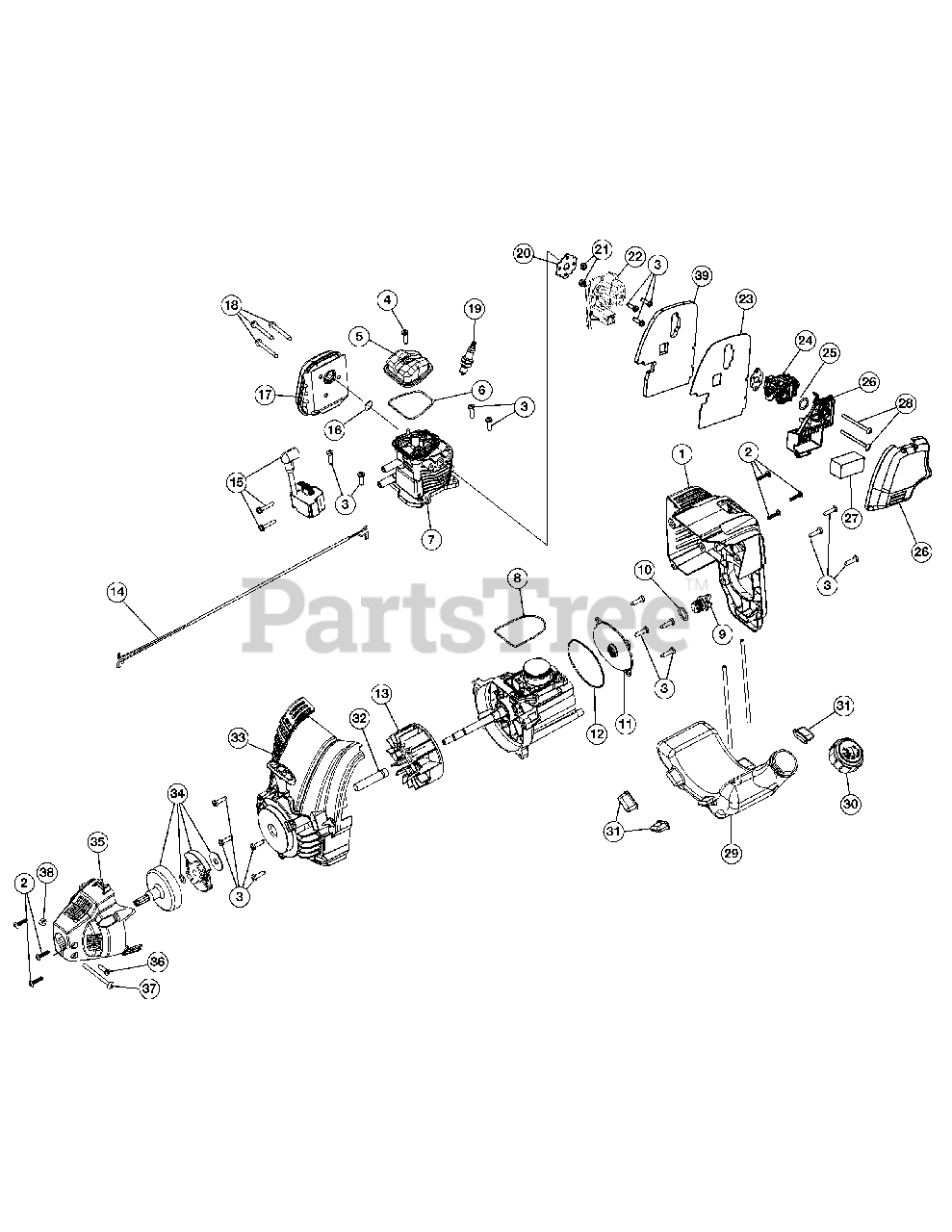

Engine Assembly Parts Diagram

  • Title

1

Cub Cadet 753-06134

Engine Cover Assembly (Incl. 2 & 3)

$10.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-04194

Cover Screw

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 710-04604

Housing Screw

$3.99

$

In Stock, Qty 19

0

4

Cub Cadet 791-181025

Rocker Cover Screw

$2.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 753-05901

Rocker Cover

$7.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 753-05902

Rocker Cover O-Ring

$4.99

$

In Stock, only 1 left!

0

7

Cub Cadet 753-06311

Cylinder Assembly (Incl. 3 - 6 & 8)

$39.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 753-05910

Cylinder O-Ring

$2.99

$

In Stock, only 3 left!

0

9

Cub Cadet 753-05408

Oil Plug (Incl. 10)

$27.99

$

In Stock, only 1 left!

0

10

Cub Cadet 791-182290

Oil Plug O-Ring

$4.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 753-06111

Crankcase Cover
(Superseded to 841-020721S)

$12.99

$

In Stock, only 3 left!

0

12

Cub Cadet 753-05238

Crankcase Cover O-Ring

$9.99

$

In Stock, only 2 left!

0

13

Cub Cadet 753-06221

Flywheel Assembly

$19.99

$

In Stock, only 1 left!

0

14

Cub Cadet 753-05264

Lead Wires

$15.99

$

In Stock, only 1 left!

0

15

Cub Cadet 753-05301

Module Assembly

$105.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 753-05244

Muffler Gasket

$5.49

$

In Stock, Qty 11

0

17

Cub Cadet 753-05245

Muffler Assembly (Incl. 16 & 18)

$86.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-04487

Muffler Screw
(Superseded to 710-04809)

$3.49

$

In Stock, only 1 left!

0

19

Cub Cadet 794-00043

Spark Plug
(Superseded to 794-00082)

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 753-05247

Insulator Gasket

$7.99

$

In Stock, Qty 8

0

21

Cub Cadet 712-04099

Nut

$6.49

$

In Stock, only 2 left!

0

22

Cub Cadet 753-06947

Insulator

$6.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 753-06948

Carburetor Gasket

$4.49

$

In Stock, Qty 9

0

24

Cub Cadet 753-06220

Carburetor
(Superseded to 753-06220B)

$44.99

$

In Stock, Qty 20+

0

25

Cub Cadet 791-181751

O-Ring

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 753-05252

Air Cleaner Cover Assembly (Incl. 27)

$25.99

$

In Stock, Qty 20+

0

27

Cub Cadet 753-05254

Air Filter

$5.99

$

In Stock, Qty 20+

0

28

Cub Cadet 710-04517

Screw

$4.99

$

In Stock, Qty 17

0

29

Cub Cadet 753-06797

Fuel Tank Assembly w/Fuel Lines (Incl. 30)

$20.99

$

In Stock, only 3 left!

0

30

Cub Cadet 753-1229

Fuel Cap

$21.99

$

In Stock, only 2 left!

0

31

Cub Cadet 753-05259

Fuel Tank Pads

$6.49

$

In Stock, only 2 left!

0

32

Cub Cadet 750-04434

Spacer

$6.49

$

In Stock, Qty 5

0

33

Cub Cadet 753-06681

Starter Housing Assembly (Incl. 3)

$23.99

$

In Stock, only 2 left!

0

34

Cub Cadet 753-06281

Clutch Assembly

$20.99

$

In Stock, Qty 20+

0

35

Cub Cadet 753-05263

Clutch Cover (Incl. 2)

$25.99

$

In Stock, only 1 left!

0

36

Cub Cadet 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, Qty 20+

0

37

Cub Cadet 753-04003

Clamp Screw
(Superseded to 9689A)

$10.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 712-0161

Nut

$4.49

$

In Stock, Qty 9

0

39

Cub Cadet 753-06949

Heatshield Carb.

$5.49

$

Usually ships in 3-6 days

0

Cub Cadet 753-06317

Shortblock Assembly (Incl. 3 - 10 & 19)
(Superseded to 753-06799)

Note: Not shown

$98.99

$

In Stock, only 4 left!

0

Cub Cadet 49MESCBP912

Power Start Drill Bit
(Superseded to 49MASCBP953)

Note: Optional, Not shown

$18.99

$

In Stock, Qty 7

0

Cub Cadet 49MRBESY912

120V Power Start

Note: Optional, Not shown

$

$

Not available
