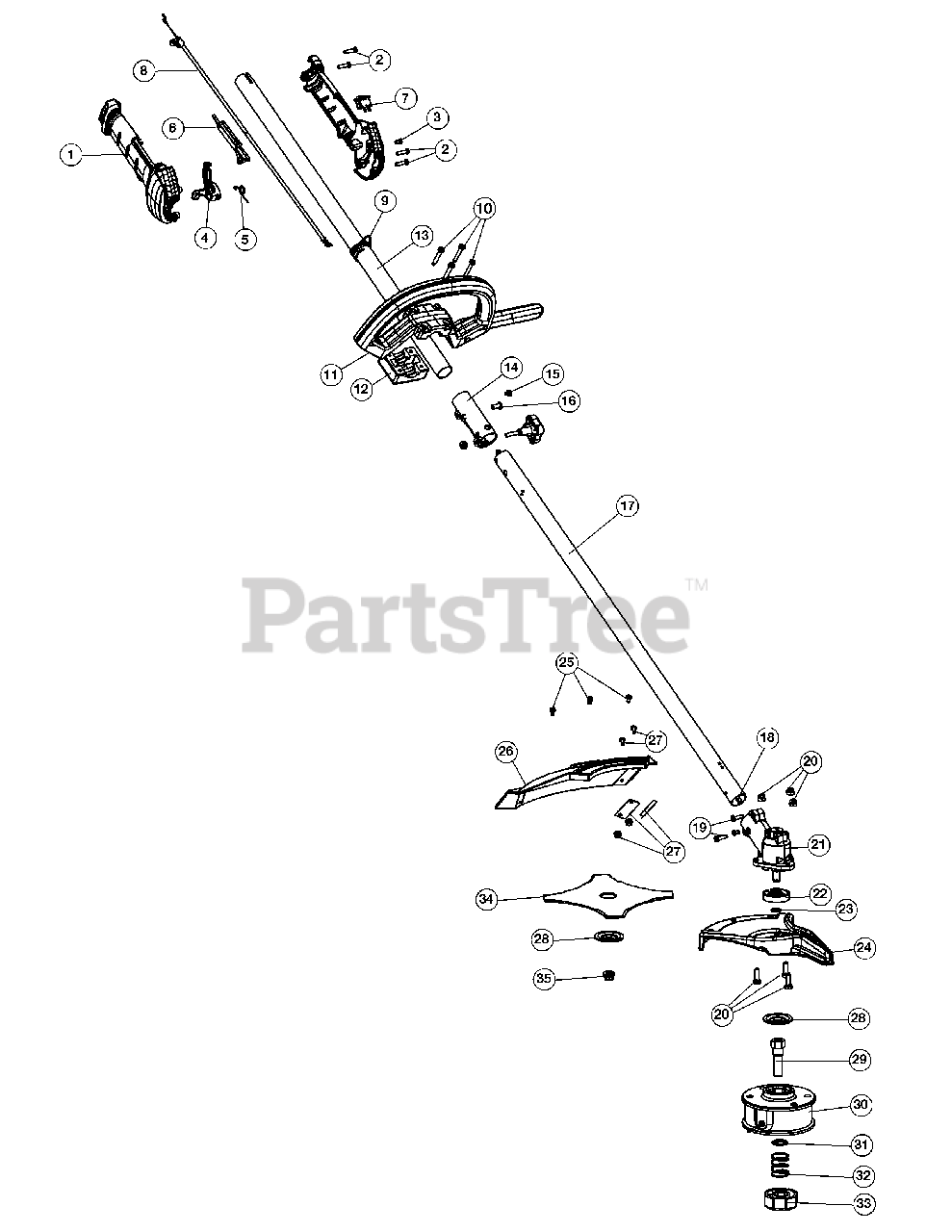

BC 509 (41AD591C912) - Cub Cadet Brush Cutter (2012) General Assembly Parts Diagram

Brush Cutter

General Assembly Parts Diagram

  • Title

1

Cub Cadet 753-06894

Throttle Grip Assembly (Incl. 2 - 7)

$14.99

$

In Stock, only 3 left!

0

2

Cub Cadet 710-04508

Screw

$3.99

$

In Stock, only 3 left!

0

3

Cub Cadet 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, Qty 20+

0

4

Cub Cadet 753-06895

Throttle Trigger

$3.49

$

In Stock, Qty 11

0

5

Cub Cadet 753-05007

Throttle Trigger Spring

$4.99

$

In Stock, only 1 left!

0

6

Cub Cadet 731-04971C-10

Lockout
(Superseded to 731-04971B-10)

$4.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 791-182405

Switch

$9.99

$

In Stock, Qty 20+

0

8

Cub Cadet 753-05270

Throttle Cable

$24.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 791-610327

Harness Clip

$30.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 791-181070

Screw

$4.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 753-05008

D-Handle (Incl. 10 & 12)

$29.99

$

In Stock, only 2 left!

0

12

Cub Cadet 753-05009

D-Handle Base

$6.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 753-06682

Upper Drive Shaft Assembly

$17.99

$

In Stock, Qty 11

0

14

Cub Cadet 753-06585

Split Boom Coupler Assembly (Incl. 15 & 16)

$8.99

$

In Stock, Qty 10

0

15

Cub Cadet 791-182057

Screw

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 791-181617

Bolt

$4.99

$

In Stock, Qty 13

0

17

Cub Cadet 753-06587

Lower Drive Shaft Assembly
(Superseded to 753-07016)

$20.99

$

In Stock, Qty 11

0

18

Cub Cadet 753-05267

Lower Flex Shaft

$39.99

$

In Stock, Qty 13

0

19

Cub Cadet 791-182195

Gearbox Mounting Hardware

$6.99

$

In Stock, Qty 15

0

20

Cub Cadet 791-182200

Shield Mounting Hardware

$6.49

$

In Stock, only 2 left!

0

21

Cub Cadet 791-182193

Gearbox Assembly (Incl. 3 & 19)

$92.99

$

In Stock, only 2 left!

0

22

Cub Cadet 791-182196

Blade Driver

$20.99

$

In Stock, only 3 left!

0

23

Cub Cadet 753-04348

Palnut

$6.49

$

In Stock, only 1 left!

0

24

Cub Cadet 791-147492

Blade Shield/Shield Mount

$118.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 791-683304

Shield Mounting Screw

$10.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 753-1191

Shield Assembly (Incl. 27)

$60.99

$

In Stock, only 2 left!

0

27

Cub Cadet 791-682061

Blade Assembly

$14.99

$

In Stock, Qty 5

0

28

Cub Cadet 791-147490

Retaining Washer

$10.99

$

In Stock, Qty 7

0

29

Cub Cadet 791-612483

Spool Shaft

$51.99

$

In Stock, only 1 left!

0

30

Cub Cadet 791-683301

Outer Spool Assembly

$45.99

$

In Stock, Qty 9

0

31

Cub Cadet 791-612026

Retainer
(Superseded to 1772)

$6.49

$

In Stock, Qty 17

0

32

Cub Cadet 791-610636B

Spring

$9.49

$

In Stock, Qty 20+

0

33

Cub Cadet 791-180814B

Bump Head Knob Assembly

$19.99

$

In Stock, Qty 20+

0

34

Cub Cadet 791-145873B

4-Tooth Blade

$42.99

$

In Stock, Qty 9

0

35

Cub Cadet 712-04105

Nut

$9.99

$

In Stock, only 3 left!

0

Cub Cadet 791-147495

Inner Reel

$24.99

$

In Stock, Qty 14

0

Cub Cadet 791-180014B

Blade Retaining Kit (Incl. 28 & 35)

$12.99

$

In Stock, only 1 left!

0

Cub Cadet 791-613226

Locking Rod Tool

$13.99

$

Usually ships in 3-6 days

0

Cub Cadet 791-682075B

Shoulder Harness

$36.99

$

Usually ships in 3-6 days

0

Cub Cadet 753-04216

Replacement Line, 0.105" Diameter

$

$

Not available

Cub Cadet 753-1224

Reel and Line Assembly

$30.99

$

In Stock, only 2 left!

0

Cub Cadet 753-1161

Bump Head Assembly
(Superseded to 791-147498)

$109.99

$

In Stock, only 2 left!

0
