BC 800 (UT-15184) - Homelite Brush Cutter Engine Internal Parts Diagram

Brush Cutter

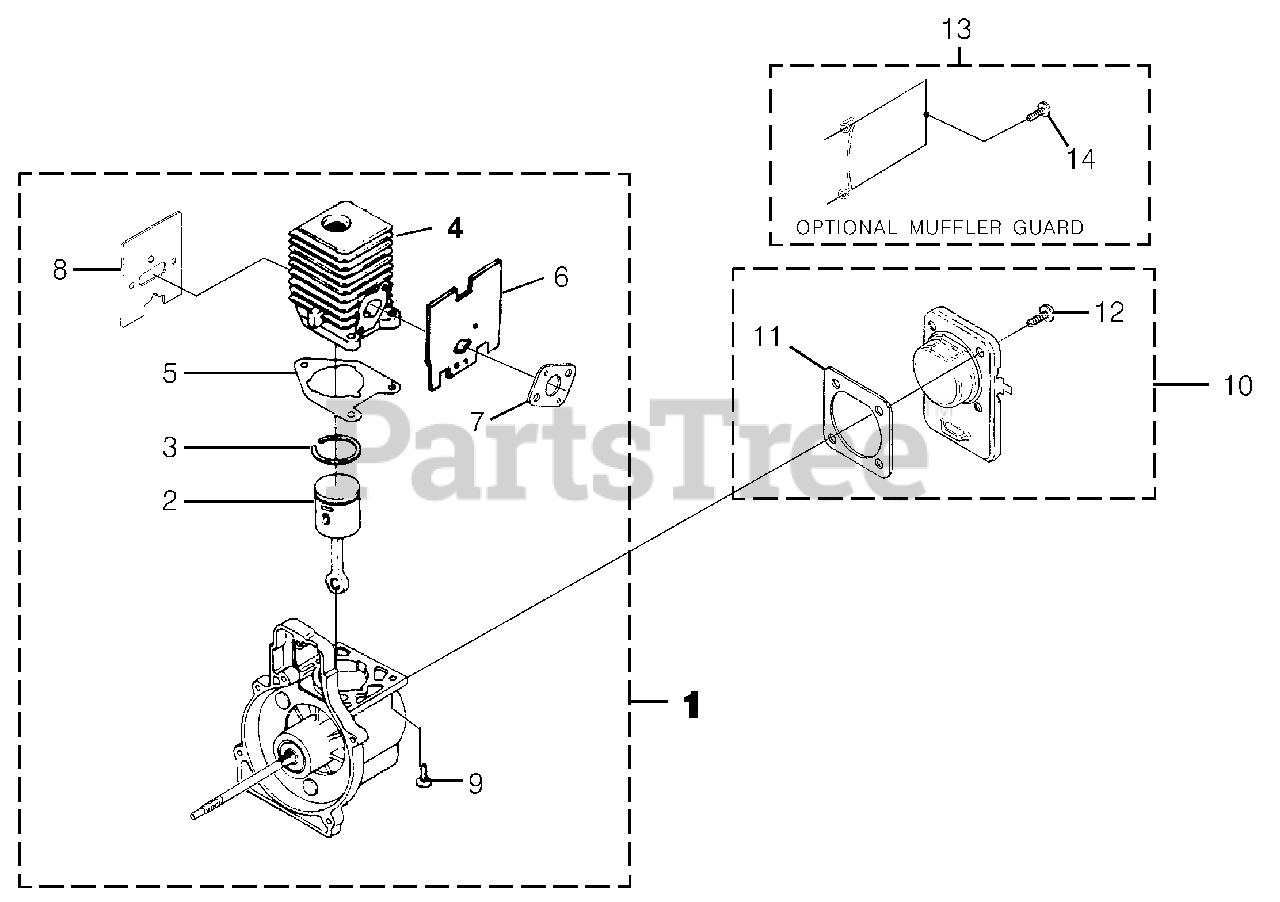

Engine Internal Parts Diagram

  • Title

1

Homelite UP02995

SHORT BLOCK
(Superseded to 984561001)

$97.99

$

In Stock, only 1 left!

0

2

Homelite UP00768

PISTON & ROD ASSY.
(Superseded to UP00768A)

$

$

Not available

3

Homelite UP03838

RING-Piston
(Superseded to PS01359)

$

$

Not available

4

Homelite UP04136

CYLINDER ASSY.
(Superseded to UP07145A)

$43.99

$

In Stock, only 1 left!

0

5

Homelite UP03857

GASKET-Cylinder
(Superseded to 900953001)

$

$

Not available

6

Homelite UP04308

GASKET-Heat Dam
(Superseded to 06900A)

$

$

Not available

7

Homelite UP03916

GASKET-Carburetor
(Superseded to 98766A)

$1.49

$

Usually ships in 3-7 days

0

8

Homelite UP04710

GASKET-Muffler
(Superseded to 09343)

$

$

Not available

9

Homelite UP04345

SCREW-Sems (12-24 X 3/4")
(Superseded to PS02807)

Note: Torque Spec 55 - 65 in/lbs (6.2 - 7.3 Nm); Required Loctite Red 262

$1.49

$

Usually ships in 3-7 days

0

10

Homelite UP00019

CRANKCASE COVER ASSEMBLY
(Superseded to UP00019A)

$

$

Not available

11

Homelite UP04335

GASKET-Crankcase Cover
(Superseded to 08661)

Note: (Also included w/short block)

$

$

Not available

12

Homelite UP04295

SCREW-Sems (10-24 X 1/2")
(Superseded to PS01565)

Note: Torque Spec 35 - 45 in/lbs (4.0 - 5.1 Nm); Required Loctite Red 262

$1.49

$

Usually ships in 3-7 days

0

13

Homelite UP00027

MUFFLER GUARD
(Superseded to UP04099)

$

$

Not available

14

Homelite UP03897

SCREW-Plastite (10-14 X 1/2")
(Superseded to 82541)

Note: Torque Spec 5 - 20 in/lbs (.6 - 2.3 Nm)

$1.49

$

In Stock, only 3 left!

0
