BCA 100 (UT-15503) - Homelite Expand-It Attachment Brushcutter Parts Diagram

Expand-It Attachment

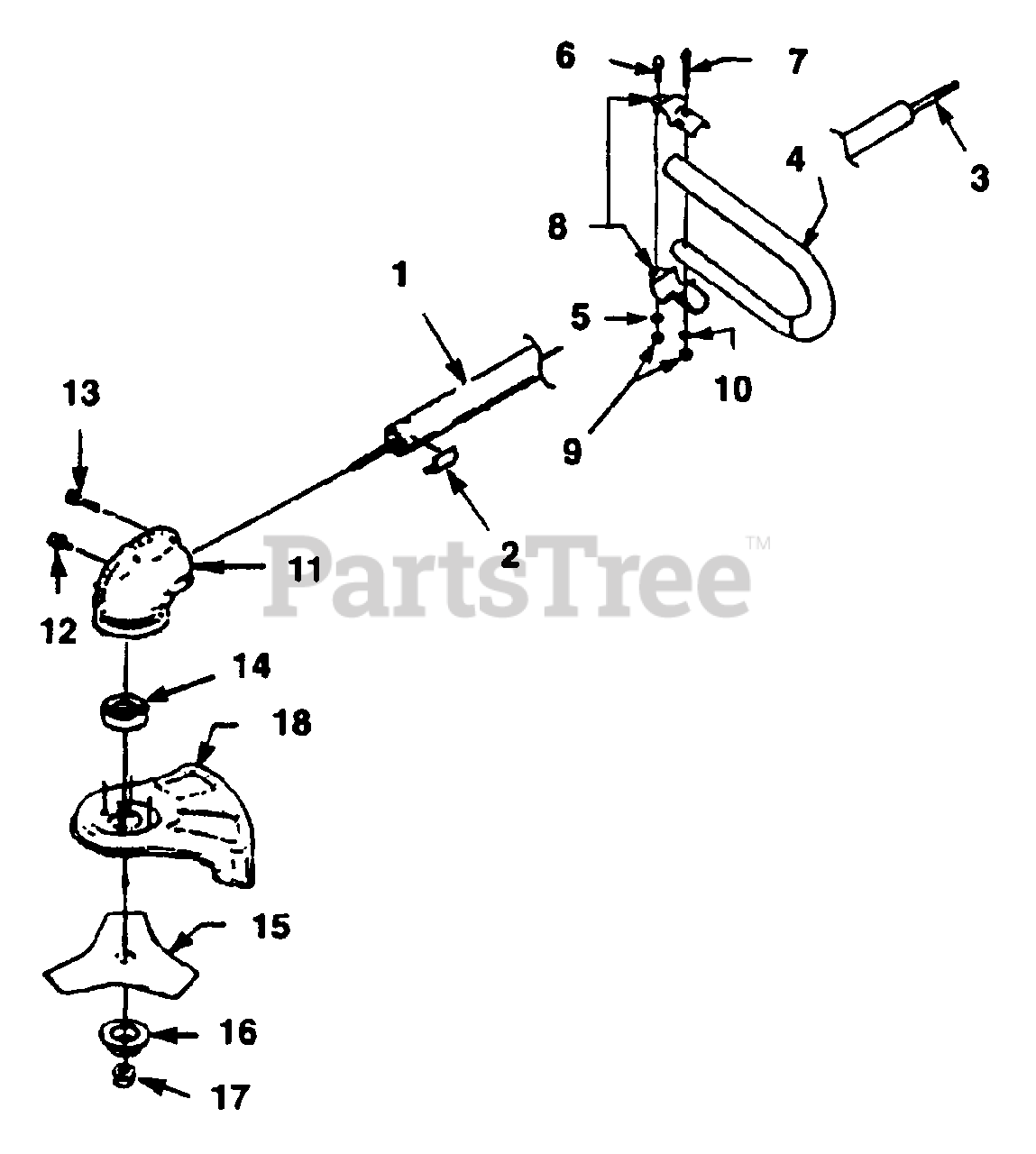

Brushcutter Parts Diagram

  • Title

1

Homelite A07904

DRIVE SHAFT HOUSING

$

$

Not available

2

Homelite 02985

DECAL - Warning
(Superseded to 983751001)

$

$

Not available

3

Homelite A07679

SHAFT - Flexible

$7.49

$

Usually ships in 3-7 days

0

4

Homelite A07159

FRONT HANDLE ("J")
(Superseded to UP06534)

$

$

Not available

5

Homelite 84124

WASHER - Flat
(Superseded to UP03418)

$2.99

$

Usually ships in 3-7 days

0

6

Homelite 88071

SCREW - Hex Hd. (1/4-20 X 1/2")

$

$

Not available

7

Homelite 88078

SCREW - Hex Hd. (1/4-20 X 1")

$

$

Not available

8

Homelite 00422

CLAMP - Handle Bar
(Superseded to 099075001007)

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 81267

NUT - Hex (1/4-20)

$

$

Not available

10

Homelite 83061

WASHER (1/4")

$

$

Not available

11

Homelite A04836C

GEAR HEAD
(Superseded to UP06970)

$

$

Not available

12

Homelite 82459

SCREW - Hex Hd. (10-24 X 1/2")

$

$

Not available

13

Homelite 82593

SCREW - Hex Hd. (10-24 X 5/8")

$2.99

$

Usually ships in 3-7 days

0

14

Homelite 04168A

WASHER - Flanged
(Superseded to 099078001005)

$6.49

$

Usually ships in 3-7 days

0

15

Homelite D98717A

BLADE - Tri-Arc (8")
(Superseded to D98717C)

$12.99

$

Usually ships in 3-7 days

0

16

Homelite 04409

WASHER - Cupped

$2.49

$

Usually ships in 3-7 days

0

17

Homelite 81282

NUT - Hex Locking (R.H.)
(Superseded to UP03492)

$2.99

$

Usually ships in 3-7 days

0

18

Homelite 044101

BLADE GUARD

$

$

Currently unavailable
