BCK-9 (99922201622) - Shindaiwa U-Handle Blade Combo Conversion Kit Throttle Control Parts Diagram

U-Handle Blade Combo Conversion Kit

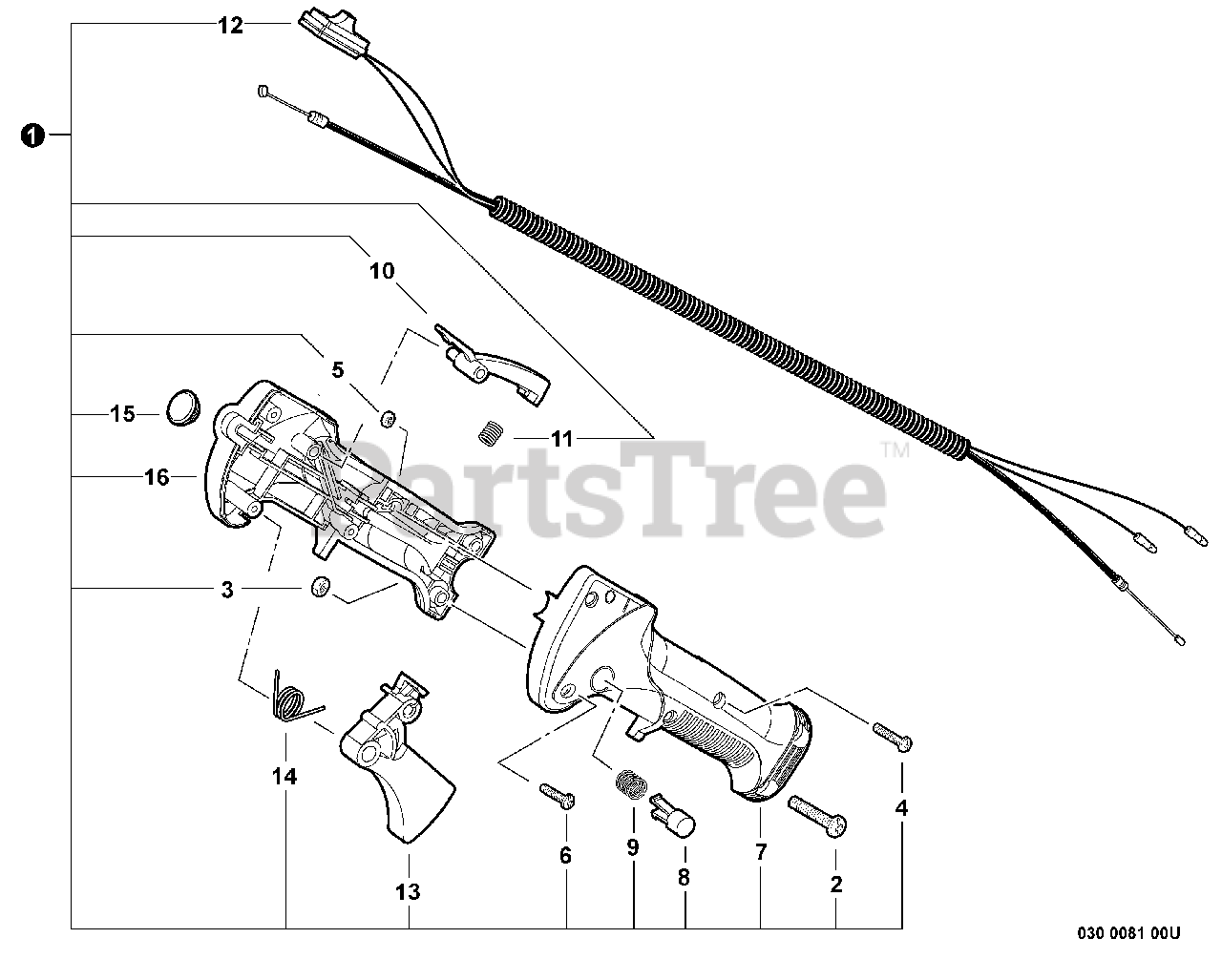

Throttle Control Parts Diagram

  • Title

1

Echo C044000840

THROTTLE CONTROL ASSY
(Superseded to C044000841)

Note: Includes ITEMS 2-16

$86.99

$

Usually ships in 2-4 days

0

2

Echo V253000580

SCREW M5×20

$1.49

$

In Stock, Qty 10

0

3

Echo 9201705000

NUT M5

$1.49

$

In Stock, Qty 10

0

4

Echo V252000090

SCREW M4×23

$0.99

$

Usually ships in 2-4 days

0

5

Echo V262000100

NUT M4

$1.49

$

In Stock, Qty 7

0

6

Echo V252000360

SCREW, TAPPING 4×16

$1.49

$

Usually ships in 2-4 days

0

7

Echo C412000440

CONTROL HANDLE - LEFT
(Superseded to P021044960)

$24.99

$

Usually ships in 2-4 days

0

8

Echo C461000080

BUTTON, THROTTLE LOCK

$2.49

$

Usually ships in 2-4 days

0

9

Echo V450001010

SPRING, COMPRESSION

$1.49

$

In Stock, only 3 left!

0

10

Echo C460000240

LOCKOUT, THROTTLE
(Superseded to C460000241)

$2.49

$

In Stock, only 1 left!

0

11

Echo V450001020

SPRING, COMPRESSION

$1.49

$

In Stock, Qty 8

0

12

Echo V043000500

CABLE ASSY, CONTROL

$63.99

$

Usually ships in 2-4 days

0

13

Echo C450000580

TRIGGER, THROTTLE
(Superseded to C450000581)

$4.99

$

In Stock, only 1 left!

0

14

Echo V452000690

SPRING, TORSION

$1.49

$

In Stock, Qty 9

0

15

Echo V162000410

PLUG, RUBBER

$2.99

$

Usually ships in 2-4 days

0

16

Echo C412000430

CONTROL HANDLE - RIGHT

$23.99

$

In Stock, only 2 left!

0
