BCT 4322 BCE (2692007) - Billy Goat 43" Outback Lawn Tractor, 22hp Briggs & Stratton Lift Group Parts Diagram

43" Outback Lawn Tractor, 22hp Briggs & Stratton

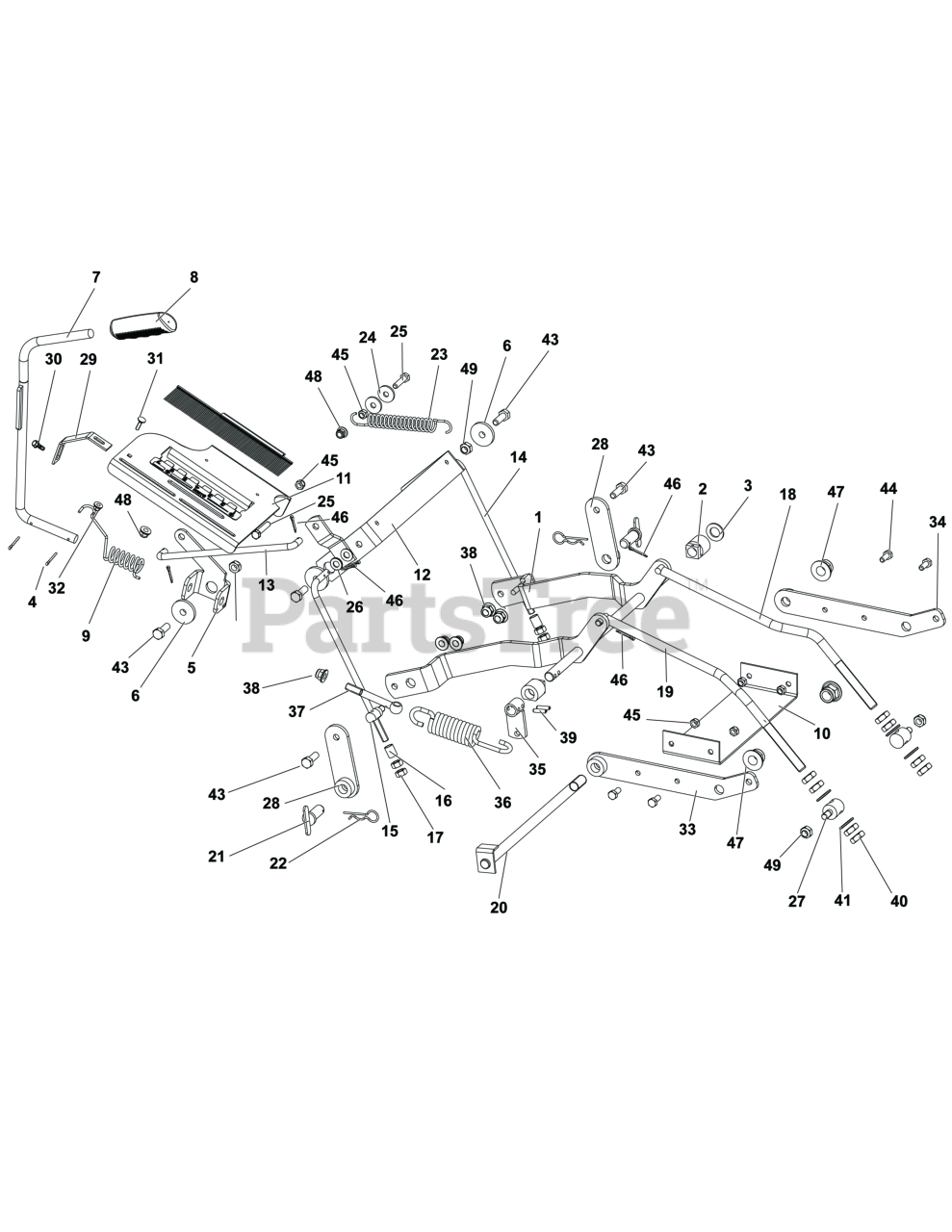

Lift Group Parts Diagram

  • Title

1

84012077

ARM

$

$

Not available

2

84012289

CASE

$

$

Not available

3

WASHER 17

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

4

84012194

PIN

$

$

Not available

5

84012078

HOLDER

$

$

Not available

6

84012079

WASHER

$

$

Not available

7

84012080

LEVER

$

$

Not available

8

84012081

GRIP, Handle

$

$

Not available

9

84012082

SPRING

$

$

Not available

10

84012083

HOLDER

$

$

Not available

11

Briggs & Stratton 84012084

BOX, Cut Height

$

$

Currently unavailable

12

84012085

HOLDER

$

$

Not available

13

84012086

ROD

$

$

Not available

14

84012087

ROD

$

$

Not available

15

84012088

PIN

$

$

Not available

16

84012089

SPACER

$

$

Not available

17

NUT M10

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

18

84012090

ROD

$

$

Not available

19

84012091

ROD

$

$

Not available

20

84012092

SHAFT

$

$

Not available

21

84012093

PIN

$

$

Not available

22

84012094

PIN

$

$

Not available

23

84012006

SPRING

$

$

Not available

24

WASHER 9

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

25

SCREW M8X35

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

26

WASHER 10.5

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

27

84012095

SCREW

$

$

Not available

28

84012096

ARM

$

$

Not available

29

Briggs & Stratton 84012097

BRACKET

$

$

Currently unavailable

30

SCREW M8X25

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

31

Briggs & Stratton N309019507

SCREW M6X16

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Currently unavailable

32

NUT M6

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

33

84012098

ARM

$

$

Not available

34

84012099

ARM

$

$

Not available

35

84012100

ARM

$

$

Not available

36

84012101

SPRING

$

$

Not available

37

84012406

EYE BOLT

$

$

Not available

38

NUT M10

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

39

84012102

PIN

$

$

Not available

40

NUT M 14

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

41

WASHER 15

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

42

Briggs & Stratton NK00000000

NOT USED IN THIS PERFORMANCE

Note: NOT USED IN THIS PERFORMANCE

$

$

Currently unavailable

43

SCREW M10X30

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

44

SCREW M8X20

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

45

NUT M8

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

46

84012195

PIN

$

$

Not available

47

NUT M16

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

48

NUT M8

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

49

NUT M10

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available
