BCT 4322 BCE (2692007) - Billy Goat 43" Outback Lawn Tractor, 22hp Briggs & Stratton Mower Deck Group Parts Diagram

43" Outback Lawn Tractor, 22hp Briggs & Stratton

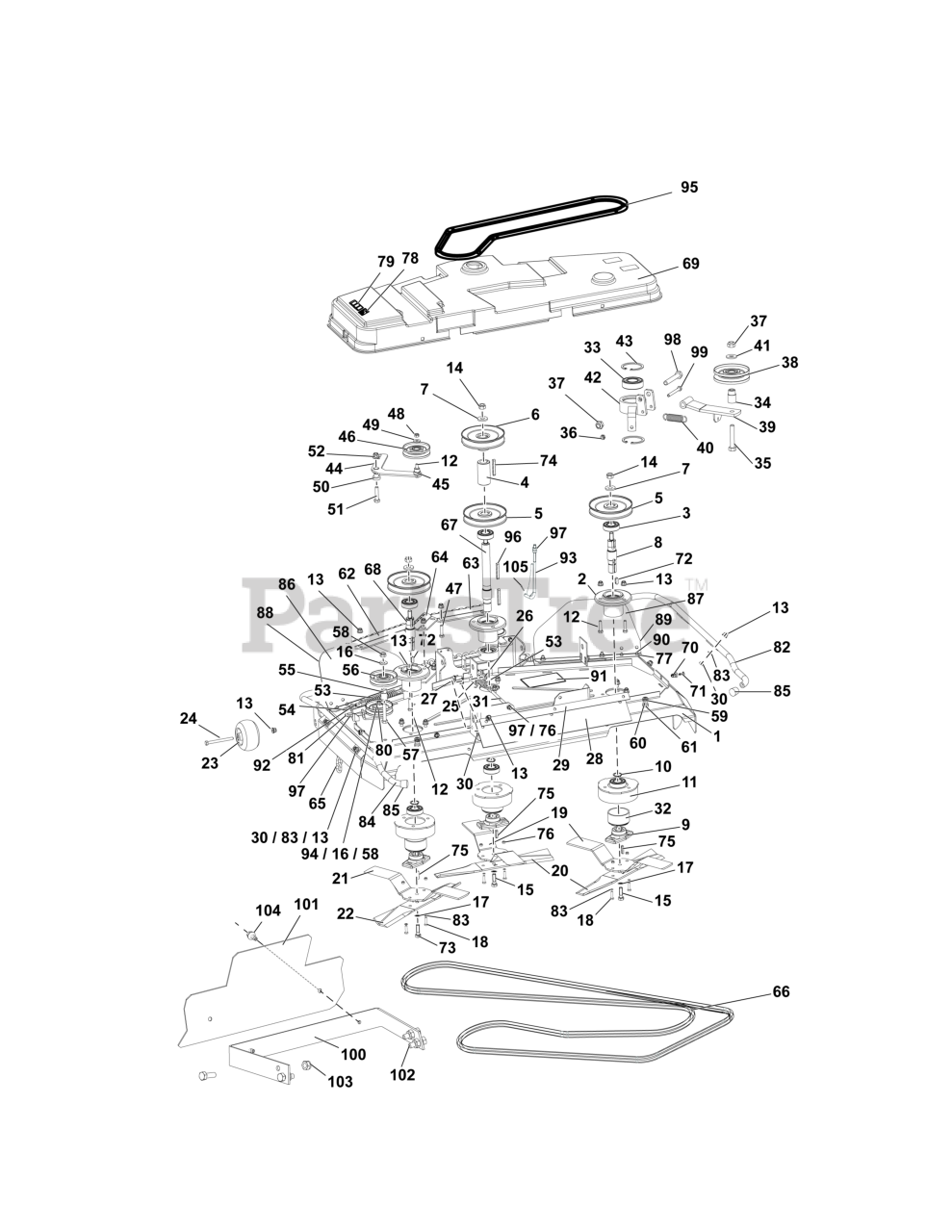

Mower Deck Group Parts Diagram

  • Title

1

Briggs & Stratton 84012232

MOWER DECK

$

$

Currently unavailable

2

Briggs & Stratton 84011978

FLANGE

$

$

Currently unavailable

3

Briggs & Stratton 84011981

BEARING

$

$

Currently unavailable

4

Briggs & Stratton 84012233

SPACER

$

$

Currently unavailable

5

Briggs & Stratton 84011980

PULLEY

$

$

Currently unavailable

6

Briggs & Stratton 84011982

PULLEY

$

$

Currently unavailable

7

Briggs & Stratton 84012234

WASHER

$

$

Currently unavailable

8

Briggs & Stratton 84012014

SHAFT

$

$

Currently unavailable

9

Briggs & Stratton 84011984

ADAPTER, Blade

$

$

Currently unavailable

10

Briggs & Stratton 84011985

CLIP

$

$

Currently unavailable

11

Briggs & Stratton 84011986

COVER

$

$

Currently unavailable

12

SCREW M8X35

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

13

NUT M8

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

14

Briggs & Stratton 84011987

NUT

$

$

Currently unavailable

15

Briggs & Stratton 84011472

SCREW, RH Thread

$

$

Currently unavailable

16

WASHER 11

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

17

Briggs & Stratton 84011660

WASHER

$

$

Currently unavailable

18

SCREW M8X30

Note: ( Refer to Note: *) 8.8 quality needed

$

$

Not available

19

Briggs & Stratton 84011988

BLADE, Upper, Right, 110cm

$

$

Currently unavailable

20

Briggs & Stratton 84011989

BLADE, Lower, Right, 110cm

$

$

Currently unavailable

21

Briggs & Stratton 84011990

BLADE, Upper, Left, 110cm

$

$

Currently unavailable

22

Briggs & Stratton 84011991

BLADE, Lower, Left, 110cm

$

$

Currently unavailable

23

Briggs & Stratton 84011992

WHEEL

$

$

Currently unavailable

24

SCREW M8X90

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

25

Briggs & Stratton 84012235

BRACKET

$

$

Currently unavailable

26

NUT M10

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

27

SCREW M10X25

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

28

Briggs & Stratton 84011994

PAD, Rubber

$

$

Currently unavailable

29

Briggs & Stratton 84011995

BELT

$

$

Currently unavailable

30

SCREW M8X20

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

31

Briggs & Stratton 84012236

ROD

$

$

Currently unavailable

32

Briggs & Stratton 84011997

RING

$

$

Currently unavailable

33

Briggs & Stratton 84011981

BEARING

$

$

Currently unavailable

34

Briggs & Stratton 84011383

CASE

$

$

Currently unavailable

35

SCREW M10X55

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

36

NUT M6

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

37

NUT M10

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

38

Briggs & Stratton 84012004

PULLEY

$

$

Currently unavailable

39

Briggs & Stratton 84012237

ARM

$

$

Currently unavailable

40

Briggs & Stratton 84012238

SPRING

$

$

Currently unavailable

41

WASHER 11

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

42

Briggs & Stratton 84012239

HOLDER

$

$

Currently unavailable

43

Briggs & Stratton 84012240

CLIP

$

$

Currently unavailable

44

Briggs & Stratton 84012002

HOLDER

$

$

Currently unavailable

45

Briggs & Stratton 84012003

PIN

$

$

Currently unavailable

46

Briggs & Stratton 84012004

PULLEY

$

$

Currently unavailable

47

SCREW M8X25

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

48

NUT M8

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

49

WASHER 9

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

50

Briggs & Stratton 84012005

BUSHING

$

$

Currently unavailable

51

SCREW M10X45

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

52

NUT M10

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

53

Briggs & Stratton 84012006

SPRING

$

$

Currently unavailable

54

Briggs & Stratton 84011833

EYE BOLT

$

$

Currently unavailable

55

Briggs & Stratton 84012007

BUSHING

$

$

Currently unavailable

56

Briggs & Stratton 84012004

PULLEY

$

$

Currently unavailable

57

SCREW M10X60

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

58

NUT M10

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

59

Briggs & Stratton 84012008

CONNECTOR

$

$

Currently unavailable

60

Briggs & Stratton 84012009

RING

$

$

Currently unavailable

61

NUT M12

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

62

Briggs & Stratton 84012010

BRACKET

$

$

Currently unavailable

63

Briggs & Stratton 84012011

BRACKET

$

$

Currently unavailable

64

Briggs & Stratton 84012012

BRACKET

$

$

Currently unavailable

65

Briggs & Stratton 84011749

CHAIN

$

$

Currently unavailable

66

Briggs & Stratton 84012013

BELT

$

$

Currently unavailable

67

Briggs & Stratton 84012241

SHAFT

$

$

Currently unavailable

68

Briggs & Stratton 84012015

SHAFT

$

$

Currently unavailable

69

Briggs & Stratton 84012242

COVER

$

$

Currently unavailable

70

Briggs & Stratton 84011467

CLIP

$

$

Currently unavailable

71

Briggs & Stratton 84011468

PIN

$

$

Currently unavailable

72

Briggs & Stratton 84012017

KEY

$

$

Currently unavailable

73

Briggs & Stratton 84011473

SCREW, LH Thread

$

$

Currently unavailable

74

Briggs & Stratton 84012243

KEY

$

$

Currently unavailable

75

Briggs & Stratton 84012019

KEY

$

$

Currently unavailable

76

NUT M8

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

77

NUT M6

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

78

Briggs & Stratton 84011973

DECAL

$

$

Currently unavailable

79

Briggs & Stratton 84011974

DECAL

$

$

Currently unavailable

80

Briggs & Stratton 84011383

CASE

$

$

Currently unavailable

81

Briggs & Stratton 84012021

TENSIONER

$

$

Currently unavailable

82

Briggs & Stratton 84012244

BUMPER

$

$

Currently unavailable

83

WASHER 8.4

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

84

Briggs & Stratton 84012245

BUMPER

$

$

Currently unavailable

85

Briggs & Stratton 84012246

CAP

$

$

Currently unavailable

86

Briggs & Stratton 84012247

PLATE, Left

$

$

Currently unavailable

87

Briggs & Stratton 84012248

PLATE, Right

$

$

Currently unavailable

88

Briggs & Stratton 84012249

PLATE, Left

$

$

Currently unavailable

89

Briggs & Stratton 84012250

PLATE, Right

$

$

Currently unavailable

90

Screw M 6X14

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

91

LABEL

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

92

NUT M6

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

93

Briggs & Stratton 84012251

BRACKET

$

$

Currently unavailable

94

SCREW M10X60

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

95

Briggs & Stratton 84012252

BELT

$

$

Currently unavailable

96

Briggs & Stratton 84012253

KEY

$

$

Currently unavailable

97

NUT M8

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

98

SCREW M10X70

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

99

Screw M 6x60

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

100

Briggs & Stratton 84012254

BRACKET

$

$

Currently unavailable

101

Briggs & Stratton 84012255

COVER

$

$

Currently unavailable

102

SCREW M10X30

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

103

NUT M10

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

104

SCREW M8X20

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

105

Briggs & Stratton 84012195

PIN

$

$

Currently unavailable
