43" Outback Lawn Tractor, 23hp Briggs & Stratton

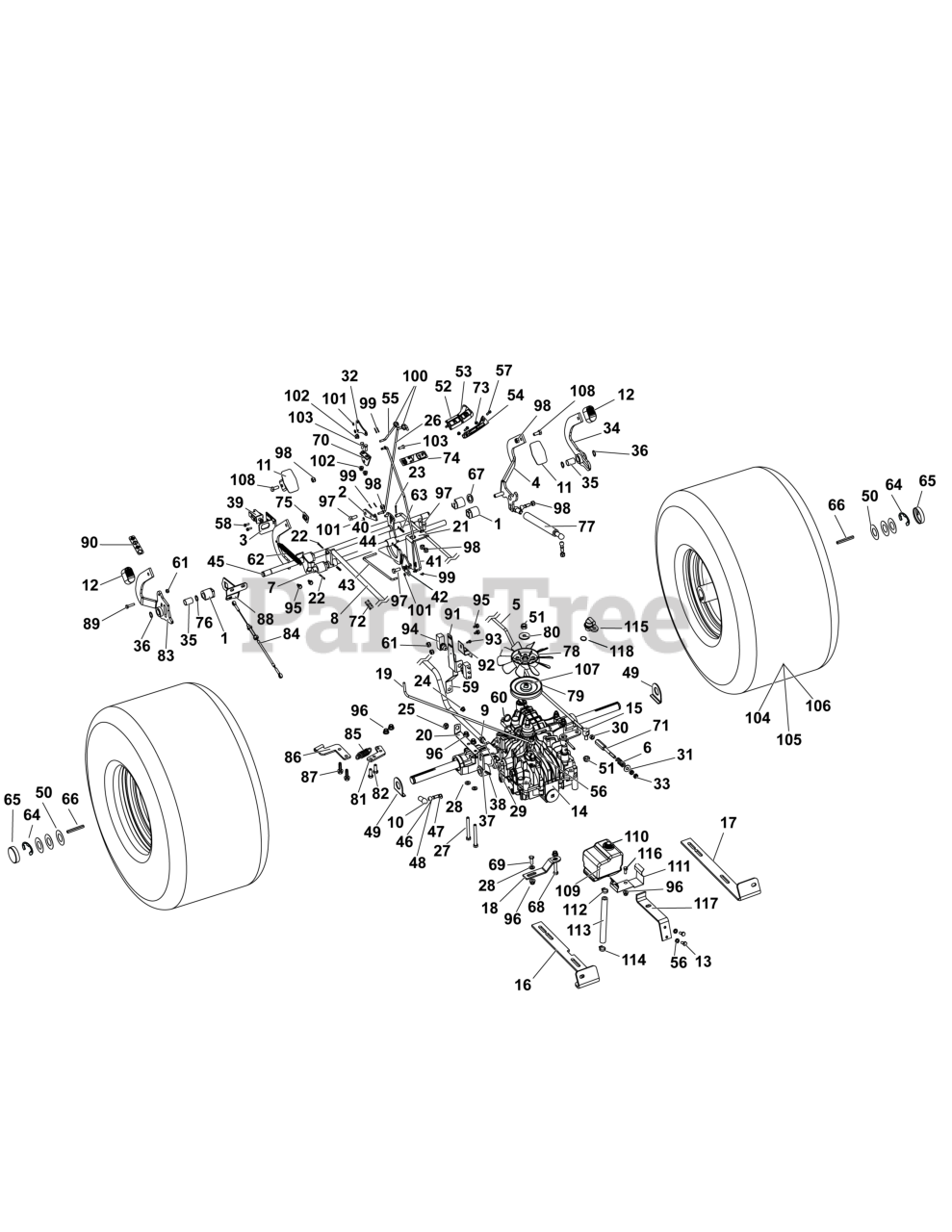

Controls Group Parts Diagram

  • Title

1

Briggs & Stratton 84012289

CASE

$

$

Currently unavailable

2

Briggs & Stratton 84012290

LATCH

$

$

Currently unavailable

3

Briggs & Stratton 84012291

BRACKET, Switch

$

$

Currently unavailable

4

Briggs & Stratton 84012292

LEVER

$

$

Currently unavailable

5

Briggs & Stratton 84012293

ROD, Brake

$

$

Currently unavailable

6

Briggs & Stratton 84012294

SPRING

$

$

Currently unavailable

7

Briggs & Stratton 84012184

ARM

$

$

Currently unavailable

8

Briggs & Stratton 84012185

LEVER

$

$

Currently unavailable

9

NUT M10

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

10

Briggs & Stratton 84011802

JOINT, Ball

$

$

Currently unavailable

11

Briggs & Stratton 84012186

PAD, Rubber

$

$

Currently unavailable

12

Briggs & Stratton 84011826

PAD, Foot

$

$

Currently unavailable

13

SCREW M6X16

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

14

Briggs & Stratton 84011264

TRANSMISSION

$

$

Currently unavailable

15

Briggs & Stratton 84012187

SCREW

$

$

Currently unavailable

16

Briggs & Stratton 84012188

PLATE, Left

$

$

Currently unavailable

17

Briggs & Stratton 84012189

PLATE, Right

$

$

Currently unavailable

18

Briggs & Stratton 84012190

PLATE

$

$

Currently unavailable

19

Briggs & Stratton 84012191

ROD

$

$

Currently unavailable

20

Briggs & Stratton 84012192

HOLDER

$

$

Currently unavailable

21

Briggs & Stratton 84012193

BRACKET

$

$

Currently unavailable

22

Briggs & Stratton 84012194

PIN

$

$

Currently unavailable

23

Briggs & Stratton 84012195

PIN

$

$

Currently unavailable

24

NUT M10

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

25

Briggs & Stratton 84012196

SLEEVE

$

$

Currently unavailable

26

Briggs & Stratton 84012295

ROD

$

$

Currently unavailable

27

SCREW M8X85

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

28

WASHER 8.4

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

29

WASHER 10.5

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

30

NUT M8

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

31

WASHER 8.4

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

32

Briggs & Stratton 84012197

PLATE

$

$

Currently unavailable

33

NUT M8

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

34

Briggs & Stratton 84012183

PEDAL, Foot

$

$

Currently unavailable

35

Briggs & Stratton 84011766

BUSHING

$

$

Currently unavailable

36

Briggs & Stratton 84012198

CLIP

$

$

Currently unavailable

37

Briggs & Stratton 84011849

LEVER

$

$

Currently unavailable

38

Briggs & Stratton 84012199

PIN

$

$

Currently unavailable

39

Briggs & Stratton 84011482

SWITCH

$

$

Currently unavailable

40

Briggs & Stratton 84012200

HOLDER

$

$

Currently unavailable

41

Briggs & Stratton 84012201

ROD

$

$

Currently unavailable

42

Briggs & Stratton 84012202

LATCH

$

$

Currently unavailable

43

Briggs & Stratton 84012203

ROD

$

$

Currently unavailable

44

Briggs & Stratton 84012204

RATCHET

$

$

Currently unavailable

45

Briggs & Stratton 84012205

SHAFT, Brake

$

$

Currently unavailable

46

Briggs & Stratton 84012206

JOINT, Ball

$

$

Currently unavailable

47

NUT M10

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

48

Briggs & Stratton 84011822

JOINT, Ball

$

$

Currently unavailable

49

Briggs & Stratton 84011696

WASHER

$

$

Currently unavailable

50

Briggs & Stratton 84011700

WASHER

$

$

Currently unavailable

51

NUT M10

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

52

Briggs & Stratton 84012207

LEVER

$

$

Currently unavailable

53

Briggs & Stratton 84012208

LEVER

$

$

Currently unavailable

54

Briggs & Stratton 84012296

LEVER

$

$

Currently unavailable

55

Briggs & Stratton 84012297

ROD

$

$

Currently unavailable

56

WASHER 6.4

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

57

SCREW M5X25

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

58

SCREW M5X12

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

59

Briggs & Stratton 84012209

SPRING

$

$

Currently unavailable

60

Briggs & Stratton 84011903

CLIP

$

$

Currently unavailable

61

NUT M6

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

62

Briggs & Stratton 84012210

SPRING

$

$

Currently unavailable

63

Briggs & Stratton 84012211

PIN

$

$

Currently unavailable

64

Briggs & Stratton 84011699

RING, Locking

$

$

Currently unavailable

65

Briggs & Stratton 84011701

CAP

$

$

Currently unavailable

66

Briggs & Stratton 84011695

KEY

$

$

Currently unavailable

67

WASHER 17

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

68

SCREW M5X35

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

69

SCREW M8X25

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

70

Briggs & Stratton 84012212

HOLDER

$

$

Currently unavailable

71

Briggs & Stratton 84012213

SCREW

$

$

Currently unavailable

72

Briggs & Stratton 84012214

DECAL

Note: DECAL, BYPASS

$

$

Currently unavailable

73

NUT M5

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

74

Briggs & Stratton 84012215

DECAL

Note: DECAL, TRAVEL

$

$

Currently unavailable

75

Briggs & Stratton 84011962

DECAL

Note: DECAL, BRAKE

$

$

Currently unavailable

76

Briggs & Stratton 84012216

WASHER

$

$

Currently unavailable

77

Briggs & Stratton 84012217

DAMPENER

$

$

Currently unavailable

78

Briggs & Stratton 84012218

FAN

$

$

Currently unavailable

79

Briggs & Stratton 84012180

PULLEY

$

$

Currently unavailable

80

WASHER 11

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

81

Briggs & Stratton 84011370

FOOT, Mounting

$

$

Currently unavailable

82

SCREW M8X25

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

83

Briggs & Stratton 84012220

PEDAL, Foot

$

$

Currently unavailable

84

Briggs & Stratton 84012221

CABLE, Differential Lock

$

$

Currently unavailable

85

Briggs & Stratton 84011847

SPRING

$

$

Currently unavailable

86

Briggs & Stratton 84012222

HOLDER

$

$

Currently unavailable

87

SCREW M8X30

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

88

Briggs & Stratton 84012223

PLATE

$

$

Currently unavailable

89

SCREW M6X25

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

90

Briggs & Stratton 84012224

DECAL

Note: DECAL, DIFFERENTIAL

$

$

Currently unavailable

91

Briggs & Stratton 84012225

BRACKET

$

$

Currently unavailable

92

Briggs & Stratton 84012226

PLATE

$

$

Currently unavailable

93

SCREW M4X8

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

94

Briggs & Stratton 84011469

MICROSWITCH

$

$

Currently unavailable

95

SCREW M6X10

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

96

NUT M8

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

97

SCREW M8X20

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

98

NUT M8

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

99

Briggs & Stratton 84012227

PIN

$

$

Currently unavailable

100

Briggs & Stratton 84012228

CLIP

$

$

Currently unavailable

101

WASHER 5.3

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

102

NUT M6

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

103

SCREW M6X20

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

104

Briggs & Stratton 84012181

KIT, Wheel

$

$

Currently unavailable

105

Briggs & Stratton 84012231

RIM

$

$

Currently unavailable

106

Briggs & Stratton 84012182

TIRE

$

$

Currently unavailable

107

Briggs & Stratton 84011205

RING

$

$

Currently unavailable

108

SCREW M8X20

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

109

Briggs & Stratton 84012172

TANK, Oil

$

$

Currently unavailable

110

Briggs & Stratton 84012173

VALVE

$

$

Currently unavailable

111

Briggs & Stratton 84012174

BRACKET

$

$

Currently unavailable

112

Briggs & Stratton 84012176

CLAMP

$

$

Currently unavailable

113

Briggs & Stratton 84011444

HOSE

$

$

Currently unavailable

114

Briggs & Stratton 84012280

CLIP

$

$

Currently unavailable

115

Briggs & Stratton 84012177

CONNECTOR

$

$

Currently unavailable

116

SCREW M8X16

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

117

Briggs & Stratton 84012179

BRACKET, Support

$

$

Currently unavailable

118

Briggs & Stratton 84011206

RING

$

$

Currently unavailable
