BCT 4323 BCE (2692006) - Billy Goat 43" Outback Lawn Tractor, 23hp Briggs & Stratton Engine Group Parts Diagram

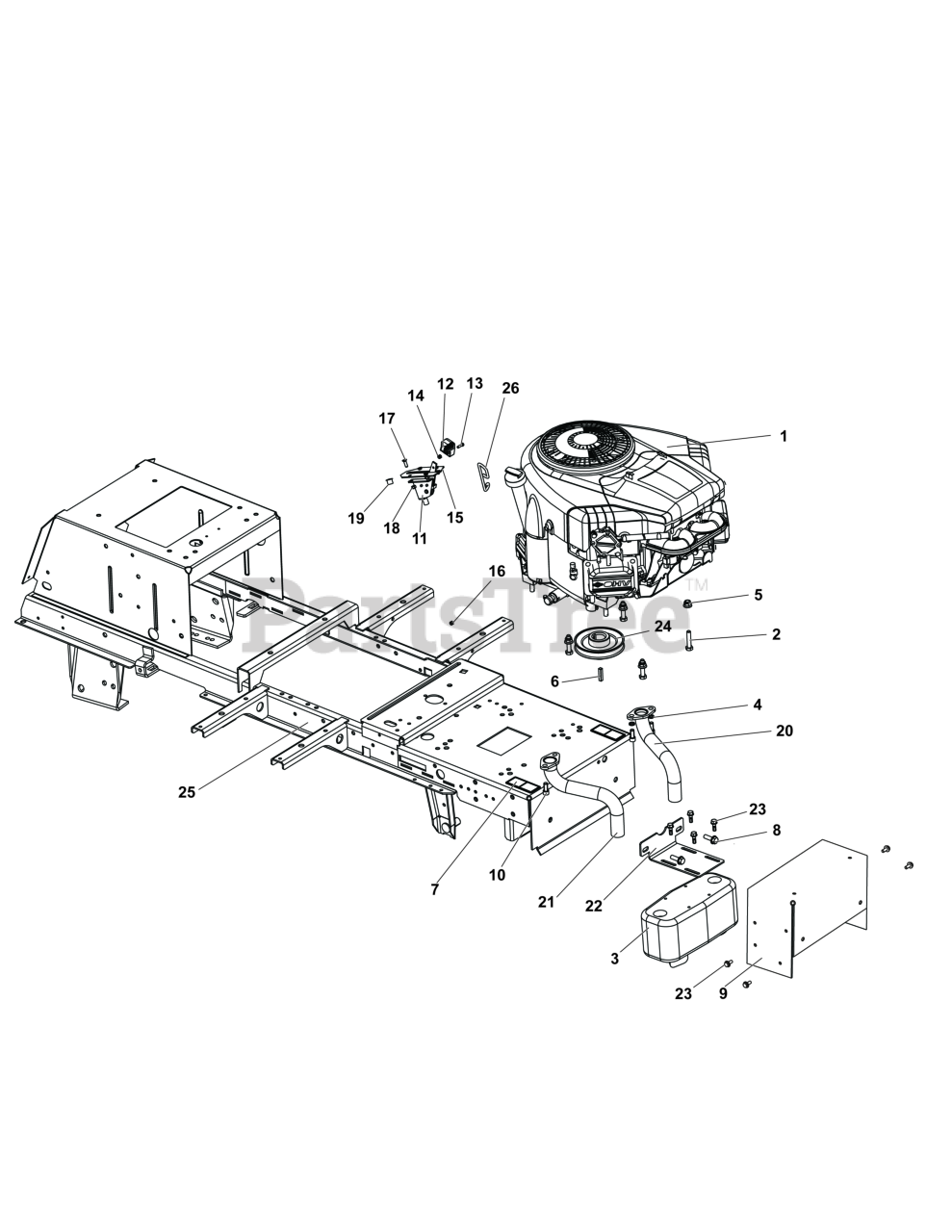

43" Outback Lawn Tractor, 23hp Briggs & Stratton

Engine Group Parts Diagram

  • Title

1

Briggs & Stratton 44C777-0009-B5

Engine B&S 8260CXi

Note: ( Refer to Note: *) ( Engine Model: 44C777-0009-B5 )Note:* Refer to your local Briggs & Stratton distributor for parts and service.

$

$

Currently unavailable

2

SCREW M8X40

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

3

84012037

EXHAUST

$

$

Not available

4

WASHER 8

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

5

NUT M8

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

6

84011668

KEY, Drive Pulley

$

$

Not available

7

84011959

DECAL

$

$

Not available

8

SCREW M8X25

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

9

84012039

COVER

$

$

Not available

10

84012040

SCREW

$

$

Not available

11

84011474

LEVER, THROTTLE

$

$

Not available

12

84011475

LEVER, THROTTLE

$

$

Not available

13

SCREW M4X14

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

14

NUT M4

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

15

84012041

PLATE, Reinforcement

$

$

Not available

16

84012042

NUT

$

$

Not available

17

SCREW M5X16

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

18

NUT M5

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

19

84011663

FLANGE

$

$

Not available

20

84012034

MANIFOLD, Exhaust

$

$

Not available

21

84012284

MANIFOLD, Exhaust

$

$

Not available

22

84012035

BRACKET

$

$

Not available

23

SCREW M6X16

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

24

84012036

PULLEY

$

$

Not available

25

84012285

FRAME

$

$

Not available

26

84012038

HOOK

$

$

Not available
