BCT 4323 BCE (2692006) - Billy Goat 43" Outback Lawn Tractor, 23hp Briggs & Stratton Front Axle Group Parts Diagram

43" Outback Lawn Tractor, 23hp Briggs & Stratton

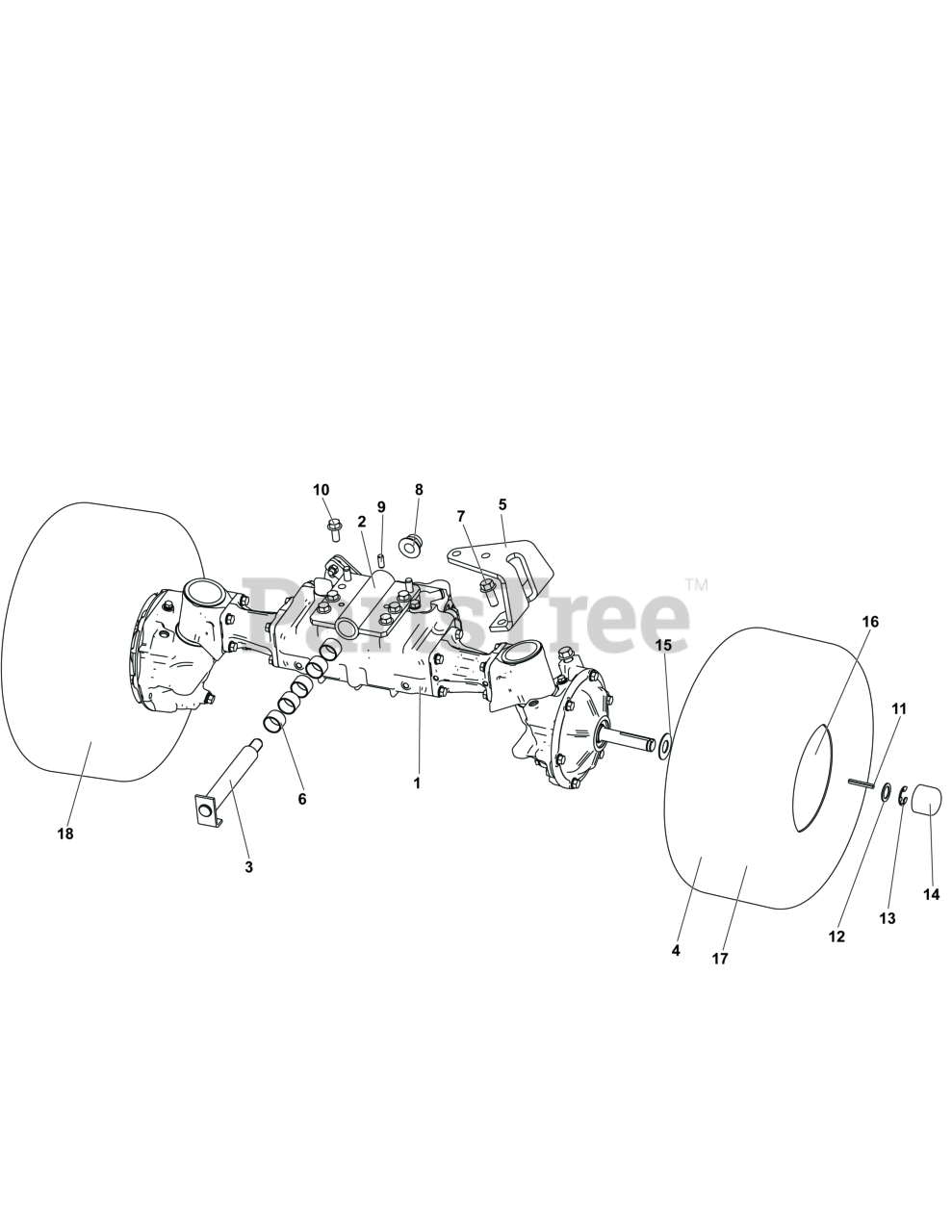

Front Axle Group Parts Diagram

  • Title

1

Briggs & Stratton 84011485

PIN

$

$

Currently unavailable

2

Briggs & Stratton 84011476

PIN

$

$

Currently unavailable

3

Briggs & Stratton 84012046

AXLE

$

$

Currently unavailable

4

Briggs & Stratton 84012047

LEVER

$

$

Currently unavailable

5

Briggs & Stratton 84012287

SPACER

$

$

Currently unavailable

6

Briggs & Stratton 84012048

ROD

$

$

Currently unavailable

7

Briggs & Stratton 84011477

JOINT, BALL

$

$

Currently unavailable

8

Briggs & Stratton 84011486

JOINT, BALL

$

$

Currently unavailable

9

NUT M12 L

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

10

Briggs & Stratton 84012049

COVER

$

$

Currently unavailable

11

Briggs & Stratton 84012050

KEY

$

$

Currently unavailable

12

WASHER 19

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

13

SCREW M10X80

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

14

SCREW M6X40

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

15

NUT M10

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

16

Briggs & Stratton 84011378

WASHER

$

$

Currently unavailable

17

NUT M6

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

18

NUT M12

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

19

Briggs & Stratton 84012051

ZERK, Grease Fitting

$

$

Currently unavailable

20

Briggs & Stratton 84012073

ZERK, Grease Fitting

$

$

Currently unavailable

21

SCREW M16X80

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

22

Briggs & Stratton 84012052

PIN

$

$

Currently unavailable

23

NUT M16

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available

24

Briggs & Stratton 84012053

WASHER

$

$

Currently unavailable

25

Briggs & Stratton 84011687

RING, Locking

$

$

Currently unavailable

26

Briggs & Stratton 84012054

WASHER

$

$

Currently unavailable

27

Briggs & Stratton 84012055

KIT, Wheel

$

$

Currently unavailable

28

Briggs & Stratton 84012056

RIM

$

$

Currently unavailable

29

Briggs & Stratton 84012057

TIRE

$

$

Currently unavailable

30

Briggs & Stratton 84011478

BEARING

$

$

Currently unavailable

31

NUT M12

Note: ( Refer to Note: *)Note:* Items without part numbers are common fasteners and are available at your local hardware store.

$

$

Not available
