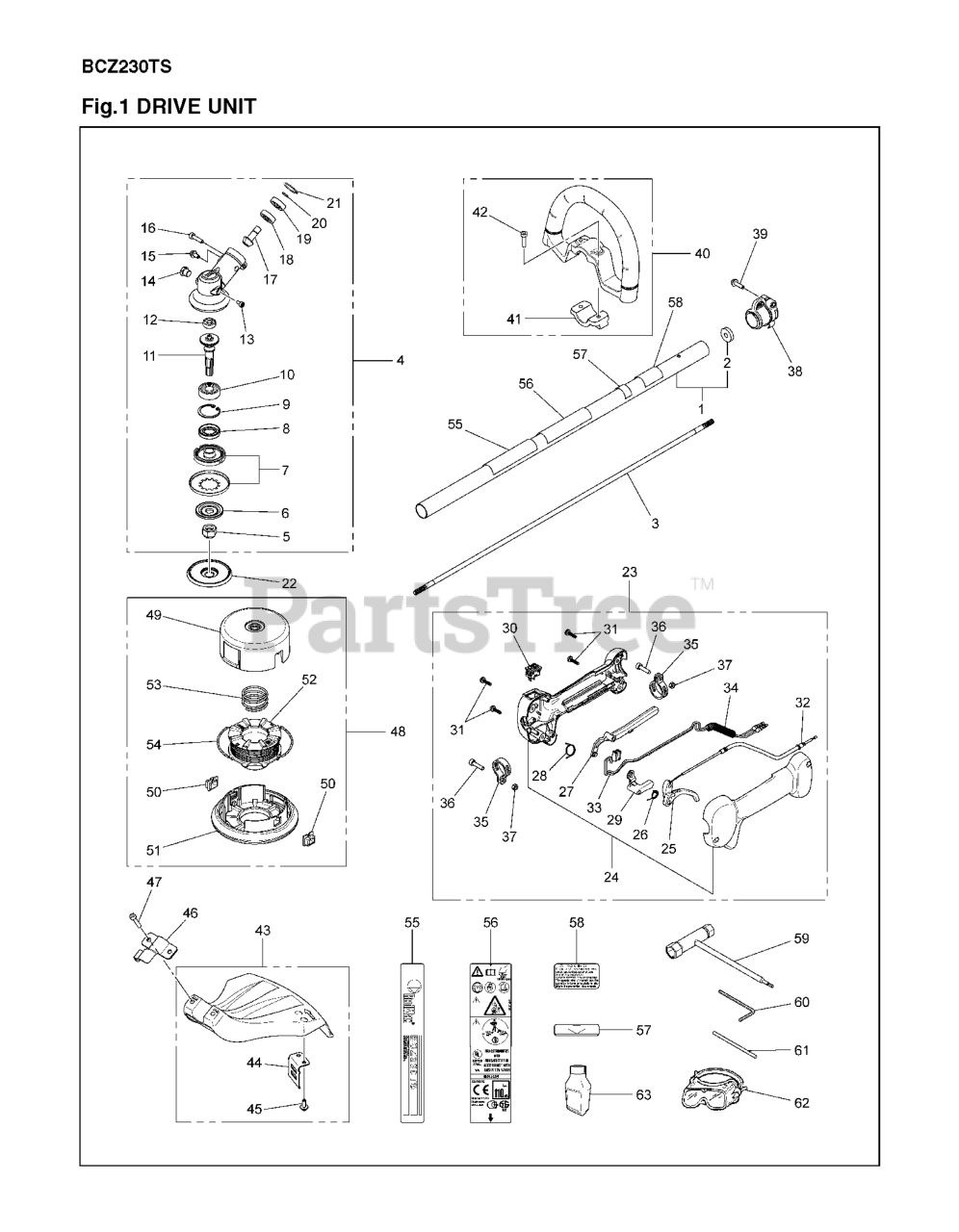

BCZ 230 TS (967194202) - RedMax Brushcutter (2014-09) DRIVE Parts Diagram

Brushcutter

DRIVE Parts Diagram

  • Title

1

RedMax 579149001

TUBE
(Superseded to 584158201)

$145.99

$

In Stock, only 1 left!

0

2

RedMax 521825401

SEAL

$4.99

$

In Stock, only 2 left!

0

3

RedMax 581110501

DRIVESHAFT 525L

$27.99

$

Usually ships in 3-10 days

0

4

RedMax 584964601

BEVEL GEAR ASSY

$145.99

$

In Stock, only 3 left!

0

5

RedMax 503856301

GEARHEAD NUT - BRUSHCUTTER

$7.49

$

In Stock, Qty 11

0

6

RedMax 537285601

SUPPORT FLANGE

$15.99

$

In Stock, Qty 5

0

7

RedMax 584442201

DRIVER ASSY

$31.99

$

In Stock, Qty 6

0

8

RedMax 577457901

SEAL

$

$

Not available

9

RedMax 504121001

RING

$3.99

$

Usually ships in 3-10 days

0

10

RedMax 510569701

BEARING***

$14.99

$

Usually ships in 3-10 days

0

11

RedMax 584442001

GEAR ASSY

$66.99

$

In Stock, only 3 left!

0

12

RedMax 516127701

BEARING (RPLS T330013520)

$15.99

$

Usually ships in 3-10 days

0

13

RedMax 578394801

BOLT

$4.99

$

Usually ships in 3-10 days

0

14

RedMax 576399001

SCREW M10X1.25 T27

$7.49

$

In Stock, Qty 13

0

15

RedMax 521515901

BOLT (RPLS T495051010-11)

$4.99

$

Usually ships in 3-10 days

0

16

RedMax 577942001

BOLT M5X20 T27

$4.99

$

Usually ships in 3-10 days

0

17

RedMax 577457701

PINION HIGH REDUCTION RATIO

$48.99

$

Usually ships in 3-10 days

0

18

RedMax 505169201

BEARING

$10.99

$

In Stock, only 3 left!

0

19

RedMax 505169301

BEARING

$8.99

$

In Stock, only 3 left!

0

20

RedMax 521821801

RING

$3.99

$

Usually ships in 3-10 days

0

21

RedMax 505169401

RP_RING

$3.99

$

Usually ships in 3-10 days

0

22

RedMax 581595001

SPACER

$8.99

$

In Stock, only 2 left!

0

23

RedMax 581331801

ASSY THROTTLE

$66.99

$

In Stock, Qty 6

0

24

RedMax 576475202

GRIP HALF SET

$31.99

$

Usually ships in 3-10 days

0

25

RedMax 529258801

LEVER, THROTTLE

$7.49

$

In Stock, only 4 left!

0

26

RedMax 529259601

SPRING, THROTTLE

$7.49

$

In Stock, only 3 left!

0

27

RedMax 578778001

LEVER, SAFETY

$3.99

$

In Stock, only 1 left!

0

28

RedMax 511591801

SPRING

$3.99

$

In Stock, only 3 left!

0

29

RedMax 529259201

LEVER JOINT

$4.99

$

In Stock, only 2 left!

0

30

RedMax 586246801

STOP SWITCH NM_09091801

$18.99

$

Usually ships in 3-10 days

0

31

RedMax 521517701

SCREW

$4.99

$

In Stock, Qty 5

0

32

RedMax 581331901

CABLE

$7.49

$

In Stock, Qty 20+

0

33

RedMax 529256101

CORD - C

$7.49

$

In Stock, only 2 left!

0

34

RedMax 581410403

TUBE

$

$

Not available

35

RedMax 529259401

BAND

$10.99

$

Usually ships in 3-10 days

0

36

RedMax 504114301

BOLT

$6.49

$

In Stock, Qty 12

0

37

RedMax 510911101

NUT
(Superseded to 579000001)

$8.99

$

Usually ships in 3-10 days

0

38

RedMax 521822101

HANGER COMP.

$

$

Not available

39

RedMax 521515301

SCREW

$4.99

$

Usually ships in 3-10 days

0

40

RedMax 581430701

HANDLE LOOP

$37.99

$

In Stock, only 2 left!

0

41

RedMax 576463801

CLAMP HANDLE

$7.49

$

Usually ships in 3-10 days

0

42

RedMax 521863101

SCREW

$4.99

$

In Stock, Qty 17

0

43

RedMax 578403601

RP_GUARD ASSY
(Superseded to 578403401)

$34.99

$

In Stock, Qty 8

0

44

RedMax 574395601

BLADE

$6.49

$

In Stock, Qty 20+

0

45

RedMax 502843901

SCREW

$6.49

$

In Stock, Qty 20+

0

46

RedMax 581227301

BRACKET

$4.99

$

In Stock, Qty 7

0

47

RedMax 512846401

BOLT, TORX

$8.99

$

In Stock, Qty 11

0

48

RedMax 521540601

TAP HEAD RPLS T318915100/02
(Superseded to 511010601)

$59.99

$

In Stock, only 3 left!

0

49

RedMax 521540701

CASE (RPL T318915112)

$18.99

$

In Stock, only 3 left!

0

50

RedMax 512549801

EYELET

$3.99

$

In Stock, Qty 20+

0

51

RedMax 521819401

COVER (RPLS T318915131)

$13.99

$

In Stock, Qty 20+

0

52

RedMax 521819501

HOLDER, CORD (RPLS T318915141)

$17.99

$

In Stock, Qty 20+

0

53

RedMax 521819601

SPRING

$3.99

$

In Stock, Qty 20+

0

54

RedMax 511011401

CORD
(Superseded to 521819701)

$

$

Not available

55

RedMax 580261124

DECAL MODEL

$4.99

$

In Stock, only 4 left!

0

56

RedMax 587402601

DECAL WARNING
(Superseded to 501889101)

$3.99

$

In Stock, only 1 left!

0

57

RedMax 505295801

LABEL

$4.99

$

Usually ships in 3-10 days

0

58

RedMax 522928602

DECAL SPARK ARRESTOR WARNING

$3.99

$

Usually ships in 3-10 days

0

59

RedMax 575738202

COMBINATION WRENCH TORX

$26.99

$

Usually ships in 3-10 days

0

60

RedMax 503558601

L-SPANNER

$6.49

$

In Stock, Qty 6

0

61

RedMax 502285901

LOCKING PIN

$8.99

$

In Stock, only 2 left!

0

62

RedMax 510989401

GOGGLExxx (RPLS

$

$

Not available

63

RedMax 580357210

OIL 2 CYCLE ENGINE OIL 2.

$1.49

$

Usually ships in 3-10 days

0
