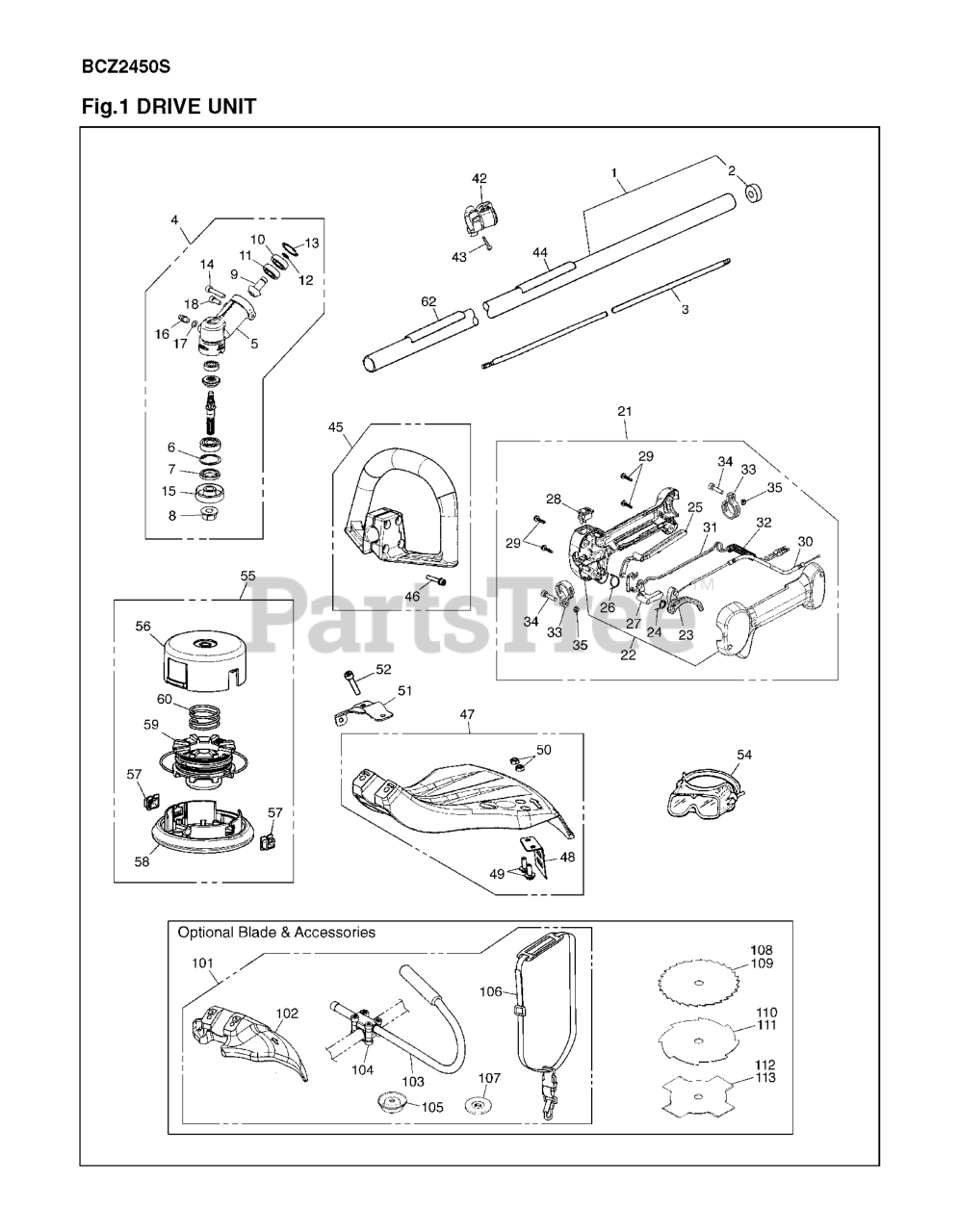

BCZ 2450 S - RedMax Brushcutter (SN: 91101001 & Above) DRIVE Parts Diagram

Brushcutter

DRIVE Parts Diagram

  • Title

1

RedMax 528868901

PIPE COMP

Note: . 2

$66.99

$

In Stock, only 3 left!

0

2

RedMax 521825401

SEAL

$4.99

$

In Stock, only 2 left!

0

3

RedMax 521158401

SHAFT (RPLS -12212,936612210)
(Superseded to 514344201)

$53.99

$

In Stock, only 2 left!

0

4

RedMax 528804901

RP_GEARCASE ASSY.
(Superseded to 574716301)

Note: . 5 6 7-35

$121.99

$

In Stock, only 1 left!

0

5

RedMax 521470201

%GEARCASE
(Superseded to 575477101)

$

$

Not available

6

RedMax 516125501

RING,SNAP M26x1.2 RP-318013340

$4.99

$

In Stock, only 4 left!

0

7

RedMax 521197001

SEAL, OIL(RPLS 3565-13131)
(Superseded to 514382501)

$7.49

$

Usually ships in 3-10 days

0

8

RedMax 521804001

NUT

$3.99

$

In Stock, Qty 20+

0

9

RedMax 521653001

PINION

$42.99

$

Usually ships in 3-10 days

0

10

RedMax 521822001

BEARING

$15.99

$

In Stock, only 2 left!

0

11

RedMax 516127601

BALL BEARING
(Superseded to 505169201)

Note: 600000609

$10.99

$

In Stock, only 3 left!

0

12

RedMax 521821801

RING

Note: 1

$3.99

$

Usually ships in 3-10 days

0

13

RedMax 505169401

RP_RING

Note: 243224120

$3.99

$

Usually ships in 3-10 days

0

14

RedMax 521861501

BOLT, TORX
(Superseded to 512845701)

Note: 1

$3.99

$

In Stock, only 1 left!

0

15

RedMax 521470501

HOLDER (A)
(Superseded to 515632501)

Note: A

$31.99

$

In Stock, only 1 left!

0

16

RedMax 520901801

FITTING, GREASE
(Superseded to 505171501)

Note: 2087061640

$6.49

$

Usually ships in 3-10 days

0

17

RedMax 505171601

WASHER

$3.99

$

Usually ships in 3-10 days

0

18

RedMax 521861101

BOLT, TORX

$4.99

$

In Stock, Qty 20+

0

21

RedMax 529262501

GRIP-A
(Superseded to 574390302)

$93.99

$

In Stock, only 1 left!

0

22

RedMax 576475201

GRIP HALF SET
(Superseded to 576475202)

$31.99

$

Usually ships in 3-10 days

0

23

RedMax 529258801

LEVER, THROTTLE

$7.49

$

In Stock, only 4 left!

0

24

RedMax 529259601

SPRING, THROTTLE

$7.49

$

In Stock, only 3 left!

0

25

RedMax 529258901

%LEVER SAFETY
(Superseded to 578778001)

$3.99

$

In Stock, only 1 left!

0

26

RedMax 521667501

SPRING
(Superseded to 511591801)

$3.99

$

In Stock, only 3 left!

0

27

RedMax 529259101

LEVER, JOINT

$

$

Not available

28

RedMax 521851601

SWITCH

$10.99

$

In Stock, Qty 12

0

29

RedMax 521517701

SCREW

$4.99

$

In Stock, Qty 5

0

30

RedMax 529257101

CABLE-C

$12.99

$

In Stock, Qty 6

0

31

RedMax 529256101

CORD - C

$7.49

$

In Stock, only 2 left!

0

32

RedMax 521805501

TUBE

$4.99

$

Usually ships in 3-10 days

0

33

RedMax 529259401

BAND

$10.99

$

Usually ships in 3-10 days

0

34

RedMax 521345401

SCREW
(Superseded to 504114301)

$6.49

$

In Stock, Qty 12

0

35

RedMax 510911101

NUT
(Superseded to 579000001)

$8.99

$

Usually ships in 3-10 days

0

42

RedMax 521822101

HANGER COMP.

$

$

Not available

43

RedMax 521515301

SCREW

$4.99

$

Usually ships in 3-10 days

0

44

RedMax 528873301

Name Plate Decal

$3.99

$

Usually ships in 3-10 days

0

45

RedMax 526056401

HANDLE ASSY. (RPLS T319514001)

Note: . 46

$34.99

$

In Stock, Qty 5

0

46

RedMax 521863101

SCREW

$4.99

$

In Stock, Qty 17

0

47

RedMax 574395401

GUARD ASSY
(Superseded to 578403401)

Note: . 48 49 50

$34.99

$

In Stock, Qty 9

0

48

RedMax 574395601

BLADE

$6.49

$

In Stock, Qty 20+

0

49

RedMax 521862901

SCREW
(Superseded to 502843901)

$6.49

$

In Stock, Qty 20+

0

50

RedMax 521000601

NUT

$4.99

$

In Stock, Qty 7

0

51

RedMax 521653101

BRACKET

$4.99

$

Usually ships in 3-10 days

0

52

RedMax 512846401

BOLT, TORX

$8.99

$

In Stock, Qty 11

0

54

RedMax 510989401

GOGGLExxx (RPLS

$

$

Not available

55

RedMax 970370901

(Superseded to 511010601)

Note: . 56 57 58-60

$59.99

$

In Stock, Qty 5

0

56

RedMax 521540701

CASE (RPL T318915112)

$18.99

$

In Stock, only 3 left!

0

57

RedMax 521819801

EYELET
(Superseded to 512549801)

$3.99

$

In Stock, Qty 20+

0

58

RedMax 521819401

COVER (RPLS T318915131)

$13.99

$

In Stock, Qty 20+

0

59

RedMax 521819501

HOLDER, CORD (RPLS T318915141)

$17.99

$

In Stock, Qty 20+

0

60

RedMax 521819601

SPRING

$3.99

$

In Stock, Qty 20+

0

62

RedMax 510962901

LABEL CAUTON FOR BC

$7.49

$

Usually ships in 3-10 days

0

101

RedMax 966424001

BLADE KIT BCZ 24/26/30 SERIES
(Superseded to 596298601)

Note: OPTIONAL. 102 103 104-107

$72.99

$

Usually ships in 3-10 days

0

102

RedMax 521821501

GUARD

Note: OPTIONAL

$8.99

$

Usually ships in 3-10 days

0

103

RedMax 521452901

J-HANDLE
(Superseded to 515590601)

Note: OPTIONAL

$40.99

$

In Stock, only 1 left!

0

104

RedMax 521653201

BRACKET ASSY.

Note: OPTIONAL

$28.99

$

Usually ships in 3-10 days

0

105

RedMax 521172201

COVER(10mm)(RPL280,-13280)
(Superseded to 514358301)

Note: OPTIONAL

$11.99

$

In Stock, only 3 left!

0

106

RedMax 521651101

STRAP ASSY

Note: OPTIONAL

$15.99

$

Usually ships in 3-10 days

0

107

RedMax 521401701

HOLDER (B)
(Superseded to 515511401)

Note: OPTIONAL B

$12.99

$

Usually ships in 3-10 days

0

108

RedMax 574159301

Brushcutter Blade, 22 Tooth 9"

Note: OPTIONAL 9 22-tooth

$33.99

$

Usually ships in 3-10 days

0

109

RedMax 574159401

Brushcutter Blade, 24 Tooth 9"

Note: OPTIONAL 9 24-tooth

$31.99

$

Usually ships in 3-10 days

0

110

RedMax 574158501

BLADE, 8

Note: OPTIONAL 8 8-tooth

$

$

Not available

111

RedMax 574158601

Brushcutter Blade, 8 Tooth 9"

Note: OPTIONAL 9 8-tooth

$

$

Not available

112

RedMax 574158301

BLADE, 8

Note: OPTIONAL 8 4-tooth

$

$

Not available

113

RedMax 574158401

Brushcutter Blade, 4 Tooth 9"

Note: OPTIONAL 9 4-tooth

$29.99

$

Usually ships in 3-10 days

0
