BCZ 2460 S - RedMax Brushcutter (SN: 00400101 & Above) (2012-08) DRIVE Parts Diagram

Brushcutter

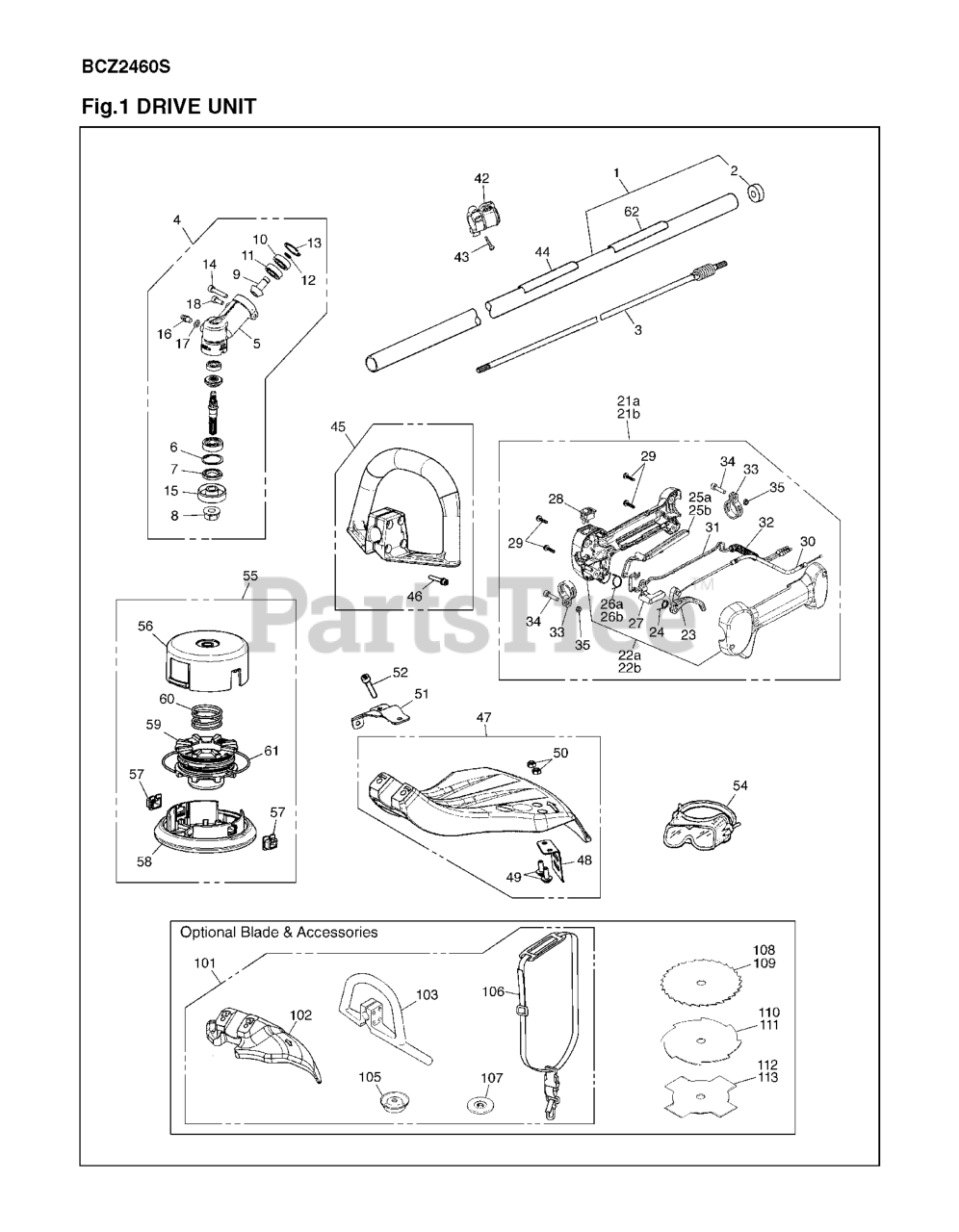

DRIVE Parts Diagram

  • Title

1

RedMax 528868901

PIPE COMP

$66.99

$

In Stock, only 3 left!

0

2

RedMax 521825401

SEAL

$4.99

$

In Stock, only 2 left!

0

3

RedMax 576110101

SHAFT

$120.99

$

Usually ships in 3-10 days

0

4

RedMax 574716301

GEARCASE

$121.99

$

In Stock, only 1 left!

0

5

RedMax 574267501

GEARCASE

$37.99

$

Usually ships in 3-10 days

0

6

RedMax 516125501

RING,SNAP M26x1.2 RP-318013340

$4.99

$

In Stock, only 4 left!

0

7

RedMax 514382501

SEAL

$7.49

$

Usually ships in 3-10 days

0

8

RedMax 521804001

NUT

$3.99

$

In Stock, Qty 20+

0

9

RedMax 521653001

PINION

$42.99

$

Usually ships in 3-10 days

0

10

RedMax 521822001

BEARING

$15.99

$

In Stock, only 2 left!

0

11

RedMax 521825701

BALL BEARING
(Superseded to 516127601)

$10.99

$

In Stock, only 3 left!

0

12

RedMax 521821801

RING

$3.99

$

Usually ships in 3-10 days

0

13

RedMax 505169401

RP_RING

$3.99

$

Usually ships in 3-10 days

0

14

RedMax 512845701

BOLT TORX

$3.99

$

In Stock, only 1 left!

0

15

RedMax 515632501

HOLDER(A)

$31.99

$

In Stock, only 1 left!

0

16

RedMax 505171501

FITTING

$6.49

$

Usually ships in 3-10 days

0

17

RedMax 505171601

WASHER

$3.99

$

Usually ships in 3-10 days

0

18

RedMax 521861101

BOLT, TORX

$4.99

$

In Stock, Qty 20+

0

21

RedMax 574390301

GRIP ASSY
(Superseded to 574390302)

Note: UP TO SN11299999

$93.99

$

In Stock, only 1 left!

0

21

RedMax 574390302

GRIP ASSY

Note: FROM SN20400101

$93.99

$

In Stock, only 1 left!

0

22

RedMax 576475201

GRIP HALF SET
(Superseded to 576475202)

Note: UP TO SN11299999

$31.99

$

Usually ships in 3-10 days

0

22

RedMax 576475202

GRIP HALF SET

Note: FROM SN20400101

$31.99

$

Usually ships in 3-10 days

0

23

RedMax 529258801

LEVER, THROTTLE

$7.49

$

In Stock, only 4 left!

0

24

RedMax 529259601

SPRING, THROTTLE

$7.49

$

In Stock, only 3 left!

0

25

RedMax 529259001

LEVER FOR GRIP (RPLS -0600)
(Superseded to 578778001)

Note: UP TO SN11299999

$3.99

$

In Stock, only 1 left!

0

25

RedMax 578778001

LEVER, SAFETY

Note: FROM SN20400101

$3.99

$

In Stock, only 1 left!

0

26

RedMax 574390801

SPRING JOINT

Note: UP TO SN11299999

$3.99

$

In Stock, only 3 left!

0

26

RedMax 511591801

SPRING

Note: FROM SN20400101

$3.99

$

In Stock, only 3 left!

0

27

RedMax 529259201

LEVER JOINT

$4.99

$

In Stock, only 2 left!

0

28

RedMax 521851601

SWITCH

$10.99

$

In Stock, Qty 12

0

29

RedMax 521517701

SCREW

$4.99

$

In Stock, Qty 5

0

30

RedMax 529257101

CABLE-C

$12.99

$

In Stock, Qty 6

0

31

RedMax 529256101

CORD - C

$7.49

$

In Stock, only 2 left!

0

32

RedMax 521805501

TUBE

$4.99

$

Usually ships in 3-10 days

0

33

RedMax 529259401

BAND

$10.99

$

Usually ships in 3-10 days

0

34

RedMax 504114301

BOLT

$6.49

$

In Stock, Qty 12

0

35

RedMax 510911101

NUT
(Superseded to 579000001)

$8.99

$

Usually ships in 3-10 days

0

42

RedMax 521822101

HANGER COMP.

$

$

Not available

43

RedMax 521515301

SCREW

$4.99

$

Usually ships in 3-10 days

0

44

RedMax 510962901

LABEL CAUTON FOR BC

$7.49

$

Usually ships in 3-10 days

0

45

RedMax 526056401

HANDLE ASSY. (RPLS T319514001)

$34.99

$

In Stock, Qty 5

0

46

RedMax 521863101

SCREW

$4.99

$

In Stock, Qty 17

0

47

RedMax 574395401

GUARD ASSY
(Superseded to 578403401)

$34.99

$

In Stock, Qty 9

0

48

RedMax 574395601

BLADE

$6.49

$

In Stock, Qty 20+

0

49

RedMax 502843901

SCREW

$6.49

$

In Stock, Qty 20+

0

50

RedMax 970413901

NUT

$4.99

$

In Stock, Qty 7

0

51

RedMax 521653101

BRACKET

$4.99

$

Usually ships in 3-10 days

0

52

RedMax 512846401

BOLT, TORX

$8.99

$

In Stock, Qty 12

0

54

RedMax 510989401

GOGGLExxx (RPLS

$

$

Not available

55

RedMax 511010601

4" TAP TRIMMER HEAD PT104

$59.99

$

In Stock, Qty 6

0

56

RedMax 521540701

CASE (RPL T318915112)

$18.99

$

In Stock, only 3 left!

0

57

RedMax 512549801

EYELET

$3.99

$

In Stock, Qty 20+

0

58

RedMax 521819401

COVER (RPLS T318915131)

$13.99

$

In Stock, Qty 20+

0

59

RedMax 521819501

HOLDER, CORD (RPLS T318915141)

$17.99

$

In Stock, Qty 20+

0

60

RedMax 521819601

SPRING

$3.99

$

In Stock, Qty 20+

0

61

RedMax 511011401

CORD
(Superseded to 521819701)

$

$

Not available

62

RedMax 576251301

NAME PLATE BCZ2460S
(Superseded to 580261102)

$

$

Not available

101

RedMax 576932301

BLADE KIT FOR BCZ2460
(Superseded to 596298601)

$72.99

$

Usually ships in 3-10 days

0

102

RedMax 521821501

GUARD

$8.99

$

Usually ships in 3-10 days

0

103

RedMax 512532001

HANDLE-ASSY

$72.99

$

Usually ships in 3-10 days

0

105

RedMax 521655901

COVER

$12.99

$

Usually ships in 3-10 days

0

106

RedMax 521651101

STRAP ASSY

$15.99

$

Usually ships in 3-10 days

0

107

RedMax 515511401

HOLDER (B)

$12.99

$

Usually ships in 3-10 days

0

108

RedMax 574159301

Brushcutter Blade, 22 Tooth 9"

$33.99

$

Usually ships in 3-10 days

0

109

RedMax 574159401

Brushcutter Blade, 24 Tooth 9"

$31.99

$

Usually ships in 3-10 days

0

110

RedMax 574158501

BLADE, 8

$

$

Not available

111

RedMax 574158601

Brushcutter Blade, 8 Tooth 9"

$

$

Not available

112

RedMax 574158301

BLADE, 8

$

$

Not available

113

RedMax 574158401

Brushcutter Blade, 4 Tooth 9"

$29.99

$

Usually ships in 3-10 days

0
