BCZ 250 S (967668801) - RedMax Brushcutter (2017-06) DRIVE Parts Diagram

Brushcutter

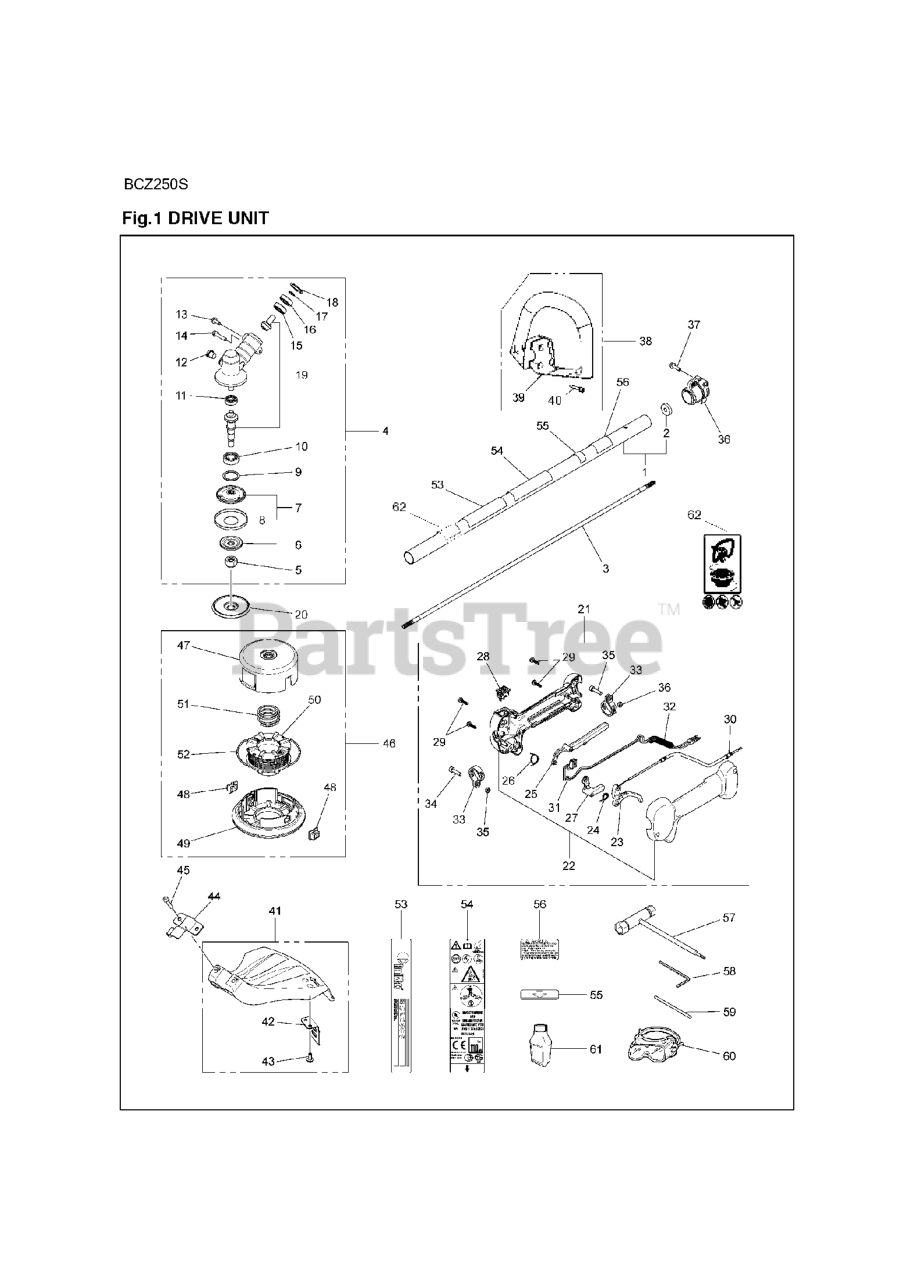

DRIVE Parts Diagram

  • Title

1

RedMax 579149001

TUBE
(Superseded to 584158201)

$145.99

$

In Stock, only 1 left!

0

2

RedMax 521825401

SEAL

$4.99

$

In Stock, only 2 left!

0

3

RedMax 581110502

DRIVESHAFT

$26.99

$

In Stock, only 1 left!

0

4

RedMax 537199202

GEAR HEAD
(Superseded to 537333802)

$157.99

$

Usually ships in 3-10 days

0

5

RedMax 503856301

GEARHEAD NUT - BRUSHCUTTER

$7.49

$

In Stock, Qty 11

0

6

RedMax 537285601

SUPPORT FLANGE

$15.99

$

In Stock, Qty 5

0

7

RedMax 537234901

DRIVE DISC

$40.99

$

In Stock, Qty 5

0

8

RedMax 537292601

WASHER
(Superseded to 537234901)

$40.99

$

In Stock, Qty 5

0

9

RedMax 735312810

RETAINING RING SGH 28

$7.49

$

Usually ships in 3-10 days

0

10

RedMax 503252401

BEARING

$28.99

$

Usually ships in 3-10 days

0

11

RedMax 738219800

BALL BEARING 8X22X7/608Z

$7.99

$

In Stock, only 1 left!

0

12

RedMax 503201502

PLUG
(Superseded to 503201501)

$9.99

$

In Stock, Qty 7

0

13

RedMax 574710801

BOLT

$4.99

$

Usually ships in 3-10 days

0

14

RedMax 503200725

SCREW

$4.99

$

In Stock, Qty 11

0

15

RedMax 738219900

BALL BEARING 24X9X1/609ZR

$13.99

$

In Stock, only 1 left!

0

16

RedMax 738219902

BEARING

$39.99

$

Usually ships in 3-10 days

0

17

RedMax 735311100

RETAINING RING

$4.99

$

In Stock, only 1 left!

0

18

RedMax 735312510

RETAINING RING

$4.99

$

In Stock, only 1 left!

0

20

RedMax 581595001

SPACER

$8.99

$

In Stock, only 2 left!

0

21

RedMax 581331801

ASSY THROTTLE

$66.99

$

In Stock, Qty 6

0

22

RedMax 576475202

GRIP HALF SET

$31.99

$

Usually ships in 3-10 days

0

23

RedMax 529258801

LEVER, THROTTLE

$7.49

$

In Stock, only 4 left!

0

24

RedMax 529259601

SPRING, THROTTLE

$7.49

$

In Stock, only 3 left!

0

25

RedMax 578778001

LEVER, SAFETY

$3.99

$

In Stock, only 1 left!

0

26

RedMax 511591801

SPRING

$3.99

$

In Stock, only 3 left!

0

27

RedMax 529259201

LEVER JOINT

$4.99

$

In Stock, only 2 left!

0

28

RedMax 586246801

STOP SWITCH NM_09091801

$18.99

$

Usually ships in 3-10 days

0

29

RedMax 521517701

SCREW

$4.99

$

In Stock, Qty 5

0

30

RedMax 581331901

CABLE

$7.49

$

In Stock, Qty 20+

0

31

RedMax 529256101

CORD - C

$7.49

$

In Stock, only 2 left!

0

32

RedMax 581410403

TUBE

$

$

Not available

33

RedMax 529259401

BAND

$10.99

$

Usually ships in 3-10 days

0

34

RedMax 504114301

BOLT

$6.49

$

In Stock, Qty 12

0

35

RedMax 510911101

NUT
(Superseded to 579000001)

$8.99

$

Usually ships in 3-10 days

0

36

RedMax 590006201

HANGER COMP

$15.99

$

Usually ships in 3-10 days

0

37

RedMax 521515301

SCREW

$4.99

$

Usually ships in 3-10 days

0

38

RedMax 526056401

HANDLE ASSY. (RPLS T319514001)

$34.99

$

In Stock, Qty 5

0

39

RedMax 512553501

HANDLE T

$

$

Not available

40

RedMax 521863101

SCREW

$4.99

$

In Stock, Qty 17

0

41

RedMax 578403401

GUARD ASSY

$34.99

$

In Stock, Qty 8

0

42

RedMax 574395601

BLADE

$6.49

$

In Stock, Qty 20+

0

43

RedMax 502843901

SCREW

$6.49

$

In Stock, Qty 20+

0

44

RedMax 581598001

BRACKET SHIELD

$4.99

$

In Stock, Qty 16

0

45

RedMax 512846401

BOLT, TORX

$8.99

$

In Stock, Qty 11

0

46

RedMax 521540601

TAP HEAD RPLS T318915100/02
(Superseded to 511010601)

$59.99

$

In Stock, only 3 left!

0

47

RedMax 521540701

CASE (RPL T318915112)

$18.99

$

In Stock, only 3 left!

0

48

RedMax 512549801

EYELET

$3.99

$

In Stock, Qty 20+

0

49

RedMax 521819401

COVER (RPLS T318915131)

$13.99

$

In Stock, Qty 20+

0

50

RedMax 521819501

HOLDER, CORD (RPLS T318915141)

$17.99

$

In Stock, Qty 20+

0

51

RedMax 521819601

SPRING

$3.99

$

In Stock, Qty 20+

0

52

RedMax 511011401

CORD
(Superseded to 521819701)

$

$

Not available

53

RedMax 580261133

DECAL NAME BCZ250S

$3.99

$

Usually ships in 3-10 days

0

54

RedMax 587402601

DECAL WARNING
(Superseded to 501889101)

$3.99

$

In Stock, only 1 left!

0

55

RedMax 505295801

LABEL

$4.99

$

Usually ships in 3-10 days

0

56

RedMax 522928602

DECAL SPARK ARRESTOR WARNING

$3.99

$

Usually ships in 3-10 days

0

57

RedMax 575738202

COMBINATION WRENCH TORX

$26.99

$

Usually ships in 3-10 days

0

58

RedMax 503558601

L-SPANNER

$6.49

$

In Stock, Qty 6

0

59

RedMax 502285901

LOCKING PIN

$8.99

$

In Stock, only 2 left!

0

60

RedMax 510989401

GOGGLExxx (RPLS

$

$

Not available

61

RedMax 580357210

OIL 2 CYCLE ENGINE OIL 2.

$1.49

$

Usually ships in 3-10 days

0

62

RedMax 503795601

DECAL WARNING "NO BLADES"

$5.99

$

Usually ships in 3-10 days

0
