BCZ 2610 S - RedMax Brushcutter (SN: 70050101 & Above) DRIVE Parts Diagram

Brushcutter

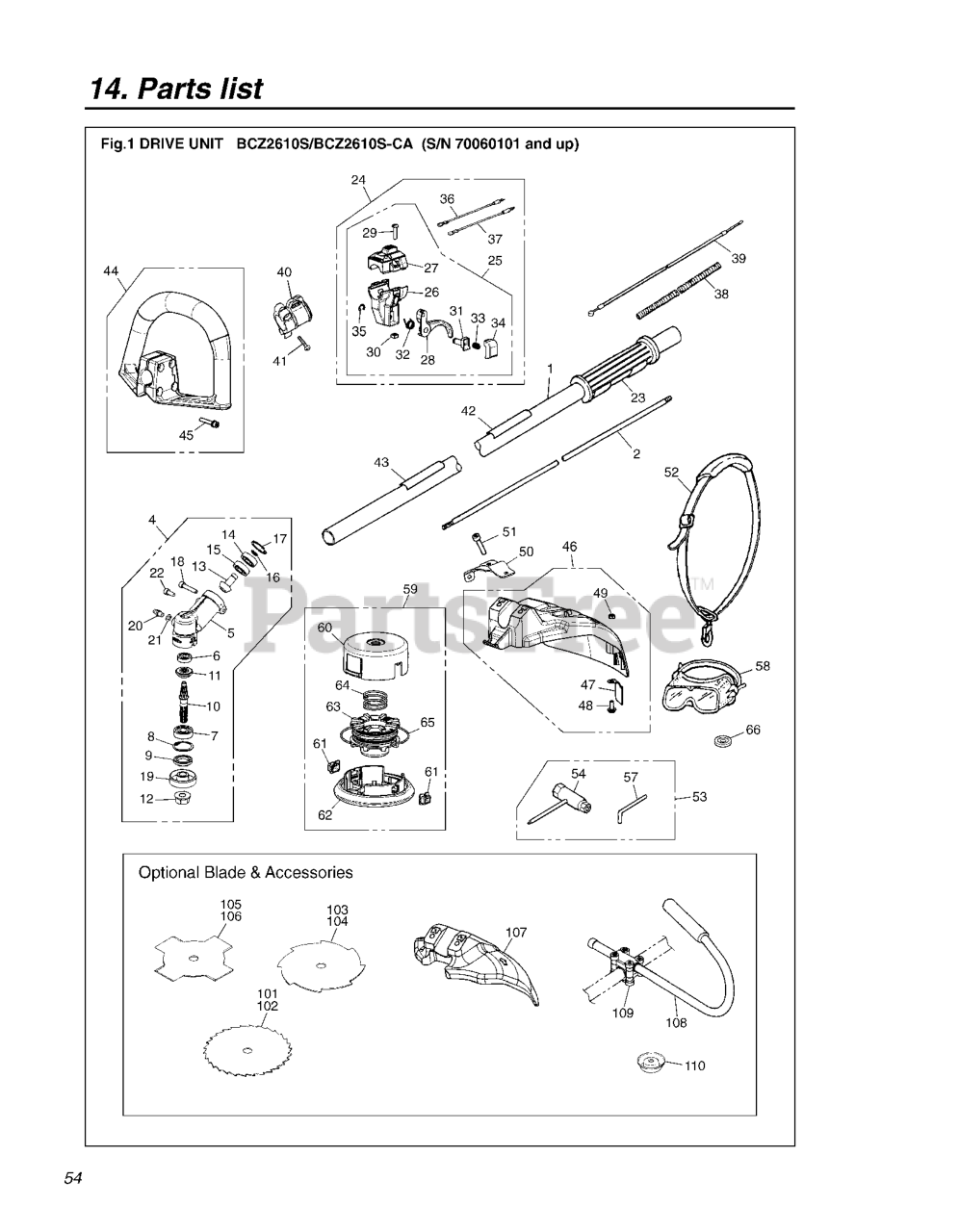

DRIVE Parts Diagram

  • Title

1

RedMax 528868901

PIPE COMP

$66.99

$

In Stock, only 3 left!

0

2

RedMax 514344201

SHAFT

$53.99

$

In Stock, only 2 left!

0

4

RedMax 528804901

RP_GEARCASE ASSY.
(Superseded to 574716301)

$121.99

$

In Stock, only 1 left!

0

5

RedMax 515631801

GEARCASE
(Superseded to 515632001)

$

$

Not available

6

RedMax 521821901

$

$

Not available

7

RedMax 521825601

$

$

Not available

8

RedMax 516125501

RING,SNAP M26x1.2 RP-318013340

$4.99

$

In Stock, only 4 left!

0

9

RedMax 514382501

SEAL

$7.49

$

Usually ships in 3-10 days

0

10

RedMax 512497501

SHAFT

$

$

Not available

11

RedMax 512577301

GEAR

$

$

Not available

12

RedMax 521804001

NUT

$3.99

$

In Stock, Qty 20+

0

13

RedMax 521653001

PINION

$42.99

$

Usually ships in 3-10 days

0

14

RedMax 521822001

BEARING

$15.99

$

In Stock, only 2 left!

0

15

RedMax 521825701

BALL BEARING
(Superseded to 516127601)

$10.99

$

In Stock, only 3 left!

0

16

RedMax 521821801

RING

$3.99

$

Usually ships in 3-10 days

0

17

RedMax 505169401

RP_RING

$3.99

$

Usually ships in 3-10 days

0

18

RedMax 512845701

BOLT TORX

$3.99

$

In Stock, only 1 left!

0

19

RedMax 515632501

HOLDER(A)

$31.99

$

In Stock, only 1 left!

0

20

RedMax 505171501

FITTING

$6.49

$

Usually ships in 3-10 days

0

21

RedMax 505171601

WASHER

$3.99

$

Usually ships in 3-10 days

0

22

RedMax 521861101

BOLT, TORX

$4.99

$

In Stock, Qty 20+

0

23

RedMax 521651001

OBSOLETE - GRIP (RPL 322011330&357732141)

$8.93

$

Usually ships in 3-10 days

0

24

RedMax 521529701

LEVER COMP (RPLS 8488R20343)

$

$

Not available

25

RedMax 521529601

LEVER (FLEX. LEVER)(RPLS -13)

$60.99

$

Usually ships in 3-10 days

0

26

RedMax 521419001

STAY

$14.99

$

Usually ships in 3-10 days

0

27

RedMax 521531101

COVER COMP (RPLS 611014410-02)

$15.99

$

Usually ships in 3-10 days

0

28

RedMax 570907201

THROTTLE TRIGGER

$14.99

$

Usually ships in 3-10 days

0

29

RedMax 521419301

SCREW

$

$

Not available

30

RedMax 521419401

NUT

$

$

Not available

31

RedMax 521419501

SHAFT

$2.49

$

Usually ships in 3-10 days

0

32

RedMax 521419601

SPRING

$

$

Not available

33

RedMax 521419701

SPRING

$

$

Not available

34

RedMax 570912901

T303214410090

$7.49

$

Usually ships in 3-10 days

0

35

RedMax 521419901

E-RING

$

$

Not available

36

RedMax 521803401

CORD (A), BLACK

$7.99

$

In Stock, only 1 left!

0

37

RedMax 521803501

CORD (B), RED

$8.99

$

Usually ships in 3-10 days

0

38

RedMax 512497101

TUBE

$4.99

$

Usually ships in 3-10 days

0

39

RedMax 512498601

CABLE-C

$18.99

$

Usually ships in 3-10 days

0

40

RedMax 521822101

HANGER COMP.

$

$

Not available

41

RedMax 521515301

SCREW

$4.99

$

Usually ships in 3-10 days

0

42

RedMax 510999401

LABEL NAME FOR BCZ2610S

$3.99

$

Usually ships in 3-10 days

0

43

RedMax 510962901

LABEL CAUTON FOR BC

$7.49

$

Usually ships in 3-10 days

0

44

RedMax 526056401

HANDLE ASSY. (RPLS T319514001)

$34.99

$

In Stock, Qty 5

0

45

RedMax 521863101

SCREW

$4.99

$

In Stock, Qty 17

0

46

RedMax 521821401

GUARD COMP

$44.99

$

In Stock, only 2 left!

0

47

RedMax 521804401

BLADE (RPLS T300224120)

$7.49

$

In Stock, Qty 9

0

48

RedMax 502843901

SCREW

$6.49

$

In Stock, Qty 20+

0

49

RedMax 970413901

NUT

$4.99

$

In Stock, Qty 7

0

50

RedMax 521653101

BRACKET

$4.99

$

Usually ships in 3-10 days

0

51

RedMax 512846401

BOLT, TORX

$8.99

$

In Stock, Qty 11

0

52

RedMax 510997801

STRAP ASSY

$40.99

$

Usually ships in 3-10 days

0

53

RedMax 521532701

TOOL SET (RPLS 848-8UD-0120)

$12.99

$

Usually ships in 3-10 days

0

54

RedMax 521533101

SOCKET
(Superseded to 521532701)

$12.99

$

Usually ships in 3-10 days

0

57

RedMax 505312001

BAR

$4.99

$

Usually ships in 3-10 days

0

58

RedMax 510989401

GOGGLExxx (RPLS

$

$

Not available

59

RedMax 511010601

4" TAP TRIMMER HEAD PT104

$59.99

$

In Stock, only 3 left!

0

60

RedMax 521540601

TAP HEAD RPLS T318915100/02
(Superseded to 511010601)

$59.99

$

In Stock, only 3 left!

0

61

RedMax 521819801

EYELET
(Superseded to 512549801)

$3.99

$

In Stock, Qty 20+

0

62

RedMax 521819401

COVER (RPLS T318915131)

$13.99

$

In Stock, Qty 20+

0

63

RedMax 521819501

HOLDER, CORD (RPLS T318915141)

$17.99

$

In Stock, Qty 20+

0

64

RedMax 521819601

SPRING

$3.99

$

In Stock, Qty 20+

0

65

RedMax 521819701

CORD

$

$

Not available

66

RedMax 515511401

HOLDER (B)

$12.99

$

Usually ships in 3-10 days

0

101

RedMax 574159301

Brushcutter Blade, 22 Tooth 9"

$33.99

$

Usually ships in 3-10 days

0

102

RedMax 574159401

Brushcutter Blade, 24 Tooth 9"

$31.99

$

Usually ships in 3-10 days

0

103

RedMax 574158501

BLADE, 8

$

$

Not available

104

RedMax 574158601

Brushcutter Blade, 8 Tooth 9"

$

$

Not available

105

RedMax 574158301

BLADE, 8

$

$

Not available

106

RedMax 574158401

Brushcutter Blade, 4 Tooth 9"

$29.99

$

Usually ships in 3-10 days

0

107

RedMax 521821501

GUARD

$8.99

$

Usually ships in 3-10 days

0

108

RedMax 515590601

HANDLE(L)

$40.99

$

In Stock, only 1 left!

0

109

RedMax 514395301

BRACKET A

$30.99

$

Usually ships in 3-10 days

0

110

RedMax 514358301

COVER (10MM)

$11.99

$

In Stock, only 3 left!

0
