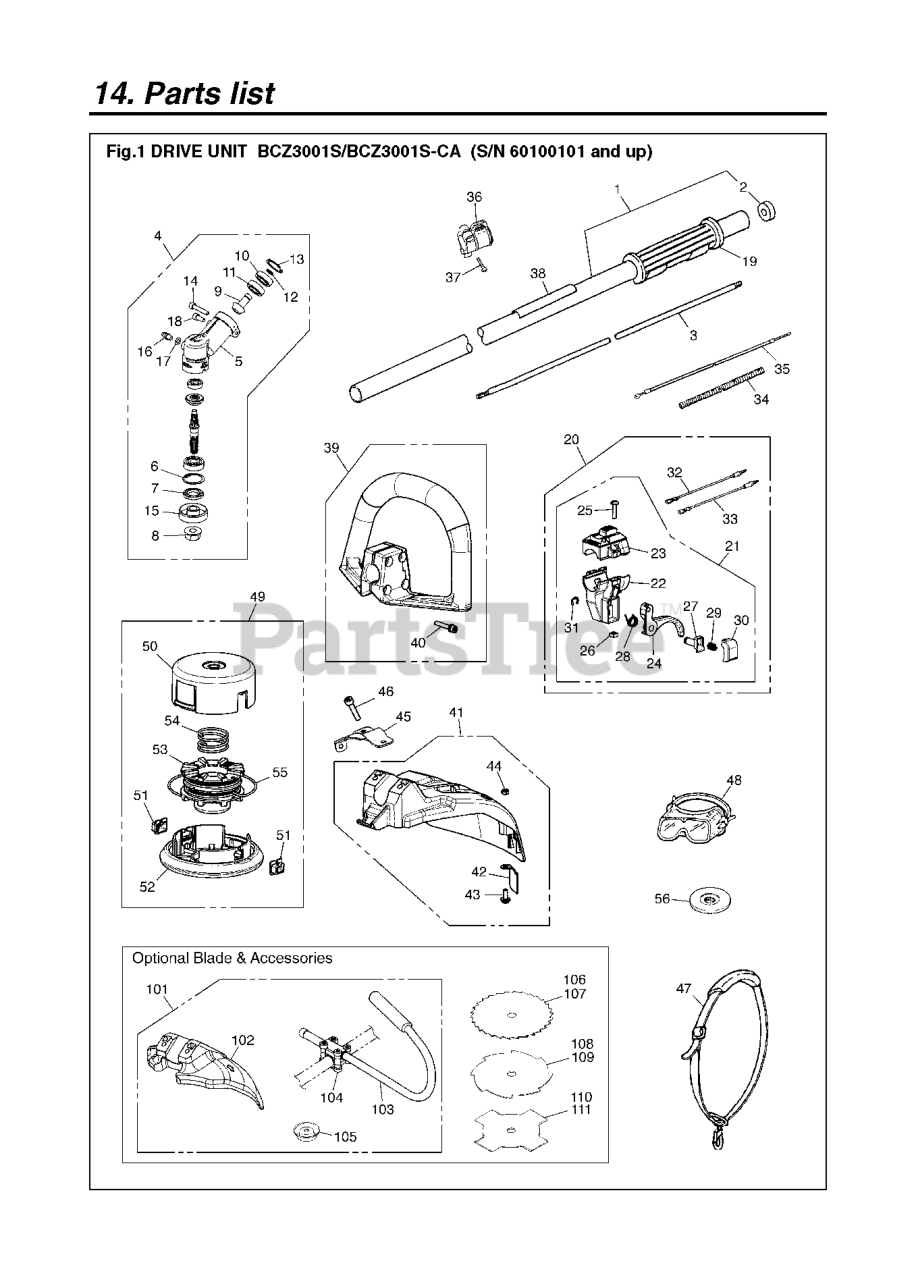

BCZ 3001 S - RedMax Brushcutter (SN: 300001 & Above) DRIVE Parts Diagram

Brushcutter

DRIVE Parts Diagram

  • Title

1

RedMax 528868901

PIPE COMP

Note: . 2

$66.99

$

In Stock, only 3 left!

0

2

RedMax 521825401

SEAL

$4.99

$

In Stock, only 2 left!

0

3

RedMax 514344201

SHAFT

$53.99

$

In Stock, only 2 left!

0

4

RedMax 528804901

RP_GEARCASE ASSY.
(Superseded to 574716301)

Note: . 5-10 11-18

$121.99

$

In Stock, only 1 left!

0

5

RedMax 515631801

GEARCASE
(Superseded to 515632001)

$

$

Not available

6

RedMax 516125501

RING,SNAP M26x1.2 RP-318013340

$4.99

$

In Stock, only 4 left!

0

7

RedMax 514382501

SEAL

$7.49

$

Usually ships in 3-10 days

0

8

RedMax 521804001

NUT

$3.99

$

In Stock, Qty 20+

0

9

RedMax 521653001

PINION

$42.99

$

Usually ships in 3-10 days

0

10

RedMax 521822001

BEARING

$15.99

$

In Stock, only 2 left!

0

11

RedMax 521825701

BALL BEARING
(Superseded to 516127601)

Note: -600000609

$10.99

$

In Stock, only 3 left!

0

12

RedMax 521821801

RING

$3.99

$

Usually ships in 3-10 days

0

13

RedMax 505169401

RP_RING

Note: -243224120

$3.99

$

Usually ships in 3-10 days

0

14

RedMax 512845701

BOLT TORX

Note: 5X25

$3.99

$

In Stock, only 1 left!

0

15

RedMax 515632501

HOLDER(A)

Note: (A)

$31.99

$

In Stock, only 1 left!

0

16

RedMax 505171501

FITTING

Note: -2087061640

$6.49

$

Usually ships in 3-10 days

0

17

RedMax 505171601

WASHER

$3.99

$

Usually ships in 3-10 days

0

18

RedMax 521861101

BOLT, TORX

Note: 5X12

$4.99

$

In Stock, Qty 20+

0

19

RedMax 521651001

OBSOLETE - GRIP (RPL 322011330&357732141)

$8.93

$

Usually ships in 3-10 days

0

20

RedMax 521529701

LEVER COMP (RPLS 8488R20343)

Note: . 21-33

$

$

Not available

21

RedMax 521529601

LEVER (FLEX. LEVER)(RPLS -13)

$60.99

$

Usually ships in 3-10 days

0

22

RedMax 521419001

STAY

Note: (E50135620010)

$14.99

$

Usually ships in 3-10 days

0

23

RedMax 521531101

COVER COMP (RPLS 611014410-02)

$15.99

$

Usually ships in 3-10 days

0

24

RedMax 570907201

THROTTLE TRIGGER

Note: (E52135623511)

$14.99

$

Usually ships in 3-10 days

0

25

RedMax 521419301

SCREW

$

$

Not available

26

RedMax 521419401

NUT

$

$

Not available

27

RedMax 521419501

SHAFT

$2.49

$

Usually ships in 3-10 days

0

28

RedMax 521419601

SPRING

$

$

Not available

29

RedMax 521419701

SPRING

$

$

Not available

30

RedMax 570912901

T303214410090

$7.49

$

Usually ships in 3-10 days

0

31

RedMax 521419901

E-RING

$

$

Not available

32

RedMax 521803401

CORD (A), BLACK

Note: (A)

$7.99

$

In Stock, only 1 left!

0

33

RedMax 521803501

CORD (B), RED

Note: (B)

$8.99

$

Usually ships in 3-10 days

0

34

RedMax 512497101

TUBE

$4.99

$

Usually ships in 3-10 days

0

35

RedMax 512498601

CABLE-C

$18.99

$

Usually ships in 3-10 days

0

36

RedMax 521822101

HANGER COMP.

$

$

Not available

37

RedMax 521515301

SCREW

Note: 5X20

$4.99

$

Usually ships in 3-10 days

0

38

RedMax 511554801

$

$

Not available

39

RedMax 526056401

HANDLE ASSY. (RPLS T319514001)

Note: . 40

$34.99

$

In Stock, Qty 5

0

40

RedMax 521863101

SCREW

Note: 5X30

$4.99

$

In Stock, Qty 17

0

41

RedMax 521821401

GUARD COMP

Note: . 42-44

$44.99

$

In Stock, only 2 left!

0

42

RedMax 521804401

BLADE (RPLS T300224120)

$7.49

$

In Stock, Qty 9

0

43

RedMax 502843901

SCREW

Note: 5X14

$6.49

$

In Stock, Qty 20+

0

44

RedMax 970413901

NUT

$4.99

$

In Stock, Qty 7

0

45

RedMax 521653101

BRACKET

$4.99

$

Usually ships in 3-10 days

0

46

RedMax 512846401

BOLT, TORX

Note: 6X30

$8.99

$

In Stock, Qty 11

0

47

RedMax 510997801

STRAP ASSY

$40.99

$

Usually ships in 3-10 days

0

48

RedMax 510989401

GOGGLExxx (RPLS

$

$

Not available

49

RedMax 511010601

4" TAP TRIMMER HEAD PT104

Note: . 50-55

$59.99

$

In Stock, only 3 left!

0

50

RedMax 521819301

CASE (RPLS T318915111)***
(Superseded to 521540701)

$18.99

$

In Stock, only 3 left!

0

51

RedMax 512549801

EYELET

$3.99

$

In Stock, Qty 20+

0

52

RedMax 521819401

COVER (RPLS T318915131)

$13.99

$

In Stock, Qty 20+

0

53

RedMax 521819501

HOLDER, CORD (RPLS T318915141)

Note: PRODUCT

$17.99

$

In Stock, Qty 20+

0

54

RedMax 521819601

SPRING

$3.99

$

In Stock, Qty 20+

0

55

RedMax 521819701

CORD

$

$

Not available

56

RedMax 515511401

HOLDER (B)

Note: (B)

$12.99

$

Usually ships in 3-10 days

0

101

RedMax 970372501

BLADE KITBCZ3000S
(Superseded to 596298601)

Note: PRODUCT. 102-105

$72.99

$

Usually ships in 3-10 days

0

102

RedMax 521821501

GUARD

$8.99

$

Usually ships in 3-10 days

0

103

RedMax 515590601

HANDLE(L)

$40.99

$

In Stock, only 1 left!

0

104

RedMax 521653201

BRACKET ASSY.

$28.99

$

Usually ships in 3-10 days

0

105

RedMax 514358301

COVER (10MM)

$11.99

$

In Stock, only 3 left!

0

106

RedMax 574159301

Brushcutter Blade, 22 Tooth 9"

Note: 9 22-TOOTH

$33.99

$

Usually ships in 3-10 days

0

107

RedMax 574159401

Brushcutter Blade, 24 Tooth 9"

Note: 9 24-TOOTH

$31.99

$

Usually ships in 3-10 days

0

108

RedMax 574158501

BLADE, 8

Note: 8 8-TOOTH

$

$

Not available

109

RedMax 574158601

Brushcutter Blade, 8 Tooth 9"

Note: 9 8-TOOTH

$

$

Not available

110

RedMax 574158301

BLADE, 8

Note: 8 4-TOOTH

$

$

Not available

111

RedMax 574158401

Brushcutter Blade, 4 Tooth 9"

Note: 9 4-TOOTH

$29.99

$

Usually ships in 3-10 days

0
