BCZ 3050 SW - RedMax Brushcutter (SN: 00100101 & Above) (2010-06) 003 - DRIVE UNIT Parts Diagram

Brushcutter

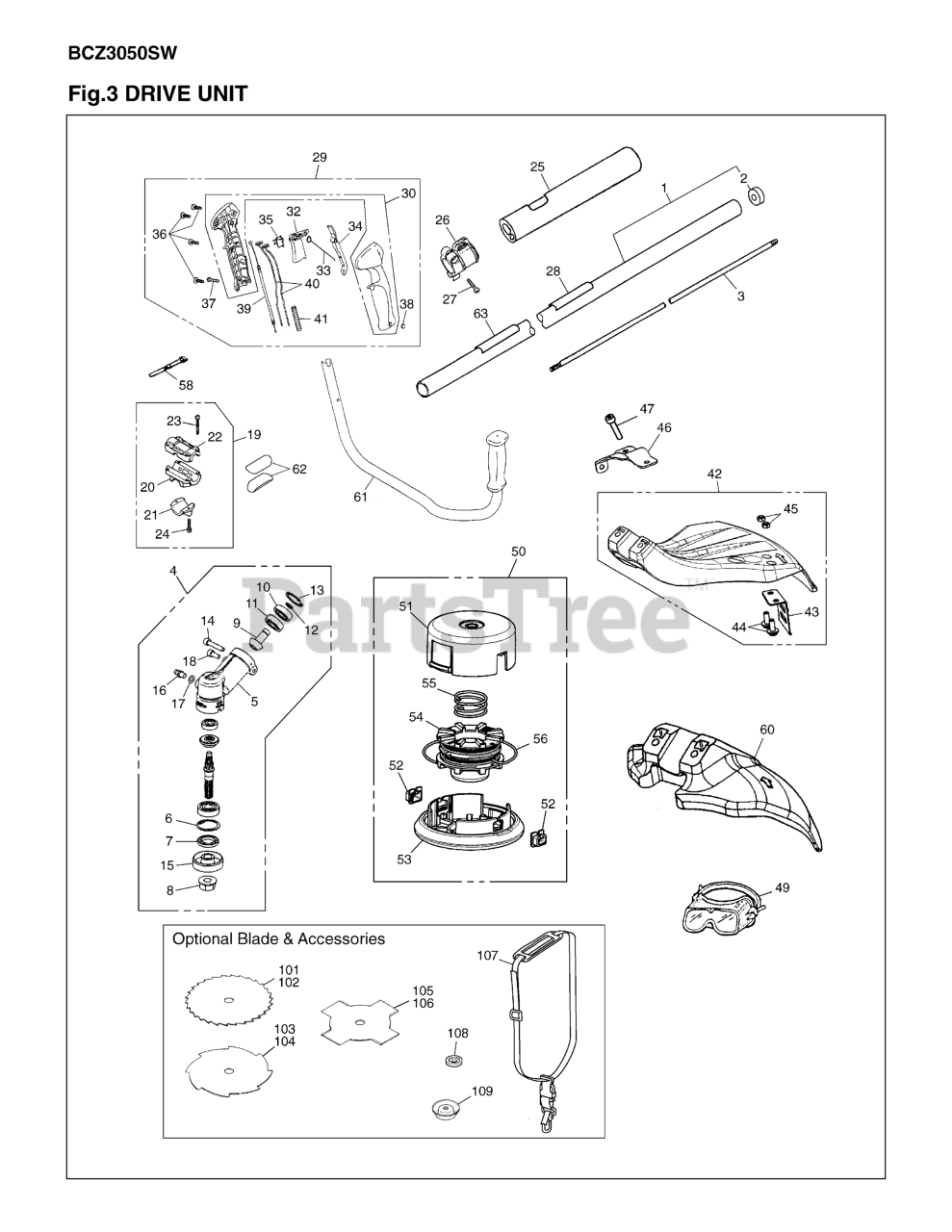

003 - DRIVE UNIT Parts Diagram

  • Title

1

RedMax 528869801

PIPE COMP.

$

$

Not available

2

RedMax 521825401

SEAL

$4.99

$

In Stock, only 2 left!

0

3

RedMax 521158401

SHAFT (RPLS -122
(Superseded to 514344201)

$53.99

$

In Stock, only 2 left!

0

4

RedMax 574716301

GEARCASE ASSY

$121.99

$

In Stock, only 1 left!

0

5

RedMax 574267501

GEARCASE

$37.99

$

Usually ships in 3-10 days

0

6

RedMax 516125501

RING,SNAP M26x1.

$4.99

$

In Stock, only 4 left!

0

7

RedMax 521197001

SEAL, OIL(RPLS 3
(Superseded to 514382501)

$7.49

$

Usually ships in 3-10 days

0

8

RedMax 521804001

NUT

$3.99

$

In Stock, Qty 20+

0

9

RedMax 521653001

PINION

$42.99

$

Usually ships in 3-10 days

0

10

RedMax 521822001

BEARING

$15.99

$

In Stock, only 2 left!

0

11

RedMax 516127601

BEARING
(Superseded to 505169201)

$10.99

$

In Stock, only 3 left!

0

12

RedMax 521821801

SNAP RING

$3.99

$

Usually ships in 3-10 days

0

13

RedMax 505169401

RING, SNAP, M24

$3.99

$

Usually ships in 3-10 days

0

14

RedMax 521861501

BOLT, TORX
(Superseded to 512845701)

$3.99

$

In Stock, only 1 left!

0

15

RedMax 521470501

HOLDER (A)
(Superseded to 515632501)

$31.99

$

In Stock, only 1 left!

0

16

RedMax 520901801

FITTING, GREASE
(Superseded to 505171501)

$6.49

$

Usually ships in 3-10 days

0

17

RedMax 505171601

WASHER, M6 x .8

$3.99

$

Usually ships in 3-10 days

0

18

RedMax 521861101

BOLT, TORX

$4.99

$

In Stock, Qty 20+

0

19

RedMax 528811401

BRACKET ASSY
(Superseded to 574423301)

$14.99

$

Usually ships in 3-10 days

0

20

RedMax 521653901

BRACKET

$5.58

$

Usually ships in 3-10 days

0

21

RedMax 521179901

CAP-L
(Superseded to 514367301)

$

$

Not available

22

RedMax 521664601

BRACKET-UP

$6.49

$

Usually ships in 3-10 days

0

23

RedMax 521345401

BOLT (RPLS 28501
(Superseded to 504114301)

$6.49

$

In Stock, Qty 12

0

24

RedMax 521861601

BOLT

$3.49

$

Usually ships in 3-10 days

0

25

RedMax 512576301

PROTECTOR

$34.99

$

Usually ships in 3-10 days

0

26

RedMax 521822101

HANGER COMP.

$

$

Not available

27

RedMax 521515301

SCREW

$4.99

$

Usually ships in 3-10 days

0

28

RedMax 528801901

LABEL, NAME

$

$

Not available

29

RedMax 521653801

GRIP ASSY

$62.99

$

In Stock, Qty 5

0

30

RedMax 576045301

HANDLE HALF SET
(Superseded to 576475202)

$31.99

$

Usually ships in 3-10 days

0

32

RedMax 521659201

LEVER

$3.99

$

Usually ships in 3-10 days

0

33

RedMax 521659401

SPRING

$

$

Not available

34

RedMax 521659601

LEVERS

$3.49

$

Usually ships in 3-10 days

0

35

RedMax 521851601

SWITCH

$10.99

$

In Stock, Qty 12

0

36

RedMax 521517701

SCREW

$4.99

$

In Stock, Qty 5

0

37

RedMax 512847401

SCREW

$4.99

$

Usually ships in 3-10 days

0

38

RedMax 521000601

NUT

$4.99

$

In Stock, Qty 7

0

39

RedMax 521527801

CABLE-C

$12.99

$

Usually ships in 3-10 days

0

40

RedMax 521526301

CORD-C

$7.49

$

Usually ships in 3-10 days

0

41

RedMax 521805801

TUBE

$8.99

$

Usually ships in 3-10 days

0

42

RedMax 574395401

GUARD ASSY
(Superseded to 578403401)

$34.99

$

In Stock, Qty 8

0

43

RedMax 574395601

BLADE

$6.49

$

In Stock, Qty 20+

0

44

RedMax 521862901

SCREW
(Superseded to 502843901)

$6.49

$

In Stock, Qty 20+

0

45

RedMax 521000601

NUT

$4.99

$

In Stock, Qty 7

0

46

RedMax 521653101

BRACKET

$4.99

$

Usually ships in 3-10 days

0

47

RedMax 512846401

BOLT, TORX

$8.99

$

In Stock, Qty 11

0

49

RedMax 510989401

GOGGLExxx (RPLS

$

$

Not available

50

RedMax 970370901

4
(Superseded to 511010601)

$59.99

$

In Stock, only 3 left!

0

51

RedMax 521540701

CASE

$18.99

$

In Stock, only 3 left!

0

52

RedMax 521819801

EYELET
(Superseded to 512549801)

$3.99

$

In Stock, Qty 20+

0

53

RedMax 521819401

COVER (RPLS T318

$13.99

$

In Stock, Qty 20+

0

54

RedMax 521819501

HOLDER, CORD (RP

$17.99

$

In Stock, Qty 20+

0

55

RedMax 521819601

SPRING

$3.99

$

In Stock, Qty 20+

0

56

RedMax 511011401

CORD
(Superseded to 521819701)

$

$

Not available

58

RedMax 521176401

BAND

$6.49

$

Usually ships in 3-10 days

0

60

RedMax 521821501

GUARD

$8.99

$

Usually ships in 3-10 days

0

61

RedMax 521658101

HANDLE COMP.
(Superseded to 522898001)

$66.99

$

Usually ships in 3-10 days

0

62

RedMax 512569301

PLATE

$

$

Not available

63

RedMax 510962901

LABEL CAUTON FOR

$7.49

$

Usually ships in 3-10 days

0

101

RedMax 574159301

BLADE, 9

$33.99

$

Usually ships in 3-10 days

0

102

RedMax 574159401

BLADE, 9

$31.99

$

Usually ships in 3-10 days

0

103

RedMax 574158501

BLADE, 8

$

$

Not available

104

RedMax 574158601

BLADE, 9

$

$

Not available

105

RedMax 574158301

BLADE, 8

$

$

Not available

106

RedMax 574158401

BLADE, 9

$29.99

$

Usually ships in 3-10 days

0

107

RedMax 521651101

STRAP ASSY

$15.99

$

Usually ships in 3-10 days

0

108

RedMax 521401701

HOLDER (B)
(Superseded to 515511401)

$12.99

$

Usually ships in 3-10 days

0

109

RedMax 521172201

COVER(10mm)(RPL2
(Superseded to 514358301)

$11.99

$

In Stock, only 3 left!

0
