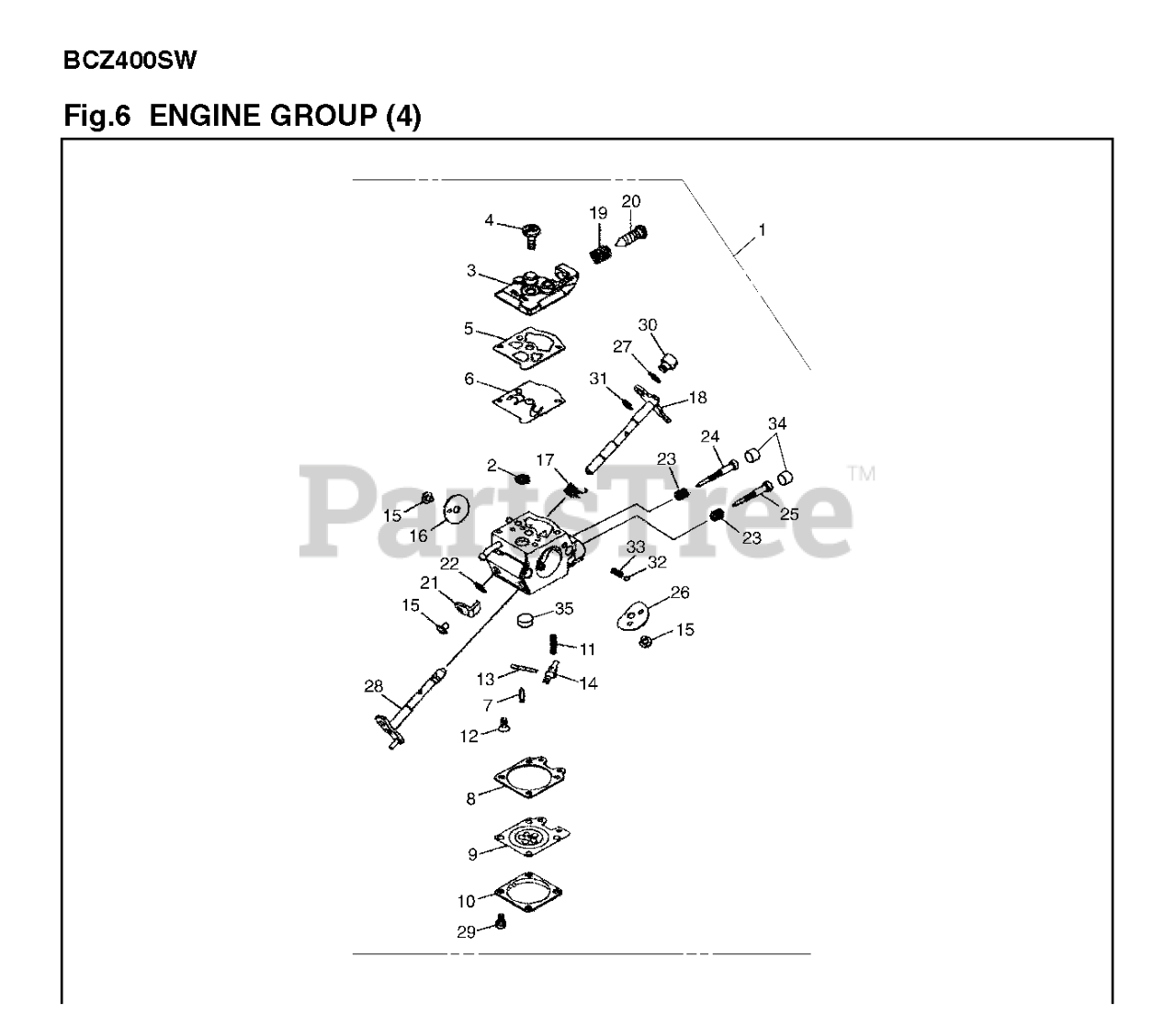

BCZ 400 SW (966785601) - RedMax Brushcutter (2011-11) CARBURETOR Parts Diagram

Brushcutter

CARBURETOR Parts Diagram

  • Title

1

RedMax 577992801

CARBURETOR ASSY WTEA-4A
(Superseded to 577992802)

$157.99

$

Usually ships in 3-10 days

0

2

RedMax 520957001

SCREEN
(Superseded to 574012501)

$4.99

$

Usually ships in 3-10 days

0

3

RedMax 577806901

COVER

$13.84

$

Usually ships in 3-10 days

0

4

RedMax 520976301

SCREW

$4.99

$

Usually ships in 3-10 days

0

5

RedMax 520954801

GASKET
(Superseded to 505055401)

$13.99

$

Usually ships in 3-10 days

0

6

RedMax 520954901

DIAPHRAGM

$12.99

$

Usually ships in 3-10 days

0

7

RedMax 521085401

VALVE INLET
(Superseded to 505055601)

$27.99

$

Usually ships in 3-10 days

0

8

RedMax 516972101

GASKET
(Superseded to 574024001)

$6.49

$

Usually ships in 3-10 days

0

9

RedMax 577807001

DIAPHRAGM

$17.99

$

In Stock, only 1 left!

0

10

RedMax 514189201

COVER

$10.99

$

Usually ships in 3-10 days

0

11

RedMax 578895401

SPRING

$3.99

$

Usually ships in 3-10 days

0

12

RedMax 577807101

SCREW

$3.99

$

Usually ships in 3-10 days

0

13

RedMax 520977401

PIN

$6.49

$

Usually ships in 3-10 days

0

14

RedMax 577807201

LEVER

$2.49

$

Usually ships in 3-10 days

0

15

RedMax 520759801

SCREW
(Superseded to 574024201)

$3.99

$

Usually ships in 3-10 days

0

16

RedMax 514251901

VALVE, THROTTLE

$9.99

$

Usually ships in 3-10 days

0

17

RedMax 577815501

SPRING

$6.49

$

Usually ships in 3-10 days

0

18

RedMax 578895501

SHAFT ASSY THROTTLE

$14.99

$

Usually ships in 3-10 days

0

19

RedMax 513593201

SPRING

$6.49

$

Usually ships in 3-10 days

0

20

RedMax 577815701

SCREW, IDLE

$11.99

$

Usually ships in 3-10 days

0

21

RedMax 577815801

LEVER THROTTLE

$4.99

$

Usually ships in 3-10 days

0

22

RedMax 505056501

E-RING

$2.49

$

Usually ships in 3-10 days

0

23

RedMax 578912801

SPRING

$3.99

$

Usually ships in 3-10 days

0

24

RedMax 578912901

NEEDLE L

$18.99

$

Usually ships in 3-10 days

0

25

RedMax 578913101

NEEDLE H

$17.30

$

Usually ships in 3-10 days

0

26

RedMax 577933901

VALVE CHOKE

$2.49

$

Usually ships in 3-10 days

0

27

RedMax 516524201

WASHER

$3.99

$

In Stock, only 2 left!

0

28

RedMax 577816401

SHAFT ASSY CHOKE

$21.99

$

Usually ships in 3-10 days

0

29

RedMax 520978801

SCREW ASSY

$3.99

$

Usually ships in 3-10 days

0

30

RedMax 513400801

SWIVEL

$27.99

$

Usually ships in 3-10 days

0

31

RedMax 506738601

RING
(Superseded to 516523601)

$3.99

$

Usually ships in 3-10 days

0

32

RedMax 514242601

BALL

$8.99

$

In Stock, only 1 left!

0

33

RedMax 514243301

CHOKE SPRING

$10.99

$

Usually ships in 3-10 days

0

34

RedMax 578913001

CAP LIMITER

$9.99

$

Usually ships in 3-10 days

0

35

RedMax 577807301

PLUG

$2.49

$

Usually ships in 3-10 days

0
