BE 550 (966997301) - Husqvarna Bed Edger (2008-07) Chassis, Engine Parts Diagram

Bed Edger

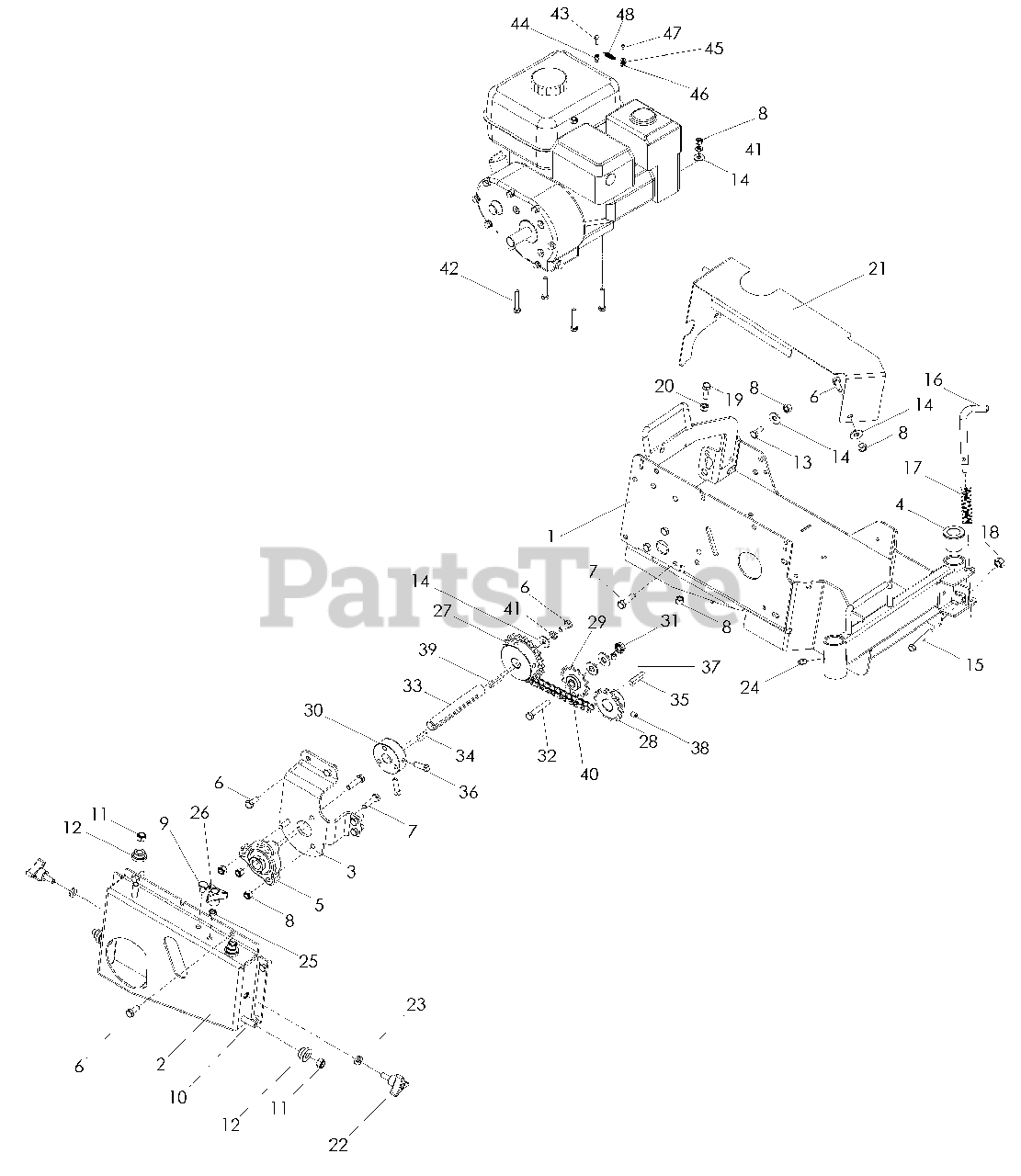

Chassis, Engine Parts Diagram

  • Title

1

Husqvarna 510367301

FRAME, ORANGE

$

$

Not available

2

Husqvarna 510373201

COVER, CHAIN

$96.99

$

In Stock, only 1 left!

0

3

Husqvarna 510367601

SUPPORT, BEARING

$

$

Not available

4

Husqvarna 539101232

BUSHING, FLANGED

$6.49

$

In Stock, Qty 11

0

5

Husqvarna 539100488

BEARING, FLANGED

$74.99

$

In Stock, Qty 5

0

6

Husqvarna 539976934

HCS 5/16-18 x 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 539990627

HCS 5/16-18 x 1 1/4

$4.99

$

In Stock, Qty 10

0

8

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 539109545

OIL CAP 3/8

$27.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539976941

HCS 3/8-16 x 1 1/4

$4.99

$

In Stock, Qty 6

0

11

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 539106847

BUSHING

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990206

HCS 5/16-18 x 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 539990692

WASHER 5/16 STD FLT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

15

Husqvarna 539991003

HCS 1/4-20 x 1 3/4

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539109526

PIN, SPRING

$34.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539020034

SPRING, COMPRESSION

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539976978

NUT 1/4-20 HEX NYLOC
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539990209

HCS 5/16-18 x 1

$3.49

$

Usually ships in 3-10 days

0

20

Husqvarna 539990196

NUT 5/16-18 HEX

$1.49

$

Usually ships in 3-10 days

0

21

Husqvarna 510373101

COVER

$

$

Not available

22

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$2.49

$

In Stock, Qty 20+

0

23

Husqvarna 539101704

WASHER 5/16 SEALING

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539976997

ZERK 1/8 NPT

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539107897

NUT 5/16-18 HEX JAM

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539111321

KNOB 5/16-18 NYLOC

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539111106

SPROCKET W/KEY

$48.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539109532

SPROCKET, ENGINE
(Superseded to 539111102)

$48.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539000301

SPROCKET ASSM, IDLER

$37.99

$

In Stock, only 2 left!

0

30

Husqvarna 539109514

HUB, MOUNTING

$84.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990613

NUT 3/8-16 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539990730

HCS 3/8-16 x 1 3/4

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539112042

SHAFT

$78.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539102067

KEY 1/4 SQ x 3/4

$5.99

$

In Stock, only 4 left!

0

35

Husqvarna 539109159

KEY 7mm SQ x 33mm

$10.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539102716

SETSCREW 5/16-18 x 1

$3.99

$

In Stock, only 3 left!

0

37

Husqvarna 539990517

WASHER 3/8 STD FLT

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539976956

SETSCREW 5/16-18 x 3/8

$3.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539109165

KEY 3/16 SQ x 1 1/4

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539130885

CHAIN, TRANSMISSION

$18.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539990187

WASHER 5/16 SPLT LOCK
(Superseded to 596238801)

$3.99

$

In Stock, Qty 18

0

42

Husqvarna 539990669

HCS 5/16-18 x 1 3/4
(Superseded to 874780528)

$7.49

$

In Stock, only 4 left!

0

43

Husqvarna 539108520

HCS M5-0.8 x 16mm GR 8.8

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539109154

NUT 5MM-.8 HEX

$3.99

$

Usually ships in 3-10 days

0

45

Husqvarna 539030449

CLAMP, THROTTLE CABLE

$36.99

$

Usually ships in 3-10 days

0

46

Husqvarna 539030451

E-RING CLIP

$6.49

$

Usually ships in 3-10 days

0

47

Husqvarna 539108583

SCREW #8-32 x 1/4

$3.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539030445

SPRING, THROTTLE

$9.99

$

Usually ships in 3-10 days

0
